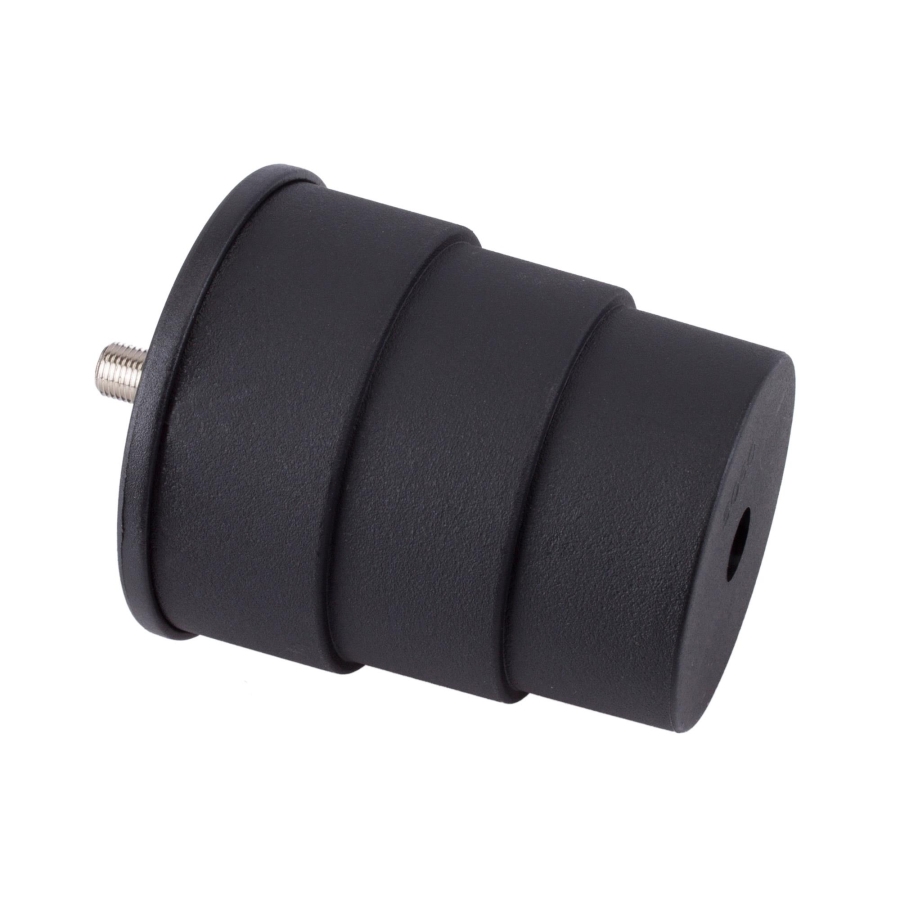

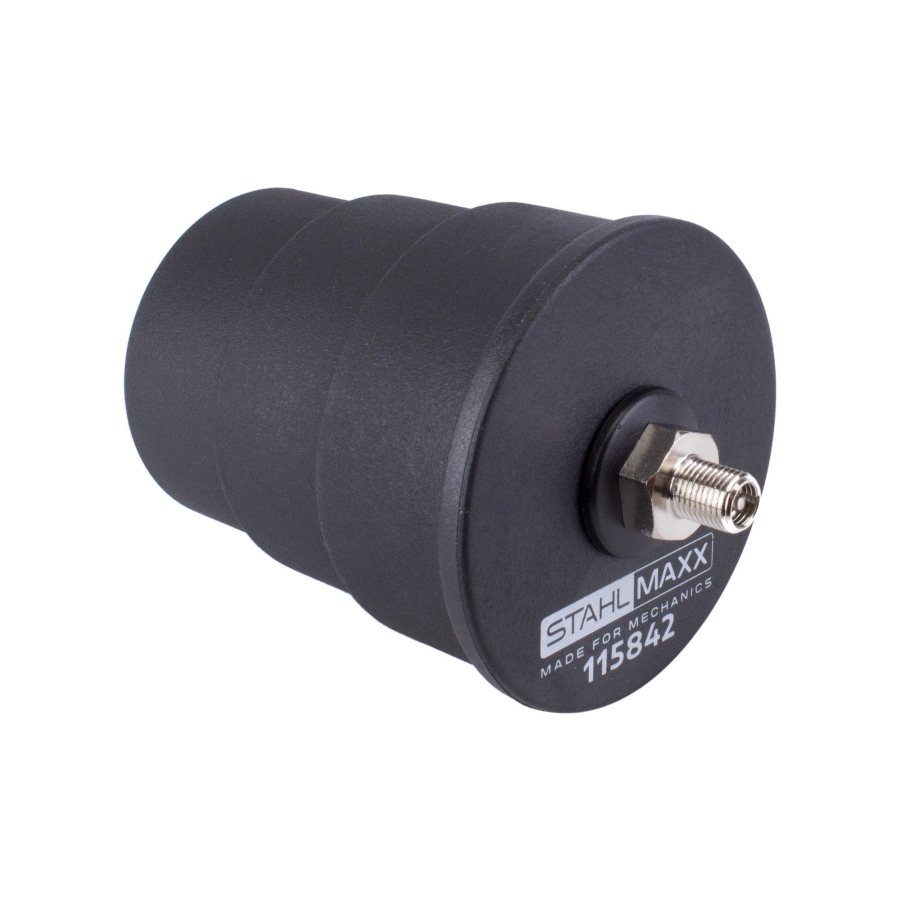

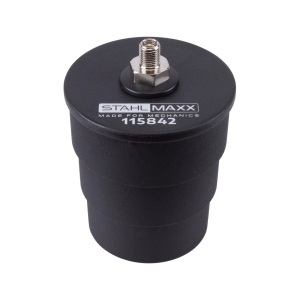

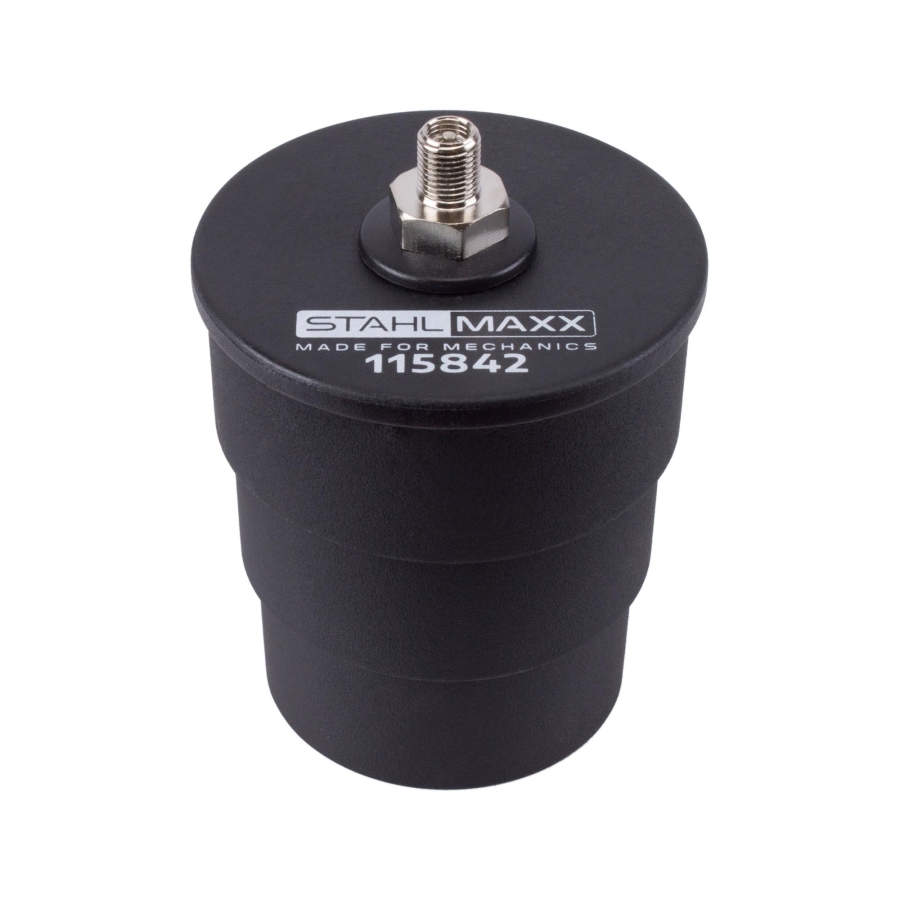

Charge Air System Pressure Test Adapter 50–55–60 mm
-
Code:115842
-
Weight:0.096 Kgs
Overview:
✔ Professional adapter for boost pressure testing of charge air systems
✔ Covers hose inner diameters: 50 mm, 55 mm, 60 mm
✔ Enables quick leak detection in intercooler and boost hoses
✔ Compatible with standard tire inflator (air compressor)
✔ Allows controlled pressure testing of intake system
✔ No need for disassembly of components
✔ Suitable for turbocharged petrol and diesel engines
This adapter is designed for pressure testing (leak detection) of the charge air system in turbocharged engines. It enables fast and accurate identification of leaks in boost hoses, intercoolers, and intake systems.
Application & Function
By connecting the adapter to a tire inflator or compressed air source, the system can be pressurized, allowing easy detection of pressure loss and leaks without dismantling components.
Typical diagnostic scenarios:
- Loss of engine power
- Suspected boost leak
- Damaged intercooler or charge air hoses
Size Range & Compatibility
The adapter features stepped sizing for flexible use:
- 50 mm
- 55 mm
- 60 mm
Suitable for hoses with corresponding inner diameters.
Efficient Diagnostics Without Disassembly
Allows complete testing of the charge air system without removing components, saving time and effort during diagnostics and repair.
Expandable System
Additional adapters ranging from 35 mm to 90 mm (in 5 mm increments) are available for full system coverage.
Scope of Delivery
- 1 x Pressure Test Adapter – stepped design 50 / 55 / 60 mm
