Turbo Charge Air Hose Pressure Test Adapter Kit

This extensive adapter set is designed for professional and cost-efficient detection of leaks in turbocharger systems. It allows testing of components such as boost hoses, intercoolers, and intake systems without removing parts.

Application & Function

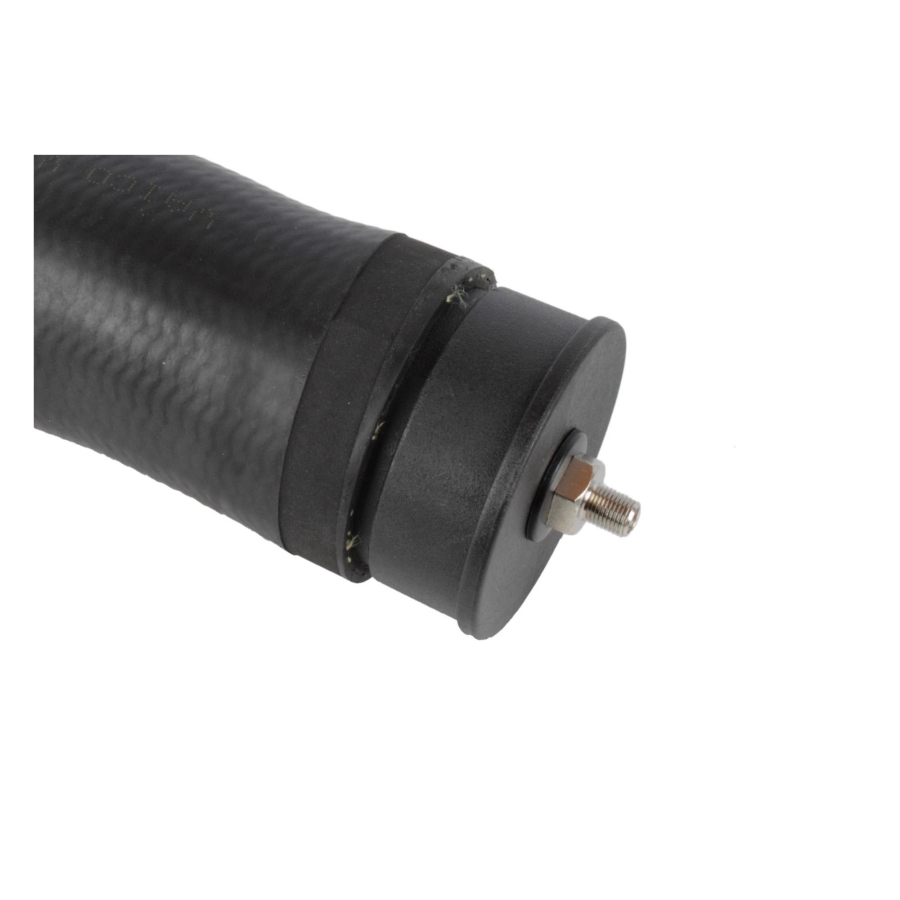

The adapters are used to seal and pressurize the charge air system using a standard tire inflator or compressed air source. Leaks can be identified by:

• Pressure drop monitoring
• Manual air leakage detection
• Use of leak detection spray for precise localization

Compatibility

Suitable for most charge air systems with clamped hose connections, including:

• Turbochargers
• G-chargers
• Supercharger systems

Compatible with many vehicle brands such as:
VW, Mercedes-Benz, Renault, Nissan and others.

Also suitable, depending on the vehicle, for testing EGR systems.

Wide Size Coverage

Includes adapters covering the following ranges:

• 35 – 40 – 45 mm
• 50 – 55 – 60 mm
• 65 – 70 – 75 mm
• 80 – 85 – 90 mm

Workshop-Friendly Use

• Operates without additional special tools

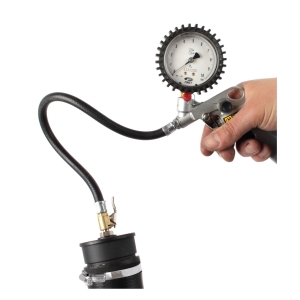

• Works with standard tire inflators
• Can be used with leak detection fluids for enhanced accuracy

Recommended accessory:
Silicone hose set – Item No. 115989

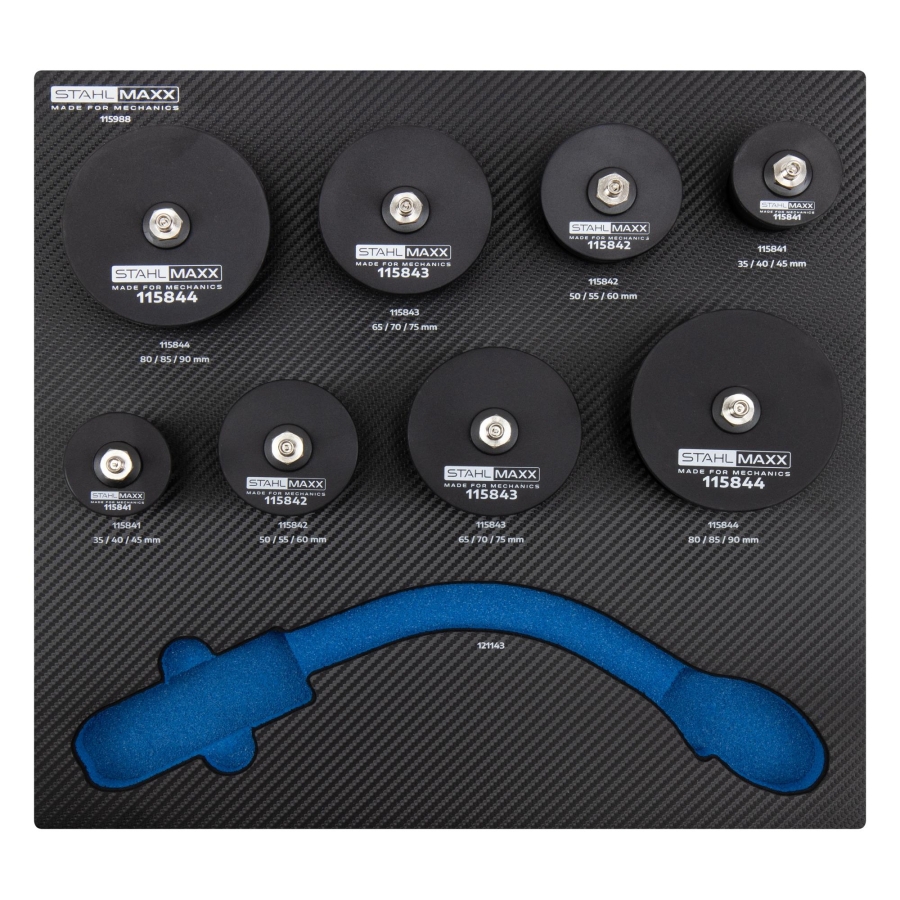

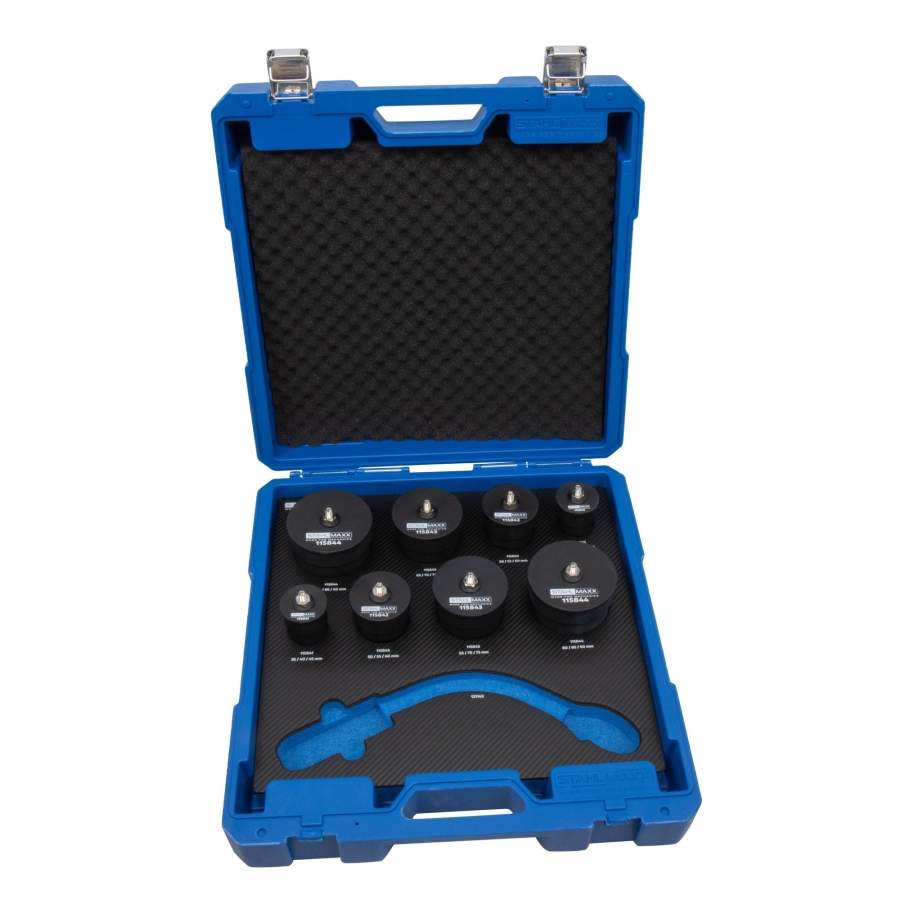

Scope of Delivery

• 2 x Item No. 115841 – Adapters 35 / 40 / 45 mm
• 2 x Item No. 115842 – Adapters 50 / 55 / 60 mm
• 2 x Item No. 115843 – Adapters 65 / 70 / 75 mm
• 2 x Item No. 115844 – Adapters 80 / 85 / 90 mm
• 1 x Item No. 115988S – Foam insert
• 1 x Item No. 122802 – Storage case
