Turbo Charge Air System Pressure Test Kit with Regulator

This pressure testing kit is designed for accurate and efficient detection of leaks in turbocharged charge air systems. It is suitable for testing components such as boost hoses, intercoolers, and intake systems.

Application & Function

The system allows controlled pressurization of the charge air system using a standard compressed air connection (DN7.2).

Unlike basic solutions, this kit includes a pressure regulator with manometer, allowing the system to remain pressurized for extended periods. This helps to precisely locate leaks and assign them to specific components.

Leak detection methods include:

• Monitoring pressure drop over time
• Manual inspection (air escape)
• Use of leak detection spray or soapy water

Wide Compatibility

Suitable for most turbo systems with:

• Hose connections secured by clamps
• Intercoolers and boost hoses
• Petrol and diesel turbo engines

Advantages Over Basic Test Methods

• No tire inflator required
• Direct compressed air connection (DN7.2)
• Controlled and stable pressure application
• Enables long-duration testing for precise diagnostics

Safety & Control

• Integrated pressure regulator with gauge (manometer)
• Shut-off valve for pressure control
• Overpressure safety valve to prevent system damage

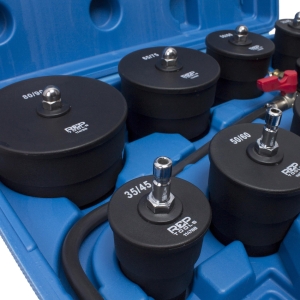

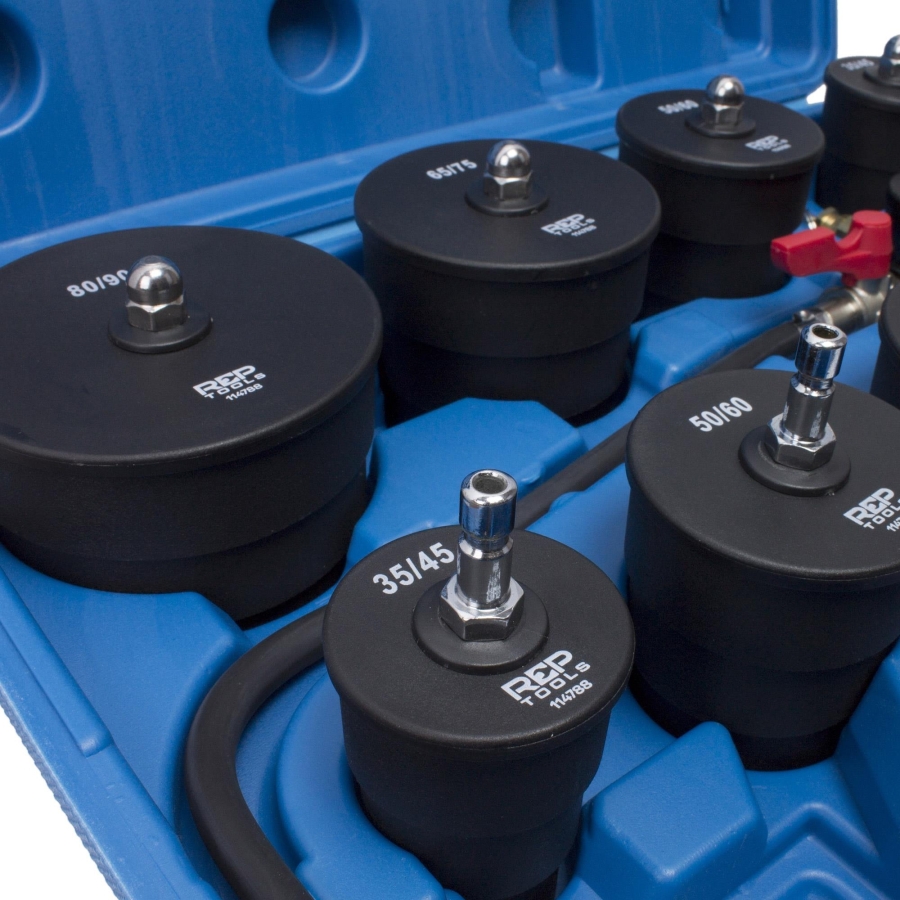

Adapter Coverage

Includes stepped adapters for flexible use:

With air connection:

• 35 / 40 / 45 mm
• 50 / 55 / 60 mm
• 65 / 70 / 75 mm
• 80 / 85 / 90 mm

With sealing caps:

• 35 / 40 / 45 mm
• 50 / 55 / 60 mm
• 65 / 70 / 75 mm
• 80 / 85 / 90 mm

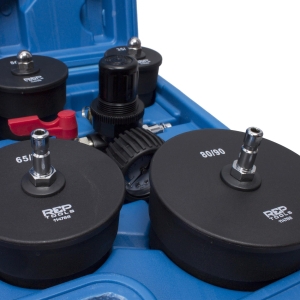

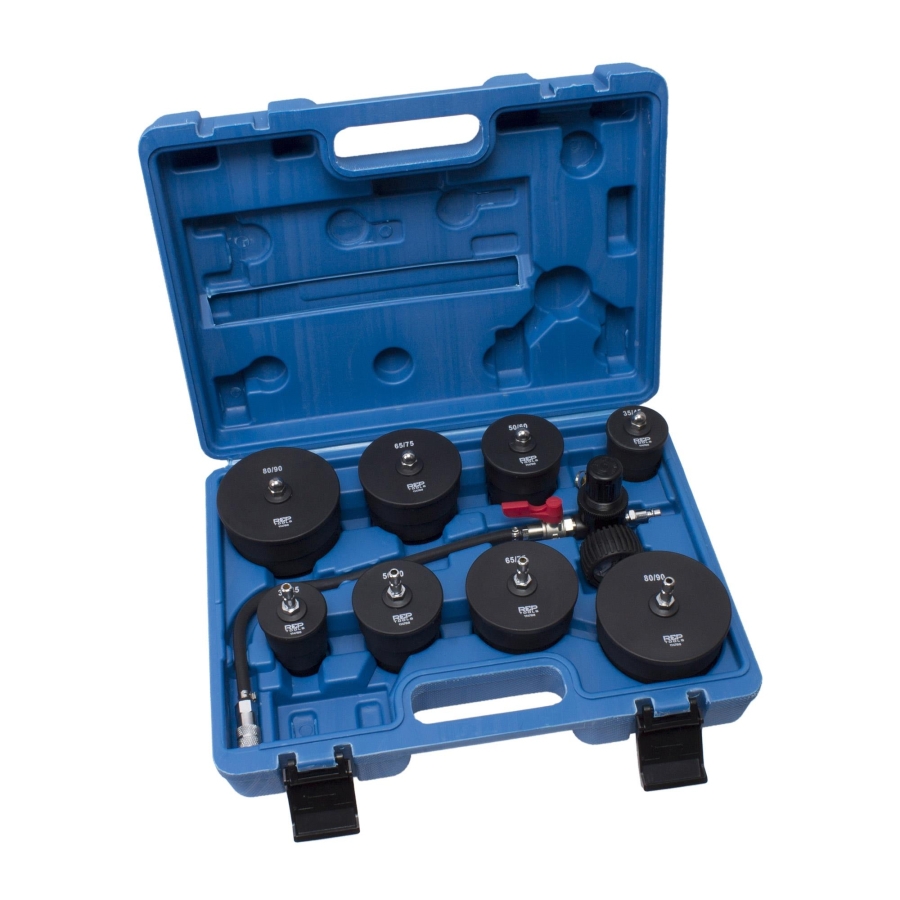

Scope of Delivery

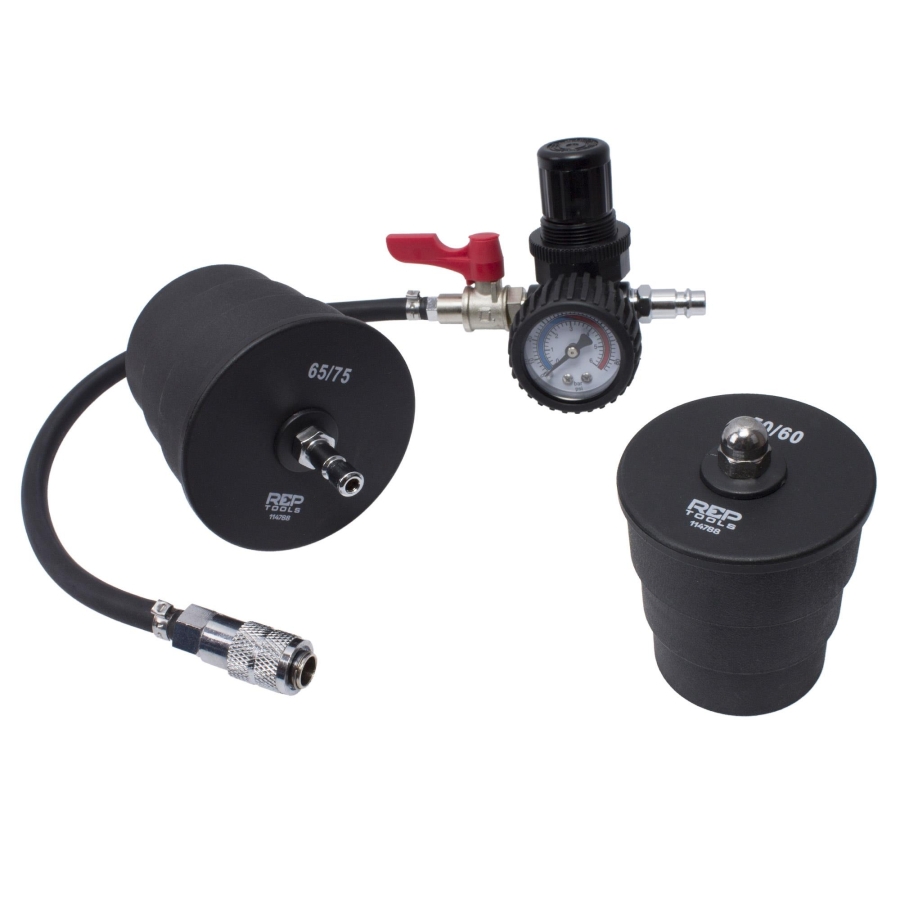

• 1 x Pressure regulator with manometer, hose & shut-off valve
• 1 x Step adapter with air connection – 35 / 40 / 45 mm
• 1 x Step adapter with air connection – 50 / 55 / 60 mm
• 1 x Step adapter with air connection – 65 / 70 / 75 mm
• 1 x Step adapter with air connection – 80 / 85 / 90 mm
• 1 x Step adapter with sealing plug – 35 / 40 / 45 mm
• 1 x Step adapter with sealing plug – 50 / 55 / 60 mm
• 1 x Step adapter with sealing plug – 65 / 70 / 75 mm
• 1 x Step adapter with sealing plug – 80 / 85 / 90 mm
• 1 x Storage case
