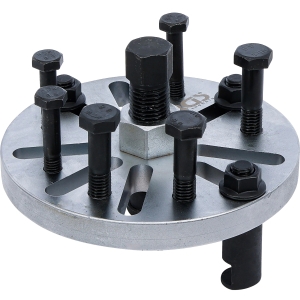

Universal Crankshaft Pulley Puller
Price:
€69.95
-
Code:6646
-
Weight:2.303 Kgs
Overview:
✔ Designed for damage-free crankshaft pulley removal
✔ Two-arm and three-arm configurations
✔ Suitable for pulleys with 3, 4, 5 or 6 mounting holes
✔ Compatible with bolt circles from Ø48 to 114 mm
✔ Suitable for many vehicles, including VW T4 and Audi A3
✔ M8 and M10 puller bolts included

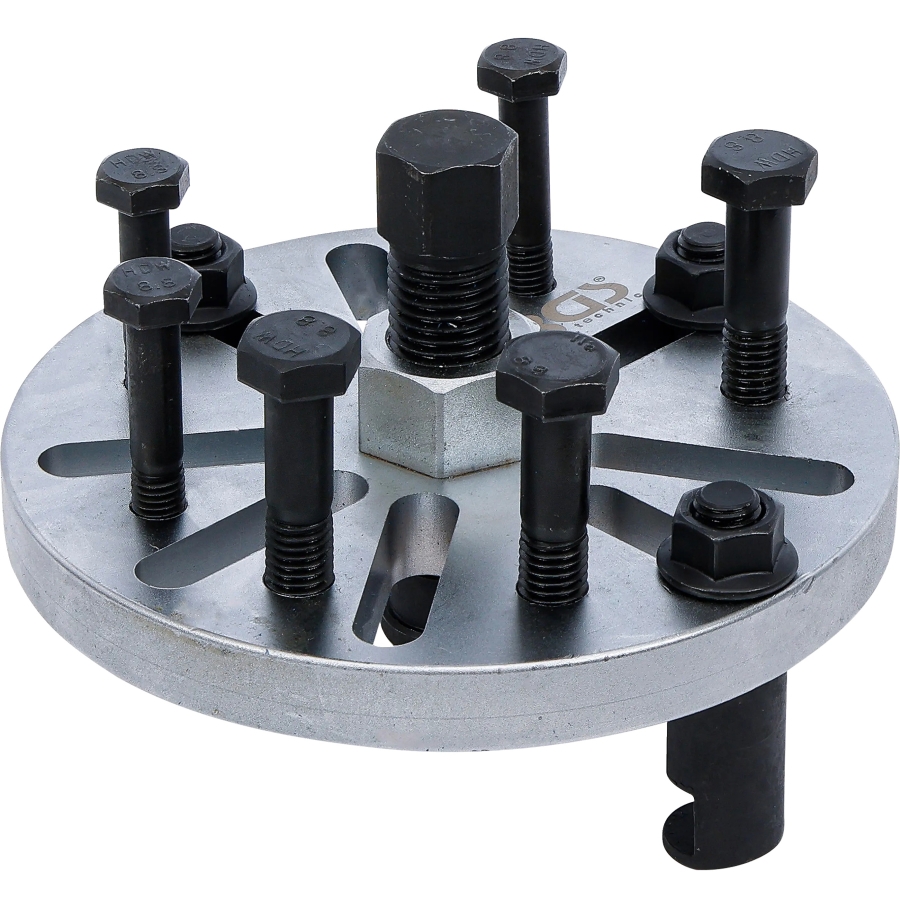

This universal puller is designed for the controlled and damage-free removal of crankshaft pulleys. Its adjustable puller plate and interchangeable arms allow it to be configured for pulleys with different mounting patterns.
The tool is suitable for many vehicle applications, including VW T4, Audi A3 and other models with compatible pulley dimensions.
Puller Configurations

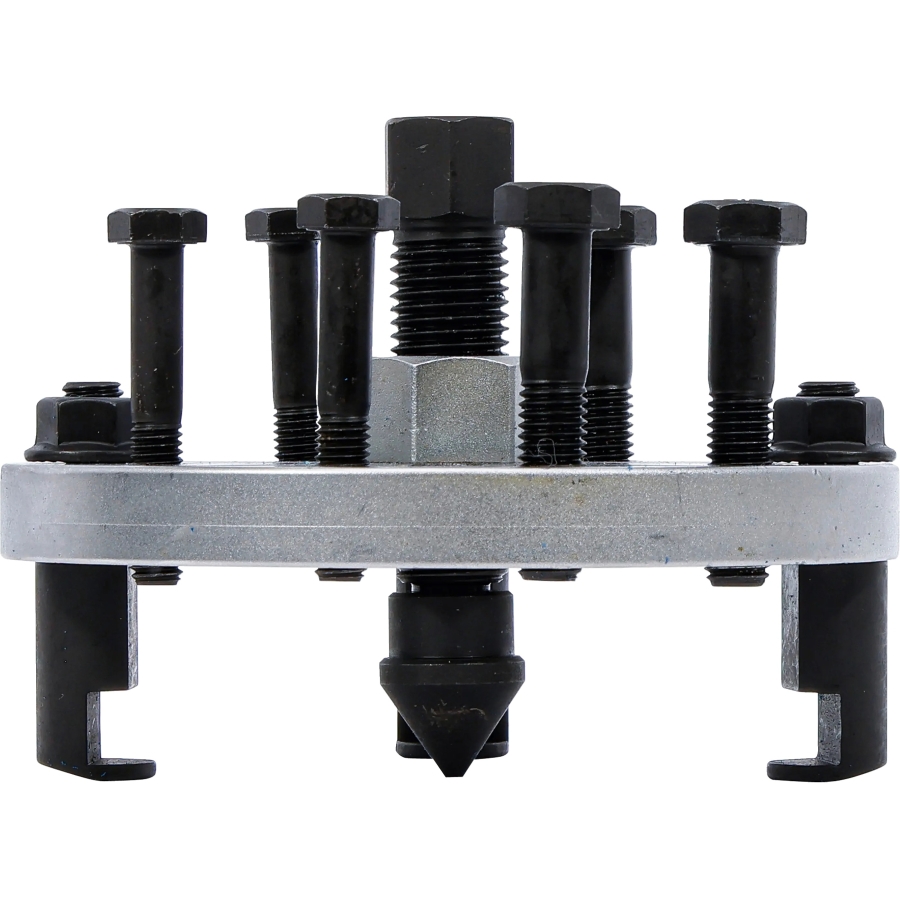

- Three-arm puller for 3- and 6-hole mounting patterns with a bolt circle of Ø48–114 mm
- Two-arm puller for 4-hole mounting patterns with a bolt circle of Ø48–114 mm or Ø61–114 mm
- Three-arm puller for 5-hole mounting patterns with a bolt circle of Ø48–114 mm

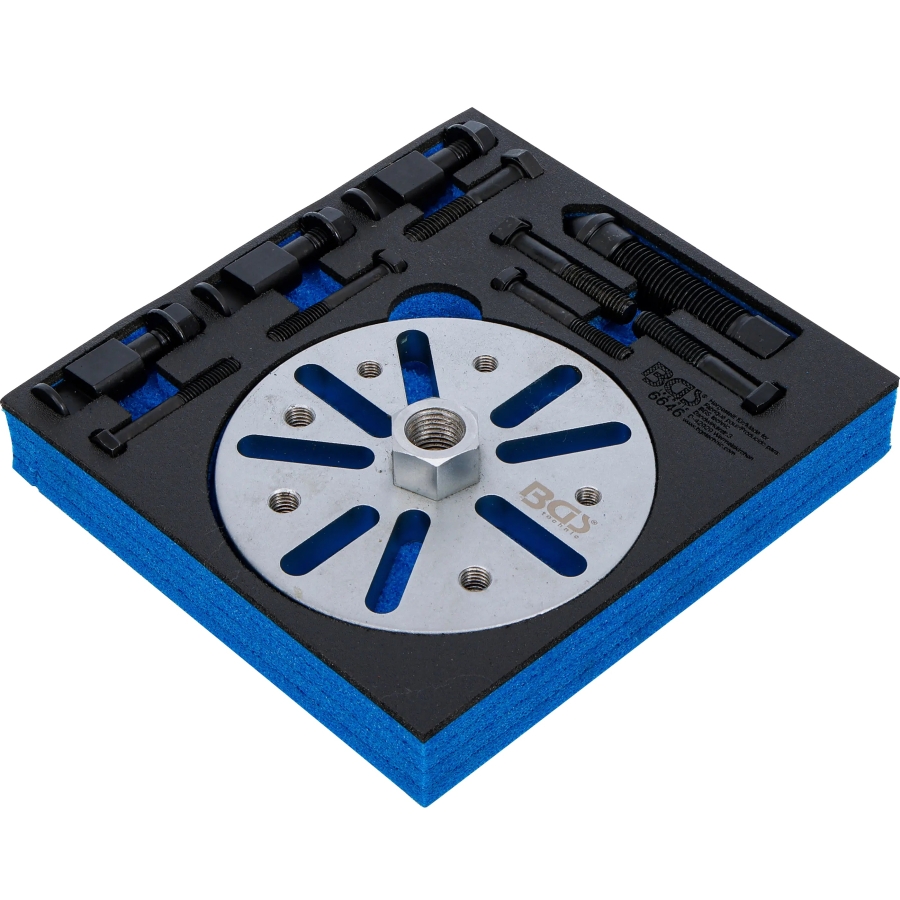

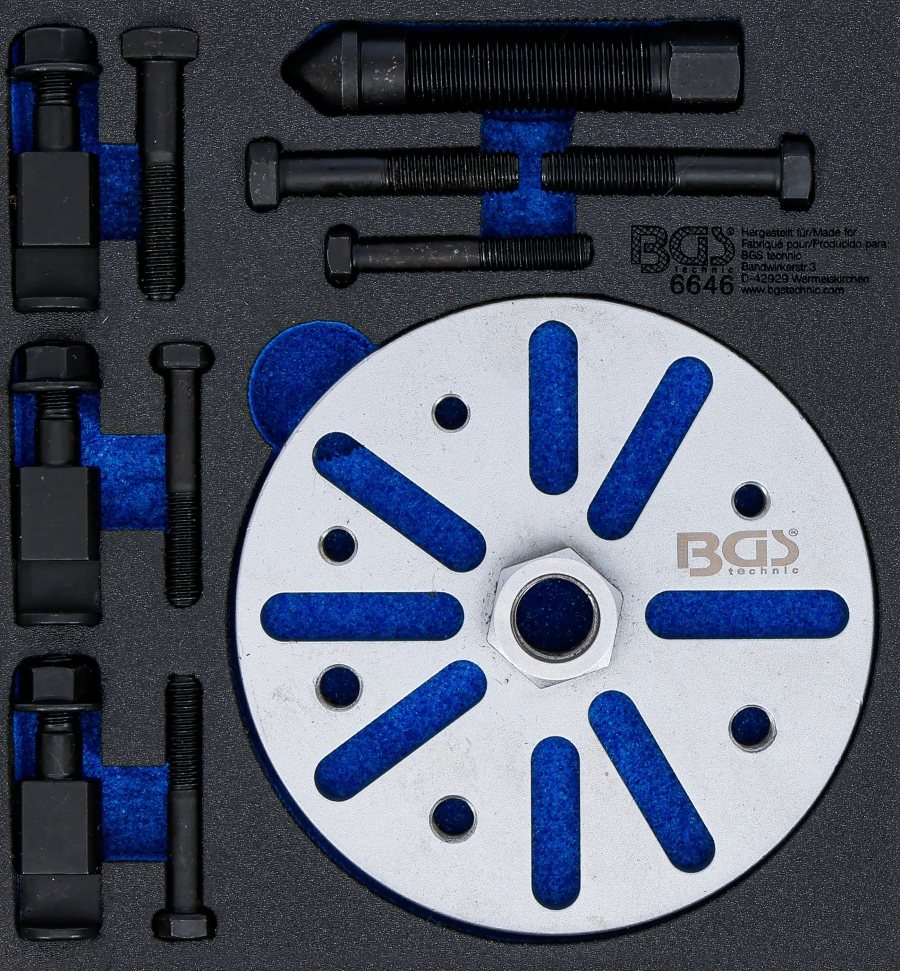

Scope of Delivery

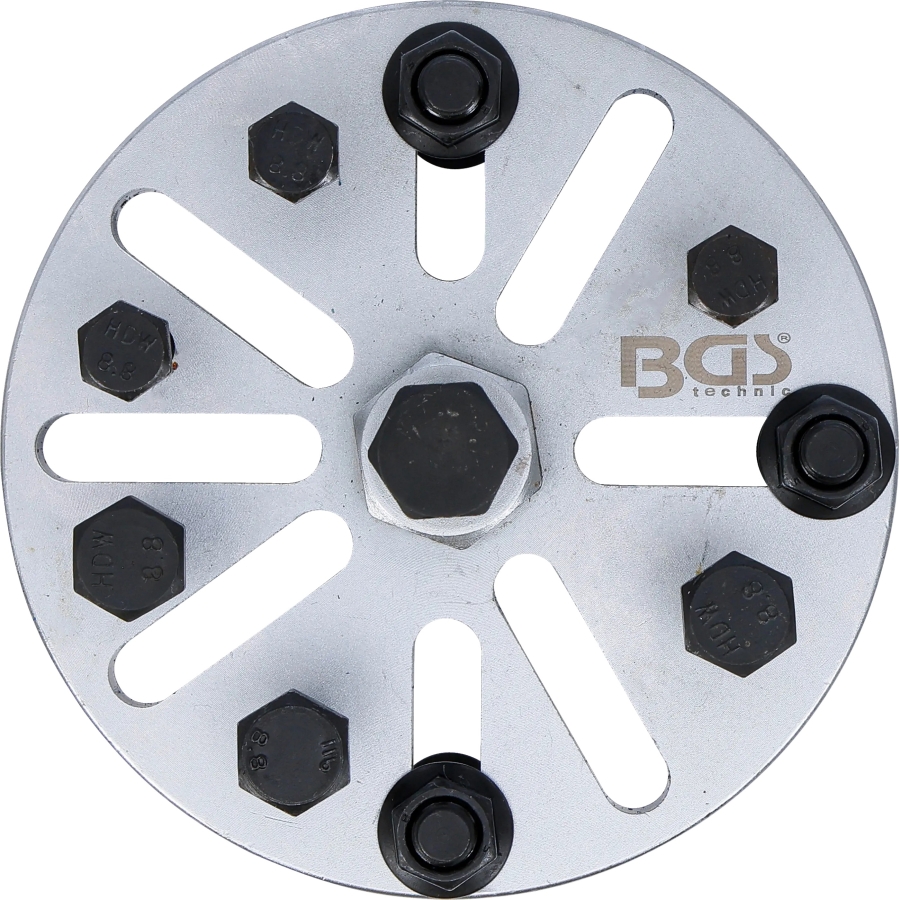

- 1 × Puller plate with eight elongated slots for mounting the puller arms and bolts
- 1 × 17 mm puller spindle with freely rotating centring tip and 19 mm hex drive
- 3 × Puller arms, 33 mm long
- 3 × M8 puller bolts, 50 mm long
- 3 × M10 puller bolts, 50 mm long
