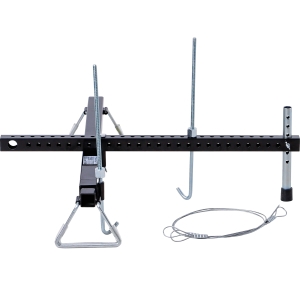

Universal Engine Support Bridge with 2- and 3-Point Support, 315 kg

Price: €159.00

Code:

8515
Weight:

12.682 Kgs

Overview:
✔ Supports engines safely during and after gearbox removal
✔ Suitable for 2- and 3-point support configurations
✔ Maximum load capacity: 315 kg
✔ Adjustable crossbeam width: 1,000–1,550 mm
✔ Longitudinal support adjustable through 24 positions from 90 to 780 mm
✔ Supports positioned on the wing mounting flanges and, when required, the front lock carrier
✔ Variable suspension points for a wide range of vehicles
✔ Includes two engine-support cables

Universal Engine Support Bridge with 2- and 3-Point Support, 315 kg

Send to friend

Rate this product

This universal engine support bridge with centre support is designed to support engines weighing up to 315 kg during and after gearbox removal on front-wheel-drive vehicles.

Its reinforced construction resists twisting and deformation, providing the strength and stability required for workshop use.

Two- and Three-Point Support

The bridge can be configured for either two- or three-point support. The main crossbeam rests on the wing mounting flanges, while the adjustable longitudinal support can additionally be positioned on the front lock carrier when required.

This additional support point helps stabilise the bridge and engine during repair work.

Flexible Positioning

Variable suspension points allow the engine-support cables to be positioned according to the engine layout and available lifting points.

The main crossbeam is adjustable from 1,000 to 1,550 mm. The longitudinal support offers 24 adjustment positions from 90 to 780 mm in 30 mm increments.
