Universal Glow Plug Bore and Seat Cleaning Reamer Set
-
Code:115845
-
Weight:0.320 Kgs
Overview:
✔ Professional cleaning of glow plug bores, shafts and sealing seats
✔ Suitable for almost all common glow plug types and thread sizes
✔ Thread sizes: M8×1.0, M10×1.0, M10×1.25 and M12×1.25
✔ Three stepped reamers for M8, M10 and M12 glow plugs
✔ Greased grooves capture loosened carbon deposits
✔ Adjustable depth stop ensures controlled insertion
This universal reamer set is designed for the correct removal of carbon deposits and contamination from glow plug bores in the cylinder head.
Professional glow plug replacement should include cleaning the bore, shaft, sealing seat and glow-tip opening. This helps prevent leaks, malfunctions and difficulties during subsequent glow plug removal.
Controlled Removal of Deposits
Before use, apply grease to the specially machined grooves of the reamer. The grease binds loosened carbon deposits and assists with their controlled removal from the bore.
The shaped tip closes the glow-pin opening during cleaning and helps prevent loosened deposits from entering it.
Compatible Thread Sizes
- M8×1.0
- M10×1.0
- M10×1.25
- M12×1.25
The threaded guide adapters are screwed into the glow plug thread to centre and guide the appropriate reamer accurately inside the cylinder head.
Reamer Dimensions
- For M8 glow plugs: Tip 4.4 mm, step 6.8 mm, length 170 mm
- For M10 glow plugs: Tip 5.9 mm, step 8.4 mm, length 176 mm
- For M12 glow plugs: Tip 6.9 mm, step 10.4 mm, length 158 mm

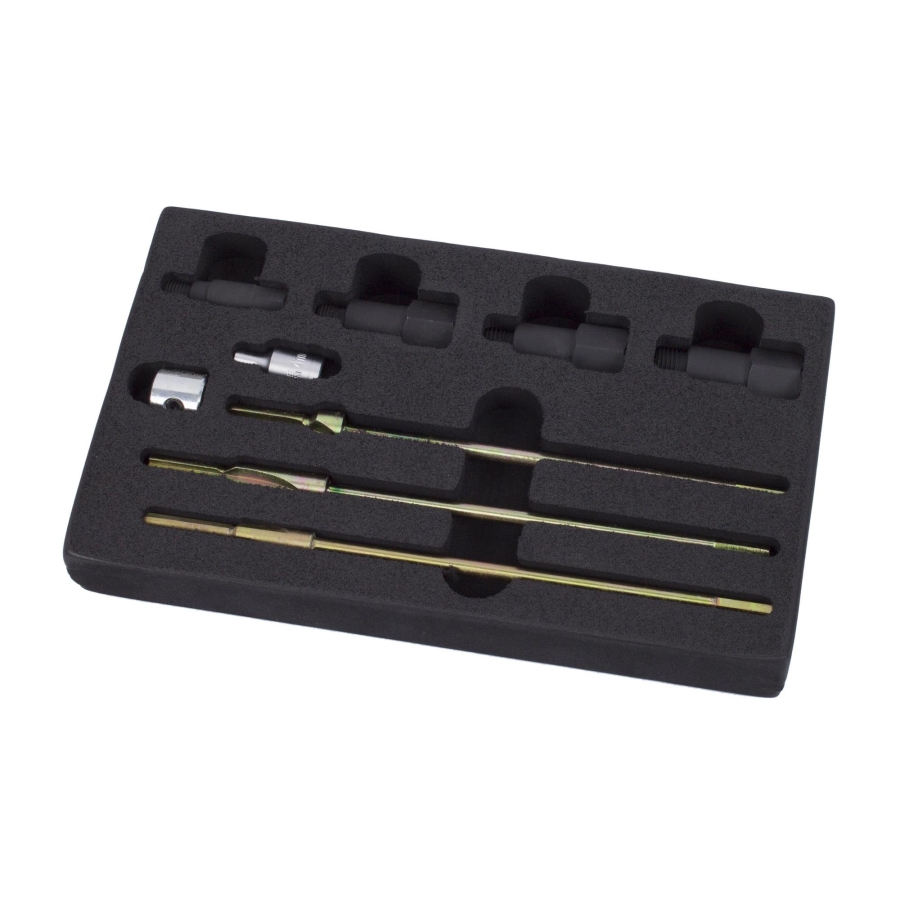

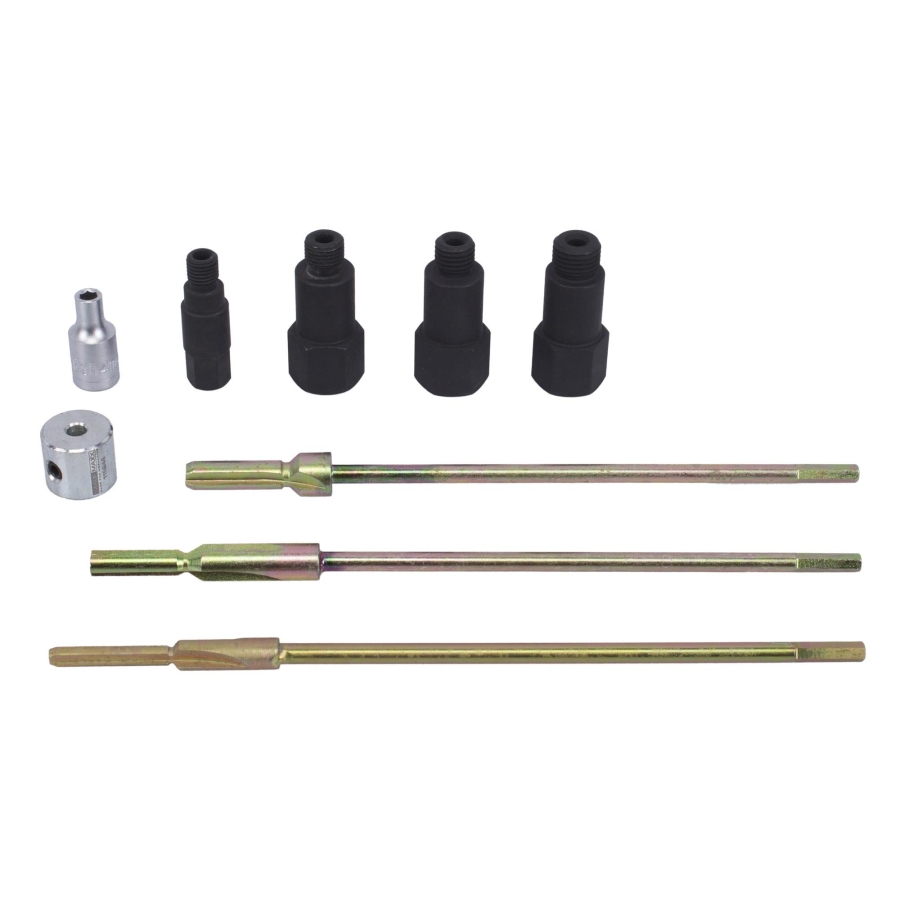

Scope of Delivery
- 1 × threaded guide adapter, M8×1.0
- 1 × threaded guide adapter, M10×1.0
- 1 × threaded guide adapter, M10×1.25
- 1 × threaded guide adapter, M12×1.25
- 1 × stepped reamer for M8 glow plugs
- 1 × stepped reamer for M10 glow plugs
- 1 × stepped reamer for M12 glow plugs
- 1 × drive adapter with 1/4" connection for use with a ratchet or turning handle
- 1 × adjustable depth stop with grub screw
