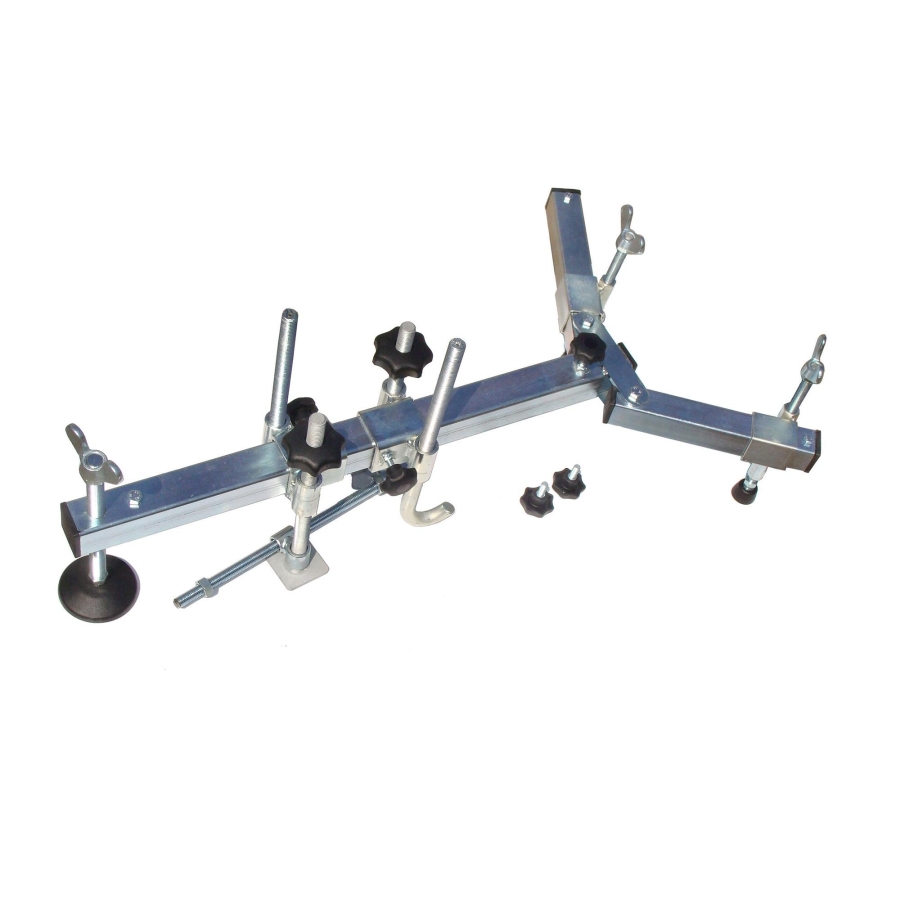

Universal Under-Vehicle Engine Support for Transverse Engines

Price: €549.00

Code:

21000
Weight:

14.000 Kgs

Overview:
✔ Supports transverse engines from beneath the vehicle
✔ Suitable for timing-belt, water-pump and tensioner work
✔ Leaves the upper engine compartment free from an obstructing support bridge
✔ Suitable for vehicles where an upper engine bridge is difficult to install
✔ Adjustable length from 620–900 mm
✔ Flexible support positioning with ball-jointed rubber feet
✔ Includes two hook-shaped and two flat support rods
✔ Maximum load capacity: 250 kg
✔ Fully galvanised construction
✔ Made in Germany

Universal Under-Vehicle Engine Support for Transverse Engines

Send to friend

Rate this product

During work on timing belts, water pumps or tensioners, the engine often needs to be supported.

This universal support is installed beneath the vehicle, leaving the area above the engine free. It is particularly suitable for transverse engines and applications where a conventional engine support bridge cannot be positioned easily.

Suitable for Difficult Vehicle Configurations

The support can be used on a wide range of vehicles, including models with sloping wings, short front sections or engine compartments that provide insufficient mounting space for an upper support bridge.

The absence of an upper crossbar also provides unobstructed access to the engine compartment.

Adjustable Support Points

The overall length can be adjusted from 620–900 mm.

Ball-jointed rubber feet allow the support points to be positioned flexibly and adapted to the available mounting surfaces beneath the vehicle.

Manual Adjustment

The engine support is adjusted manually using T-handles and wing screws. This allows the support rods and contact points to be positioned according to the vehicle configuration.
