Universal Wheel Bearing and Hub Removal & Installation Tool Kit 21 pcs

This professional wheel bearing and wheel hub service kit from REPTOOLS is designed for the removal and installation of pressed and bolted wheel bearings as well as wheel hubs on a wide range of passenger cars and light commercial vehicles.

The set is suitable for most common wheel bearings and tapered roller bearings with separately removable wheel hubs.

Professional Construction

Manufactured from high-quality SCM440 steel and additionally hardened for increased durability and resistance to wear.

The heavy-duty threaded spindle is designed for impact wrench operation and has been tested for long service life under demanding workshop conditions.

Important Usage Information

Although the threaded spindle is suitable for impact wrench use, it is recommended to perform the initial loosening operation and any work on seized or heavily corroded components using a manual drive tool, such as a breaker bar, to reduce stress on the tool and components.

Capacity

The supplied kit allows wheel bearing removal and installation for bearings with an outer diameter of up to 85 mm.

The system can be expanded using:

• Item no. 104934 – Extension for bearings up to Ø 91 mm

Features

• Suitable for pressed wheel bearings
• Suitable for bolted wheel bearings
• Universal application for many vehicle types
• SCM440 steel construction
• Additional heat-treated components
• Impact wrench-compatible spindle
• Robust 7/8"-9 UNS spindle thread
• Professional workshop quality

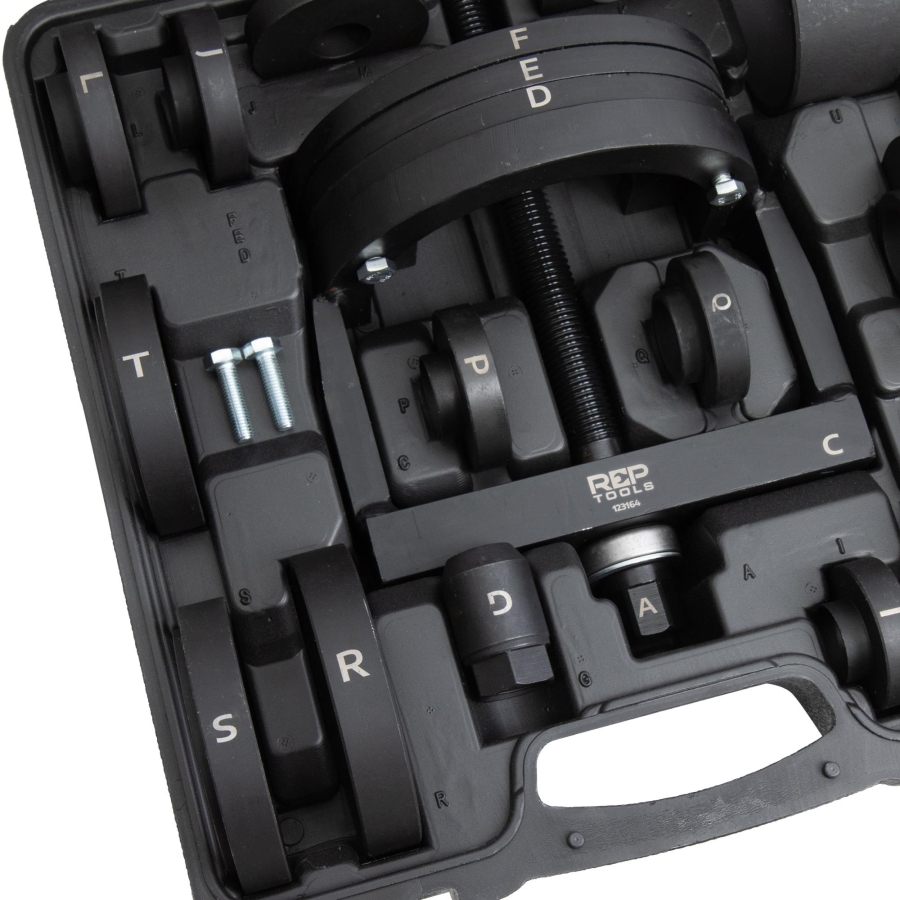

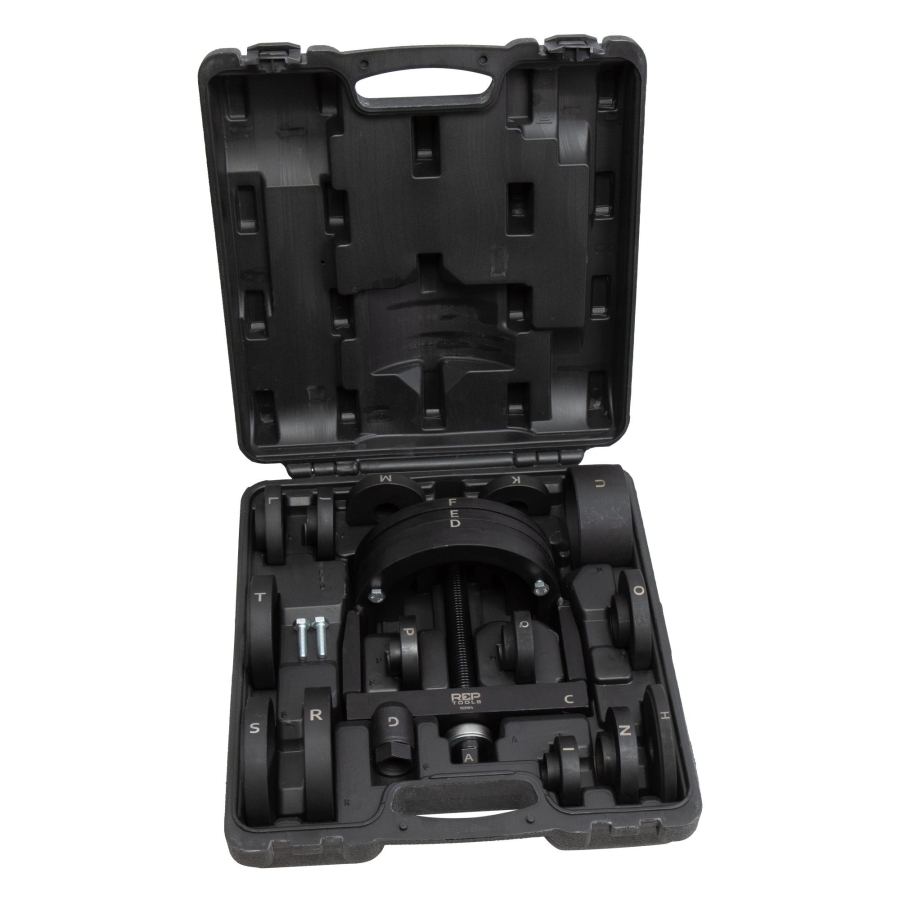

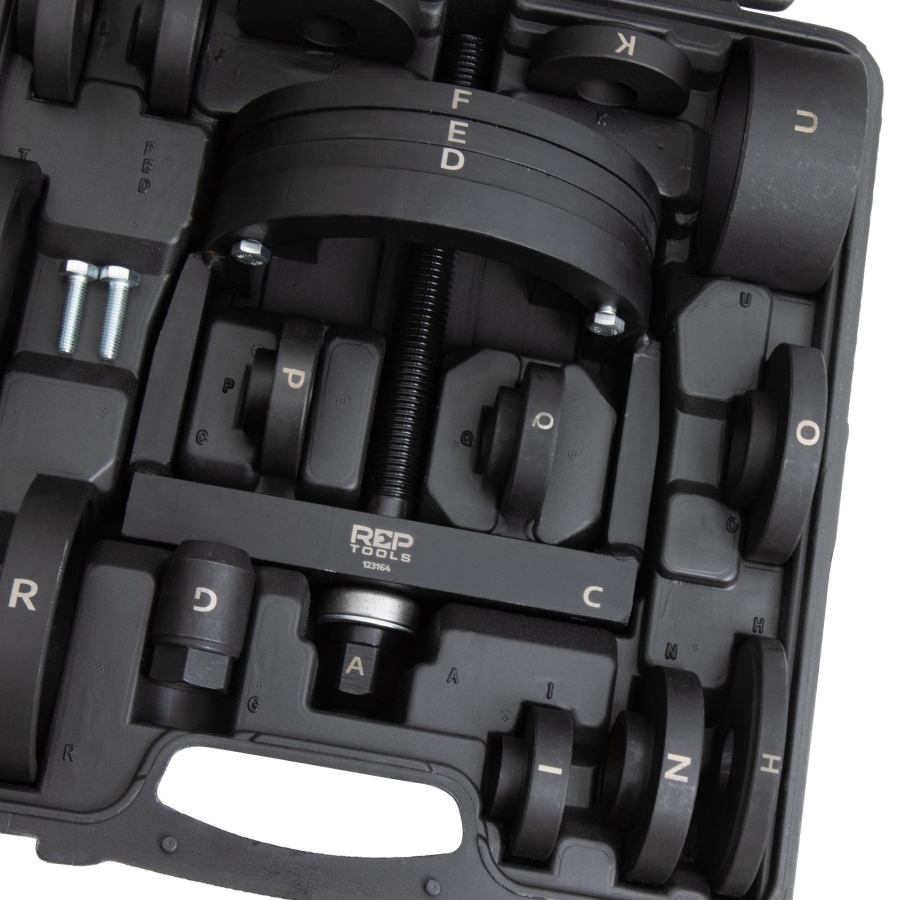

Package Contents

Spindle and Pulling Components

• 1 × High-strength threaded spindle with thrust bearing, Marking A, Ø 22 mm, length 250 mm, 24 mm hex drive
• 1 × Spindle nut, Marking G, length 52 mm, 27 mm hex drive
• 1 × Pulling bridge with opening, Marking C, Ø 140 mm, height 135 mm, crossbar thickness 25 mm
• 4 × Hex mounting bolts M8 × 1.25 × 30 mm

U-Shaped Inserts

• 1 × U-insert, Marking F, Ø 120 mm
• 1 × U-insert, Marking E, Ø 100 mm
• 1 × U-insert, Marking D, Ø 90 mm

Pulling Ring and Adapters

• 1 × Pulling ring, Marking U, inner Ø 85 mm, outer Ø 98 mm, height 45 mm
• 1 × Closing plate for pulling ring, Marking H, inner bore 23 mm, outer Ø 95 mm
• 1 × Adapter disc, Marking R, inner Ø 87 mm, outer Ø 110 mm, height 20 mm
• 1 × Adapter disc, Marking S, inner Ø 82 mm, outer Ø 100 mm, height 20 mm
• 1 × Adapter disc, Marking T, inner Ø 70 mm, outer Ø 95 mm, height 20 mm

Pressure Discs

• 1 × Pressure disc, Marking I, outer Ø 53 mm
• 1 × Pressure disc, Marking J, outer Ø 66 mm
• 1 × Pressure disc, Marking K, outer Ø 65 mm
• 1 × Pressure disc, Marking L, outer Ø 73 mm
• 1 × Pressure disc, Marking M, outer Ø 71 mm
• 1 × Pressure disc, Marking N, outer Ø 78 mm
• 1 × Pressure disc, Marking O, outer Ø 83 mm
• 1 × Pressure disc, Marking P, outer Ø 63 mm
• 1 × Pressure disc, Marking Q, outer Ø 59 mm

Original numbers are for comparison purposes only. This is not an original manufacturer tool.

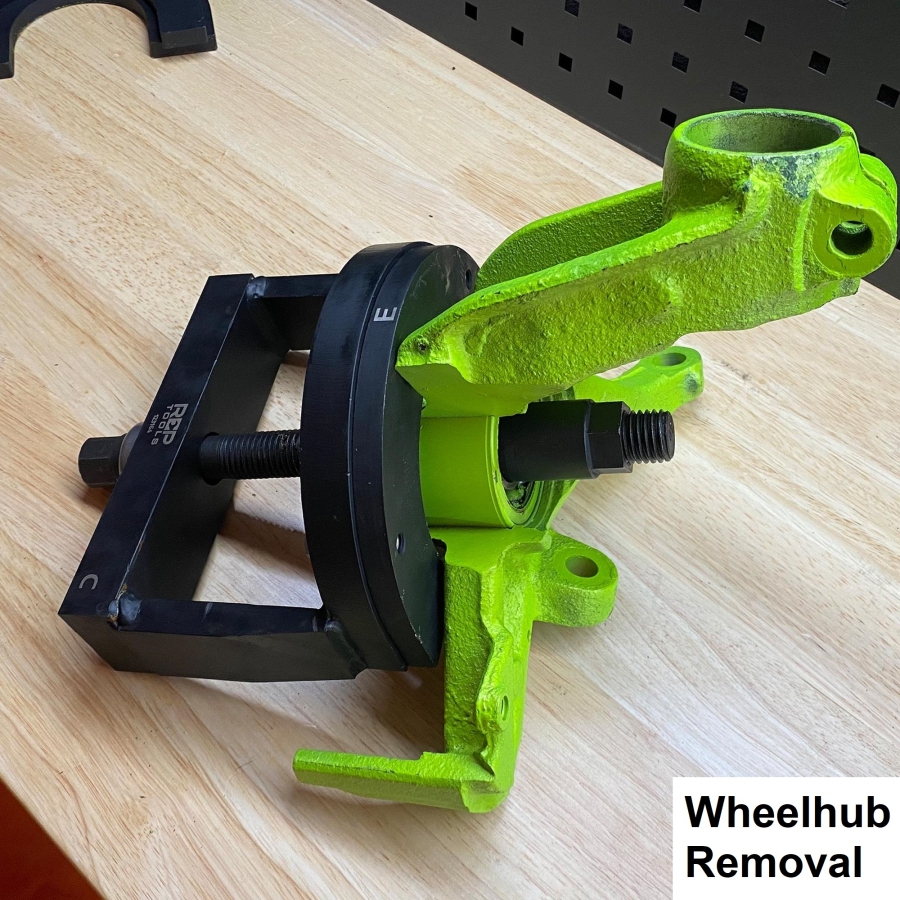

Wheel Hub Removal

1. Position the extraction yoke with the correct U-shaped insert behind the wheel hub.
2. Insert the threaded spindle with bearing through the center bore until it passes behind the wheel bearing.
3. Check whether a pressure washer is required for wheel hub removal – in most cases, the nut alone is sufficient.
4. Install the nut and ensure that the extraction yoke is properly seated and correctly aligned.
5. Operate the threaded spindle using a T-handle or impact wrench to pull the wheel hub out.

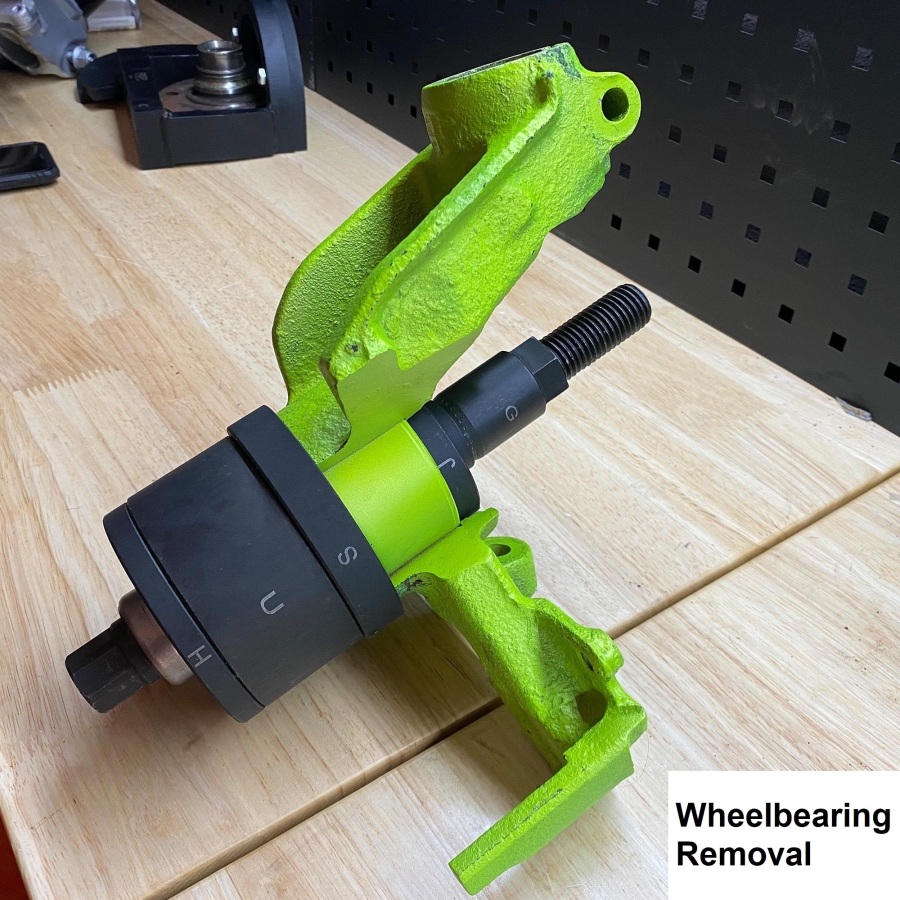

Wheel Bearing Removal

1. Remove the retaining ring from the steering knuckle.
2. Install the extraction ring together with the appropriate adapter disc and locking plate.
3. Insert the spindle and remove the wheel bearing using the suitable pressure disc.
4. Clean the wheel carrier and the retaining ring groove, then apply a suitable lubricant.

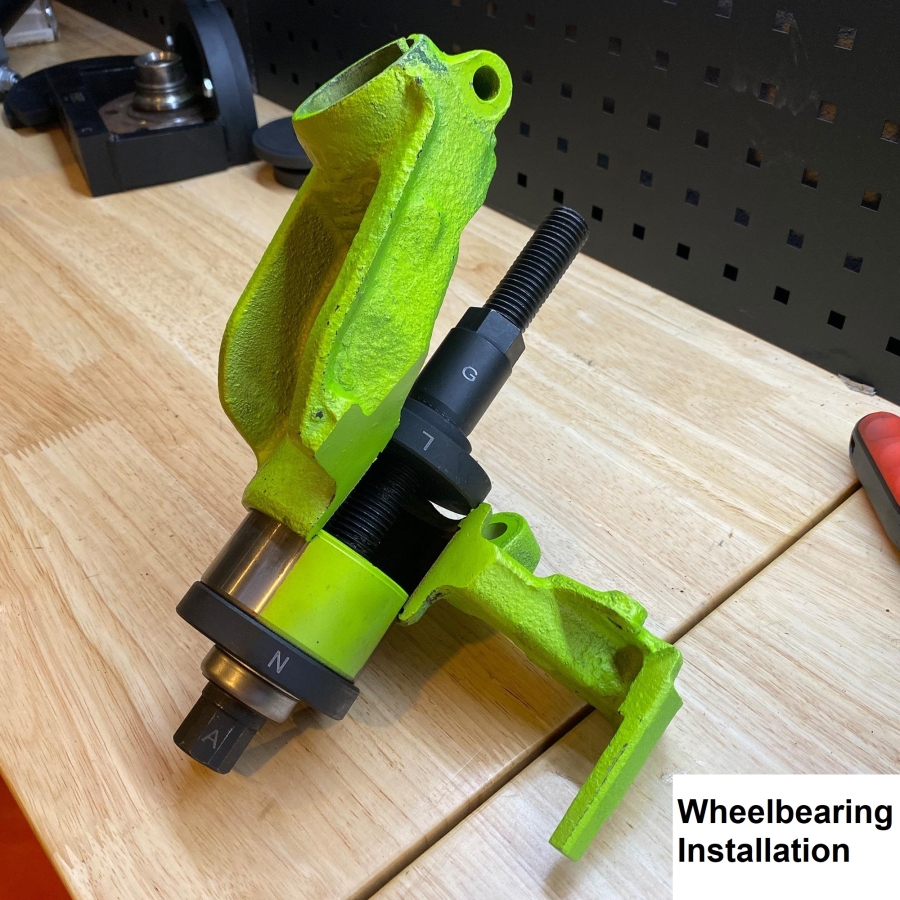

Wheel Bearing Installation

1. Use an appropriate pressure piece or the old wheel bearing as a support against the new wheel bearing, if available. Take care not to damage the ABS sensor ring.
2. Position the corresponding pressure piece on the opposite side and align it with the spindle and nut.
3. Press the wheel bearing fully into place until installation is complete.
4. Reinstall the retaining ring.

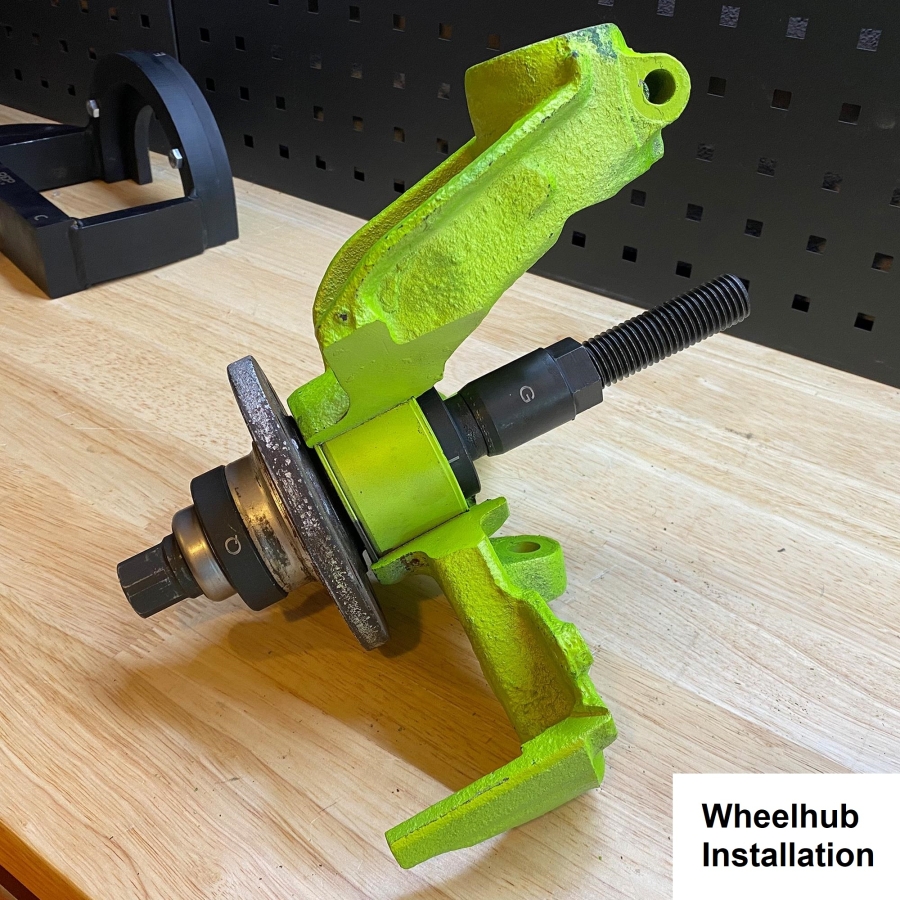

Wheel Hub Installation

1. Install the appropriate pressure piece (matching the inner diameter of the wheel bearing race).
2. Insert the wheel hub from the front using the correct pressure piece or sleeve.
3. Press the wheel hub into position until it is fully seated.
