UV Leak Detection Flashlight Kit for R134a Air Conditioning Systems
-
Code:3710
-
Weight:1.564 Kgs
Overview:
✔ Professional leak detection kit for vehicle air conditioning systems using R134a refrigerant
✔ Designed for locating leaks and refrigerant losses from close range
✔ Cordless design for improved mobility during diagnostics
✔ High-output 3W UV-CREE LED flashlight with multiple lighting modes
✔ Compatible with standard leak detection additives available on the market
✔ Includes UV safety glasses, UV lamp, battery, charger, syringe, low-pressure adapter, and hose
✔ Suitable for professional workshop use
This UV leak detection kit is designed for fast and accurate identification of refrigerant leaks in automotive air conditioning systems operating with R134a refrigerant. R134a was commonly used in European type-approved vehicles up to 31.12.2010 and can typically be identified through the low-pressure and high-pressure service ports.
The system enables reliable detection of refrigerant leaks, damaged seals, pipe connections, evaporators, condensers, and other air conditioning components.

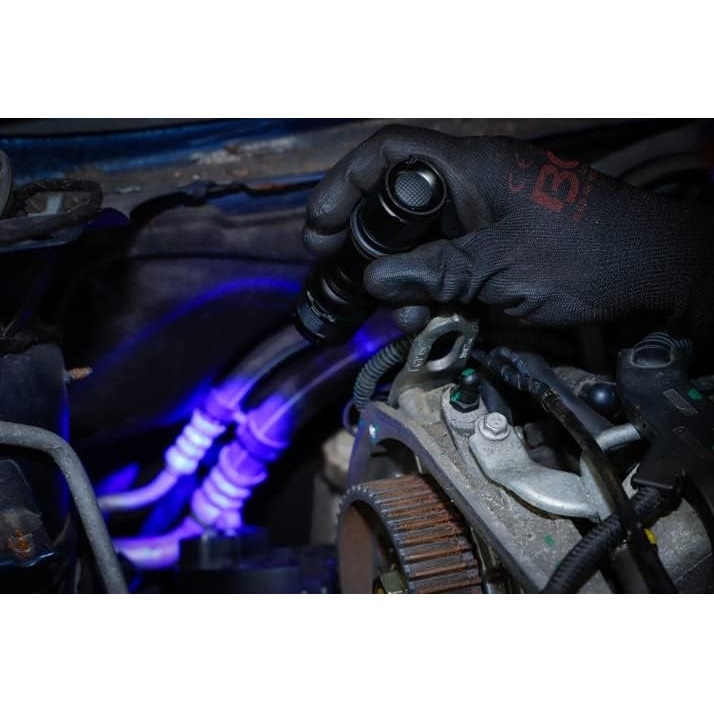

Close-Range High Visibility Leak Detection
The supplied high-performance UV flashlight uses a 3W UV-CREE LED light source, allowing leak tracing even at very short distances for improved inspection precision.
Lighting modes:
- Bright
- Dimmed
- Flashing
The powerful UV illumination clearly highlights fluorescent leak detection additives, helping reduce diagnosis time and improving fault detection efficiency.
Cordless Workshop Design
The kit features a rechargeable cordless design for unrestricted movement during servicing and diagnostic procedures.
Battery specifications:
- Battery type: Lithium-Ion
- Nominal voltage: 3.7 V
- Capacity: 1500 mAh
Charger specifications:
- Input: 110–220 V
- Output: 5 V / 0.5 A

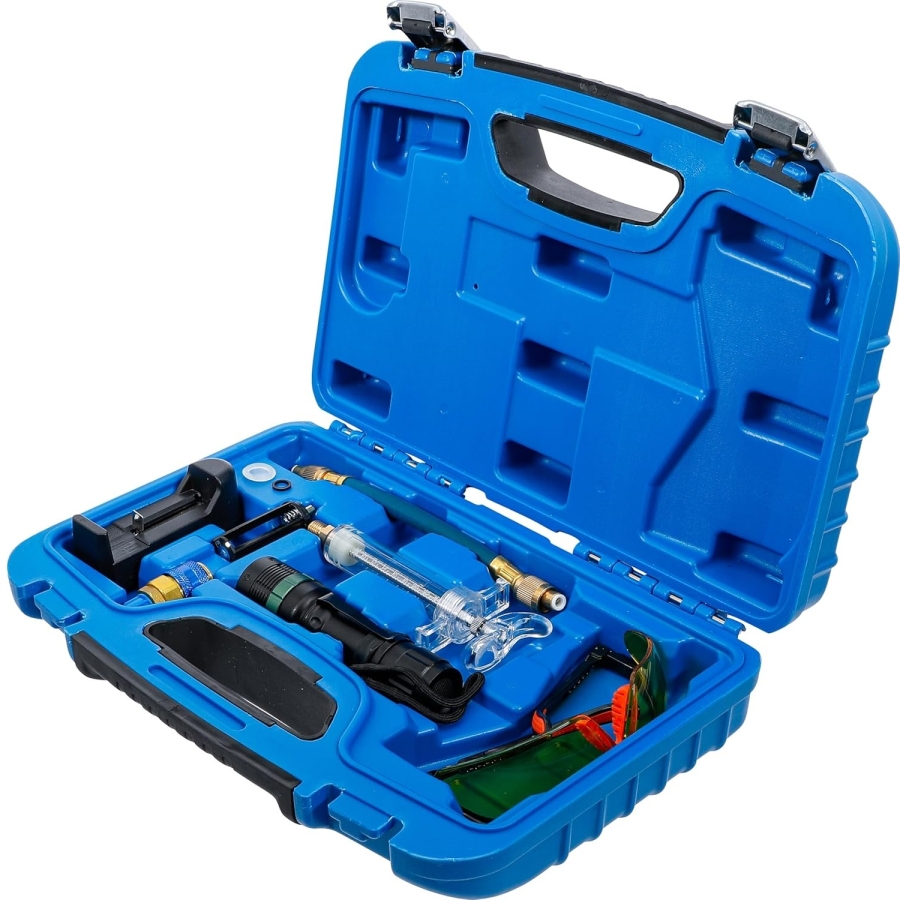

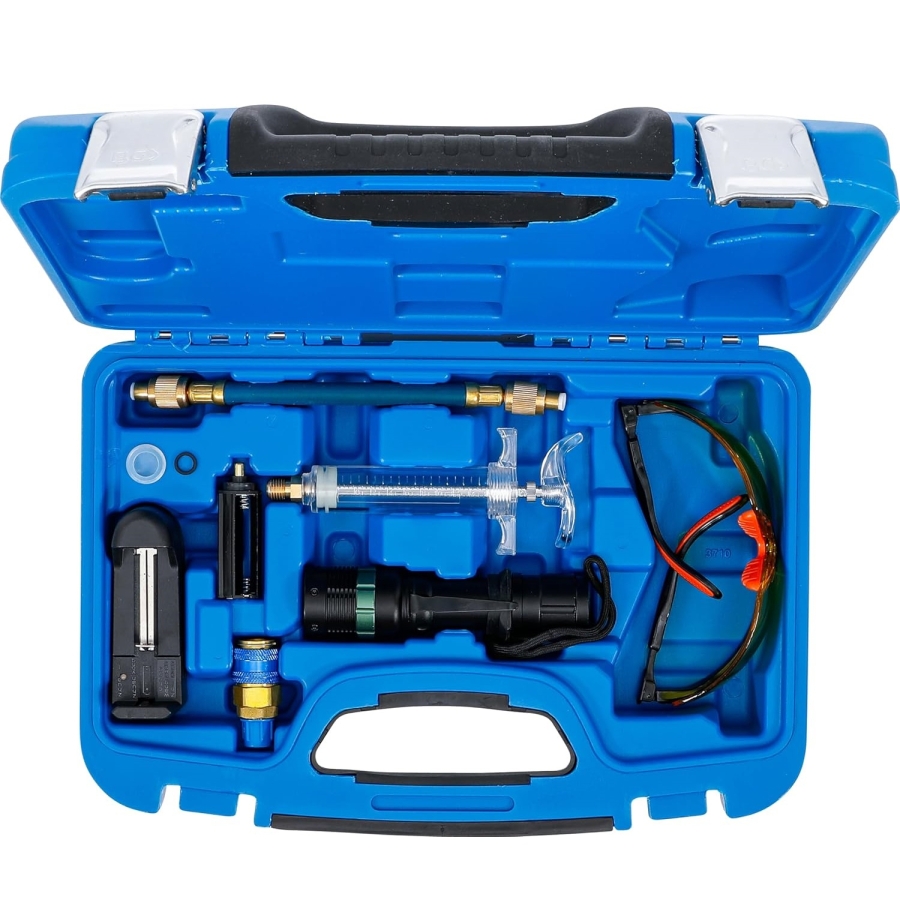

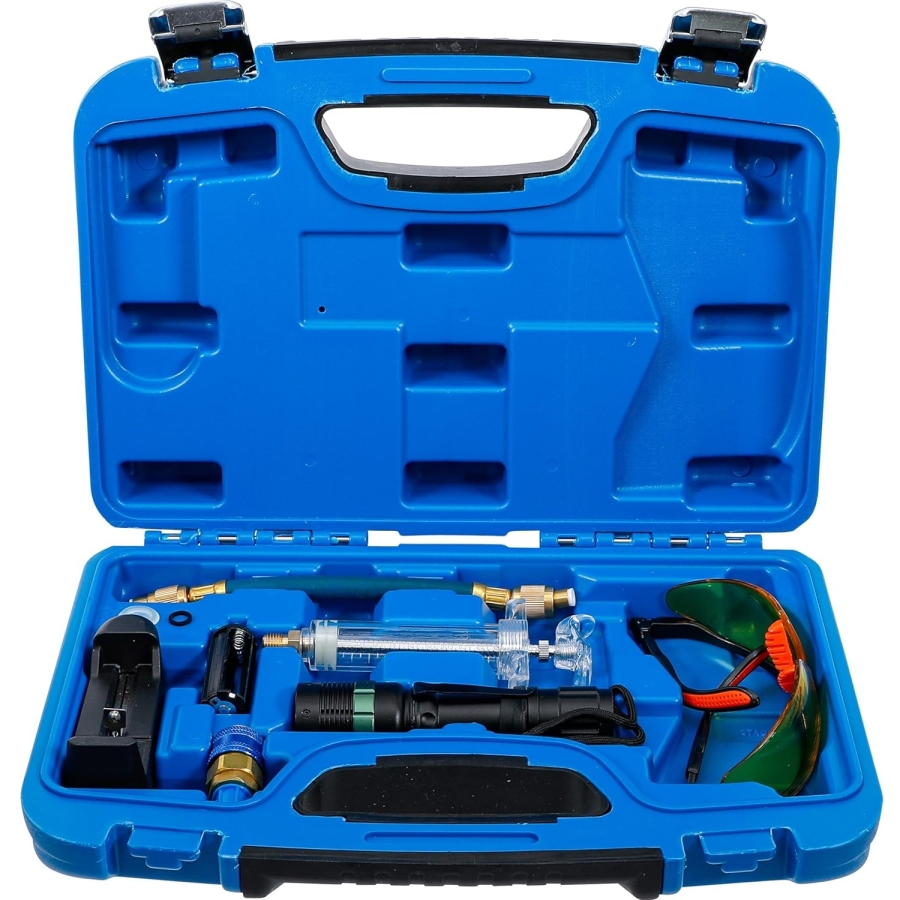

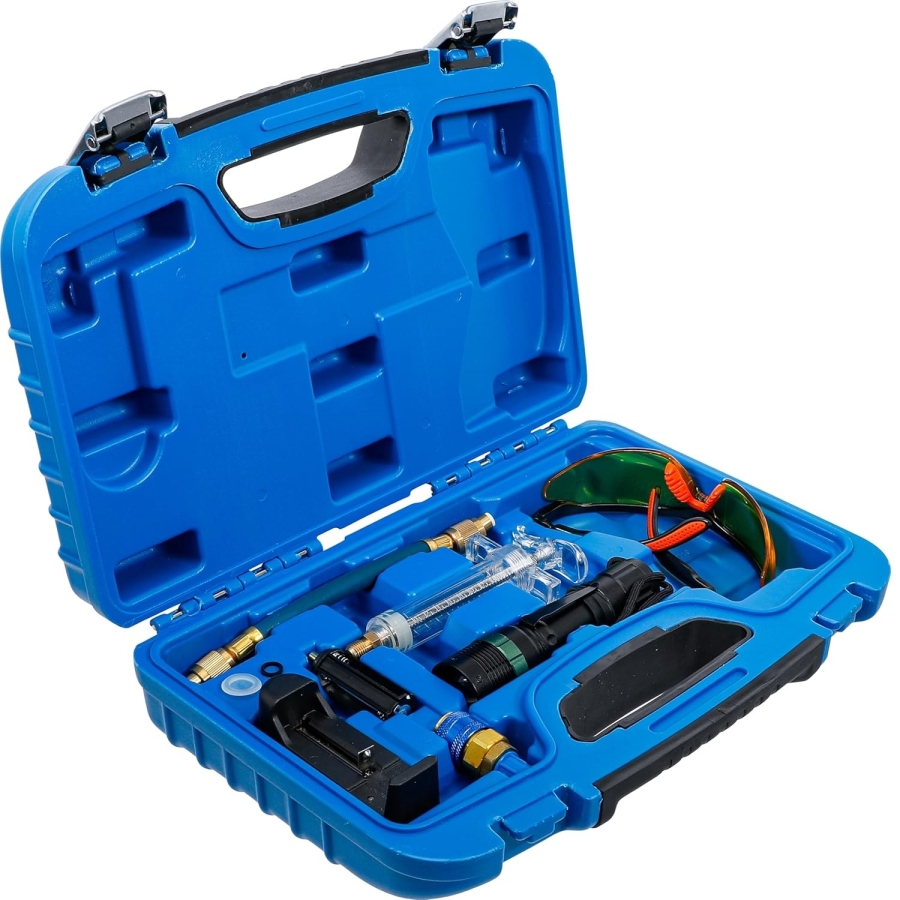

Complete Kit Contents
Included components:
- UV flashlight
- Rechargeable battery
- Battery charger
- UV safety glasses
- Special syringe
- Low-pressure adapter
- Low-pressure hose
UV Flashlight Specifications
- Light source: 3W UV-CREE LED
- Material: Aluminium alloy
- Functions:
- Bright
- Dimmed
- Flashing
UV Safety Glasses Specifications
- Standard: EN 166:2002-04
- Optical class: 1
- Protection against high-speed particles S (5.1 m/s)
- UV light protection: 400
- Lens thickness: 2.2 mm
- Lens color: Yellow tinted
- Lens material: Polycarbonate (PC)
- Temple length: 155–175 mm
- Frame color: Black
- Frame material: Polystyrene (PS)
