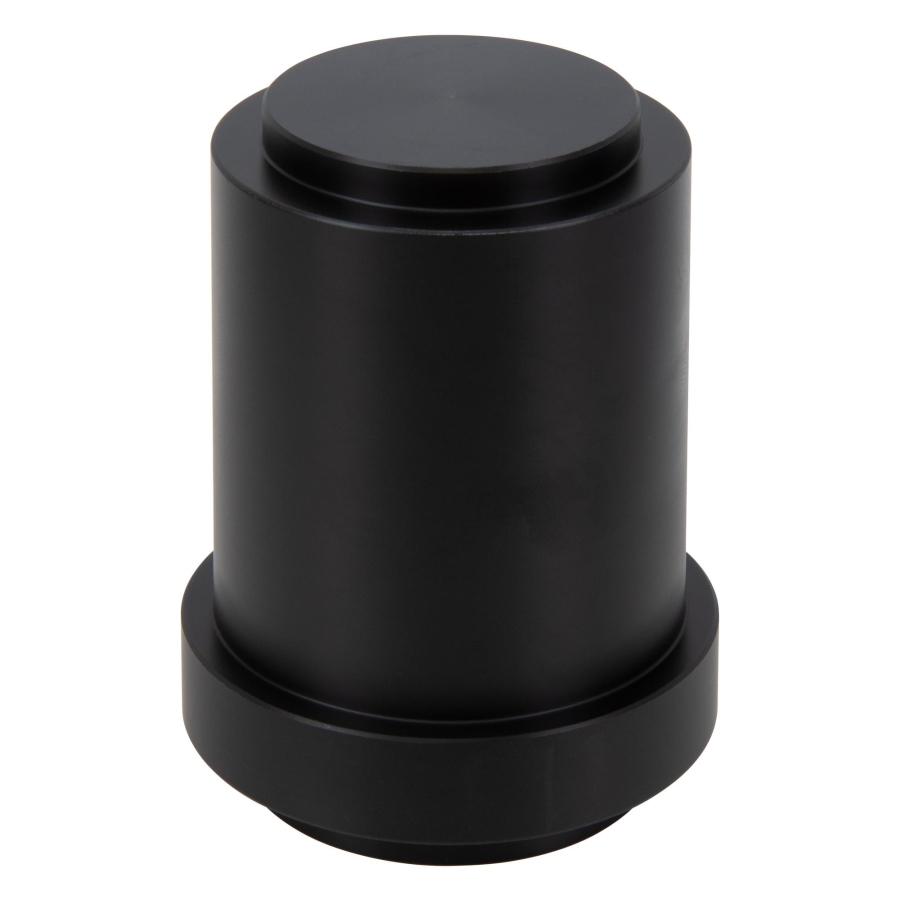

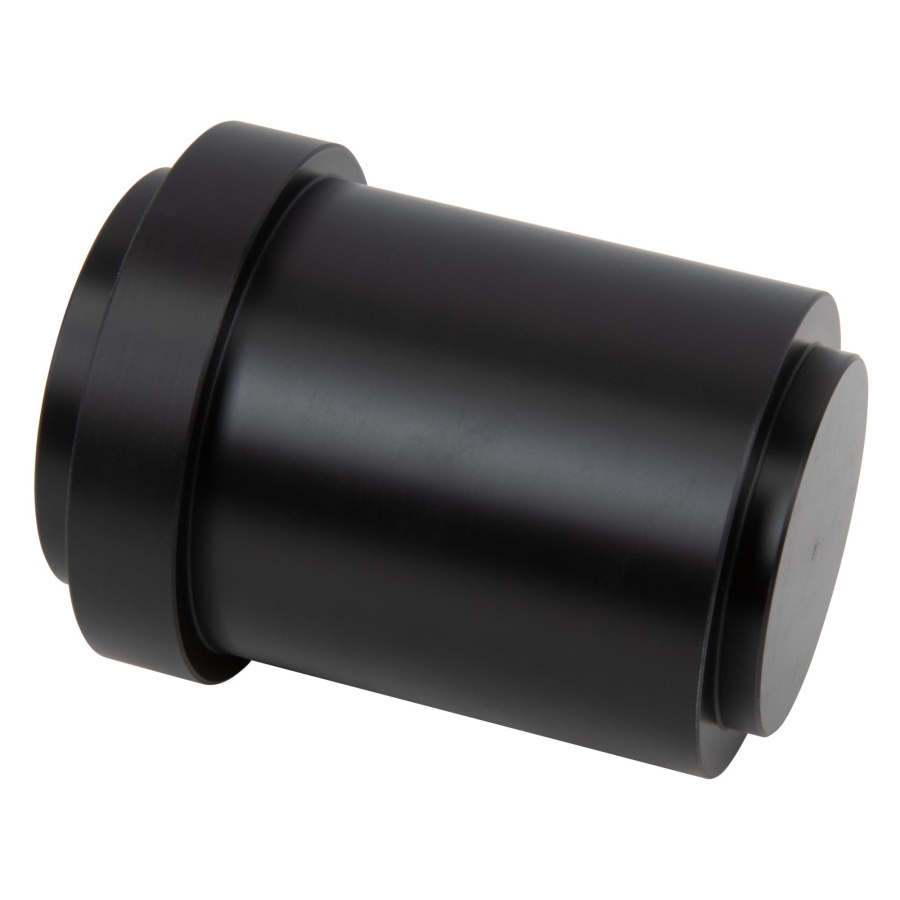

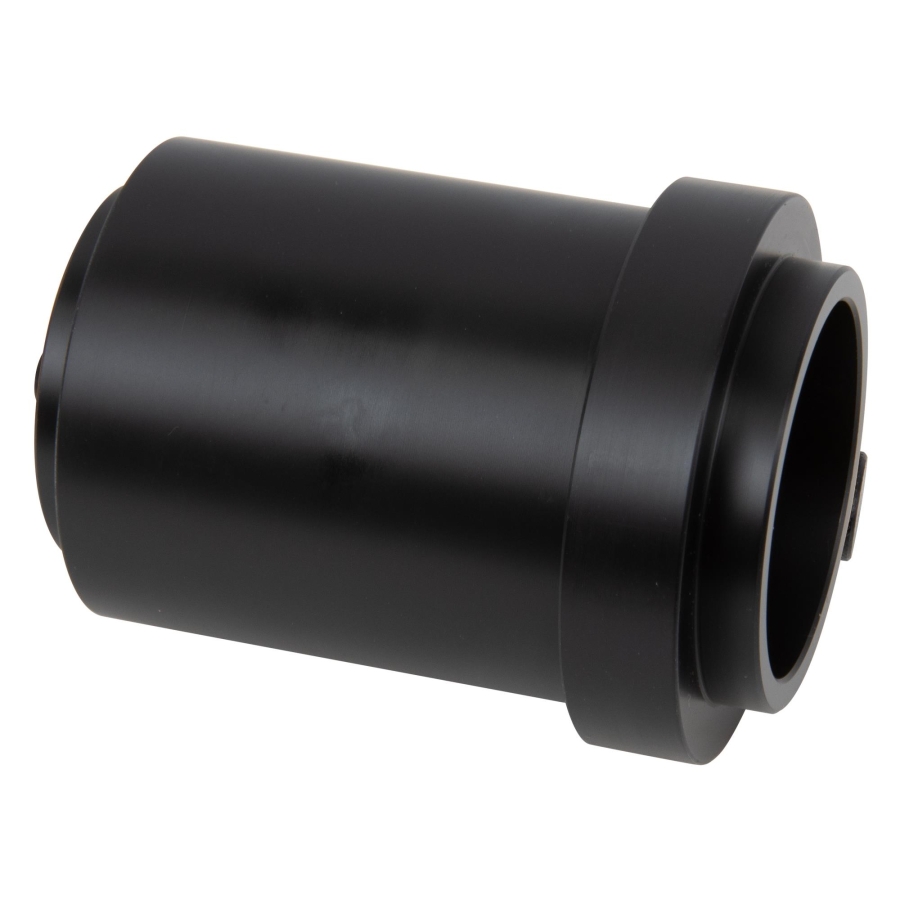

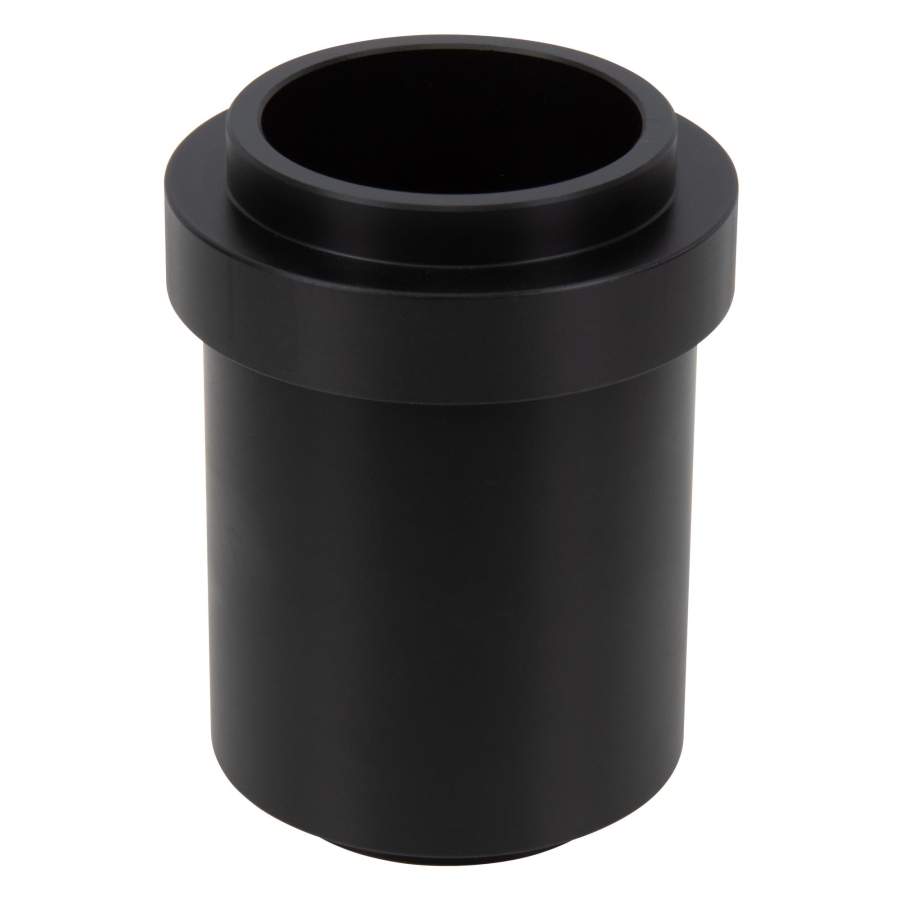

Oil Seal Installation Tool for VAG Differential and Transfer Case, as VAG 3158
-
Code:124967
-
Weight:0.204 Kgs
Overview:
✔ For installing oil seals in differentials and final drives
✔ Suitable for selected VAG 4Motion and quattro applications
✔ Centres the seal and installs it to the correct depth
✔ Compatible with selected manual, DSG, Multitronic and automatic transmissions
✔ Suitable for numerous VW, Audi, SEAT, Škoda and CUPRA models
This special tool is designed for the professional installation of oil seals in the differential, transfer case or final drive, including applications used in 4Motion and quattro vehicles.
The tool centres the seal during installation and presses it evenly to the specified installation depth, reducing the risk of deformation, damage and subsequent leakage.
Suitable Vehicles
VW:
Beetle, Caddy II–IV, Eos, Fox, Golf III–VII, Jetta V–VI, Lupo, Passat B6–B7, Polo IV–VI, Scirocco III, Sharan I–II, Touran I, Transporter T4–T5
Audi:
A1 (8X), A2 (8Z), A3 8P–8V, A4 (B6/B7)
SEAT / CUPRA:
Arosa, Ibiza III–V, Cordoba II, Leon I–III, Toledo II–III, Altea, Alhambra I–II, Exeo
Škoda:
Fabia I–III, Roomster, Rapid, Octavia I–III, Superb II–III, Yeti
Compatible Transmission Codes
5-speed manual transmissions:
02T, 0AF, 0AP
6-speed manual transmissions:
02S, 02U, 0A8, 0AG, 0AJ
5-/6-speed manual transmissions:
02M, 02Z
5-speed manual transmissions with AWD:
02C, 02D
6-speed dual-clutch transmissions (DSG):
02E, 0D9
Multitronic continuously variable transmission:
0AN
Torque-converter automatic transmissions, including 4-speed, 5-speed and AWD versions:
01M, 01P, 096, 098, 099
To Be Used as VAG
3158
Original numbers are provided for comparison purposes only. This is not an original tool.
