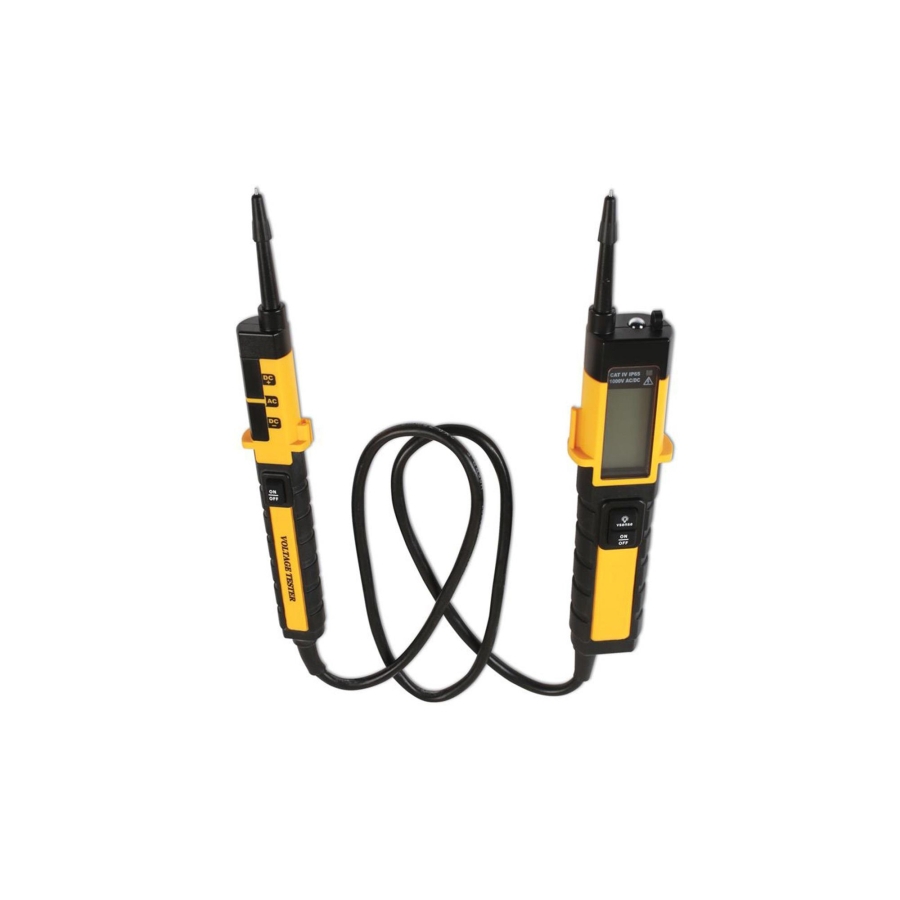

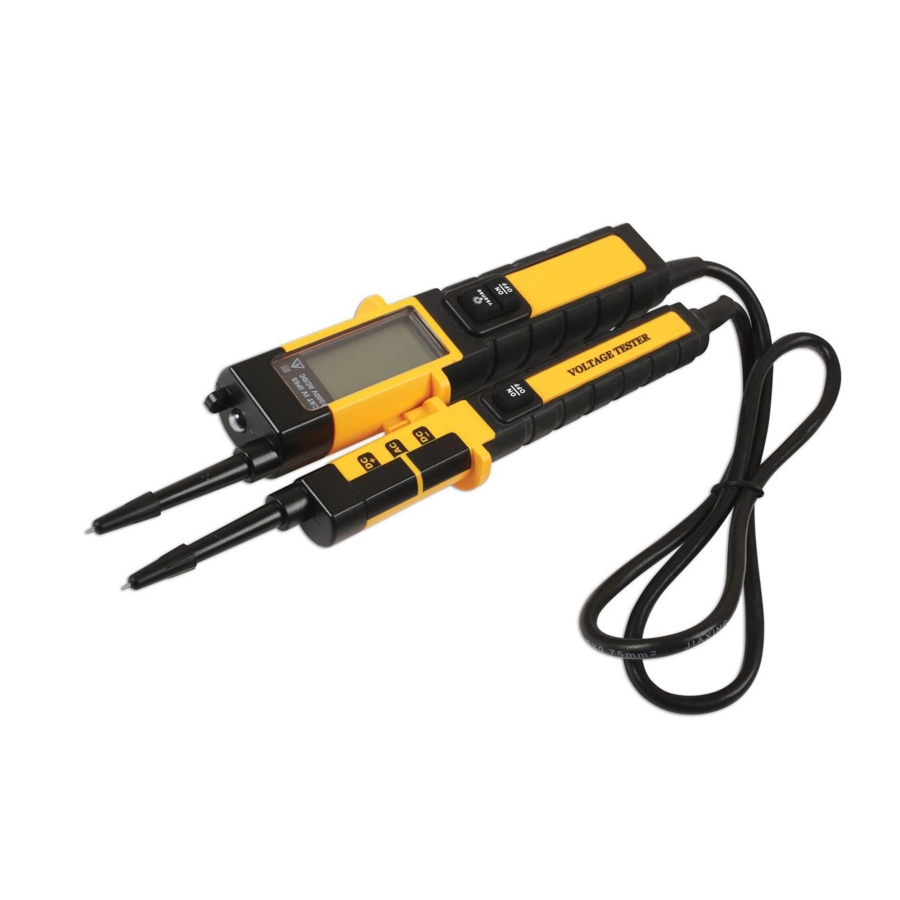

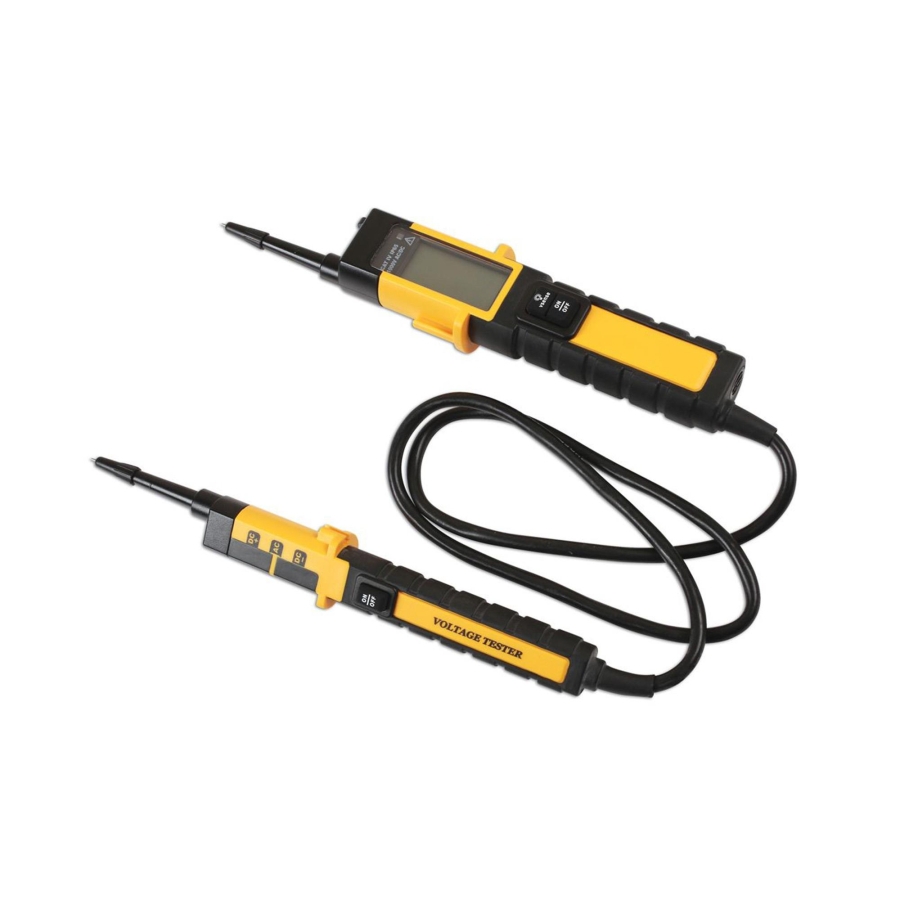

Voltage Tester for Hybrid and Electric Vehicles 1000V
-
Code:113845
-
Weight:0.785 Kgs
Overview:
✔ Professional voltage tester for hybrid and electric vehicle systems
✔ Suitable for AC and DC voltage measurements up to 1000V
✔ CAT IV 1000V safety rating for high-voltage systems
✔ LCD display with 1V resolution and integrated bar graph indicator
✔ Tests DC polarity and continuity functions
✔ Integrated self-test and illumination function
✔ IP65 protection rating and CE certified
The Voltage Tester for Hybrid and Electric Vehicles 1000V is designed for safe and reliable voltage detection in high-voltage automotive systems. It enables fast verification of the presence or absence of voltage in hybrid and electric vehicles and is suitable for both DC and AC voltage measurements.
The tester features a high-visibility LCD display with a resolution down to 1V and an integrated bar graph for rapid voltage indication. In addition to voltage measurement, the device can test DC polarity and continuity, making it a versatile tool for electrical diagnostics and maintenance work.
With CAT IV 1000V protection, IP65-rated housing, and CE certification, this tester is suitable for professional workshops and technicians working with hybrid and EV high-voltage systems.
Technical Specifications
- DC voltage range: 6–1000V
- AC voltage range: 24–1000V
- Display resolution: 1V
- Voltage indication bar graph:
- 6V
- 12V
- 24V
- 50V
- 120V
- 230V
- 400V
- 690V
- 1000V
- DC polarity test: Yes
- Continuity test: Yes
- Self-test function: Yes
- Integrated work light: Yes
- Safety category: CAT IV 1000V
- Protection class: IP65
- Certification: CE certified
- Standard: EN 61243-3
- Power supply: 2 × AAA 1.5V batteries
Applications
Suitable for:
- Hybrid vehicles
- Electric vehicles (EV)
- High-voltage system diagnostics
- Voltage verification and safety checks
- Professional automotive workshops and technicians
