Wheel Bearing Hub Unit Installation Tool Kit for VAG 62, 66, 72 mm

This wheel bearing hub unit installation tool kit is designed for the installation of wheel bearing hub units with diameters of 62 mm, 66 mm and 72 mm.

The system allows wheel bearing assemblies to be installed directly on the vehicle, eliminating the need to remove additional suspension components and helping to reduce overall repair time.

Vehicle Compatibility

Suitable for selected VAG vehicles, including:

Audi

• Audi A2

Volkswagen

• Volkswagen Lupo
• Volkswagen Polo
• Volkswagen Fox

SEAT

• SEAT Ibiza

Škoda

• Škoda Fabia

Features

• Suitable for wheel bearing hub units with diameters:
  • 62 mm
  • 66 mm
  • 72 mm
• Enables installation directly on the vehicle
• Reduces labour time and workshop effort
• Simple and safe operation
• Suitable for professional workshop use
• Can also be used with a workshop press

Professional Installation Solution

The specially designed installation components help ensure precise alignment during bearing installation, reducing the risk of damage to the wheel bearing and hub assembly.

The kit is suitable for both on-vehicle repairs and workshop press applications.

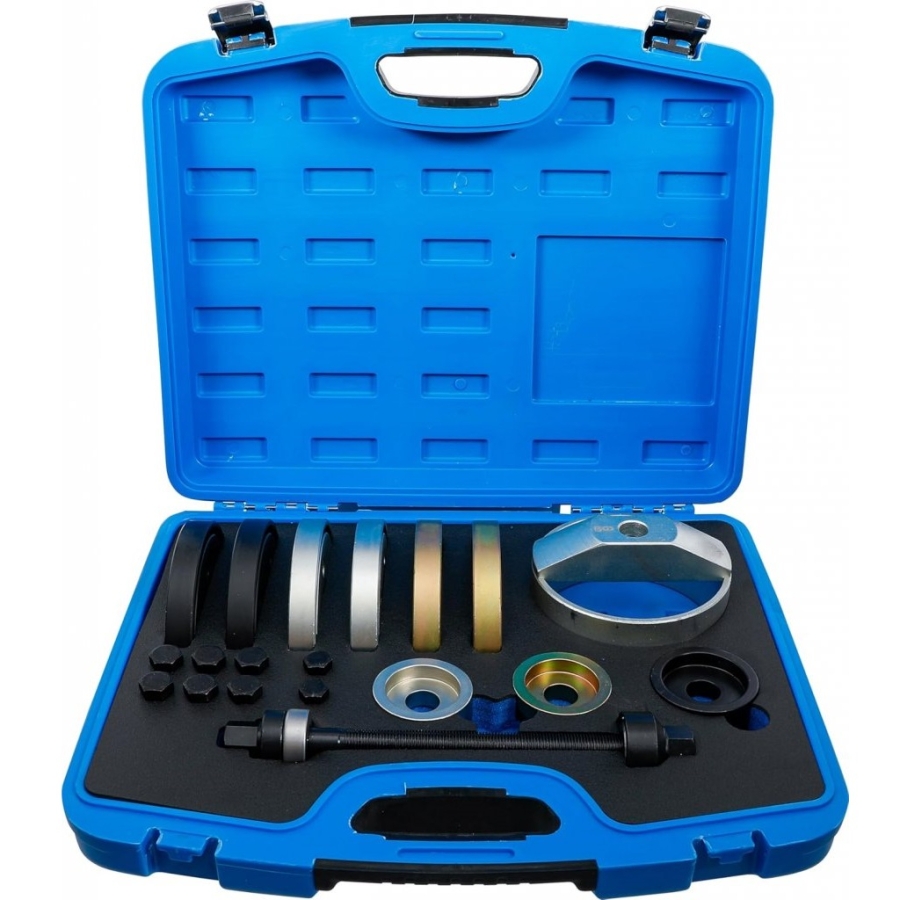

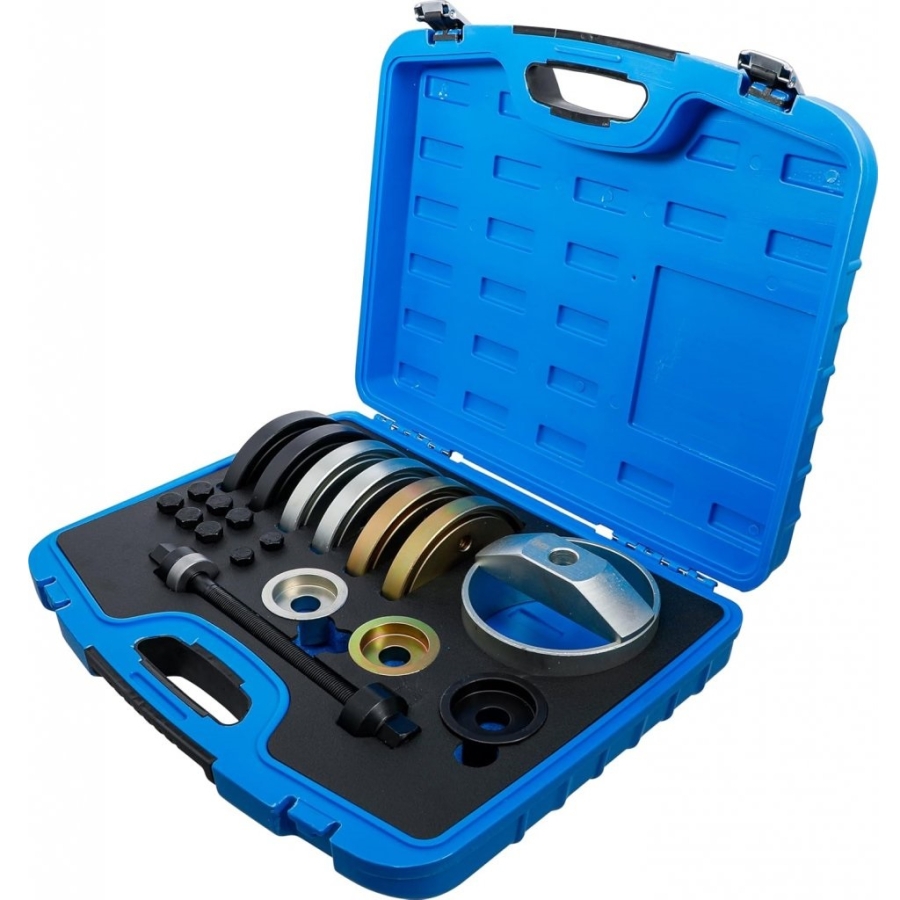

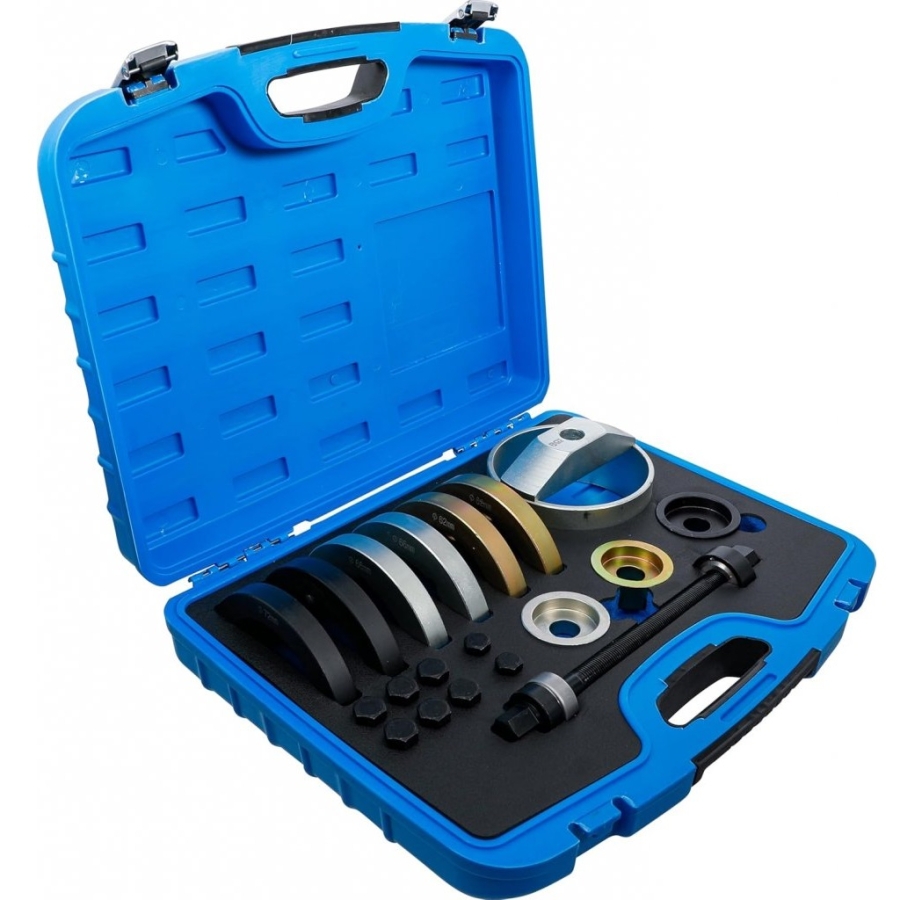

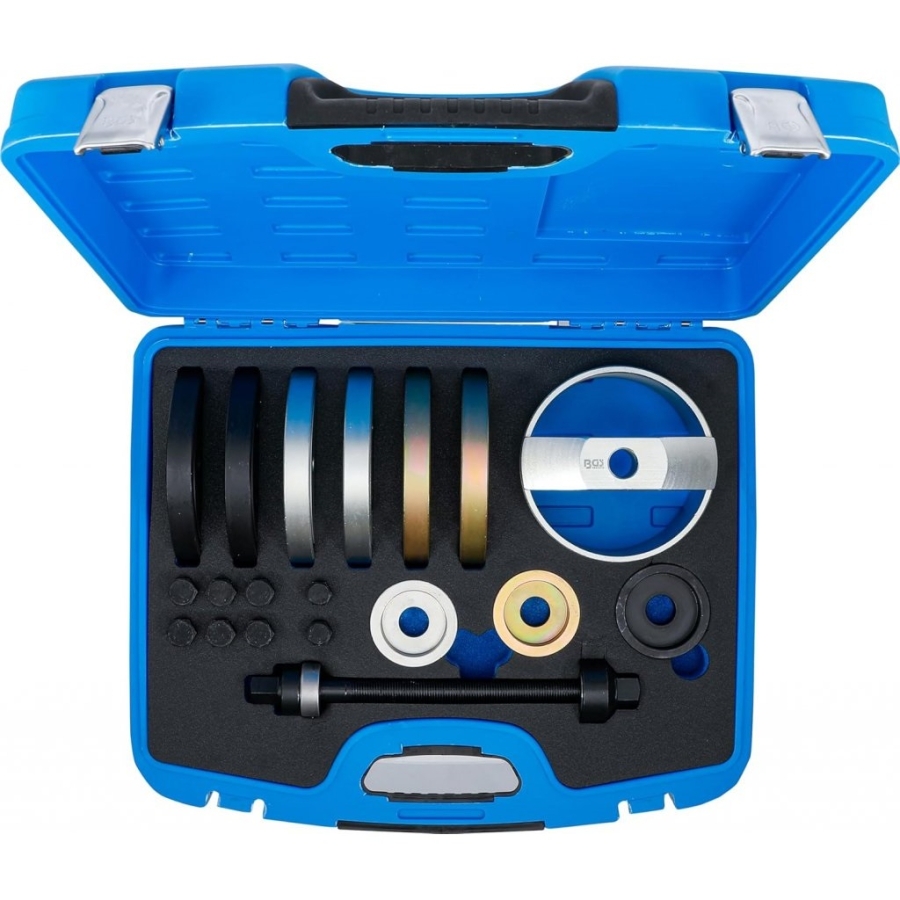

Package Contents

• 1 × Universal pressure cup
• 3 × Pressure adapters
• 1 × Ball-bearing spindle assembly M20
• 2 × Black half-shells for 72 mm bearings
• 2 × Chrome-plated half-shells for 66 mm bearings
• 2 × Anodized half-shells for 62 mm bearings
• Mounting bolts for half-shells M12 × 1.5
• Mounting bolts for half-shells M14 × 1.6

Installing the Bearing Unit

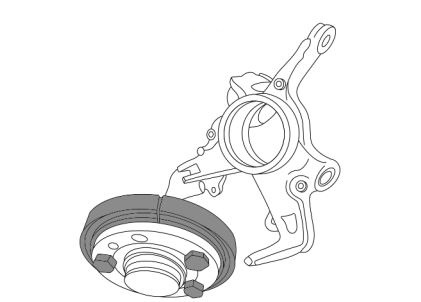

1. Install the appropriate split shells for bearing diameters of 62 mm, 66 mm, or 72 mm.
2. Slide the ball bearing and the matching pressure piece onto the spindle. The outer diameter of the pressure piece should be approximately the same as that of the wheel bearing housing.
3. Insert the spindle, with the ball bearing and pressure piece installed, through the wheel hub from the rear side.

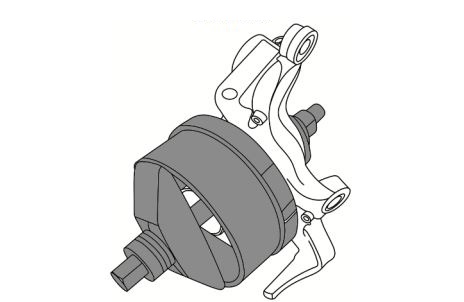

4. Slide the new bearing-hub assembly, with the split shells and pressure bell installed, onto the spindle from the front side.
5. Install the ball bearing and then hand-tighten the spindle nut to preload the wheel bearing-hub assembly.
6. Check that all tool components are correctly seated and realign them if necessary.

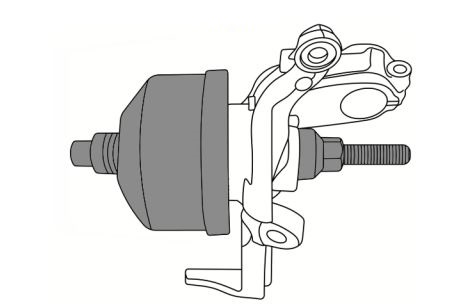

7. Turn the spindle nut clockwise using, for example, a ratcheting ring wrench while holding the spindle on the opposite side with a wrench to prevent it from turning.

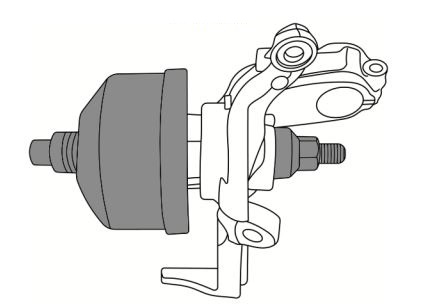

8. Draw the wheel bearing-hub assembly into the wheel bearing housing until the retaining tabs on the wheel bearing engage and lock into the designated groove.
