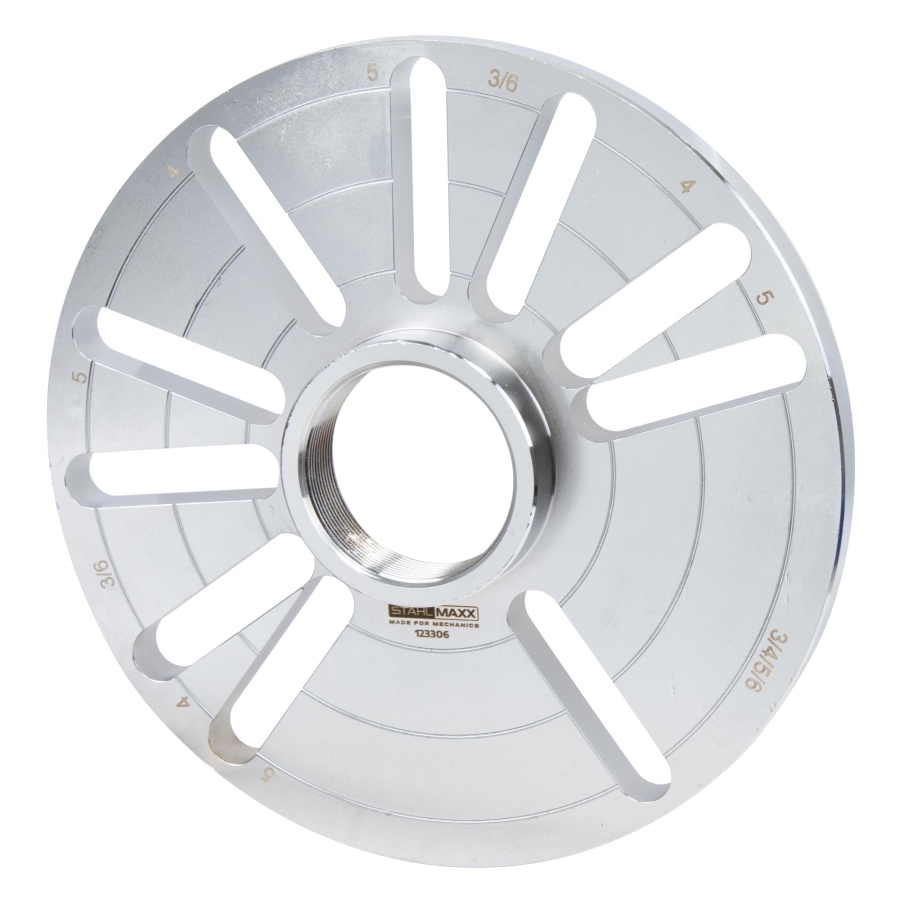

Heavy Duty Wheel Hub and Drive Shaft Flange Ø220 mm 3, 4, 5, 6 Hole PCD 98–195 mm IG 2 1/4"-14UNS
-
Code:123306
-
Weight:3.260 Kgs
Overview:
✔ Professional universal wheel hub adapter flange for heavy-duty and automotive applications
✔ Suitable for wheel hub, wheel bearing and drive shaft removal procedures
✔ Compatible with PCD sizes from 98 mm to 195 mm
✔ Supports 3, 4, 5, 6 and multiple wheel bolt patterns up to 12+ holes
✔ Manufactured from hardened high-strength SC45 steel
✔ Suitable for use with slide hammers, hydraulic systems and mechanical spindle systems
✔ Internal thread 2 1/4"-14UNS
✔ Expandable system with a wide range of accessories and adapters
This professional universal wheel hub adapter flange with 220 mm outer diameter is designed for removal of drive shafts, wheel hubs and wheel bearings on passenger vehicles, SUVs, off-road vehicles, transporters and heavy-duty commercial vehicles.
The integrated universal bolt pattern supports wheel hub configurations with PCD sizes from 98 mm to 195 mm, covering wheel bolt and stud configurations from 3 holes up to 12+ holes.
Manufactured from high-strength hardened SC45 steel, the adapter provides excellent durability and is suitable for heavy-duty workshop applications.
The universal design allows flexible use with various pulling, pressing and impact systems for maximum workshop versatility.
Universal Application Range
Suitable for:
- Passenger vehicles
- SUVs
- Off-road vehicles
- Vans
- Commercial vehicles
- Heavy-duty vehicles
Compatible with:
- 3-hole wheel hubs
- 4-hole wheel hubs
- 5-hole wheel hubs
- 6-hole wheel hubs
- 8-hole wheel hubs
- Multi-hole wheel hub configurations
PCD range:
- 98 mm – 195 mm
High-Strength SC45 Steel Construction
Manufactured from hardened SC45 steel for demanding workshop environments.
Benefits:
- High durability
- Increased resistance under heavy loads
- Suitable for hydraulic applications
- Suitable for impact applications
- Long service life
Expandable Workshop System
To provide maximum flexibility, the wheel hub flange can be expanded with additional accessories and adapters.
Compatible with:
- Slide hammers
- Hydraulic pulling systems
- Mechanical spindle systems
- Press tools
- Adapter bolt sets
- Pulling tools
The system covers approximately 99% of wheel bolt and stud sizes from M12 to M16 when used with compatible adapter bolt kits.
Integrated laser markings and bolt pattern indicators simplify positioning and speed up setup procedures.
Technical Specifications
- Outer diameter: Ø220 mm
- Internal thread: 2 1/4"-14UNS
- PCD range: 98–195 mm
- Material: Hardened SC45 steel
Used as:
- 204-595-01/3
- 204-595-01/4
Important Information
Compatible with multiple optional accessories and expansion components for additional workshop applications.
OEM numbers and manufacturer references are used only for identification and comparison purposes. This is not an original manufacturer tool.
