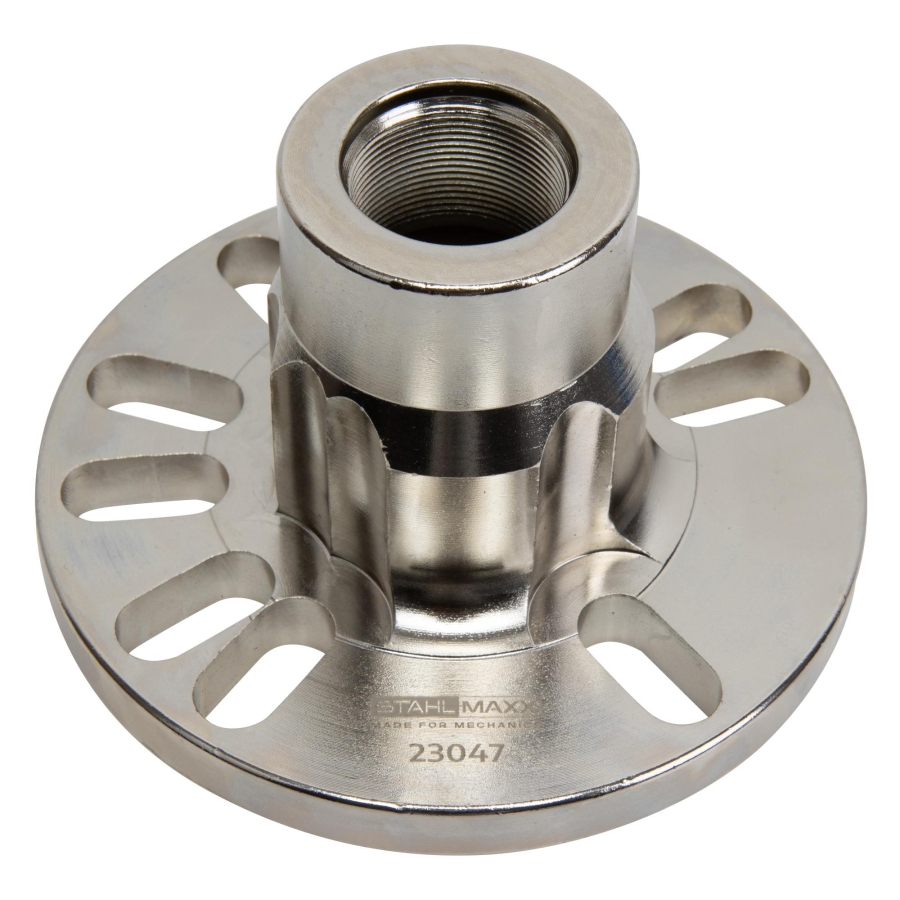

Wheel Hub and Drive Shaft Puller Flange PCD 98–140 mm
-
Code:23047
-
Weight:2.260 Kgs
Overview:
✔ Base tool for removing drive shafts and pulling wheel hubs
✔ Suitable for 4- and 5-bolt wheel hubs
✔ Compatible with bolt circle diameters from 98–140 mm

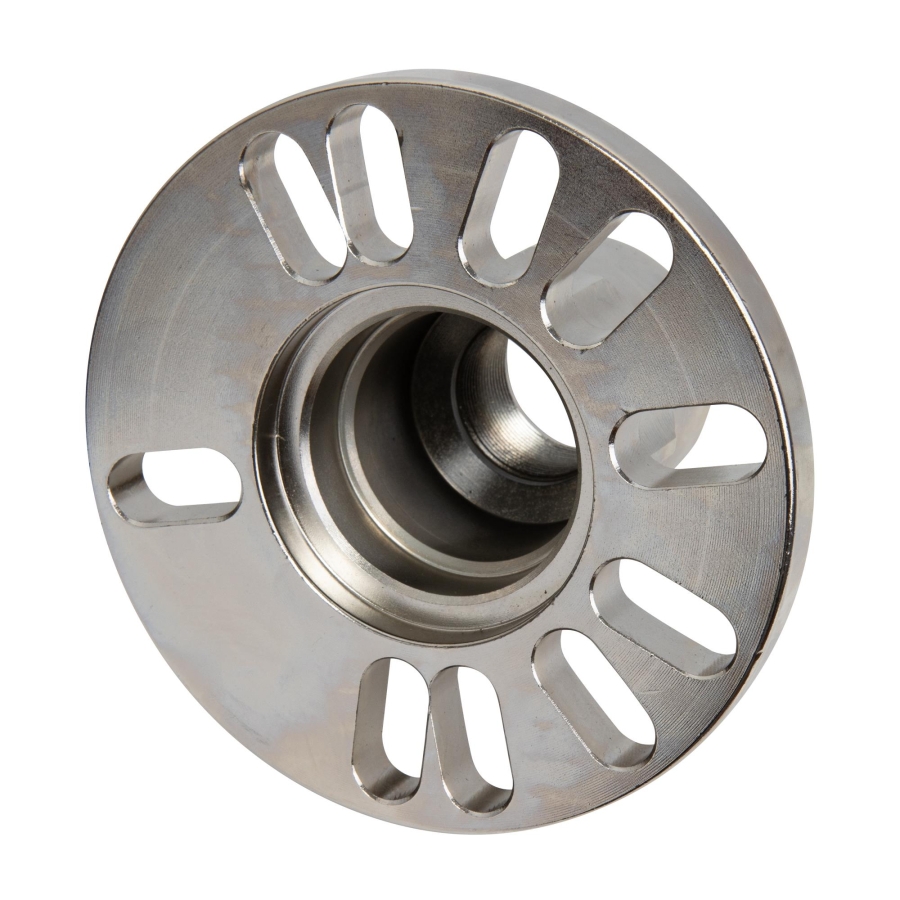

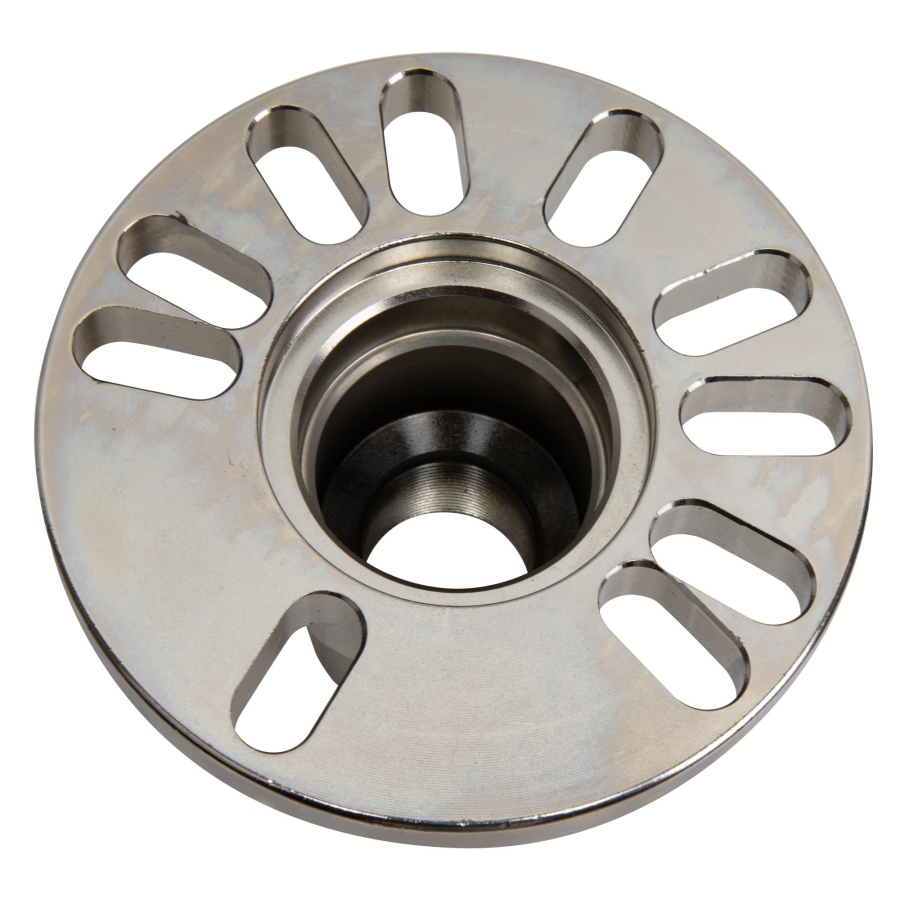

✔ Large 74 mm center bore for hub centering applications
✔ Heavy-duty forged steel construction
✔ Heat-treated for increased strength and fracture resistance
✔ Can be used with common slide hammers when combined with a suitable adapter
✔ Thread size UN 1-1/2" x 16

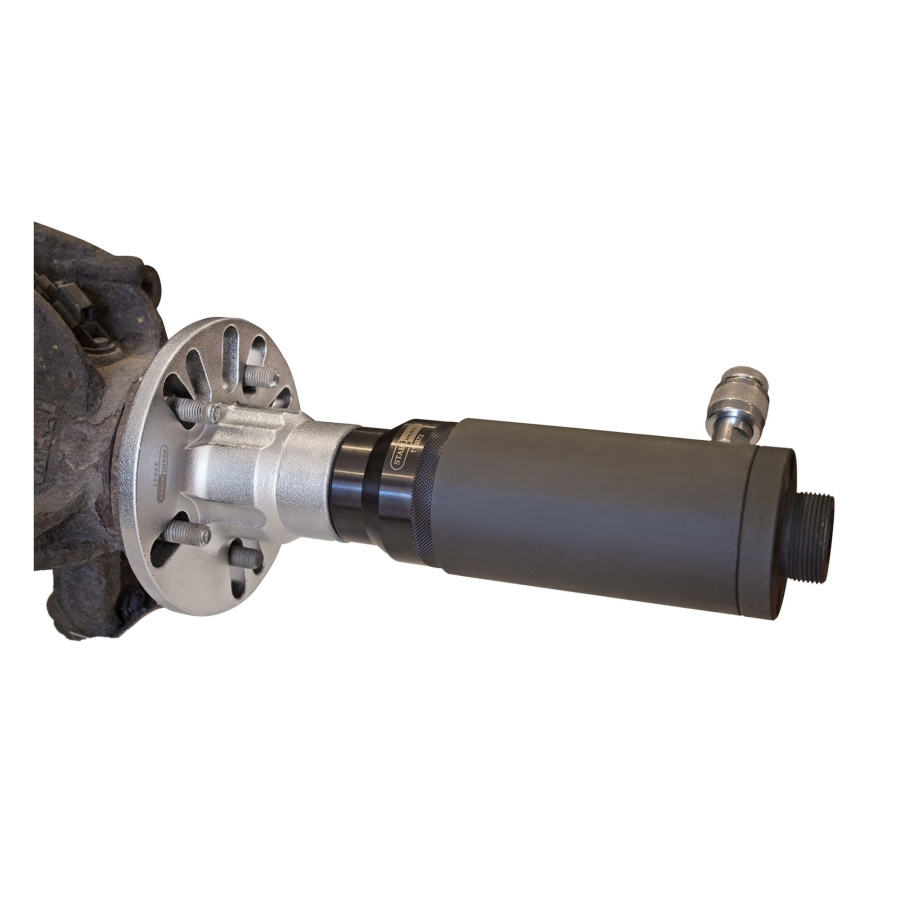

This puller flange serves as the base component for drive shaft removal and wheel hub extraction operations.

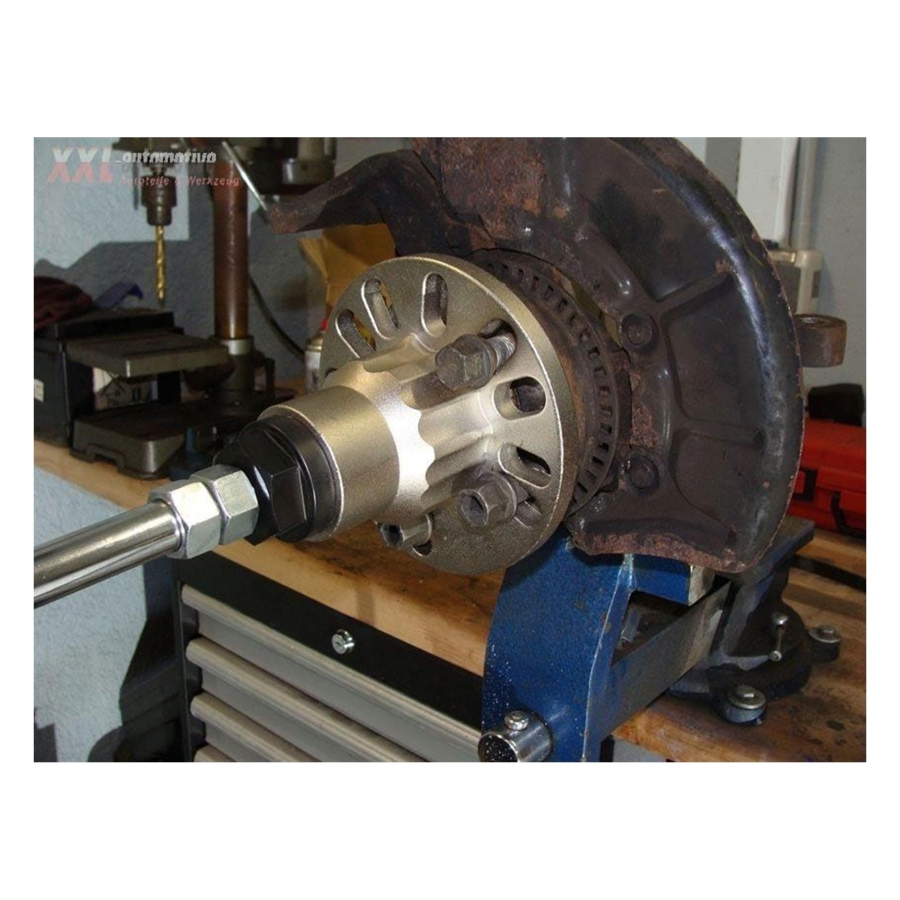

It can be used as part of various puller systems and is suitable for workshop applications involving seized wheel hubs and drive shafts.
Compatibility
Suitable for:
- 4-bolt wheel hubs
- 5-bolt wheel hubs
Specifications:
- Bolt circle diameter: 98–140 mm
- Centering bore diameter: 74 mm
- Thread: UN 1-1/2" x 16
Heavy-Duty Construction
Manufactured from high-strength forged steel to withstand demanding workshop conditions and high extraction forces.
The flange is additionally heat-treated to improve durability and increase resistance to cracking and breakage during heavy-duty use.
Flexible Usage
The puller flange can be combined with various drive shaft removal and wheel hub extraction systems.
With a suitable adapter, it can also be used with most common slide hammers, increasing its versatility for different repair applications.
Technical Specifications
- Suitable for 4- and 5-bolt wheel hubs
- Bolt circle diameter: 98–140 mm
- Centering bore diameter: 74 mm
- Thread: UN 1-1/2" x 16
- Material: Forged steel
- Heat-treated construction
