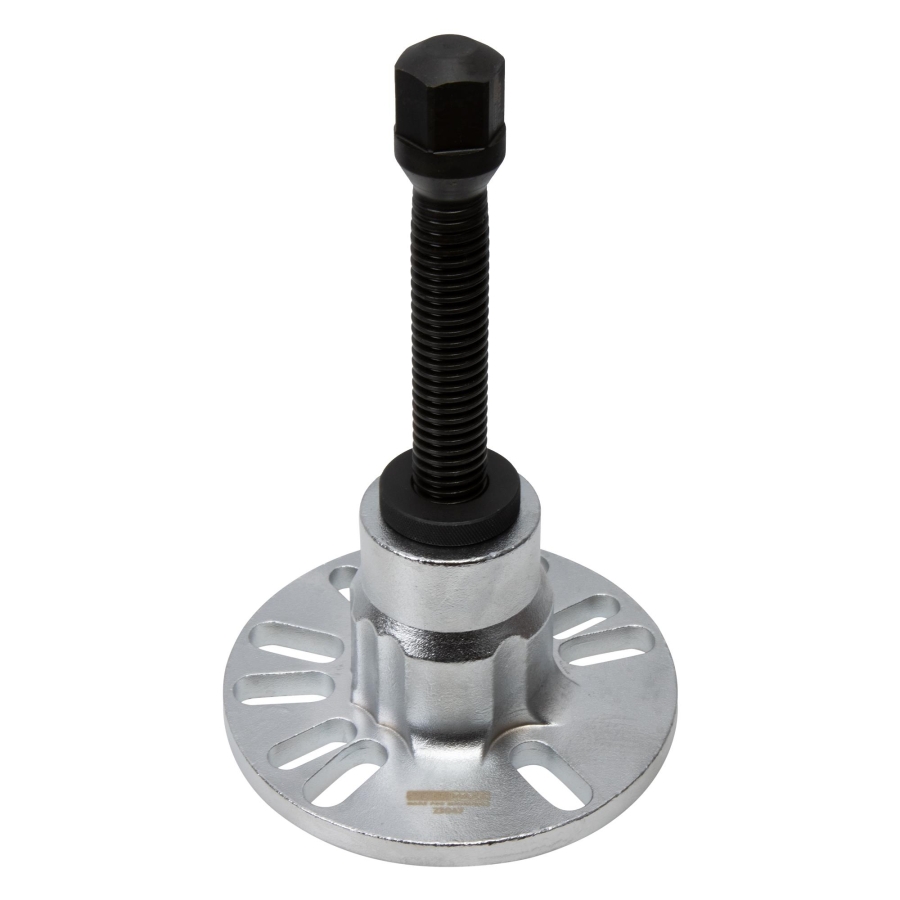

Wheel Hub and Drive Shaft Puller with Trapezoidal Thread Spindle for PCD 98–140 mm

This professional puller system is designed for separating seized wheel hubs and drive shafts quickly and efficiently, even in cases involving severe corrosion or bonded connections.

The tool is suitable for a wide range of repair and maintenance work and can be expanded for various workshop applications.

Impact Wrench Compatible Design

The trapezoidal thread spindle is fully suitable for impact wrench use and has been designed to withstand extreme loads.

Tests with a 3/4" impact wrench delivering up to 2,000 Nm have shown excellent durability under demanding workshop conditions.

The stepped spindle tip ensures precise centering on drive shafts, axle stubs, and other components during removal.

Heavy-Duty Trapezoidal Thread Spindle

The spindle features a high-strength trapezoidal thread with wide and deep thread flanks, providing exceptional durability and resistance to wear.

Unlike hydraulic spindles, the trapezoidal spindle is unaffected by heat generated during the use of a torch. This makes it an excellent choice when heat must be applied to release heavily seized components.

Hydraulic spindles can also lose their internal grease when subjected to excessive loads above their rated capacity, whereas the trapezoidal spindle provides a robust mechanical solution.

Expandable System

The wheel hub and drive shaft puller can be expanded for additional applications using:

• Hollow hydraulic cylinders
• Hydraulic spindles
• Impact spindles
• Slide hammers for wheel hub removal

This modular design makes the tool suitable for a wide variety of repair scenarios.

Compatibility

Compatible with:

• 4-bolt wheel hubs
• 5-bolt wheel hubs

Specifications:

• Bolt circle diameter: 98–140 mm
• Wheel stud sizes: 12 mm and 14 mm
• Centering bore capacity: 74 mm
• Flange thread: UN 1-1/2" x 16

Technical Specifications

Puller Flange

• Suitable for 4- and 5-bolt wheel hubs
• Bolt circle diameter: 98–140 mm
• Wheel stud sizes: 12 mm, 14 mm
• Centering bore capacity: 74 mm
• Thread: UN 1-1/2" x 16

Trapezoidal Thread Spindle

• Thread: 1" x 6 UNC
• Length: 227 mm
• Drive size: 30 mm hex

Advantages

• Removes corroded and bonded drive shafts
• High release force through impact action
• Fast setup and operation
• No additional special equipment required, such as hydraulic pumps

Contents

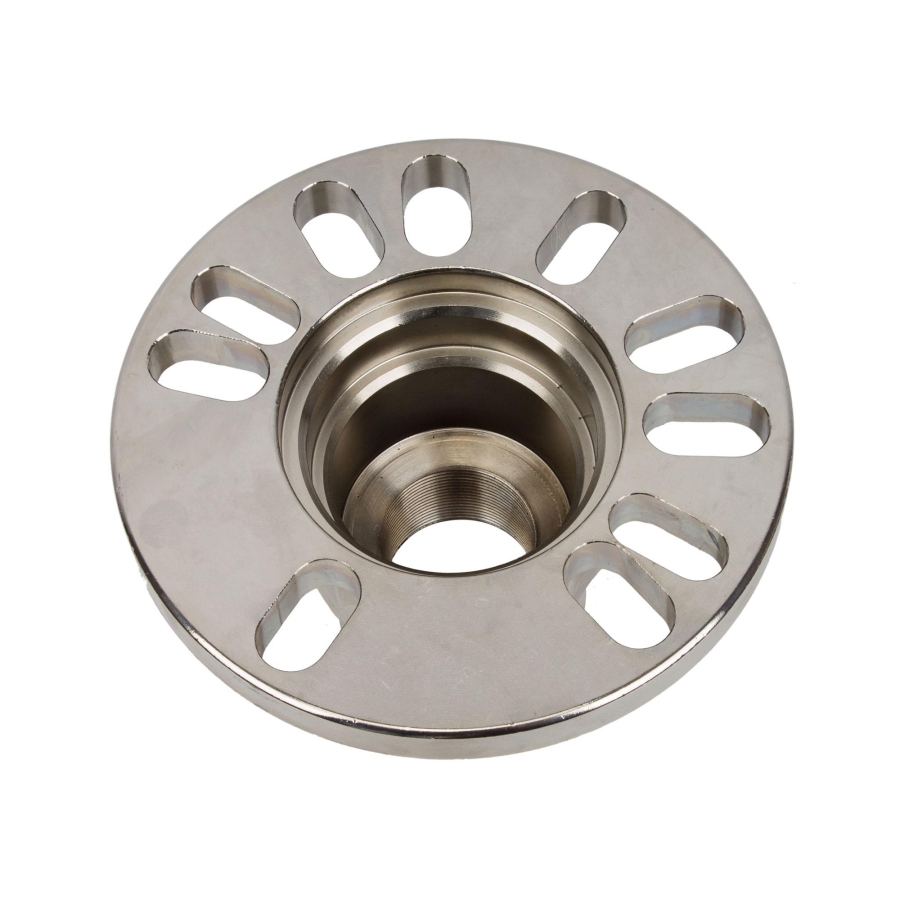

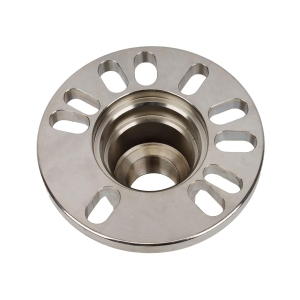

• Item no. 23047 – Wheel Hub and Drive Shaft Puller Flange

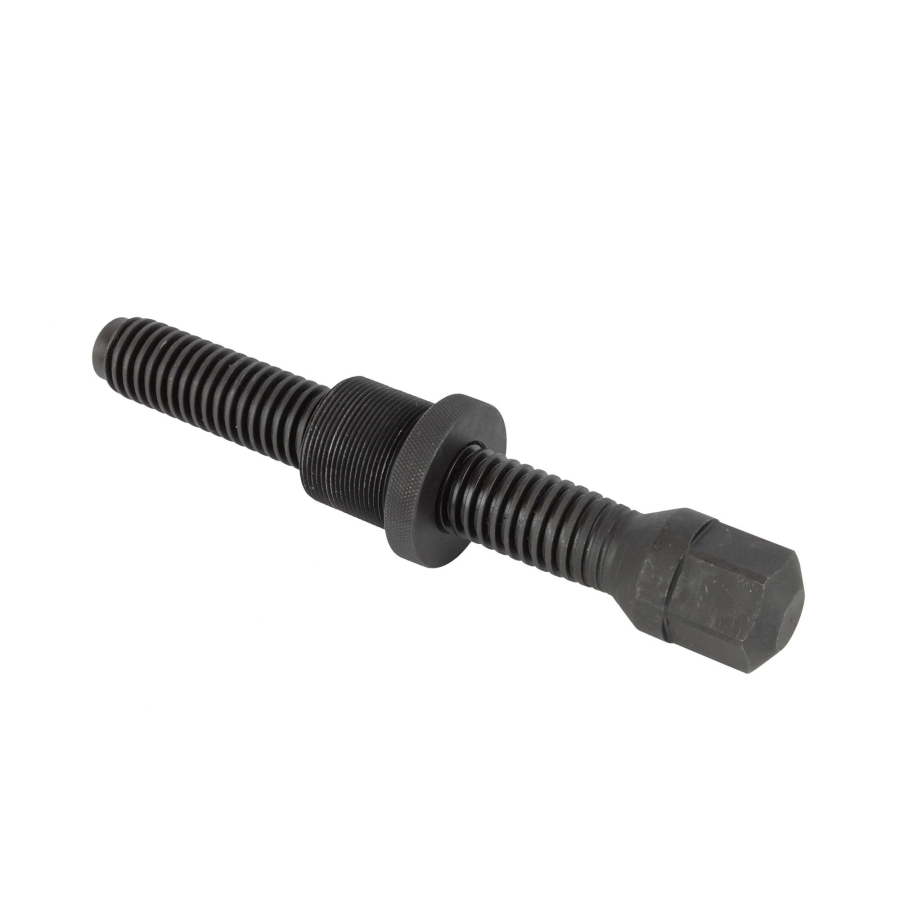

• Item no. 115932 – Trapezoidal Thread Spindle for Press Frames and Wheel Hub Flanges

Important Note

For maximum service life, always lubricate the trapezoidal thread spindle with grease before use.

Full impact wrench operation is recommended.
