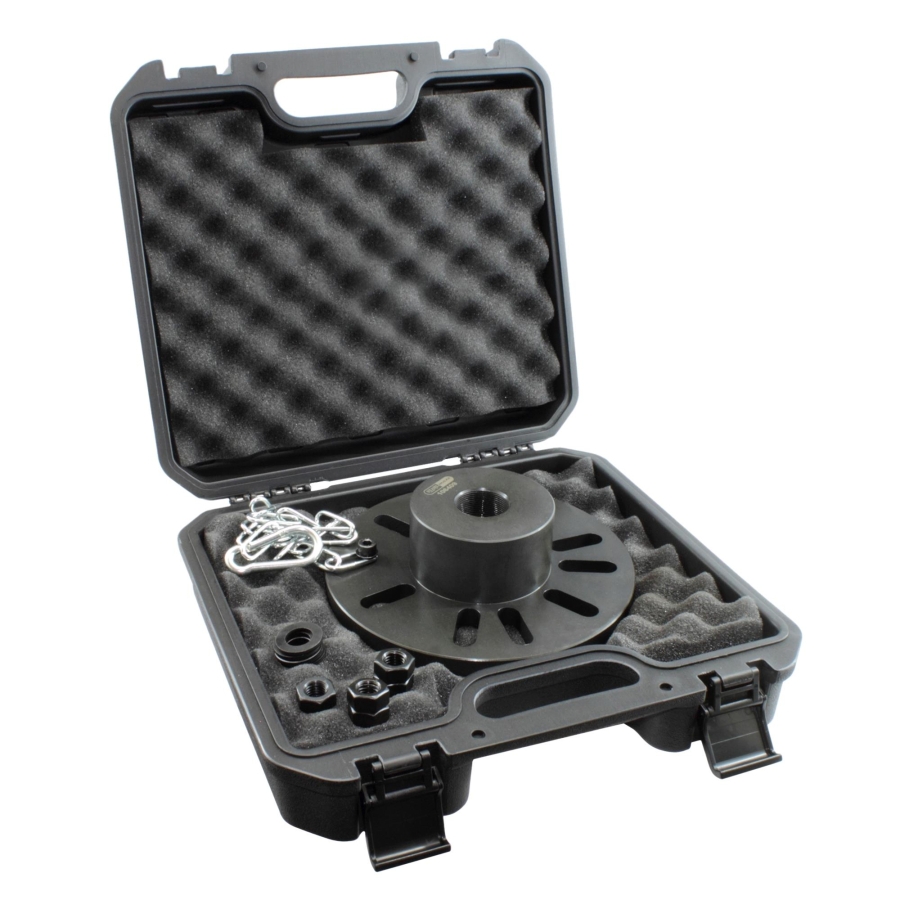

Wheel Hub Puller, Bolt Patterns 5x125 to 8x170

This wheel hub puller is designed for removing heavily seized wheel hubs that cannot be removed using conventional methods.

It is particularly useful during brake disc replacement, wheel bearing service and axle repairs where corrosion has caused the hub to seize onto the axle assembly.

Wide Vehicle Compatibility

The universal design covers numerous bolt patterns from 5x125 to 8x170, making the tool suitable for a broad range of vehicles.

Common applications include:

• Ford Transit
• Citroën Jumper
• VW Crafter
• Various vans and commercial vehicles

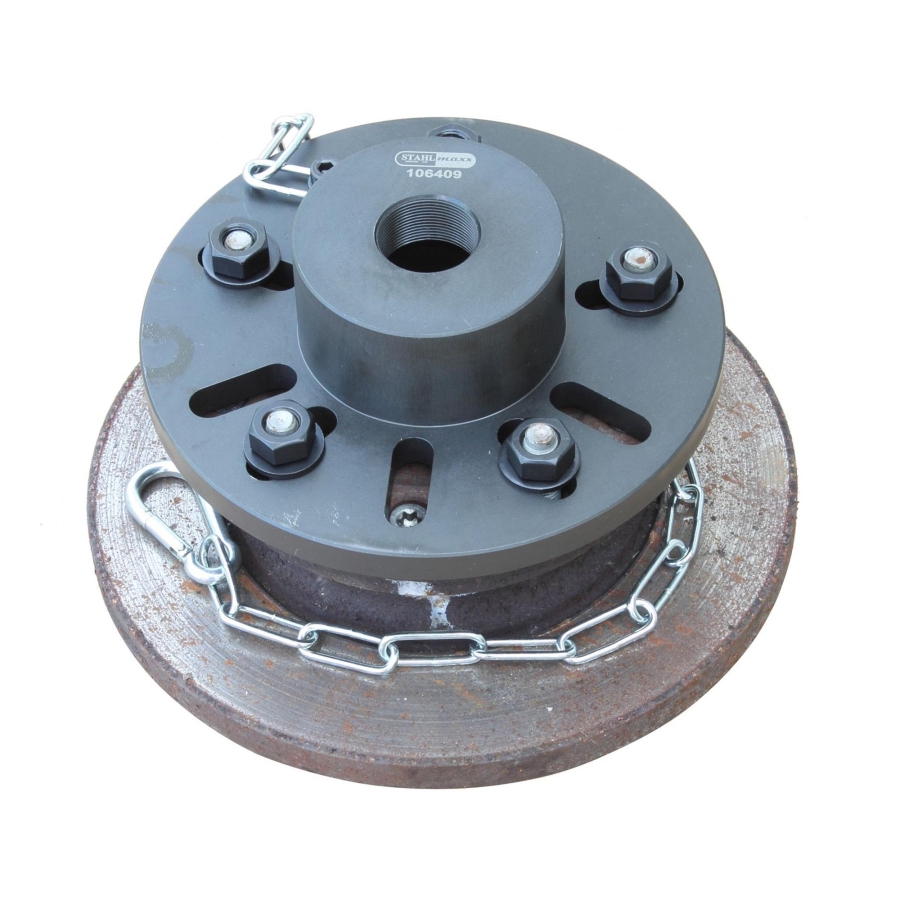

Large Center Bore Capacity

The puller features a large center opening designed to accommodate wheel hubs with a center bore diameter of 79 mm.

This allows secure mounting and effective force transmission during removal operations.

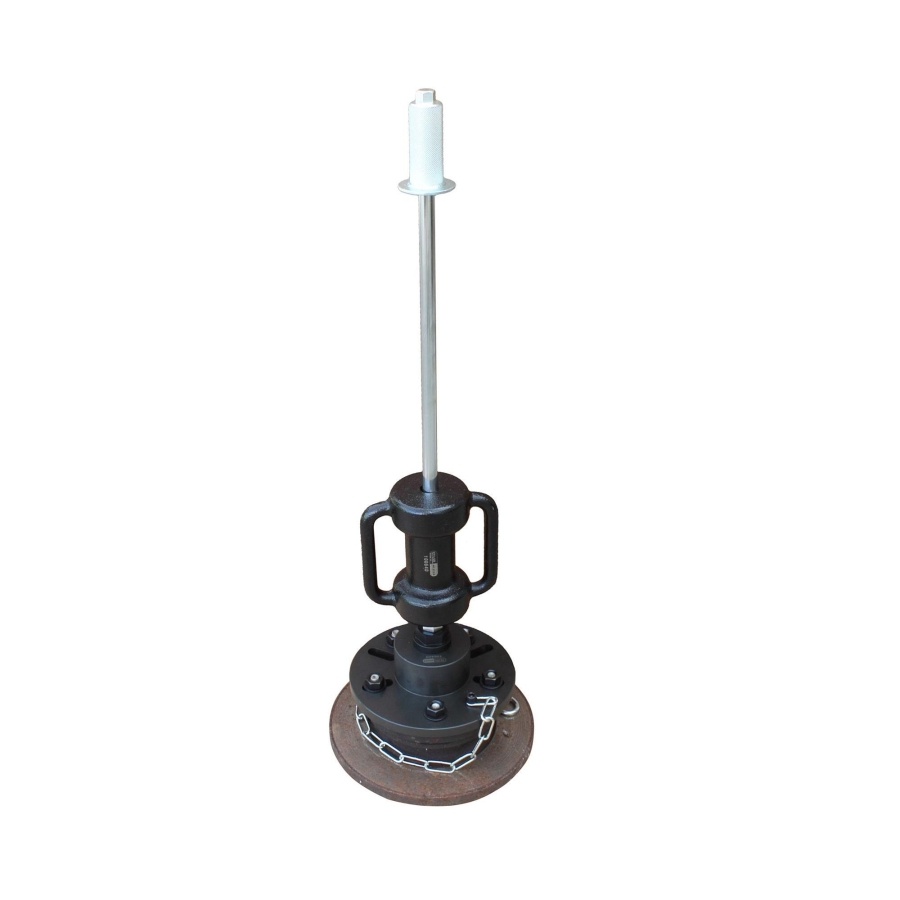

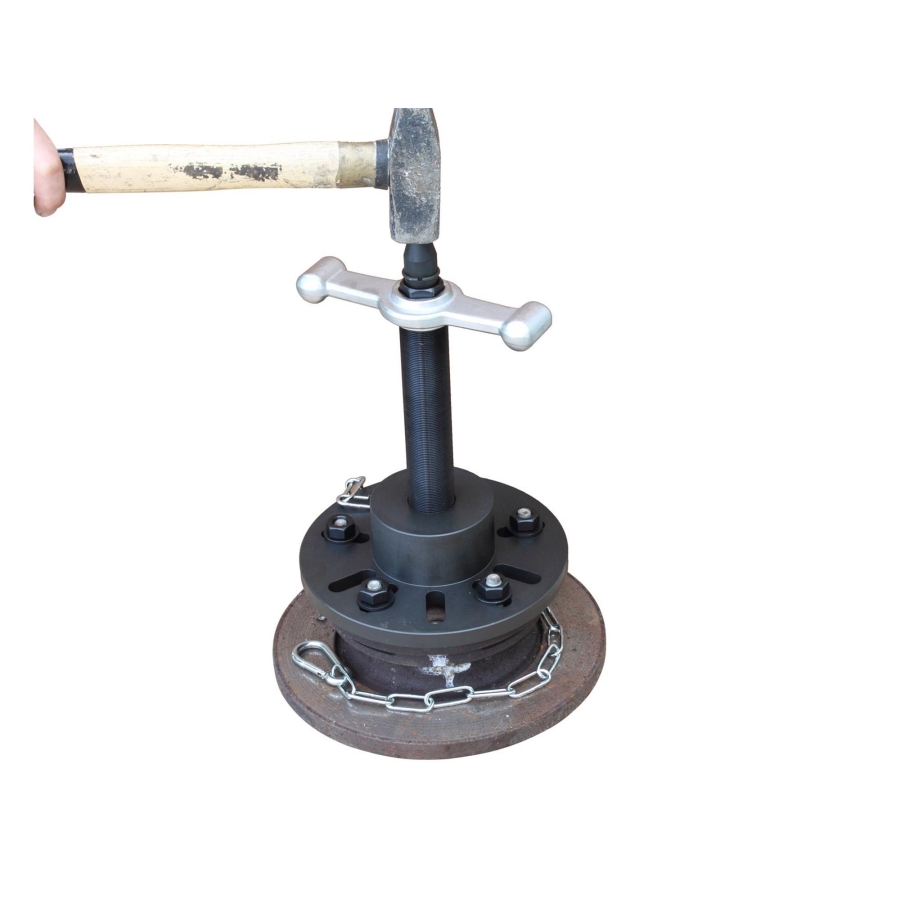

Compatible with Slide Hammers and Impact Spindles

For effective operation, the tool is designed to be used with:

• Item no. 104767A – Impact spindle
• Item no. 100540 – Slide hammer

When using the slide hammer, the following additional adapter is required:

• Item no. KT10058 – Adapter for slide hammer connection

Technical Specifications

• Application: Wheel hub removal
• Bolt pattern range: 5x125 to 8x170
• Center bore capacity: 79 mm
• Suitable for seized wheel hubs
• Used as Ford 204-595-09

Applications

Suitable for:

• Wheel hub removal
• Brake disc replacement
• Wheel bearing service
• Axle repairs
• Commercial vehicle maintenance
• Corrosion-related hub removal

Original numbers are for comparison purposes only. This is not an original manufacturer tool/product.

Suitable for the following bolt patterns and vehicles:

Bolt Pattern 5 x 125

• Dodge Durango 2011–
• Fiat Freemont 2011–
• Jeep Cherokee SRT 2012–
• Lancia Voyager 2011–
• Chrysler Grand Voyager 2007–
• Chrysler Pacifica 2004–2008
• Chrysler Voyager 2008–
• Dodge Journey 2008–
• Jeep Commander 2006–2010
• Jeep Grand Cherokee 1999–
• Jeep Wrangler 2007–

Bolt Pattern 5 x 130

• Audi Q7 V12 TDI 2008–2012
• Bentley Mulsanne 2010–
• Porsche Boxster 2012–
• Porsche Cayenne 2010–
• Porsche Cayman 2012–
• Volkswagen Touareg 2002–
• Citroën Jumper (Maxi) 1994–
• Fiat Ducato (Maxi) 1994–
• Peugeot Boxer (Maxi) 2006–
• Mercedes-Benz G-Class 1979–
• Mercedes-Benz Sprinter 1995–
• SsangYong Actyon 2006–
• SsangYong Kyron 2006–
• SsangYong Rexton 2006–
• SsangYong Rodius 2005–
• Volkswagen LT 1996–
• Nissan Interstar 2002–2010
• Nissan NV400 2011–
• Opel Movano 2000–
• Renault Master 2000–

Bolt Pattern 5 x 139.7

• Suzuki Grand Vitara 1998–2005
• Suzuki XL7 2006–2009
• Daihatsu Rocky 1987–1992
• Suzuki Jimny 1998–
• Suzuki Vitara 2001–2006
• Chrysler Aspen 2007–
• Dodge Ram 2009–
• Kia Sorento 2002–
• Kia Sportage

Bolt Pattern 5 x 150

• Lexus LX470 1998–2007
• Lexus LX570 2008–
• Toyota Land Cruiser 1998–2007
• Toyota Land Cruiser 2008–
• Toyota Sequoia 2008–
• Toyota Tundra 2008–

Bolt Pattern 5 x 160

• Ford Transit 2001–

Bolt Pattern 5 x 165.1

• Land Rover Defender 1991–
• Land Rover Discovery 1991–1998
• Land Rover Range Rover 1970–1994

Bolt Pattern 6 x 125

• Iveco Daily 2006–

Bolt Pattern 6 x 127

• Buick Rainier 2003–2007
• Chevrolet Envoy 2002–
• Chevrolet TrailBlazer 2001–2009
• GMC Envoy 2002–2009
• Saab 9-7X 2005–2008

Bolt Pattern 6 x 130

• Mercedes-Benz Sprinter 2006–
• Volkswagen Crafter 2006–2013
• Volkswagen Crafter 2013–

Bolt Pattern 6 x 132

• GMC Acadia 2006–
• Buick Enclave 2007–

Bolt Pattern 6 x 135

• Ford Expedition 2007–
• Ford F-150 2004–
• Lincoln 2002–

Bolt Pattern 6 x 139.7

• Isuzu D-Max 2002–
• Nissan NP300 2005–
• Nissan Terrano II 1994–2007
• Nissan Urvan 1987–1995
• SsangYong Rexton 2001–2006
• Lexus GX460 / GX470 2002–
• Toyota 4Runner 2003–
• Toyota FJ Cruiser 2006–
• Toyota HiAce 1989–2001
• Toyota Hilux 1989–
• Toyota Land Cruiser 1996–
• Hyundai Terracan 2002–2007
• Mitsubishi L200 / L300 / L400 1986–
• Mitsubishi Pajero 1982–
• Opel Frontera 1990–2004
• Isuzu Campo 1988–2003
• Isuzu Trooper 1981–1991
• Kia Bongo 2000–
• Kia Pregio 2000–
• Nissan Patrol 1987–1997
• Opel Campo 1988–2003
• SsangYong Korando 1997–2001
• SsangYong Musso 1993–2005
• Nissan Patrol 1997–2013
• Nissan Navara 1998–2004
• Nissan Pathfinder 1986–2004
• Cadillac Escalade 1999–
• Chevrolet Astro 2003–
• Hyundai H-1 / H300 2007–
• Kia Carnival 2006–
• Ford Ranger 1999–
• Mazda B2500 / B2600 1999–2006
• Mazda BT-50 2007–
• Mazda E2000 / E2200 1983–2005
• Hummer H3 2005–2010

Bolt Pattern 8 x 165

• Chevrolet Express 1996–
• Dodge Pickup 1971–1993
• Hummer H2 2002–2010

Bolt Pattern 8 x 170

• Ford Excursion 2000–2005
• Ford F-150 / F-250 / F-350 1997–2004
