Injector Puller Kit

This injector puller kit is designed for secure and efficient installation and removal of diesel injectors. With a comprehensive selection of adapters, slide hammers, and specialized tools, the kit covers most common injector types on the market. It is tailored for professional workshop use.

The construction allows both internal and external pulling, offering maximum flexibility even for stuck or hard-to-access injectors. An essential tool for car workshops, engine rebuilding, and advanced diesel maintenance.

Features

• Compatible with most diesel injectors

• Supports both internal and external pulling

• Powerful slide hammers for efficient removal

• Wide range of adapters and sleeves

• Designed for frequent professional use

Applications

• Removal of corroded or seized diesel injectors

• Diesel engine maintenance and repair

• Workshops, engine rebuilding, and specialist diesel work

Technical Contents

Slide Hammers:

• 1.6 kg – 160 mm length

• 2.7 kg – 460 mm length

• 5.1 kg – 600 mm length

Puller Claws with Fork Opening:

• 13.7 × 18 mm – 105 mm length

• 12.7 × 19 mm – 130 mm length

Slotted Hex Sockets:

• Length: 100 mm

• Square: 12.5 mm (1/2")

• Sizes: 25, 27, 28, 29, 30 mm

Injector Puller in Sleeve Form:

• Outer diameter: 35 mm

• Inner diameter: 29 mm

Spindle:

• M17 × 1.0 external thread

Puller Adapters – External Thread:

• M27 × 1.0 (3 pcs)

• M25 × 1.0

Puller Adapters – Internal Thread:

• M27 × 1.0 (3 pcs)

Slide Hammer Adapter:

• For internal, external, and claw pulling

NOTE

Always use the external thread adapter whenever possible. The internal thread adapter is intended for very tight injectors or cases where the external thread adapter cannot be mounted. Before working on fuel systems, ensure the system is not under pressure. For instructions on depressurizing and disconnecting/reconnecting electrical lines, always consult vehicle-specific service literature.

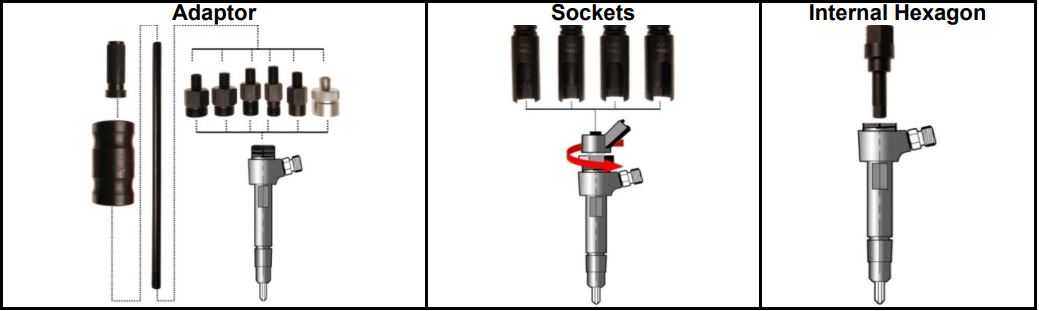

USAGE

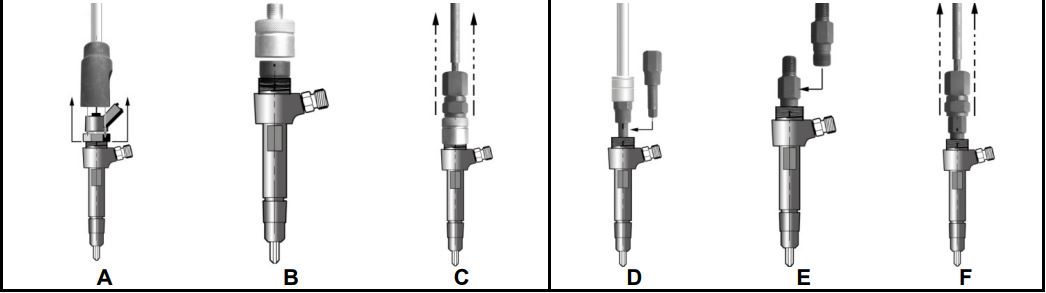

External Thread Adapter

1. Remove the electrical unit from the injector (see A).

2. Screw the external thread adapter onto the injector (see B).

3. Connect the slide hammer to the external thread adapter (see C).

4. The injector can now be removed using controlled slide hammer strikes.

5. It is recommended to replace removed injectors with new ones.

6. Follow all manufacturer assembly and safety instructions.

Internal Thread Adapter

1. Remove the electrical unit from the injector.

2. Remove the internal retaining ring with the special hex bit by turning counterclockwise (see D).

3. Screw the internal thread adapter into the injector (see E).

4. Connect the slide hammer to the internal thread adapter (see F).

5. The injector can now be removed using slide hammer strikes.

6. It is recommended to replace removed injectors with new ones.

7. Follow all manufacturer assembly and safety instructions.

IMPORTANT

To protect the threads, all fasteners must be tightened securely.
