Professional Adjustable Support Saddle for Transmission Jacks, 500 kg

Price: €169.00

Code:

117446
Weight:

13.800 Kgs

Overview:
✔ Adjustable support saddle for transmission jacks
✔ Suitable for piston rods with a diameter of 30 mm
✔ Platform tiltable horizontally and vertically
✔ Adjustable mounting brackets for individual positioning
✔ Long securing chain included
✔ Maximum load capacity: 500 kg

Professional Adjustable Support Saddle for Transmission Jacks, 500 kg

Send to friend

Rate this product

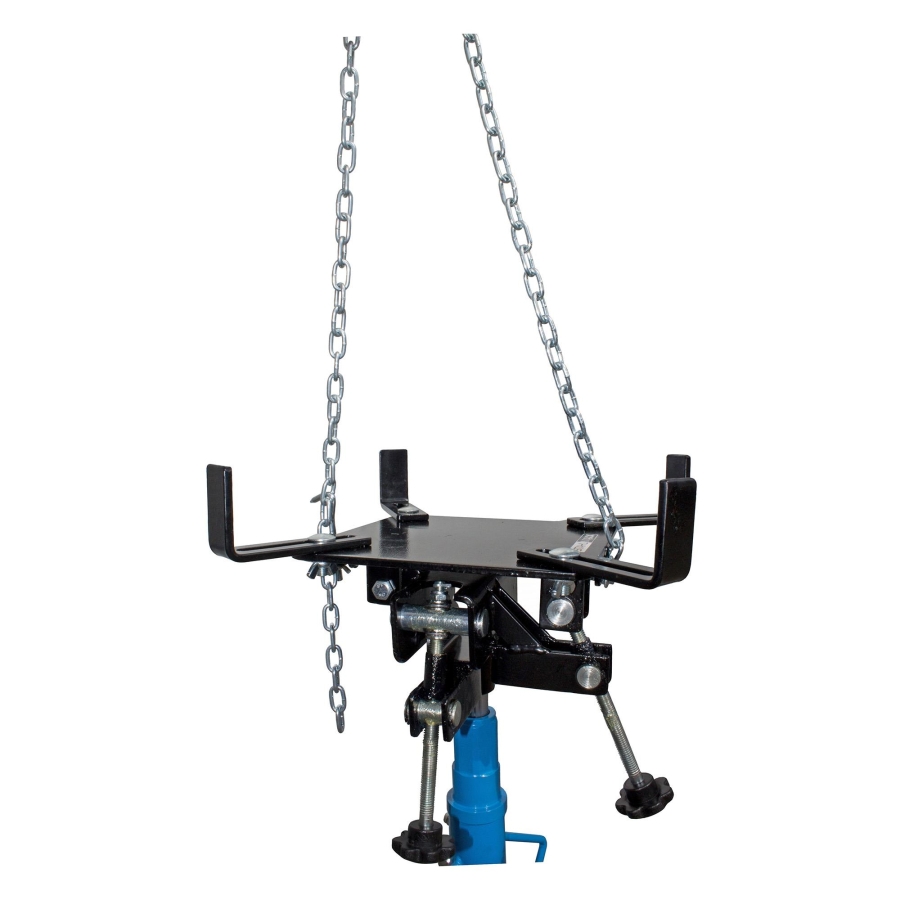

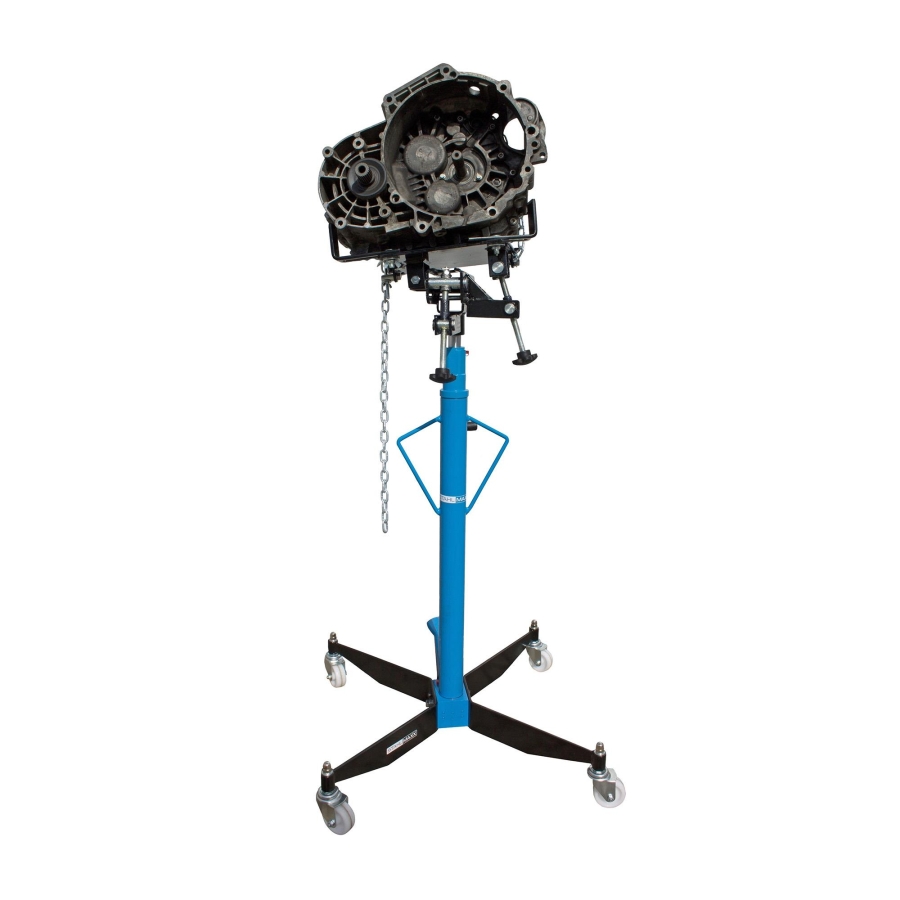

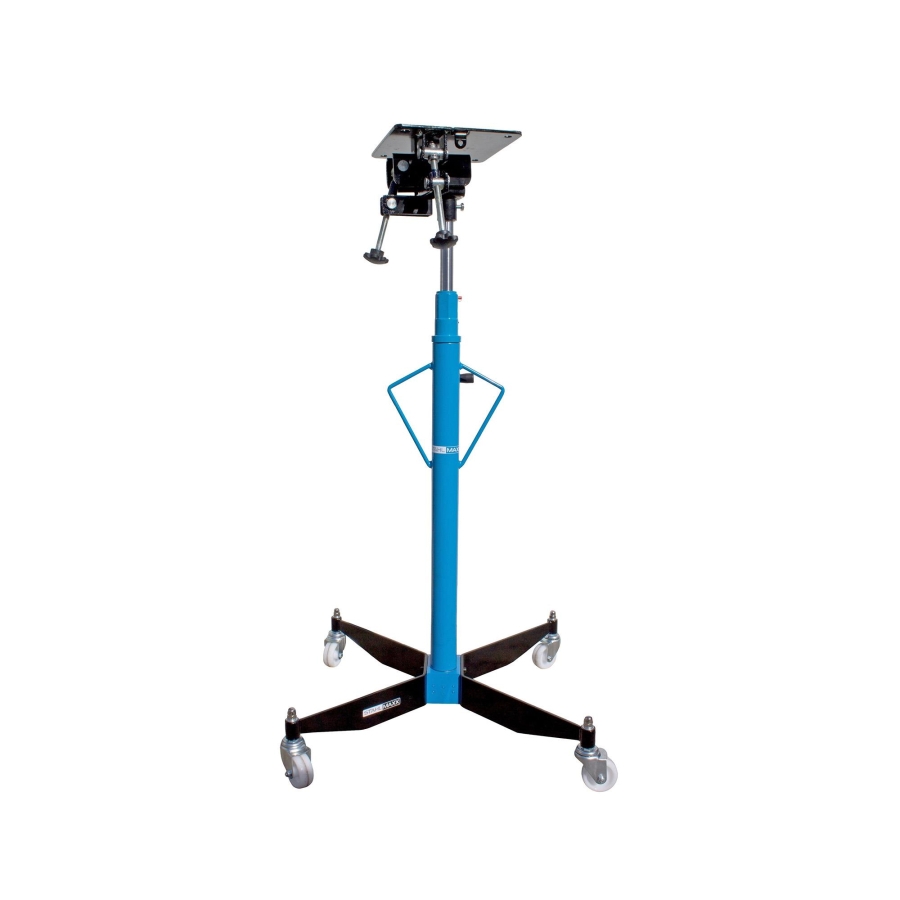

This professional support saddle is designed for use with transmission jacks equipped with a piston rod measuring 30 mm in diameter, such as the transmission jack with item no. 117442.

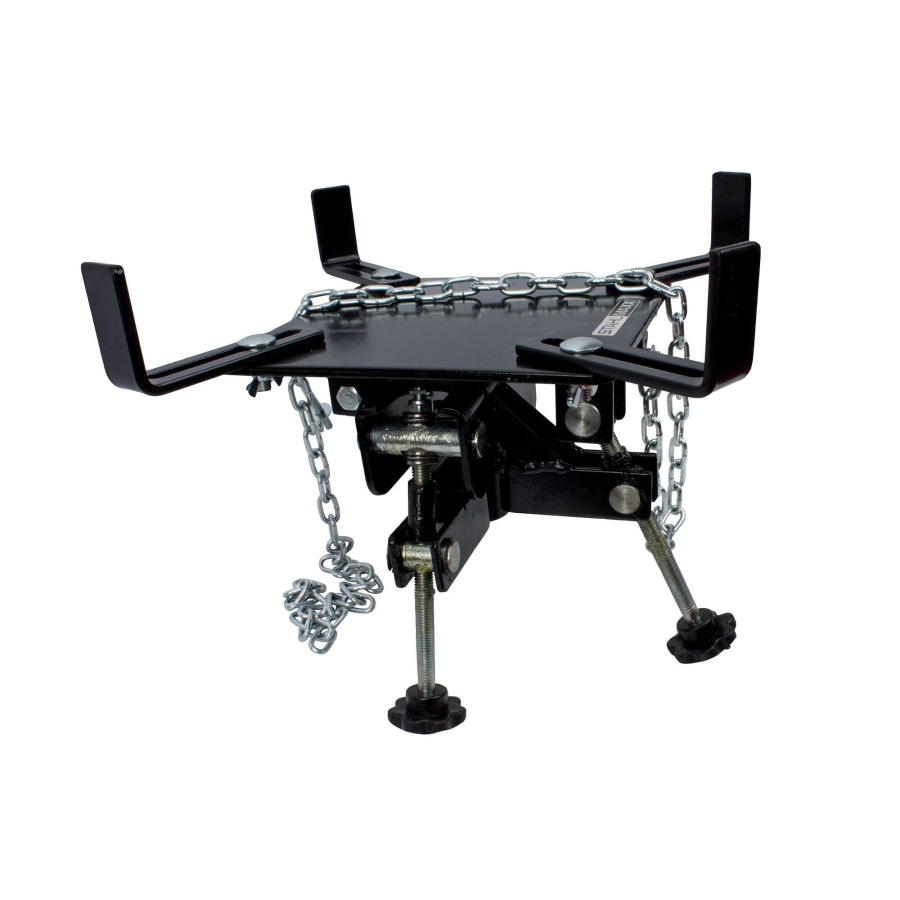

The platform can be tilted horizontally and vertically to support accurate positioning. The mountable angle brackets can be adjusted to the shape and position of the supported component, while the included chain secures it during handling.

Technical Specifications

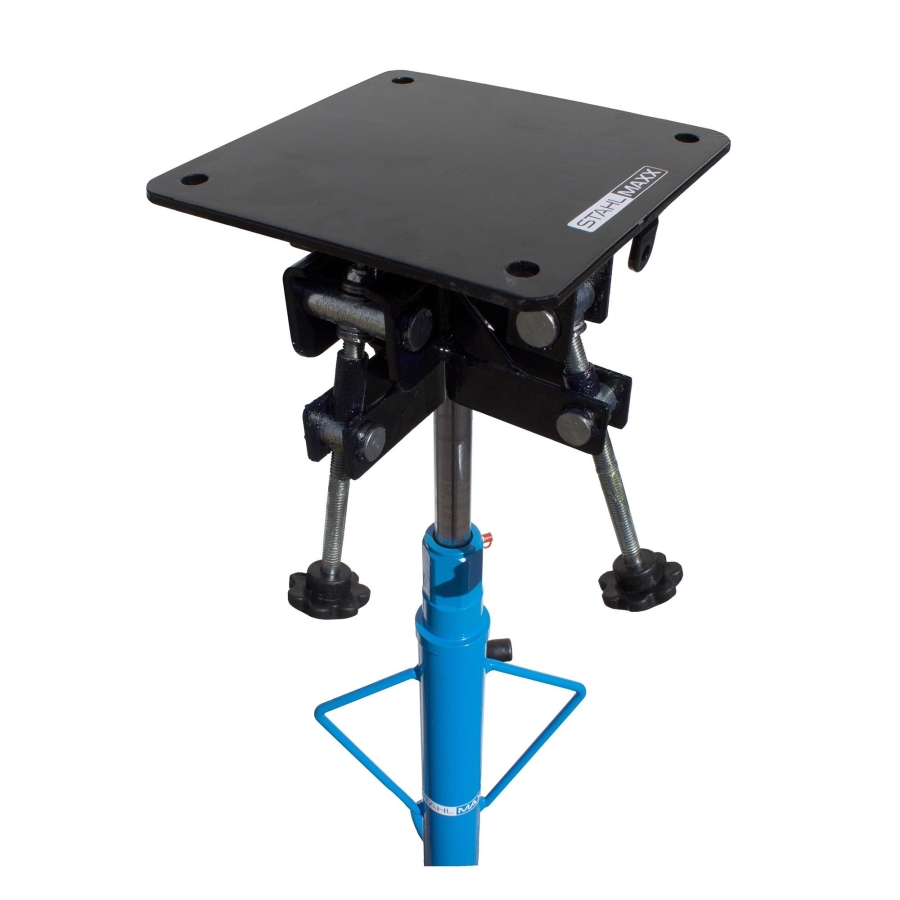

Base plate dimensions: 28 × 28 cm
Support frame dimensions: 58 × 58 cm
Maximum load capacity: 500 kg
Piston rod mounting diameter: Ø30 mm
Adjustment: Horizontally and vertically tiltable
Securing system: Long chain included
