Adjustable Support Saddle for Transmission Jack, for Item No. 117442
-
Code:117445
-
Weight:11.000 Kgs
Overview:
✔ Suitable for transmission jacks with a 30 mm piston rod
✔ Vertical platform adjustment: 30°/40°
✔ Horizontal adjustment range: ±3 cm
✔ Adjustable rails and retaining plates
✔ Two securing chains included
✔ Maximum load capacity: 500 kg

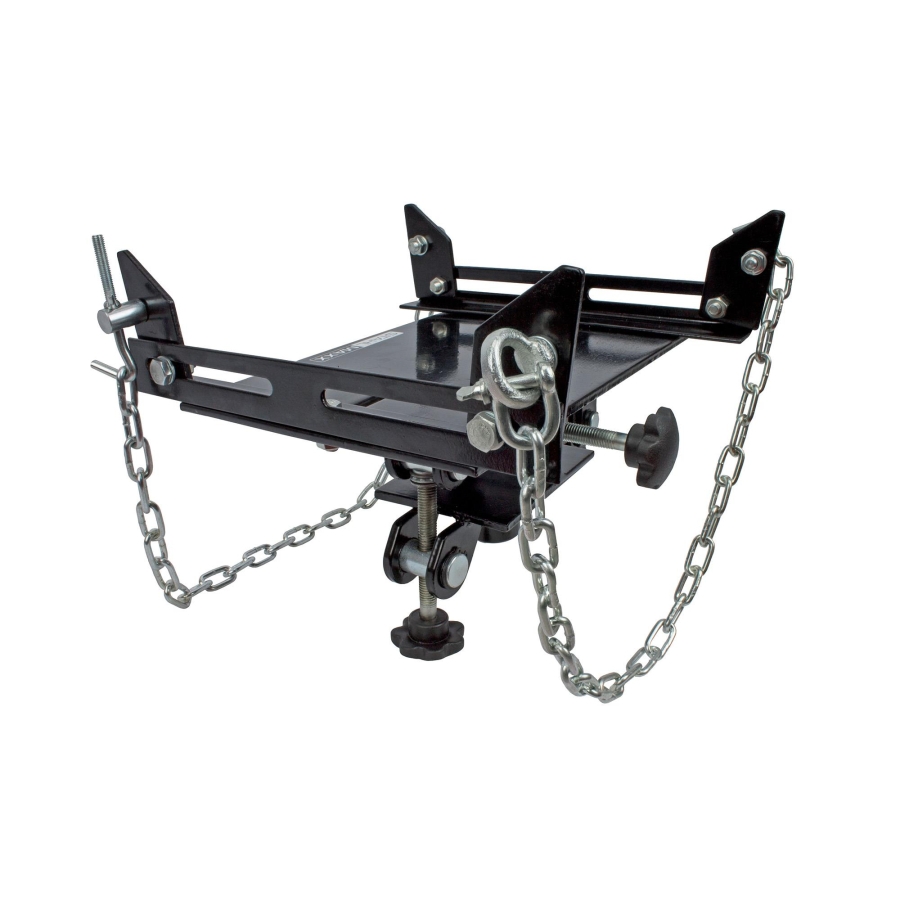

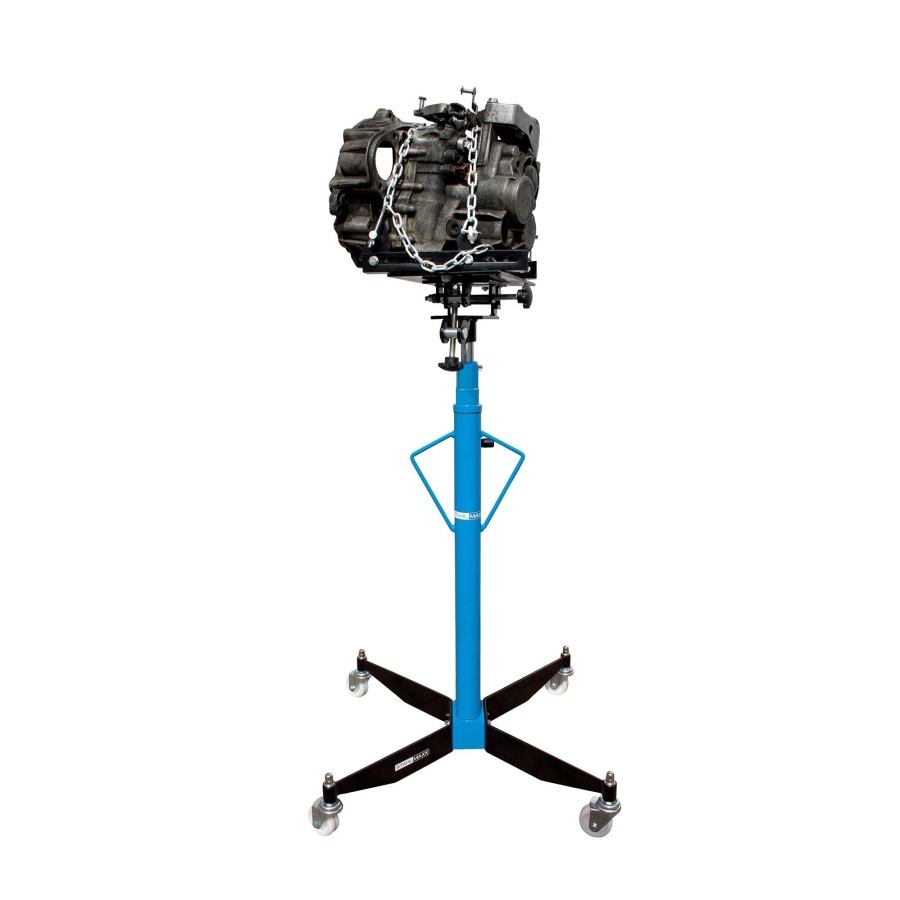

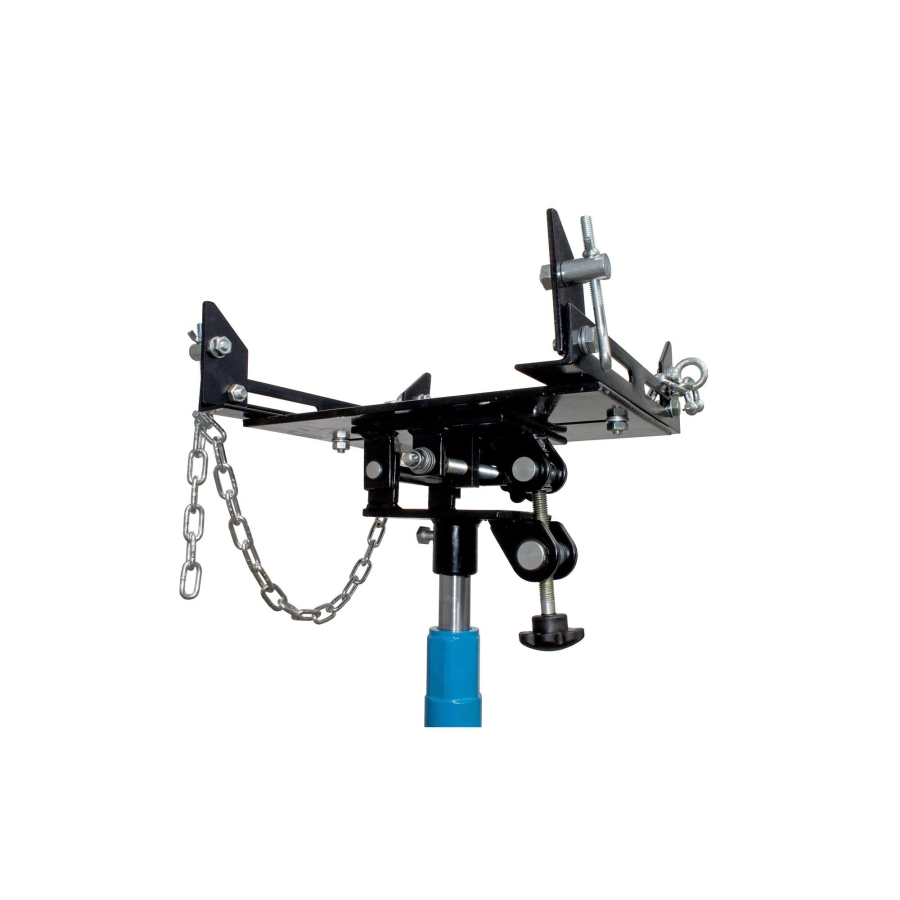

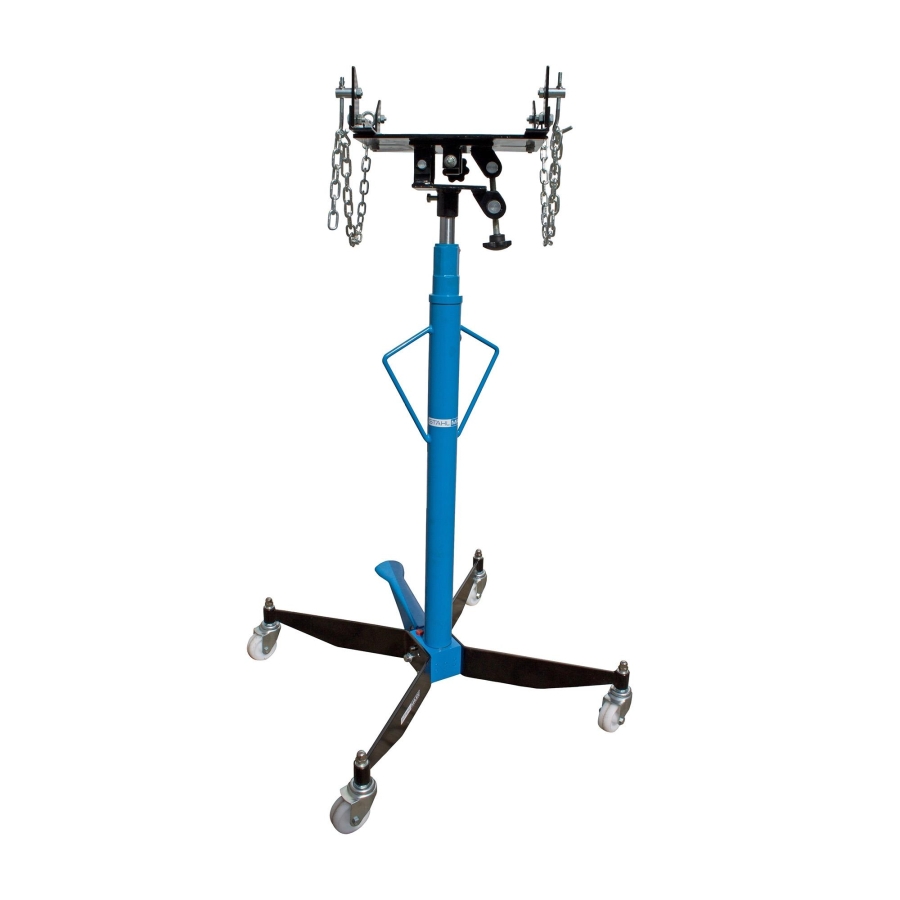

This adjustable support saddle is designed for use with transmission jacks equipped with a 30 mm piston rod, such as the transmission jack with item no. 117442.
The platform can be tilted vertically and shifted horizontally to position the supported component accurately. Mountable rails and retaining plates allow the support points to be adapted individually, while two chains secure the component during handling.
Technical Specifications
Support platform dimensions: 44.5 × 25.5 cm
Vertical tilt: 30°/40°
Horizontal adjustment: ±3 cm
Maximum load capacity: 500 kg
Piston rod mounting diameter: 30 mm
Securing system: Two chains
-

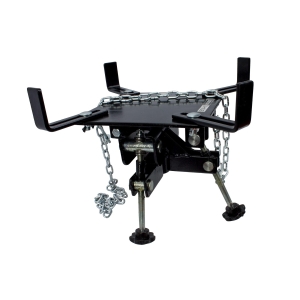

Professional Adjustable Support Saddle for Transmission Jacks, 500 kg
Price: €169.00Temporarily Unavailable
