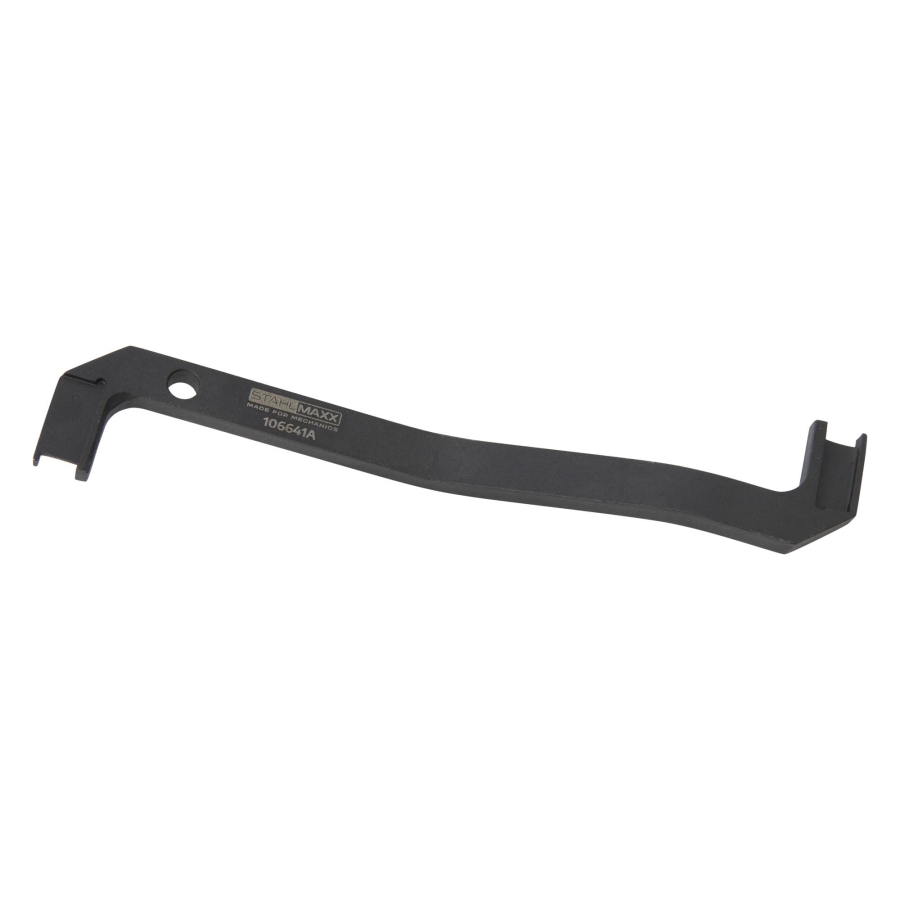

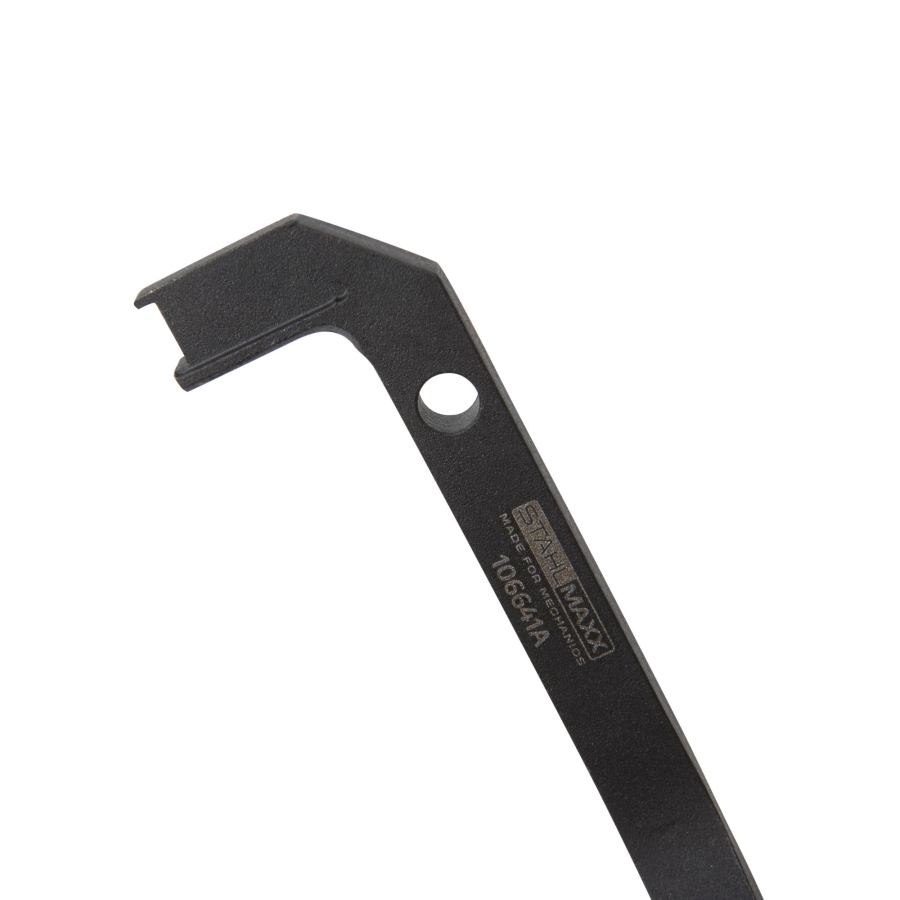

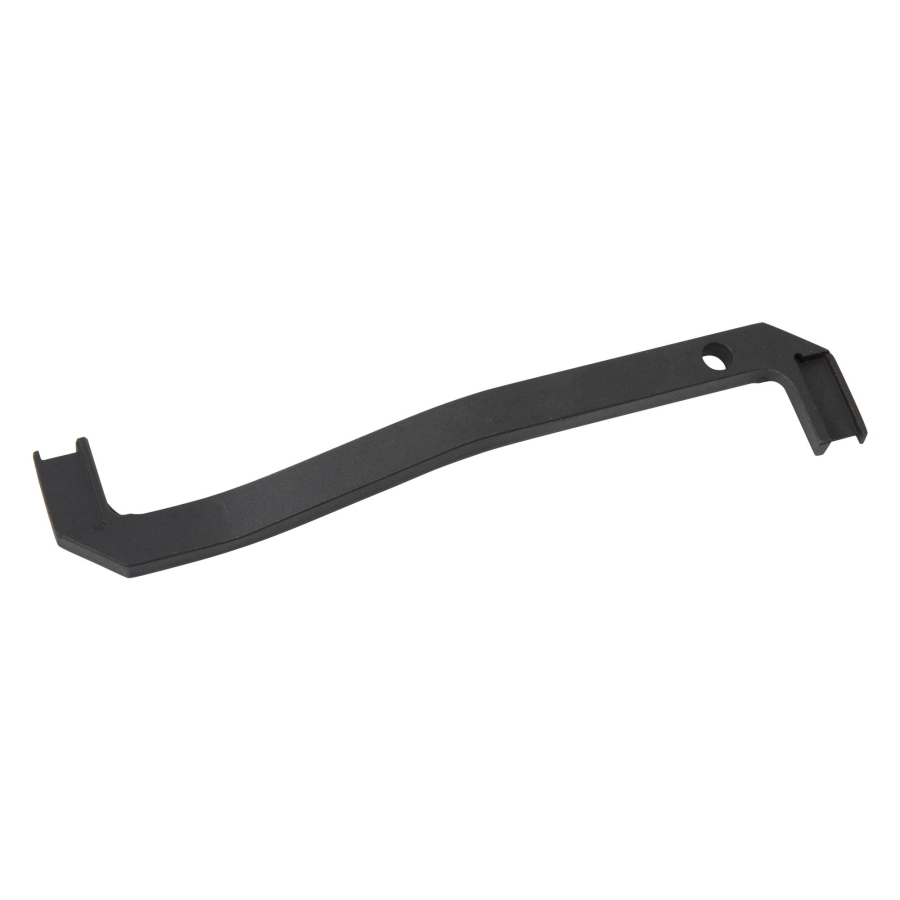

Bucket Tappet Holding Tool for Fiat, Peugeot, Hyundai, Renault and Iveco, as 1860724001

Price: €38.95 76.18лв.

Code:

106641A
Weight:

0.100 Kgs

Overview:
✔ Holds the bucket tappet in the depressed position
✔ Enables removal of valve adjustment shims
✔ Suitable for compatible Fiat, Peugeot, Hyundai, Renault and Iveco engines
✔ Applicable to Fiat Ducato 2.8 L 230 and 244 models
✔ Suitable for engine code 8140.43
✔ Used as Fiat 1860724001 and as Fiat 1860724000

Bucket Tappet Holding Tool for Fiat, Peugeot, Hyundai, Renault and Iveco, as 1860724001

Send to friend

Rate this product

The holding tool is used to retain the bucket tappet in its lowered position during valve clearance adjustment.

The tappet must first be pressed down with a separate tool. The holder is then positioned to keep the tappet depressed, allowing the adjustment shim to be removed.

Recommended Tool Combination

For depressing the bucket tappet on applications such as the Fiat Ducato 2.8 L 230 and 244, use of Item no. 22040 or Item no. 116578 is recommended.

For removing the valve adjustment shim, use of Item no. 14041 is recommended.

These additional tools are not included.

Operating Principle

Press the bucket tappet downward with a suitable separate tool.
Position the holder to retain the tappet in the depressed position.
Remove the adjustment shim with a suitable extraction tool.
Replace the shim as required and remove the holder according to the applicable repair procedure.

Compatibility

Manufacturers: Fiat, Peugeot, Hyundai, Renault, Iveco
Example application: Fiat Ducato 2.8 L, 230 and 244
Engine code: 8140.43

Compatibility must be verified according to the engine and bucket tappet design.

Comparison References

Used as Fiat 1860724001
Used as Fiat 1860724000
Used as Hyundai 09220-2D000 tappet stop

Original numbers are for comparison purposes only; this is not an original tool!

Vehicle Compatibility

Search by brand, model, engine, power, year or chassis code.

0 vehicles found

FIAT DUCATO Bus (230_) (06.1990 - 05.2005) 2.8 TDI (122 HP, 90 kW) FIAT DUCATO Bus (230_) (06.1990 - 05.2005) 2.8 TDI 4x4 (122 HP, 90 kW) FIAT DUCATO Bus (244_) (04.2002 - 07.2006) 2.8 TD (122 HP, 90 kW) FIAT DUCATO Bus (244_) (04.2002 - 07.2006) 2.8 TD 4x4 (122 HP, 90 kW) FIAT DUCATO Box (230_) (03.1994 - 05.2005) 2.8 TD 4x4 (122 HP, 90 kW) FIAT DUCATO Box (230_) (03.1994 - 05.2005) 2.8 TDI (122 HP, 90 kW) FIAT DUCATO Box (230_) (03.1994 - 05.2005) 2.8 TDI 4x4 (122 HP, 90 kW) FIAT DUCATO Box (244_) (04.2002 - 12.2018) 2.8 TD (122 HP, 90 kW) FIAT DUCATO Box (244_) (04.2002 - 12.2018) 2.8 TD 4x4 (122 HP, 90 kW) FIAT DUCATO platform/chassis (230_) (03.1994 - 04.2002) 2.8 TDI (122 hp, 90 kW) FIAT DUCATO Flatbed/Chassis (230_) (03.1994 - 04.2002) 2.8 iDTD 4x4 (122 hp, 90 kW) FIAT DUCATO Flatbed/Chassis (244_) (04.2002 - 07.2006) 2.8 JTD (122 hp, 90 kW) FIAT DUCATO Flatbed/Chassis (244_) (04.2002 - 07.2006) 2.8 JTD 4x4 (122 hp, 90 kW) IVECO DAILY II Bus (06.1990 - 05.1999) A 40-12 (95819311, 95819315, 95819317, 95819331) (122 HP, 90 kW) IVECO DAILY II Bus (06.1990 - 05.1999) A 45-12 (95839211, 95839231, 95839311, 95839317,... (122 HP, 90 kW) IVECO DAILY II Box (01.1989 - 08.2009) 2.8 4x4 (122 HP, 90 kW) IVECO DAILY II Box (01.1989 - 08.2009) 2.8 D HM 4180 (122 HP, 90 kW) IVECO DAILY II Box (01.1989 - 08.2009) 35-12 (122 hp, 90 kW) IVECO DAILY II Box (01.1989 - 08.2009) 49-12 V (15154204, 15154211, 15154215, 15154217,... (122 HP, 90 kW) IVECO DAILY II Box (01.1989 - 08.2009) 59-12 V (15174404, 15174411, 15174415, 15174417) (122 HP, 90 kW) IVECO DAILY II tipper (01.1989 - 05.1999) 35-12 K (15130311, 15130411, 15131111, 15131204,... (122 hp, 90 kW) IVECO DAILY II Tipper (01.1989 - 05.1999) 49-12 K (122 hp, 90 kW) IVECO DAILY II Tipper (01.1989 - 05.1999) 59-12 K (15176211, 15176304, 15176311, 15176315,... (122 hp, 90 kW) IVECO DAILY II Flatbed/Chassis (01.1989 - 05.1999) 2.8 4x4 (122 hp, 90 kW) IVECO DAILY II Flatbed/Chassis (01.1989 - 05.1999) 35-12 (15130311, 15130411, 15131111, 15131204, 15131211,... (122 hp, 90 kW) IVECO DAILY II Flatbed/Chassis (01.1989 - 05.1999) 49-12 (15150211, 15150311, 15150404, 15150411, 15151204,... (122 hp, 90 kW) IVECO DAILY II Flatbed/Chassis (01.1989 - 05.1999) 59-12 (15170211, 15170304, 15170311, 15170504, 15170511,... (122 HP, 90 kW) PEUGEOT BOXER Bus (230P) (03.1994 - 04.2002) 2.8 DTiC (122 HP, 90 kW) PEUGEOT BOXER Box (230L) (03.1994 - 08.2005) 2.8 DTiC (122 HP, 90 kW) PEUGEOT BOXER Platform/Chassis (244) (12.2001 - 06.2006) 2.8 TD (122 HP, 90 kW)
