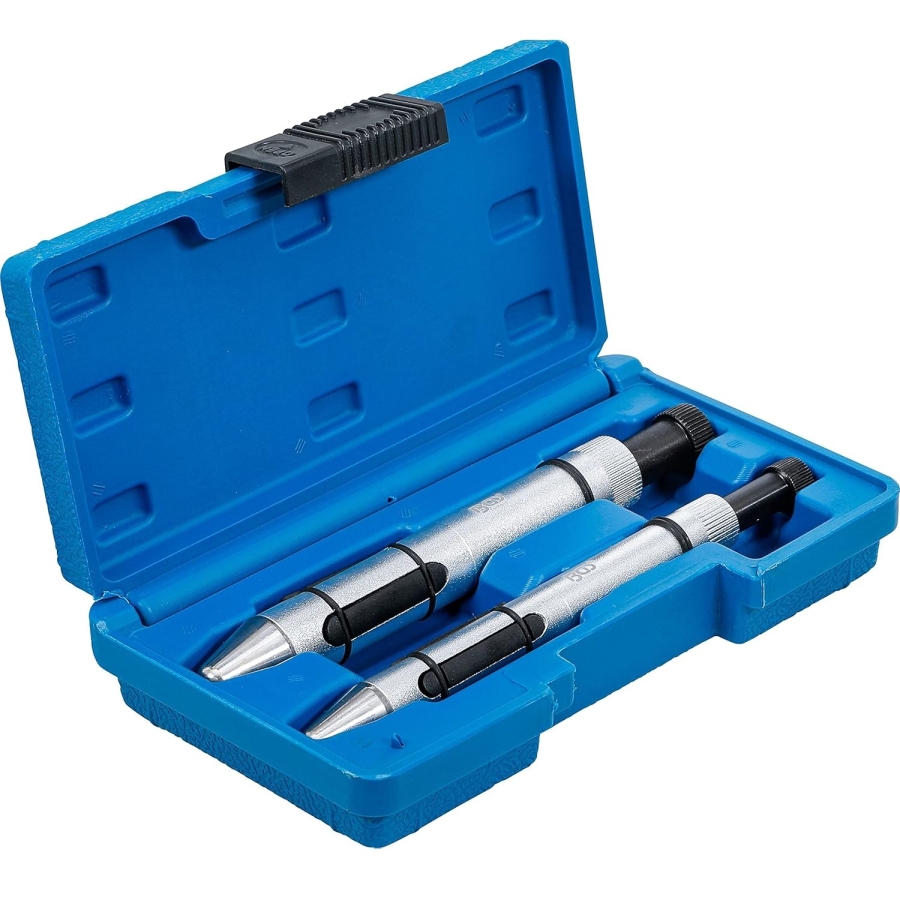

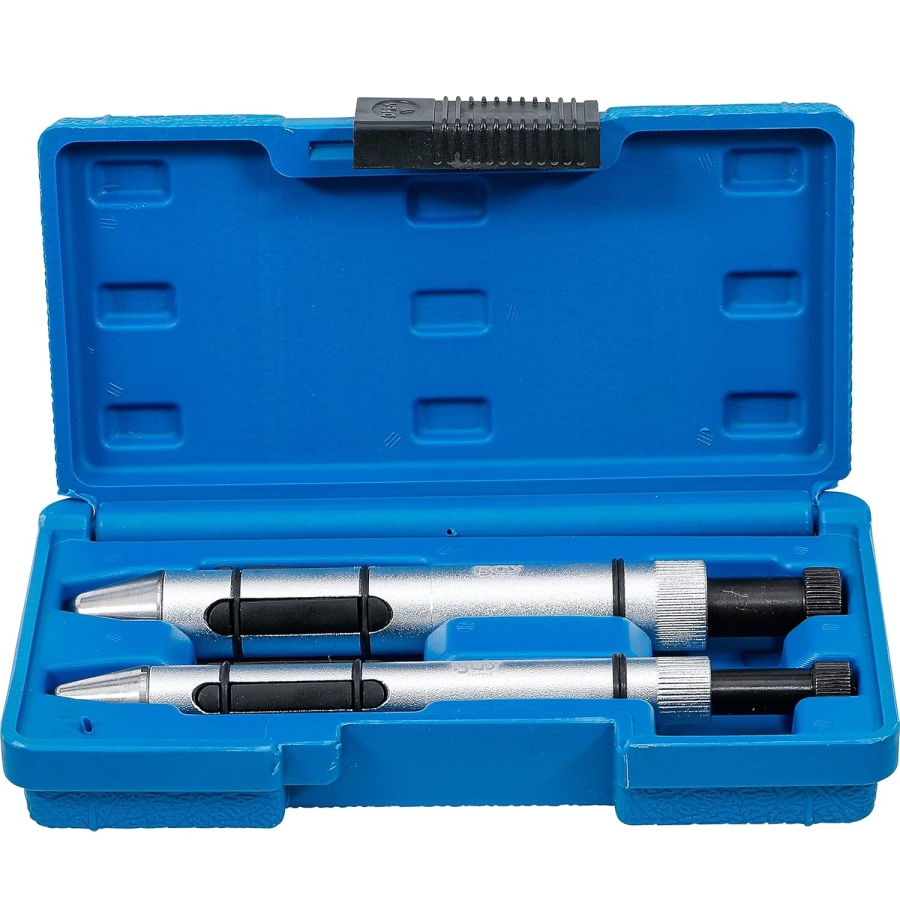

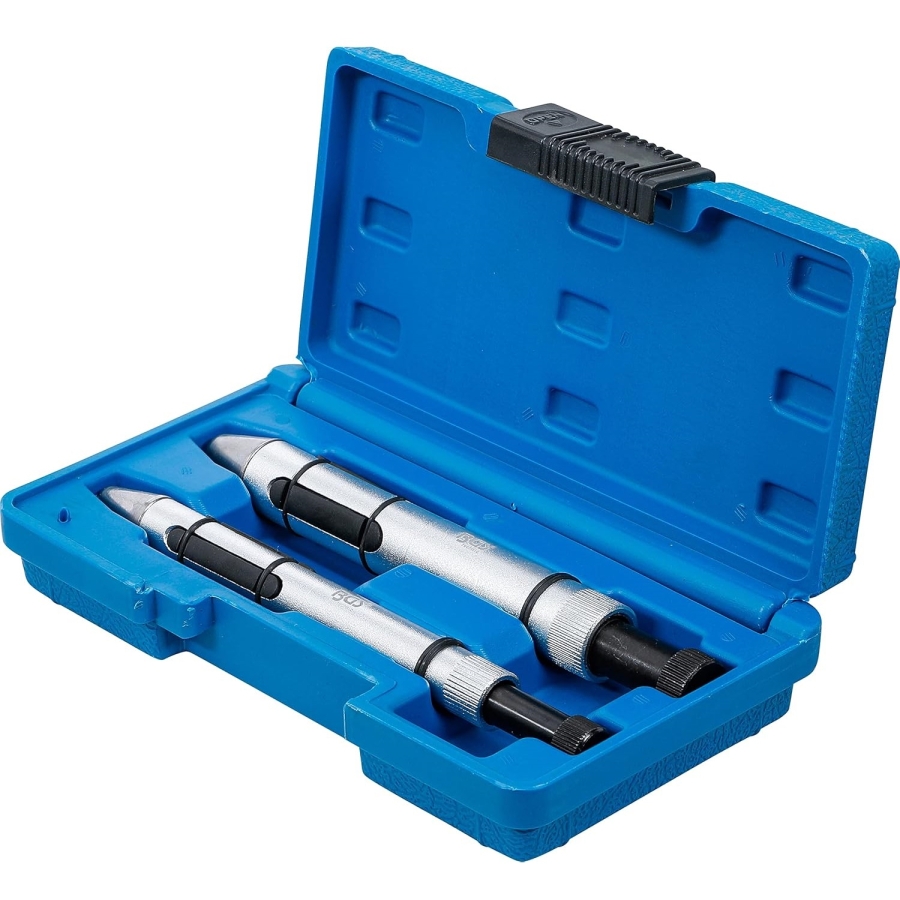

Clutch Alignment Mandrel Set, 2 pcs

This 2-piece clutch alignment mandrel set is designed for precise centering of the clutch disc during clutch installation and replacement procedures. Accurate alignment ensures easier gearbox installation and reduces the risk of improper clutch assembly.

The tool set is universally suitable for vehicles with clutch hub inner diameters ranging from 15.0 mm to 26.6 mm. It is specifically intended for single-plate dry clutch systems commonly used in passenger vehicles and light commercial vehicles.

The alignment process is performed directly through the clutch hub, eliminating the need for centering via the pilot bearing or guide bearing.

Suitable for professional workshop applications and general automotive clutch service operations.

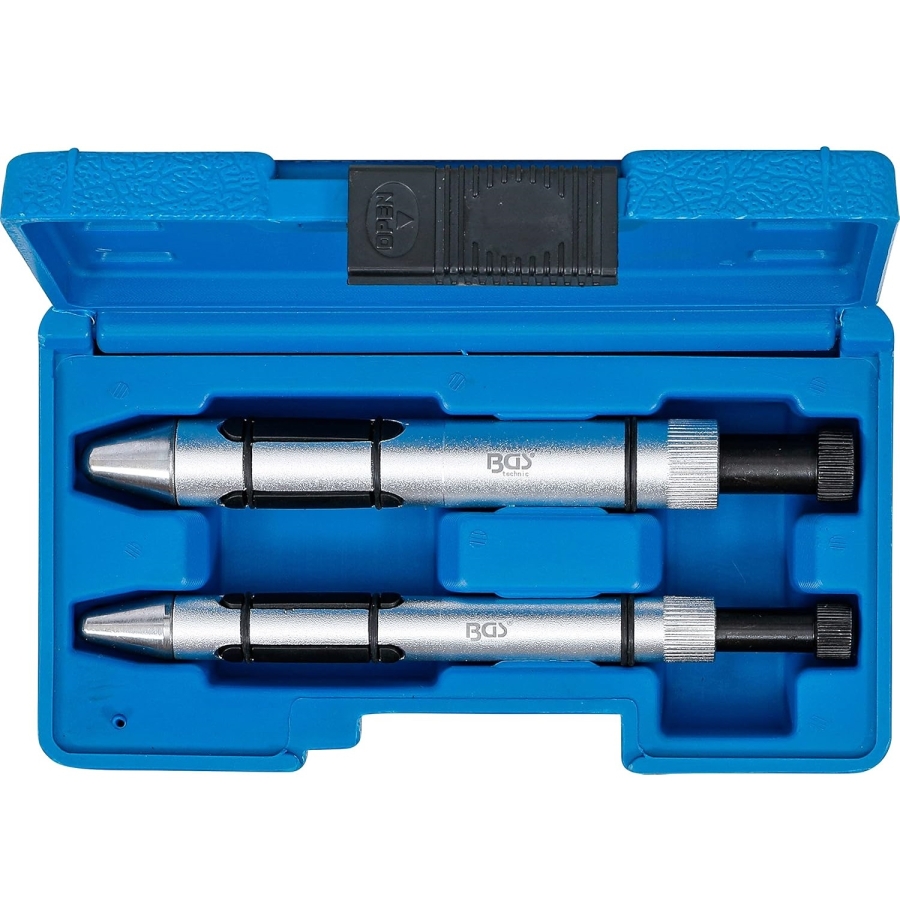

Set Contents

Clutch Alignment Mandrels – 2 pcs

• 15.0 – 19.0 mm
• 20.0 – 26.6 mm

Applications

• Clutch replacement
• Clutch disc alignment
• Gearbox installation preparation
• Single-plate dry clutch systems
• Universal automotive workshop use

Technical Features

• Universal clutch alignment application
• Wide diameter compatibility range
• Quick and accurate clutch centering
• Durable workshop-grade construction
• Simplifies clutch installation procedures
• Reduces installation time
• Helps prevent clutch misalignment during assembly

1. Select the appropriate centering mandrel.
2. Insert the centering mandrel into the clutch hub.
3. Slightly expand the centering mandrel by turning the knurled screw clockwise. The centering mandrel must fit into the clutch hub without play while still being able to move slightly in the axial direction.
4. Install the clutch disc together with the clutch pressure plate.
5. Tighten the mounting bolts of the clutch pressure plate only lightly. The clutch disc must still be able to move radially.

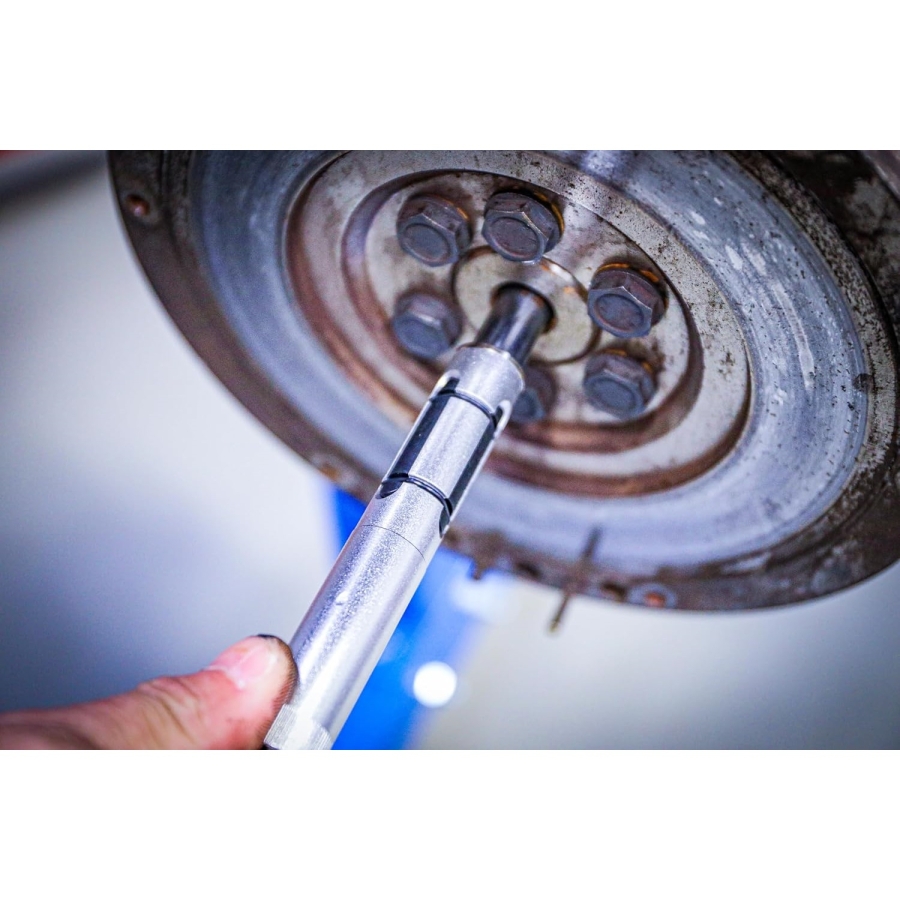

6. Push the centering mandrel further toward the engine.
7. This presses the cone (at the front of the centering mandrel) into the crankshaft bore, centering the clutch disc. At the same time, turn the knurled screw clockwise to secure the centering mandrel in the clutch hub.
8. Press the centering mandrel together with the clutch disc toward the engine and tighten the mounting bolts of the clutch pressure plate evenly in sequence. Finally, tighten the bolts to the specified torque.
9. Release the centering mandrel by turning the knurled screw counterclockwise and remove it.
