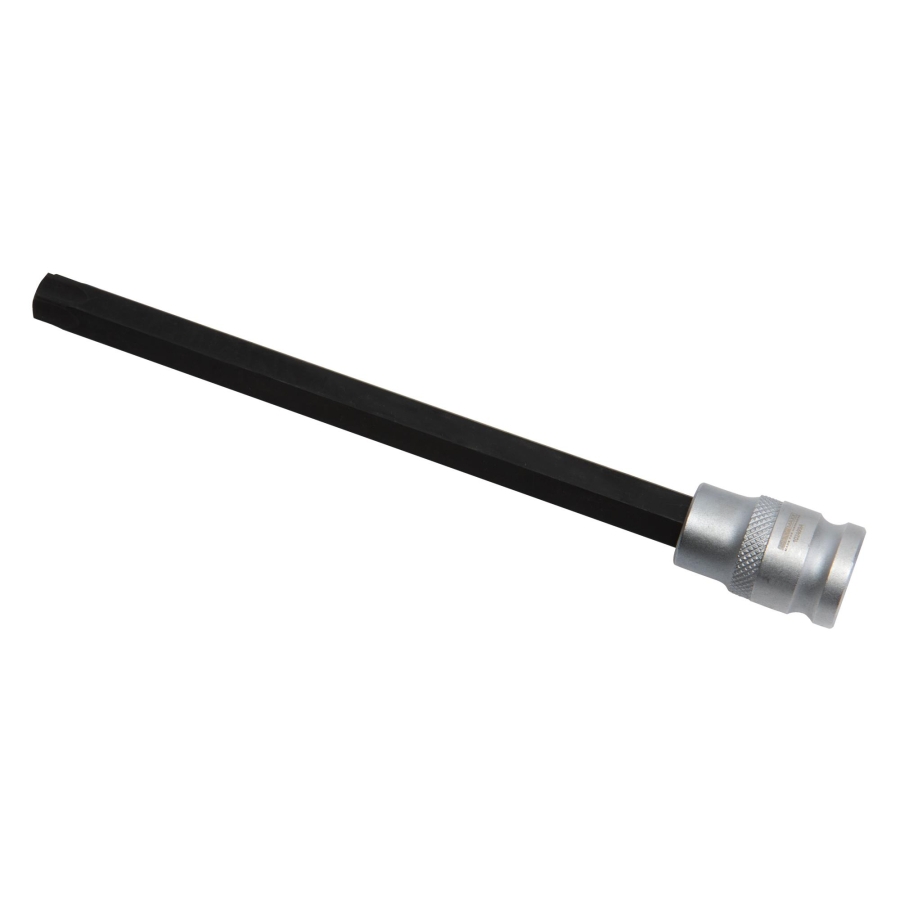

Extra-Long T60TX Socket for Ford and BMW Cylinder Head Bolts, as BMW 118580
-
Code:102499A
-
Weight:0.170 Kgs
Overview:
✔ Extra-long T60TX socket for cylinder head bolts
✔ Suitable for selected Ford and BMW engines
✔ 205 mm length for access to deeply positioned bolts
✔ 12.5 mm square drive
✔ Suitable for BMW B36, B38, B46, B48, B58, N52 and N53 engines
✔ For loosening and tightening cylinder head bolts with a T60 Torx profile
Extra-long T60TX socket for loosening and tightening deeply positioned cylinder head bolts on selected Ford and BMW engines.
Its 205 mm length provides the necessary access where a standard-length socket cannot reach the cylinder head bolts.
Note
Depending on the flywheel position, some bolts may be partially obstructed. For rotating the flywheel into the required position, we recommend Item no. 115555, as BMW 114180 and 83300491018.
Technical Data
- Drive: 12.5 mm external square
- Output profile: T60TX
- Length: 205 mm
- Design: extra-long
Suitable Cylinder Head Bolt Item Numbers
Suitable for cylinder head bolts with a T60 Torx profile, including the following Elring item numbers:
Item no. 027.850, 270.190, 572.630, 794.470, 794.480
Suitable Engine Codes
BMW: B36, B38, B46, B48, B58, N52, N53
Ford: BHDA, BHDB, BHPA, C9DC, C9DA, C9DB, F9DA, F9DB, FFDA, FFWA, HCPA, HCPB, HCPC, HCPD, KKDA, KKDB, P7PA, P7PB, P9PA, P9PB, P9PC, P9PD, R2PA, R3PA, RWPA, RWPB, RWPC, RWPD, RWPE, RWPF, RTN, RTP, RTQ, QYBA, QYWA
Included in the Following Set
Item no. 116129 – Special Tool Set for BMW B36, B38, B46, B48 and B58 Engine Repair
To Be Used as BMW
118580
Original numbers are for comparison purposes only; this is not an original tool!
