Timing Belt Engine Timing Tool Set for Ford / Mazda 1.25 / 1.4 / 1.6 16V

Price: €64.50 126.15лв.

Code:

999058
Weight:

1.002 Kgs

Overview:
✔ Professional timing belt tool set for Ford and Mazda petrol engines
✔ Suitable for 1.25L / 1.4L / 1.6L 16V engines
✔ Designed for accurate engine timing adjustment
✔ Includes camshaft alignment, crankshaft locking and flywheel tools
✔ Ideal for timing belt replacement and engine maintenance
✔ Suitable for workshop and professional use

Timing Belt Engine Timing Tool Set for Ford / Mazda 1.25 / 1.4 / 1.6 16V

Send to friend

Rate this product

This timing tool set is designed for precise adjustment of engine timing when replacing the timing belt or performing maintenance on Ford and Mazda 1.25L, 1.4L, and 1.6L 16V petrol engines.

It ensures accurate alignment of camshaft and crankshaft components, preventing incorrect timing and potential engine damage.

Function

The included tools enable correct positioning and locking of critical engine components:

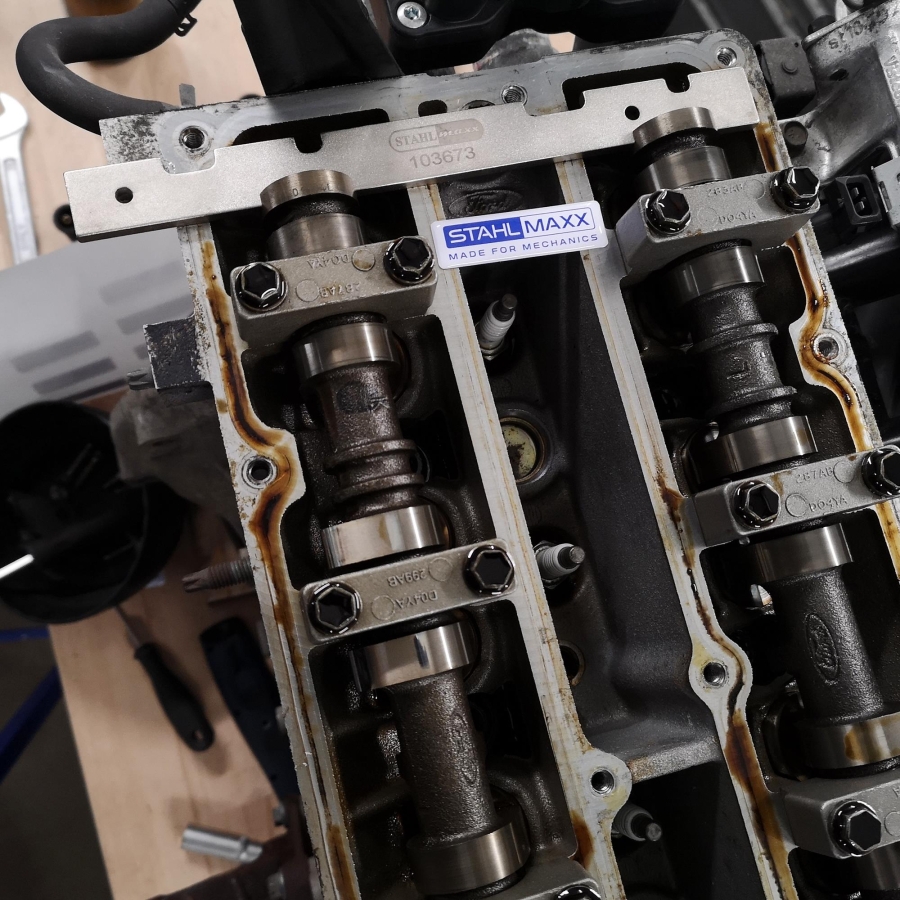

Camshaft alignment bar ensures proper camshaft positioning
Crankshaft locking pin secures crankshaft position

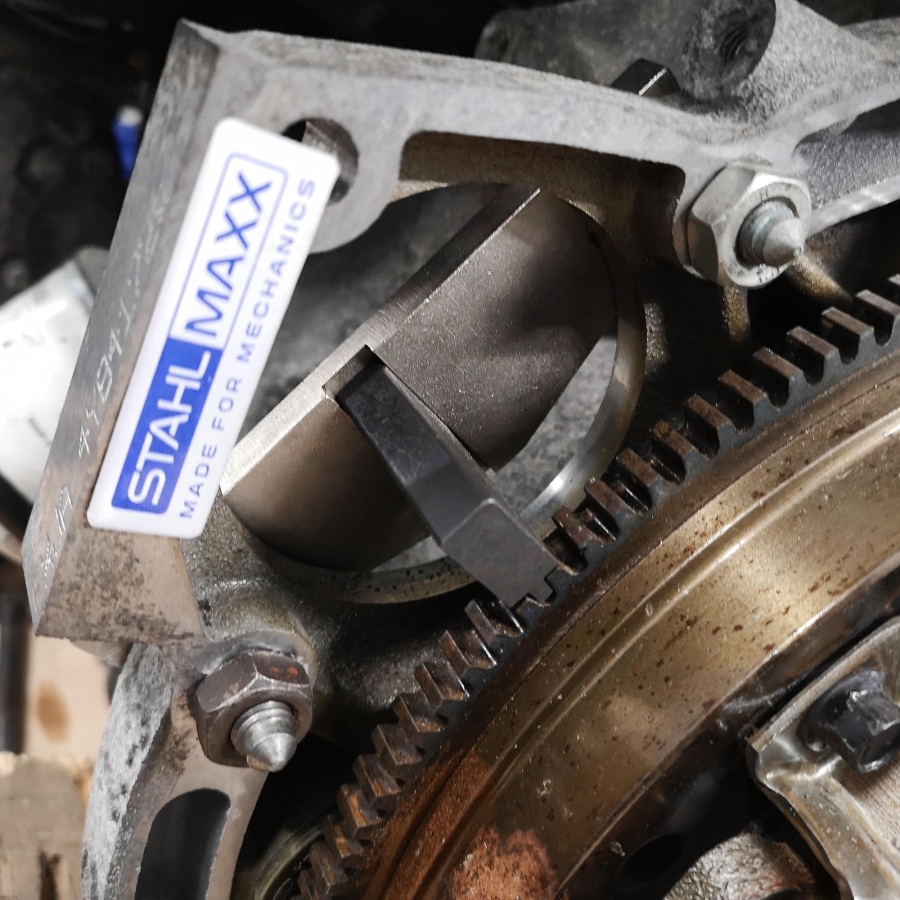

Flywheel locking tool provides counter-holding during tightening and loosening

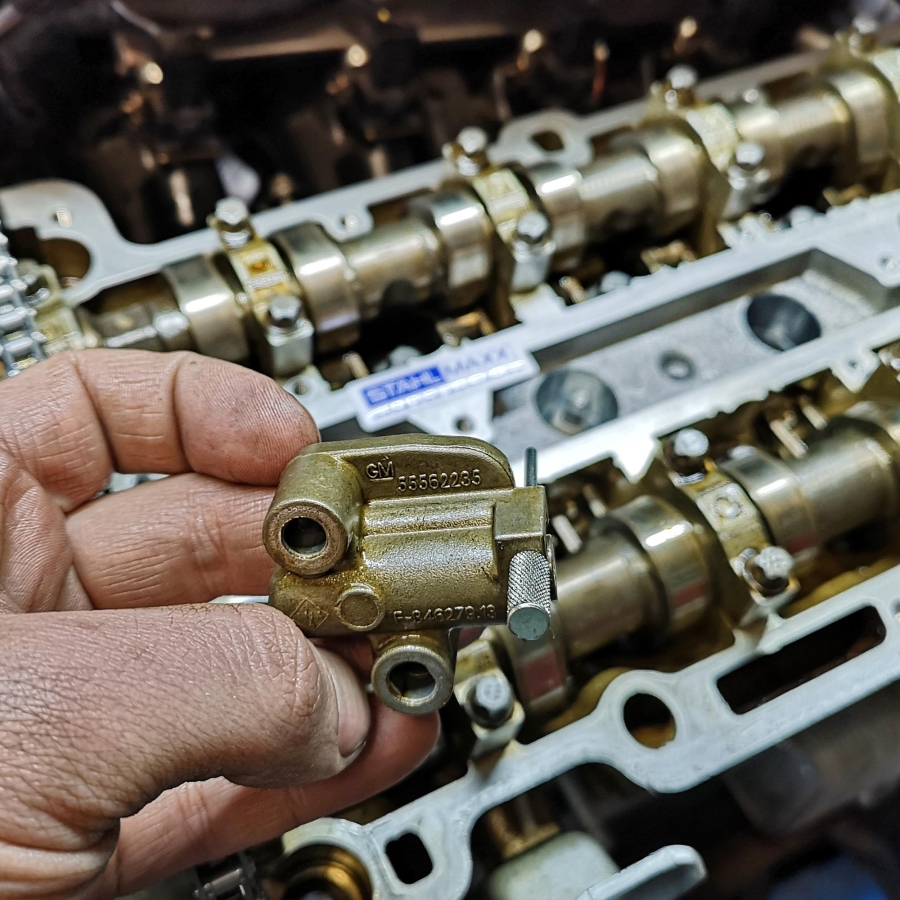

Tensioner locking pin assists with belt tension adjustment

This ensures reliable and repeatable timing setup during service procedures.

Engine Compatibility

Compatible engine codes:
ASDA, ASDB, B4164S3, DHA, DHB, DHC, DHD, DHF, DHG, F8JA, F8JB, FHA, FHE, FUJA, FUJB, FXJA, FXJB, FXJC, FYJA, FYJB, HWDA, HWDB, L1T, L1V, M7JA, M7JB, RTJA, RTJB, RTJD, SHDA, SHDB, SHDC, SNJA, SNJB, SNJC, SNJD, SPJA, SPJC, SPJD, SPJE, STJA, STJB, STJC, STJD

OEM Reference

To be used as:
21-162B, 21-259
303-376B, 303-393, 303-393-01, 303-393-02, 303-393-03, 303-748, 303-1054, 303-1272
49JE02024, 49UN303376

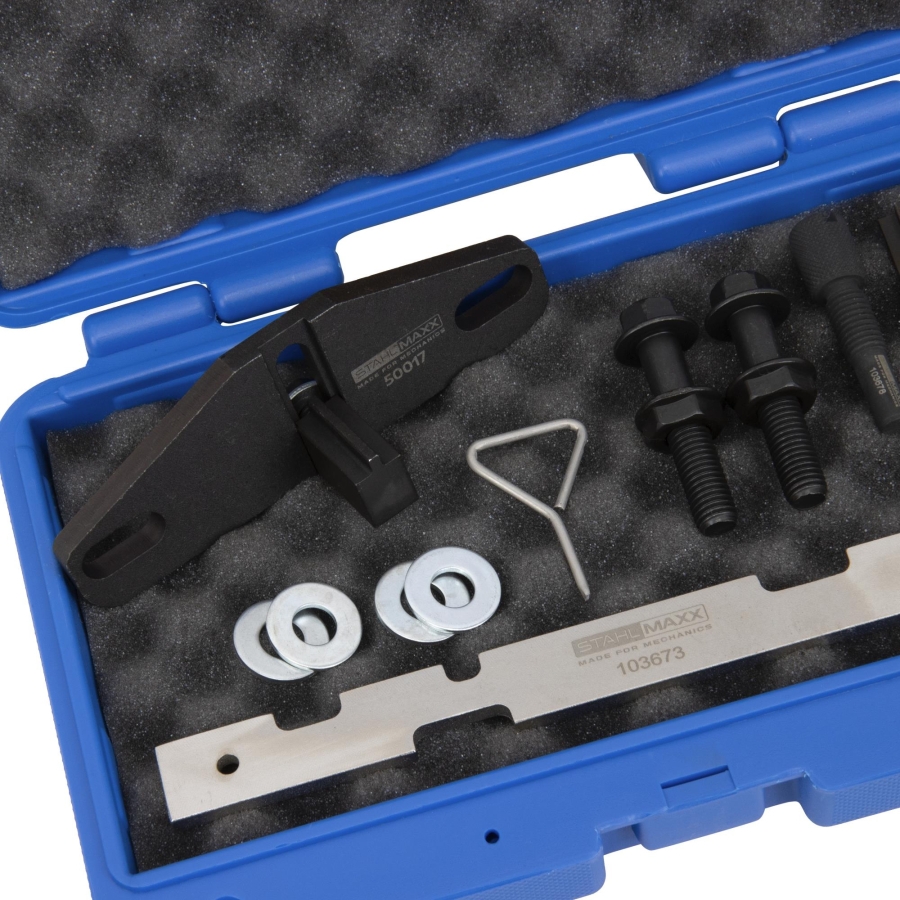

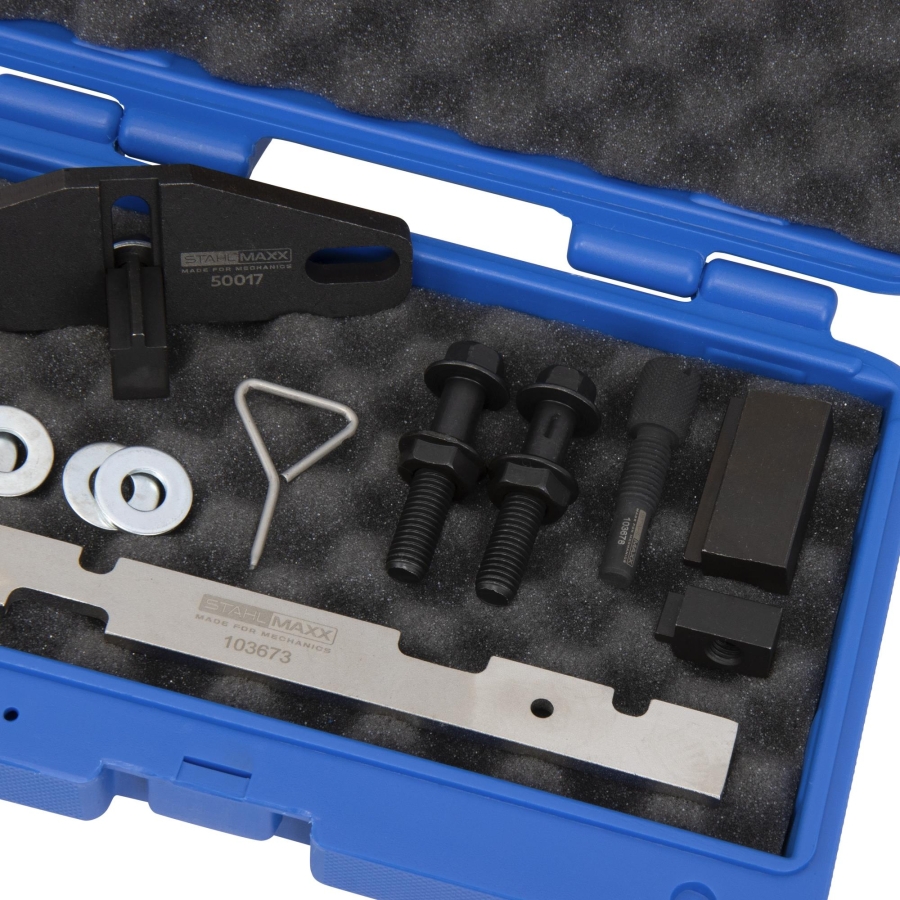

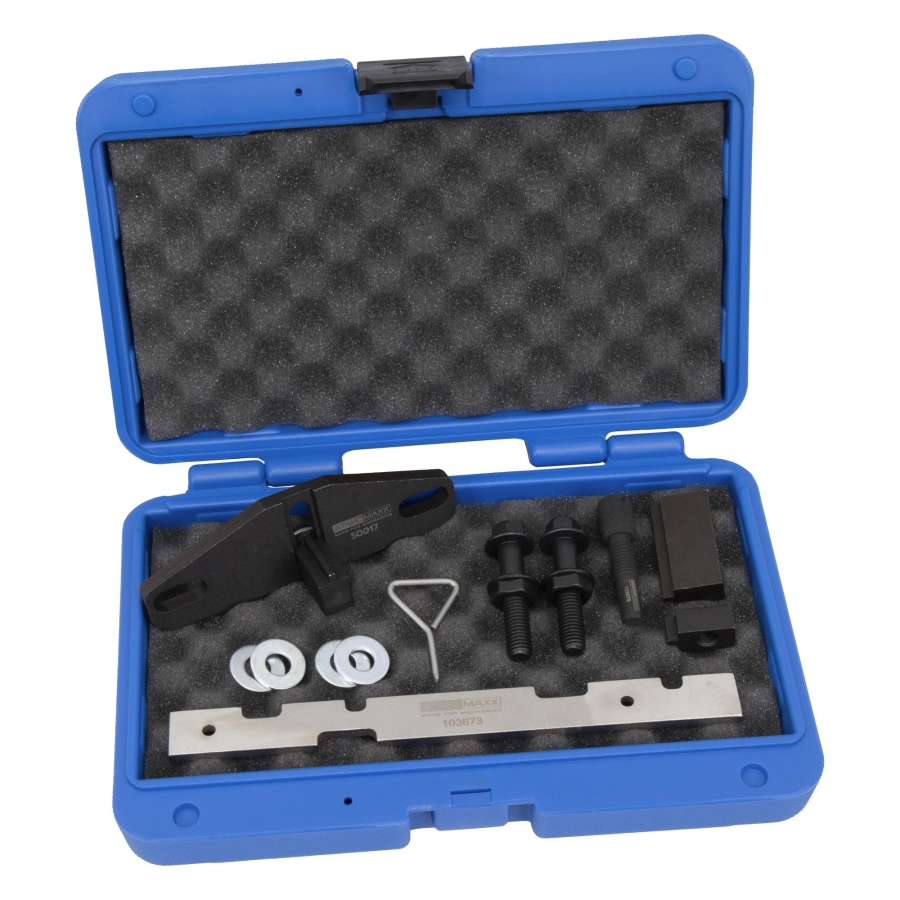

Scope of Delivery

✔ Flywheel locking tool with adapters (item.no. 50017) as 303-393, 303-393-01, 303-393-02, 303-393-03, 303-1272
✔ Camshaft alignment bar (item.no. 103673) as 303-376B, 21-162B, 49UN303376
✔ Screw-in crankshaft locking pin (item.no. 103678) as 303-748, 21-259, 49JE02024
✔ Tensioner locking pin (item.no. 112907) as 303-1054
✔ Storage case (item.no. 66009)

OEM numbers are for reference purposes only and do not imply original manufacturer tools.

FORD B-MAX (JK) (10.2012 - ) 1.4 (90 HP, 66 kW)

FORD B-MAX Van (JK) (08.2012 - ) 1.4 (90 HP, 66 kW)

FORD C-MAX (DM2) (02.2007 - 09.2010) 1.6 (100 HP, 74 kW)

FORD FIESTA Saloon (04.2010 - 12.2016) 1.25 (60 HP, 44 kW)

FORD FIESTA V (JH_, JD_) (11.2001 - 12.2014) 1.25 16V (70 HP, 51 kW)

FORD FIESTA VI (CB1, CCN) (06.2008 - 12.2019) 1.25 (60 HP, 44 kW)

FORD FIESTA VI (CB1, CCN) (06.2008 - 12.2019) 1.25 (82 HP, 60 kW)

FORD FIESTA VI (CB1, CCN) (06.2008 - 12.2019) 1.4 (97 HP, 71 kW)

FORD FIESTA VI (CB1, CCN) (06.2008 - 12.2019) 1.4 LPG (92 HP, 68 kW)

FORD FIESTA VI (CB1, CCN) (06.2008 - 12.2019) 1.4 LPG (97 HP, 71 kW)

FORD FIESTA VI Van (08.2008 - 12.2012) 1.25 (60 HP, 44 kW)
