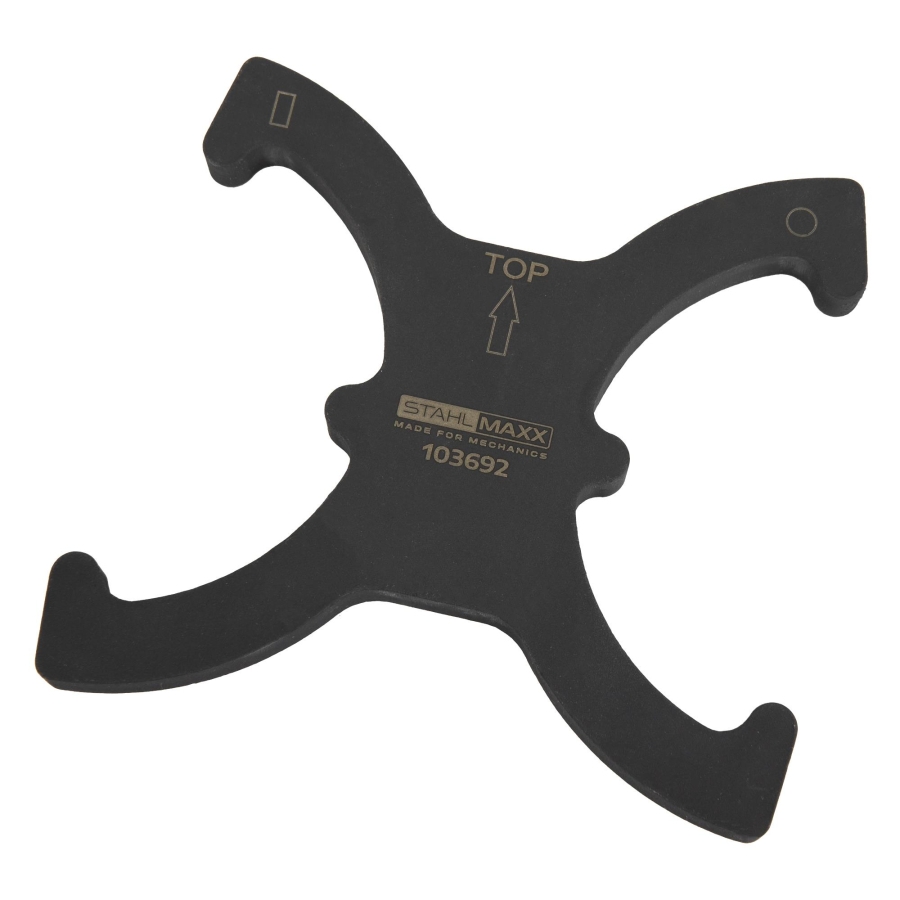

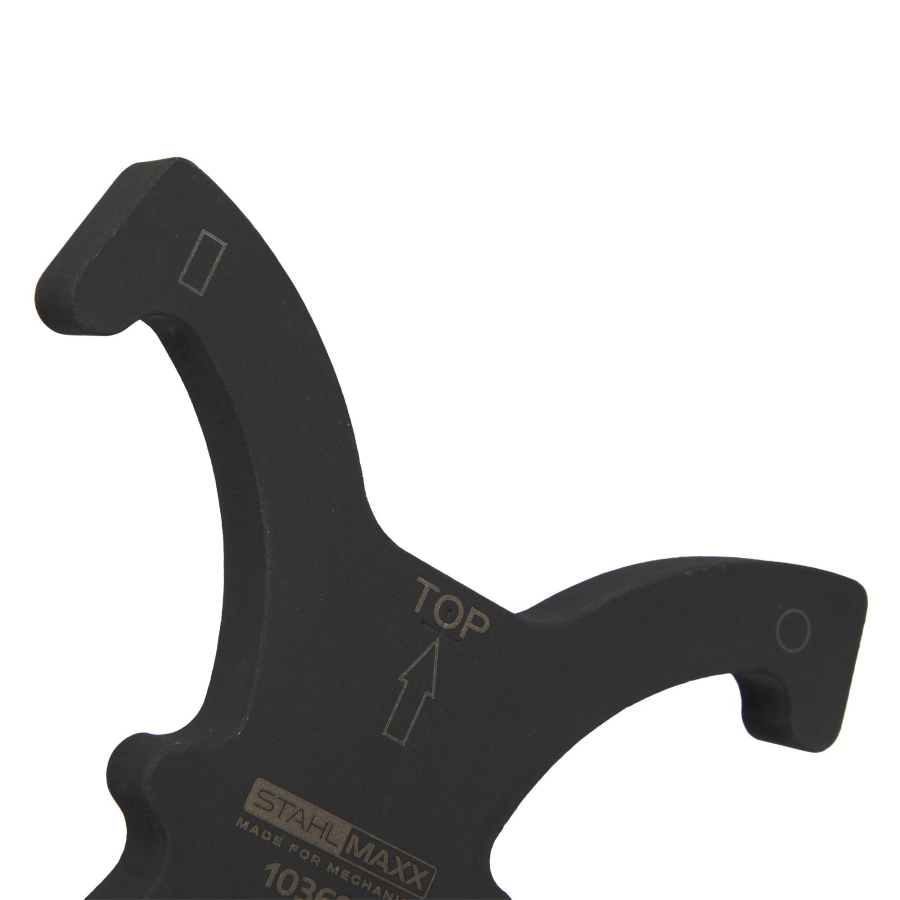

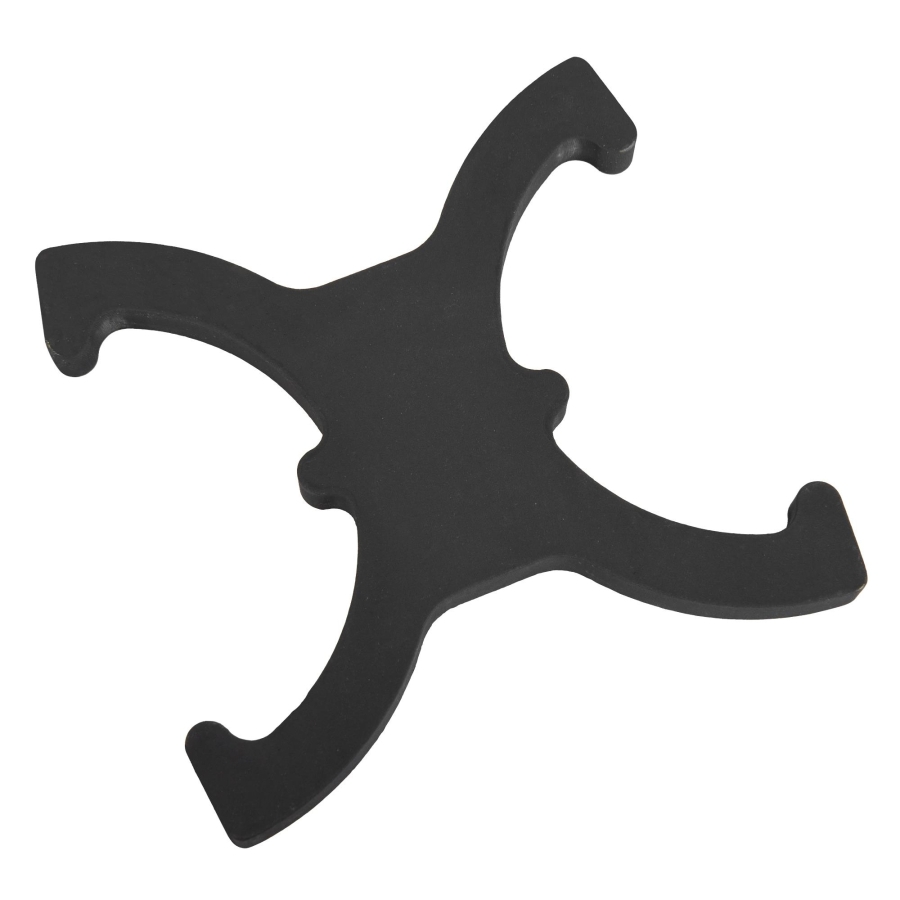

Variable Camshaft Locking Tool for Ford / Volvo Engines
-
Code:103692
-
Weight:0.380 Kgs
Overview:
✔ Professional locking tool for variable camshafts
✔ Suitable for oil-controlled variable camshaft systems
✔ Compatible with Ford and Volvo petrol engines
✔ Ensures secure fixation during engine repair
✔ Ideal for timing adjustment and camshaft service
✔ Designed for workshop and professional use
This specialized tool is designed for locking oil-controlled variable camshafts during engine repair, maintenance, and timing adjustment procedures.
It ensures stable positioning of the camshaft during service operations involving camshaft adjusters and timing components.
Function

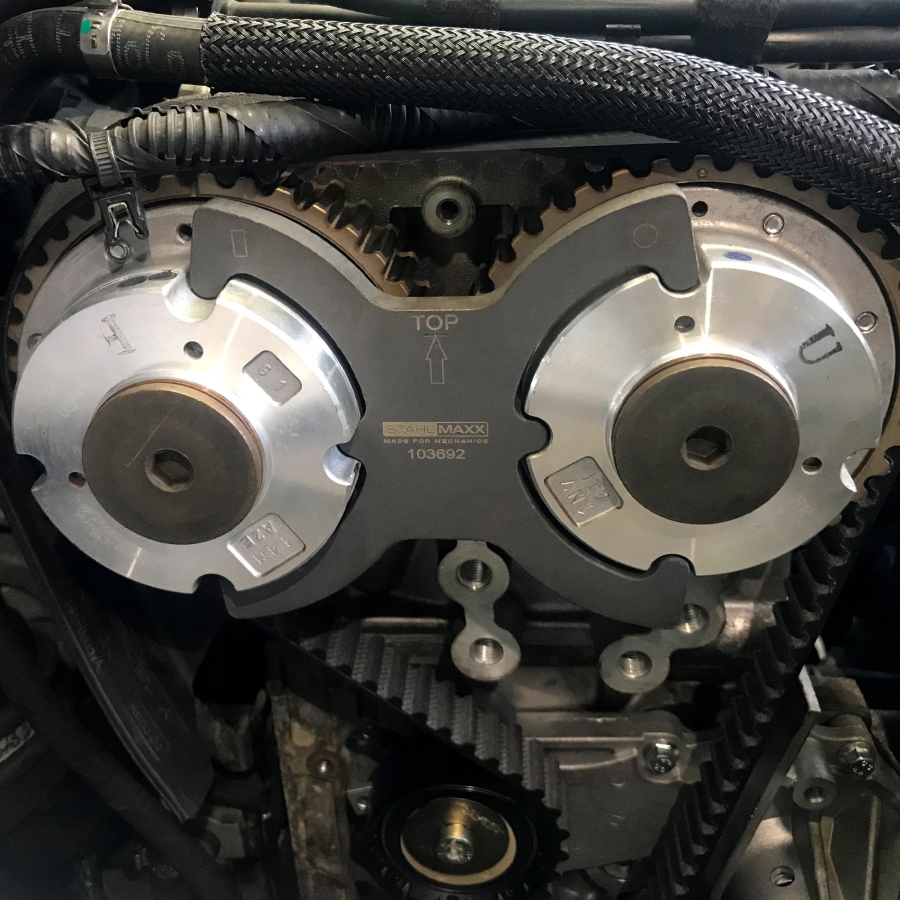

The tool securely fixes the variable camshaft in position, preventing unwanted movement caused by oil pressure or internal spring forces.
This allows accurate timing setup and safe disassembly or assembly of camshaft components.
Engine Compatibility
Engine codes:
B2KA, B4164T, BNMA, HXDA, HXDB, HXJA, HXJB, HXJE, IQDA, IQDB, IQDC, IQJA, IQJC, IQJE, JTJA, JTJB, M8MA, M8MB, M8MC, M8MD, M8ME, MUDA, MUDD, PNBA, PNDA, PNDD, SIDA, U5JA, UEJB, UEJE, XTDA, XTDB, YSKD, YSKE
OEM Reference
To be used as:
Ford 303-1097
Volvo 9997429
Scope of Delivery
✔ Variable camshaft locking tool as 303-1097 / 9997429
OEM numbers are for reference purposes only and do not imply original manufacturer tools.
FORD B-MAX (JK) (10.2012 - ) 1.6 Ti (105 HP, 77 kW)
FORD B-MAX Van (JK) (08.2012 - ) 1.6 Ti (105 HP, 77 kW)
FORD C-MAX (DM2) (02.2007 - 09.2010) 1.6 (116 HP, 85 kW)
FORD C-MAX II (DXA/CB7, DXA/CEU) (04.2010 - 12.2014) 1.6 CNG (117 HP, 86 kW)
FORD C-MAX II (DXA/CB7, DXA/CEU) (04.2010 - 12.2014) 1.6 Flexifuel (120 HP, 88 kW)
FORD C-MAX II (DXA/CB7, DXA/CEU) (04.2010 - 12.2014) 1.6 LPG (117 HP, 86 kW)
FORD C-MAX II (DXA/CB7, DXA/CEU) (04.2010 - 12.2014) 1.6 LPG (120 HP, 88 kW)
FORD C-MAX II (DXA/CB7, DXA/CEU) (04.2010 - 12.2014) 1.6 Ti (105 HP, 77 kW)
FORD C-MAX II (DXA/CB7, DXA/CEU) (04.2010 - 12.2014) 1.6 Ti (120 HP, 88 kW)
FORD C-MAX II (DXA/CB7, DXA/CEU) (04.2010 - 12.2014) 1.6 Ti (125 HP, 92 kW)
FORD C-MAX II (DXA/CB7, DXA/CEU) (04.2010 - 12.2014) 1.6 Ti (85 HP, 63 kW)
FORD C-MAX II Van (10.2010 - ) 1.6 Ti (105 HP, 77 kW)
FORD ECOSPORT (01.2012 - 07.2017) 1.5 Ti (112 HP, 82 kW)
FORD FIESTA Saloon (04.2010 - 12.2016) 1.6 (121 HP, 89 kW)
FORD FIESTA Saloon (04.2010 - 12.2016) 1.6 Ti (105 HP, 77 kW)
FORD FIESTA Saloon (04.2010 - 12.2016) 1.6 Ti (120 HP, 88 kW)
FORD FIESTA VI (CB1, CCN) (06.2008 - 12.2019) 1.6 (121 HP, 89 kW)
FORD FIESTA VI (CB1, CCN) (06.2008 - 12.2019) 1.6 ST (182 HP, 134 kW)
FORD FIESTA VI (CB1, CCN) (06.2008 - 12.2019) 1.6 Ti (105 HP, 77 kW)
FORD FIESTA VI (CB1, CCN) (06.2008 - 12.2019) 1.6 Ti (120 HP, 88 kW)
FORD FIESTA VI (CB1, CCN) (06.2008 - 12.2019) 1.6 Ti (134 HP, 99 kW)
FORD FIESTA VI Van (08.2008 - 12.2012) 1.6 ST (182 HP, 134 kW)
FORD FIESTA VI Van (08.2008 - 12.2012) 1.6 Ti-VCT (120 HP, 88 kW)
FORD FOCUS C-MAX (DM2) (10.2003 - 03.2007) 1.6 Ti (115 HP, 85 kW)
FORD FOCUS II (DA_, HCP, DP) (07.2004 - 09.2013) 1.6 LPG (115 HP, 85 kW)
FORD FOCUS II (DA_, HCP, DP) (07.2004 - 09.2013) 1.6 Ti (115 HP, 85 kW)
FORD FOCUS II Box Body/Estate (07.2004 - 07.2011) 1.6 Ti-VCT (116 HP, 85 kW)
FORD FOCUS II Saloon (DB_, FCH, DH) (04.2005 - 09.2013) 1.6 Ti (115 HP, 85 kW)
FORD FOCUS II Tournament (DA_, FFS, DS) (07.2004 - 09.2012) 1.6 LPG (115 HP, 85 kW)
FORD FOCUS II Tournament (DA_, FFS, DS) (07.2004 - 09.2012) 1.6 Ti (115 HP, 85 kW)
FORD FOCUS III (07.2010 - 06.2019) 1.6 Flexifuel (120 HP, 88 kW)
FORD FOCUS III (07.2010 - 06.2019) 1.6 LPG (117 HP, 86 kW)
FORD FOCUS III (07.2010 - 06.2019) 1.6 LPG (120 HP, 88 kW)
FORD FOCUS III (07.2010 - 06.2019) 1.6 Ti (105 HP, 77 kW)
FORD FOCUS III (07.2010 - 06.2019) 1.6 Ti (120 HP, 88 kW)
FORD FOCUS III (07.2010 - 06.2019) 1.6 Ti (125 HP, 92 kW)
FORD FOCUS III (07.2010 - 06.2019) 1.6 Ti (85 HP, 63 kW)
FORD FOCUS III Box Body/Hatchback (01.2011 - 06.2014) 1.6 Ti (105 HP, 77 kW)
FORD FOCUS III Saloon (07.2010 - 06.2019) 1.6 Flexifuel (120 HP, 88 kW)
FORD FOCUS III Saloon (07.2010 - 06.2019) 1.6 Ti (105 HP, 77 kW)
FORD FOCUS III Saloon (07.2010 - 06.2019) 1.6 Ti (125 HP, 92 kW)
FORD FOCUS III Saloon (07.2010 - 06.2019) 1.6 Ti (85 HP, 63 kW)
FORD FOCUS III Tournament (07.2010 - ) 1.6 Flexifuel (120 HP, 88 kW)
FORD FOCUS III Tournament (07.2010 - ) 1.6 LPG (117 HP, 86 kW)
FORD FOCUS III Tournament (07.2010 - ) 1.6 LPG (120 HP, 88 kW)
FORD FOCUS III Tournament (07.2010 - ) 1.6 Ti (105 HP, 77 kW)
FORD FOCUS III Tournament (07.2010 - ) 1.6 Ti (120 HP, 88 kW)
FORD FOCUS III tournament (07.2010 - ) 1.6 Ti (125 hp, 92 kW)
FORD FOCUS III Tournament (07.2010 - ) 1.6 Ti (85 HP, 63 kW)
FORD GRAND C-MAX (DXA/CB7, DXA/CEU) (12.2010 - ) 1.6 Ti (105 HP, 77 kW)
FORD GRAND C-MAX (DXA/CB7, DXA/CEU) (12.2010 - ) 1.6 Ti (125 HP, 92 kW)
FORD GRAND C-MAX (DXA/CB7, DXA/CEU) (12.2010 - ) 1.6 Ti (86 HP, 63 kW)
FORD GRAND C-MAX Van (12.2010 - 12.2014) 1.6 Ti (125 HP, 92 kW)
FORD KA+ (UK, FK) (08.2014 - 12.2018) 1.2 (70 HP, 51 kW)
FORD KA+ (UK, FK) (08.2014 - 12.2018) 1.2 Ti-VCT (85 HP, 63 kW)
FORD KA+ (UK, FK) (08.2014 - 12.2018) 1.5 (105 HP, 77 kW)
FORD KA+ (UK, FK) (08.2014 - 12.2018) 1.5 (112 HP, 82 kW)
FORD KA+ Saloon (TK, FK) (08.2014 - 01.2018) 1.2 (TK) (85 HP, 63 kW)
FORD KA+ Saloon (TK, FK) (08.2014 - 01.2018) 1.5 (112 HP, 82 kW)
FORD KUGA II (DM2) (05.2012 - 12.2019) 1.5 EcoBoost (120 HP, 88 kW)
FORD KUGA II (DM2) (05.2012 - 12.2019) 1.5 EcoBoost (150 HP, 110 kW)
FORD KUGA II VAN (09.2014 - ) 1.5 EcoBoost (120 HP, 88 kW)
FORD MONDEO IV (BA7) (03.2007 - 01.2015) 1.6 Ti (125 HP, 92 kW)
FORD MONDEO IV Saloon (BA7) (03.2007 - 01.2015) 1.6 Ti (125 HP, 92 kW)
FORD MONDEO IV Tournament (BA7) (03.2007 - 01.2015) 1.6 Ti (125 hp, 92 kW)
