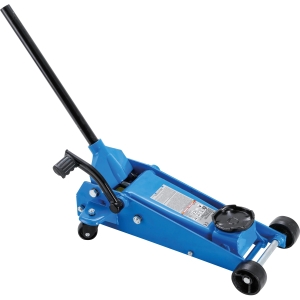

Hydraulic Trolley Jack 3 t with Quick-Lift Foot Pedal, 145–500 mm
-
Code:9251
-
Weight:32.100 Kgs
Overview:
✔ Hydraulic trolley jack with 3 t maximum lifting capacity
✔ Separate foot pedal for rapid lifting
✔ Quick-lift pedal can be installed separately as required
✔ Overall lifting range from 145 to 500 mm
✔ Lifting range under rated load: 340–500 mm
✔ 120 mm lifting saddle for secure support
✔ 2 fixed rollers and 2 steering castors for easy positioning

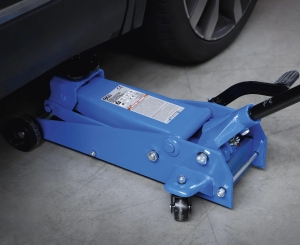

Powerful hydraulic trolley jack with a maximum lifting capacity of 3 t for workshop and garage use.

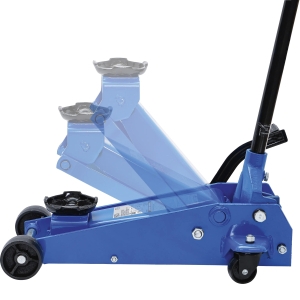

The integrated quick-lift function allows the lifting arm to be raised rapidly using a separate foot pedal, making positioning beneath the vehicle faster and more convenient.
Separate Quick-Lift Foot Pedal
The quick-lift pedal provides fast initial movement of the lifting arm before the vehicle is raised under load.
The pedal can be mounted separately according to the required configuration and working conditions.
Stable and Manoeuvrable Design

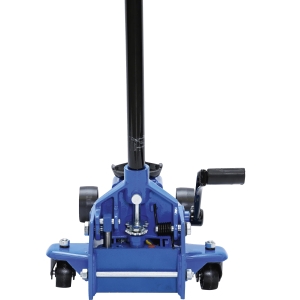

The jack is equipped with two fixed rollers and two steering castors, allowing stable movement and precise positioning beneath the vehicle.
The lifting saddle has a diameter of 120 mm and provides a large contact surface at the vehicle lifting point.
Technical Data
-
Maximum load capacity: 3 t
-
Overall lifting height: 145–500 mm
-
Lifting height at rated load: 340–500 mm
-
Lift travel: 355 mm
-
Lifting saddle diameter: 120 mm
-
Length: 685 mm
-
Quick-lift function: Separate foot pedal
-
Wheels: 2 fixed rollers / 2 steering castors
