Impact Head for Hydraulic Spindle M20 × 2.5

This impact head is designed for removing heavily seized or tightly fitted components that require higher release force than standard pulling or pressing methods can provide.

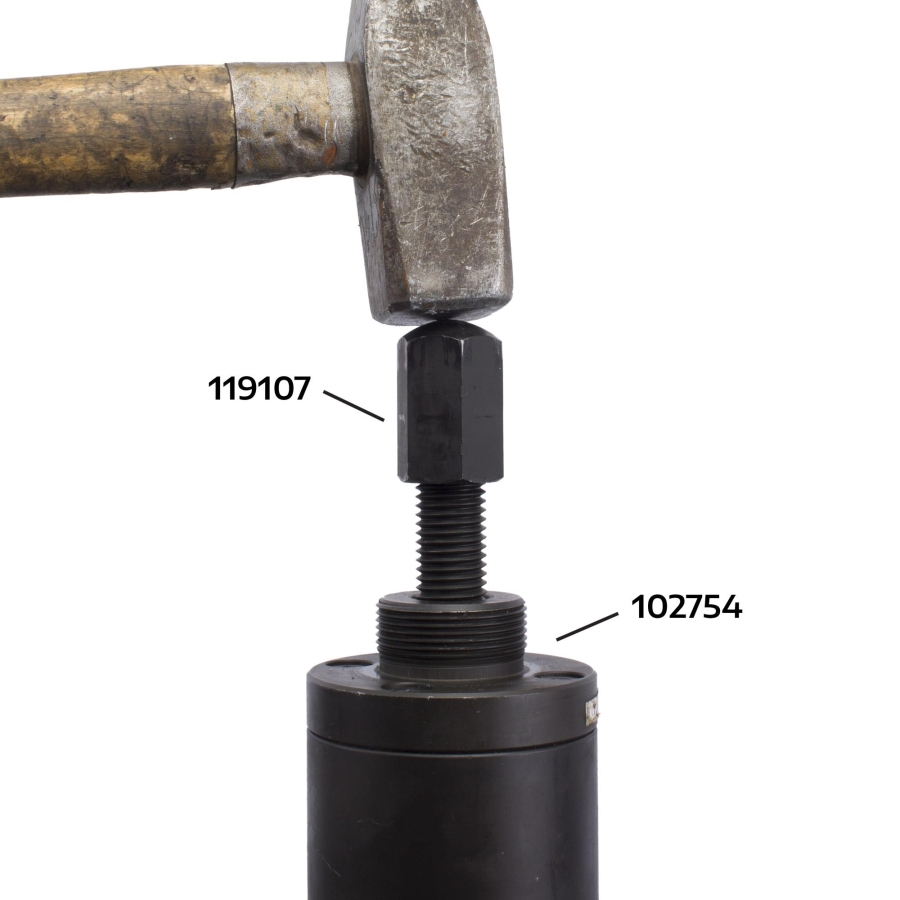

The component is initially placed under hydraulic load and then released using controlled impact force. The generated pressure peak helps loosen parts that would otherwise require significantly greater extraction force.

Typical applications include:

• Seized bearings
• Press-fit components
• Corroded assemblies
• Suspension and axle components
• Heavy-duty removal procedures

Hydraulic Shock Transfer Without Cylinder Damage

The impact force is transferred through the hydraulically supported pressure system, allowing effective shock transfer while protecting the hydraulic cylinder from direct impact damage.

Advantages:

• Higher release efficiency
• Reduced extraction effort
• Protection of hydraulic components
• Improved workshop productivity

Manufactured from High-Strength S45C Steel

The impact head is manufactured from durable S45C steel for intensive workshop use.

Benefits:

• High durability
• Excellent resistance under heavy load conditions
• Suitable for repeated professional use
• Long service life

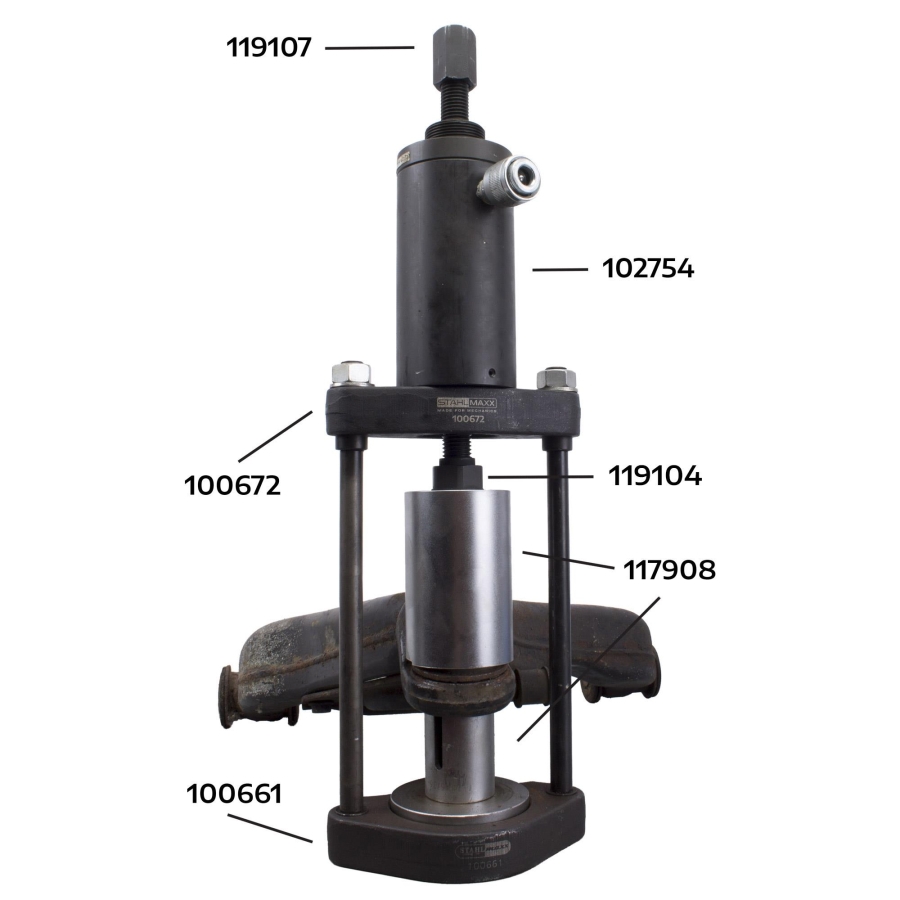

Compatible Systems

Suitable for use with:

• Item no. 102754 — Hydraulic cylinder
• Pull and press spindle M20 × 2.5, length: 500 mm
• Pull and press spindle M20 × 2.5, length: 320 mm

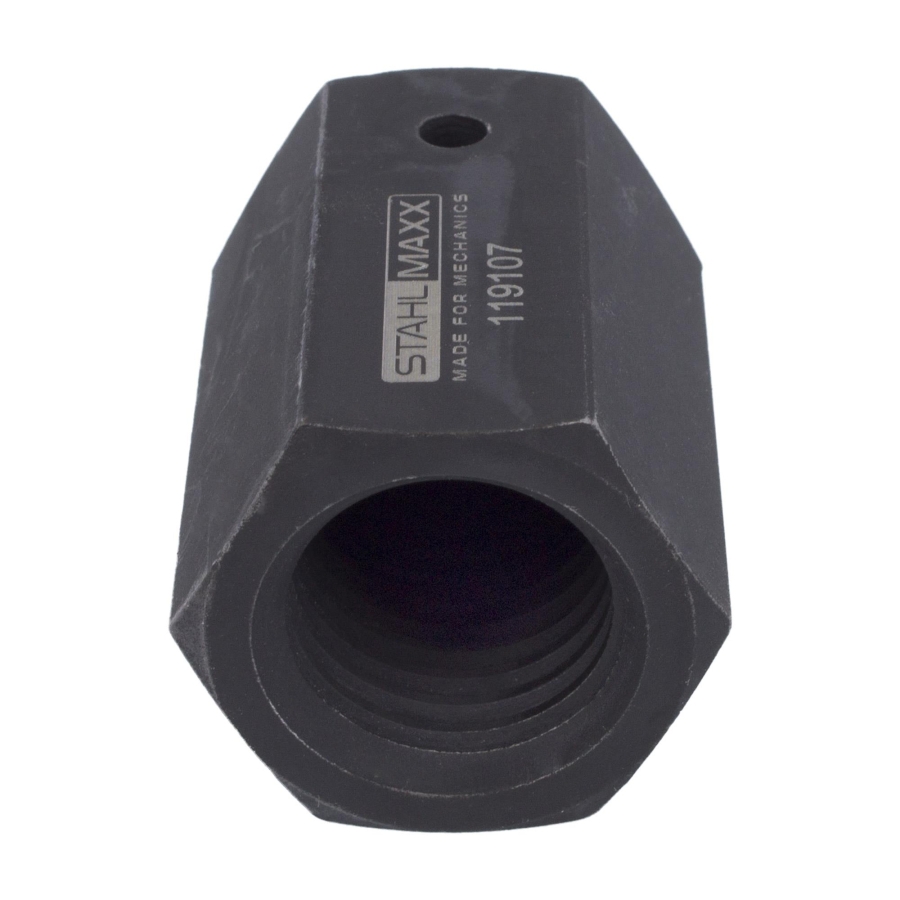

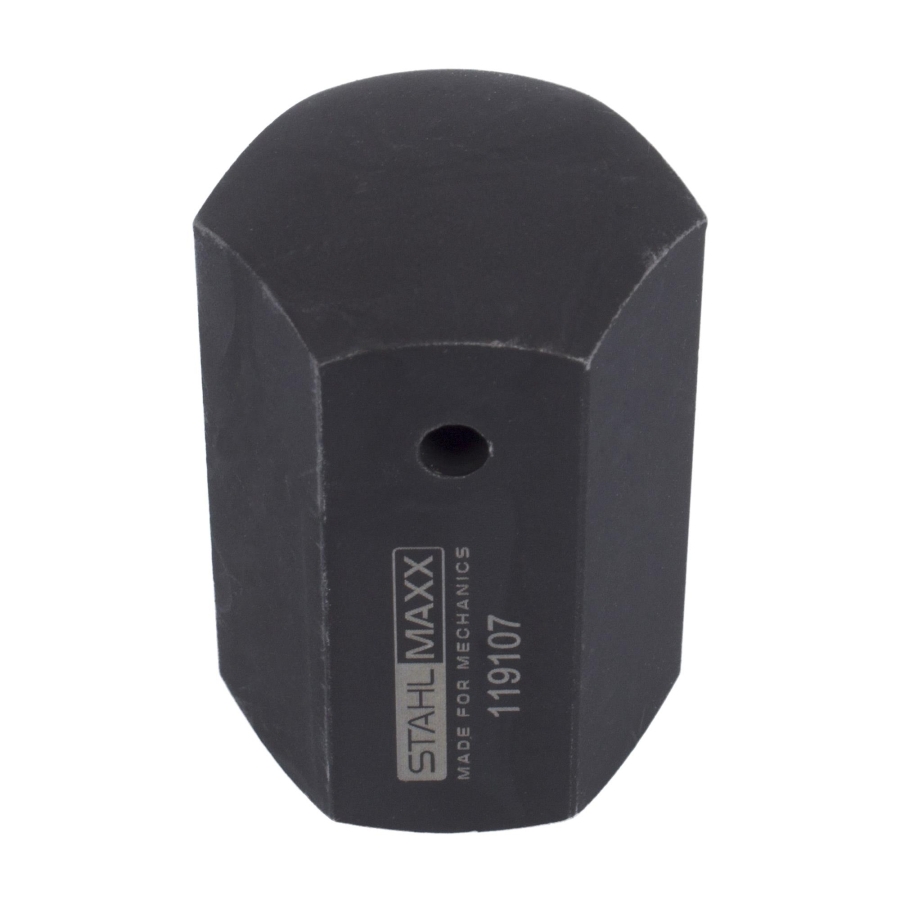

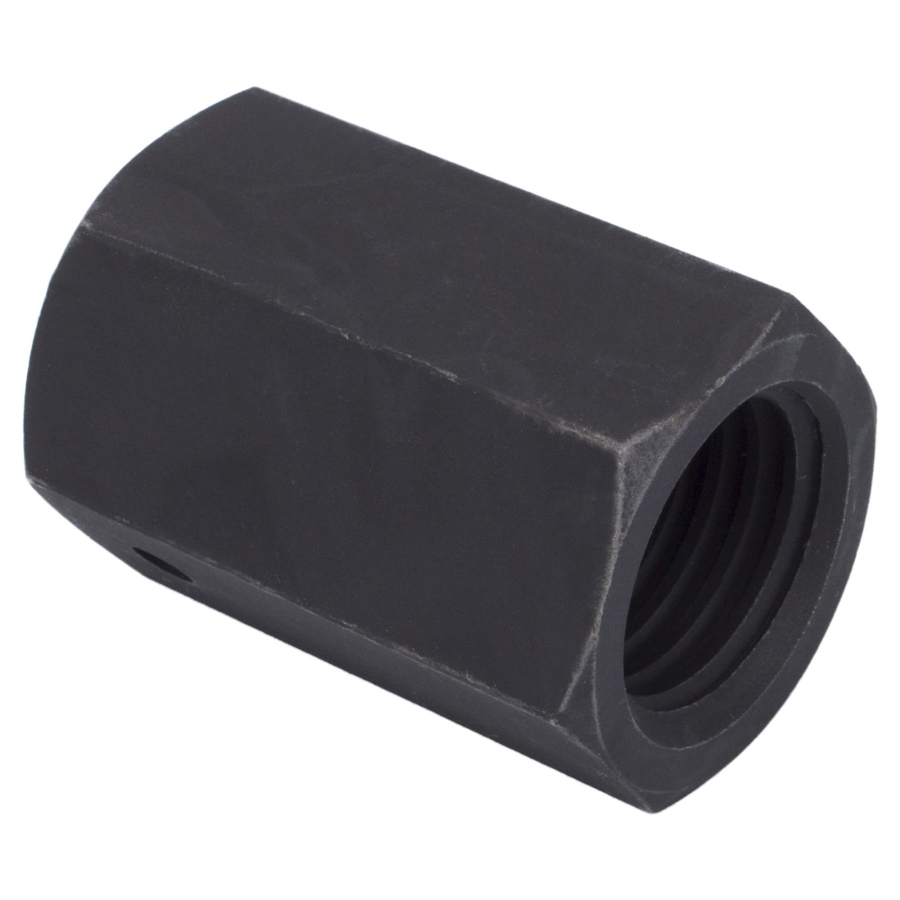

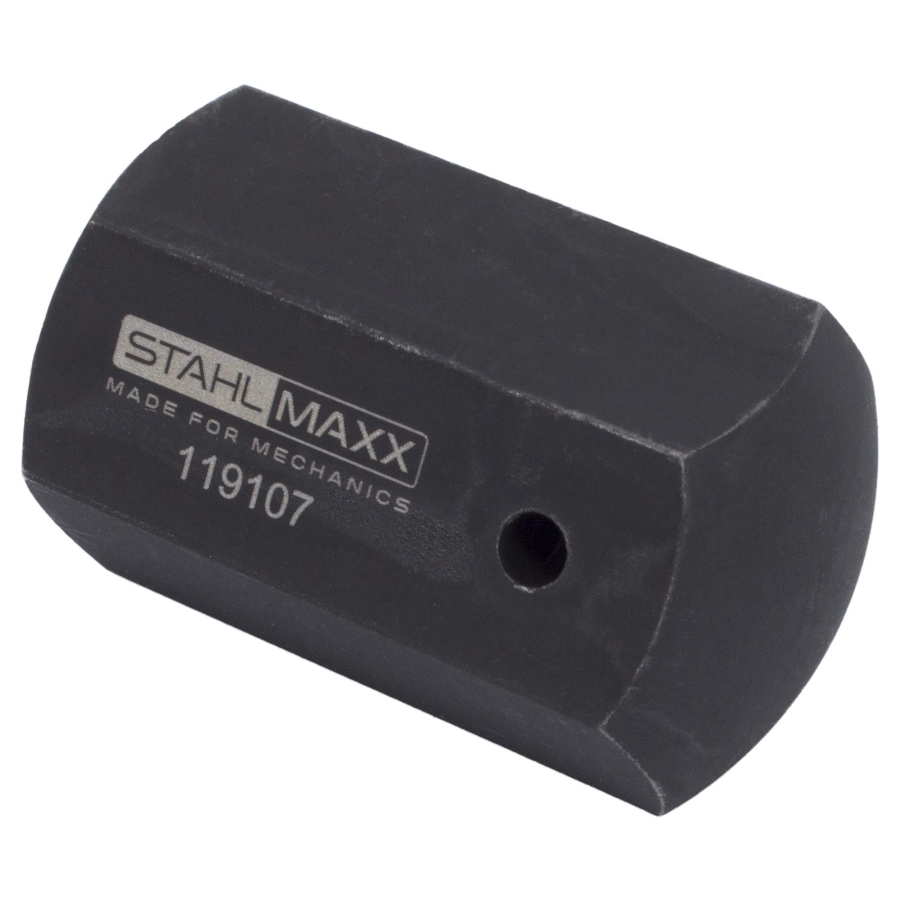

Technical Specifications

• Material: S45C steel
• Thread: M20 × 2.5
• Wrench size: 27 mm
• Drive type: External hex
• Impact surface: Rounded

Package Contents

1 × Impact head

• Thread: M20 × 2.5
• External hex: 27 mm
