Hydraulic Cylinder Expansion Kit 9 pcs for Wheel Bearings, Bushings & Press Work

This professional expansion kit significantly increases the functionality and application range of hydraulic cylinder systems. By combining pull and press components with dedicated adapter solutions, the hydraulic cylinder can be converted into a highly versatile wheel bearing and bushing press system suitable for numerous workshop operations.

The system is designed for demanding repair and installation procedures where greater spindle length, controlled force application and flexible component compatibility are required.

Extended Pull & Press Applications

The included 500 mm pull and press spindle is specifically designed for operations requiring increased spindle length, making wheel bearing replacement, wheel hub servicing and other deep extraction applications easier.

The 320 mm pull and press spindle is optimized for:

• Bearing installation and removal

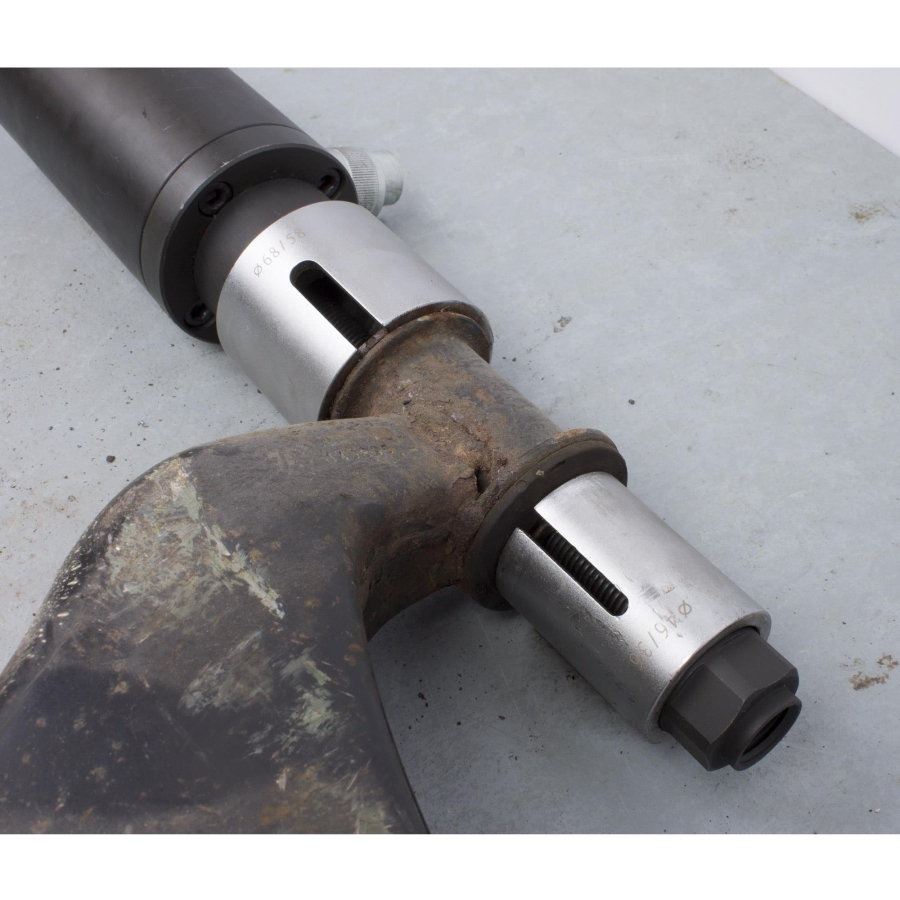

• Bushing service work
• Ball joint replacement
• Drive shaft pressing operations

Both spindles feature wrench flats at the end for quicker installation and removal.

Impact Support for Seized Components

The included impact attachment is designed for heavily seized components and allows the pressing process to be supported with controlled hammer impacts.

This improves removal efficiency in demanding situations where additional force is required.

Magnetic Centering System

The spindle nuts and adapter plates are equipped with multiple integrated high-strength magnets that help securely hold sleeves and pressure components during work.

Advantages include:

• Improved positioning of components
• Easier handling during vehicle repairs
• Increased operational control
• Reduced risk of component displacement

The magnets are slightly recessed into the components to protect them during pressing operations.

Universal Pressure Piece

The included conical universal pressure piece is designed to fit behind the inner bearing race on most wheel bearings without requiring additional spacer selection.

Benefits:

• Fast and easy centering
• Reduced setup time
• Low outside diameter construction

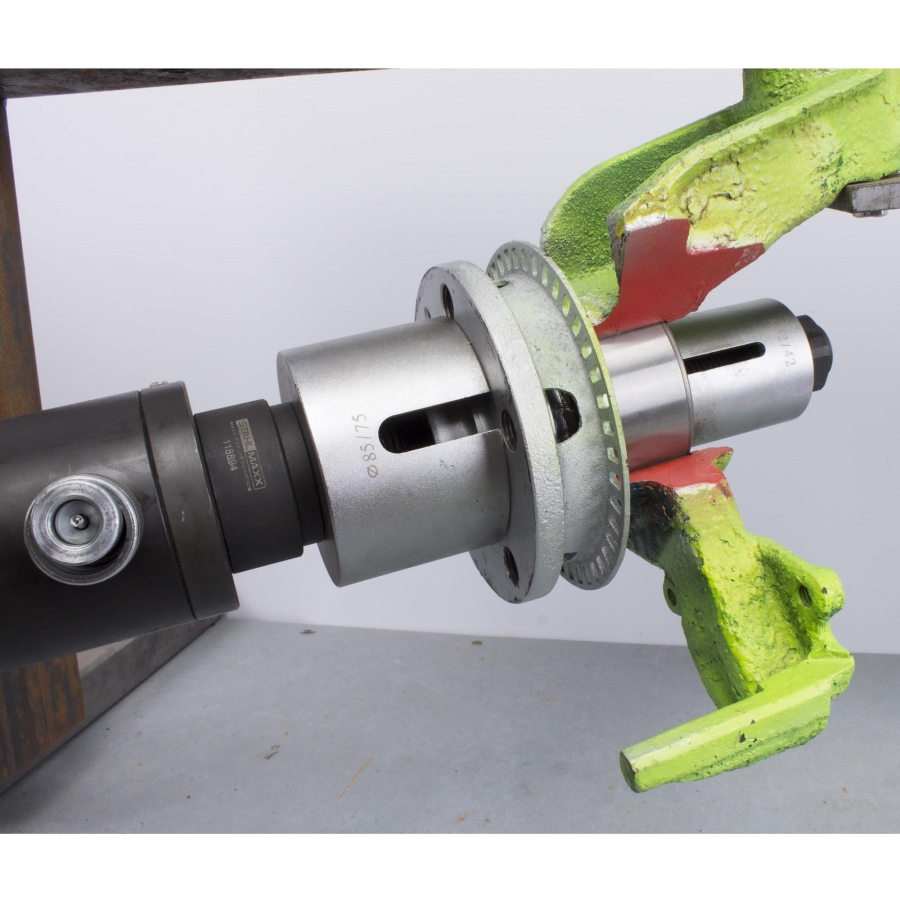

• Minimal risk of ABS sensor damage

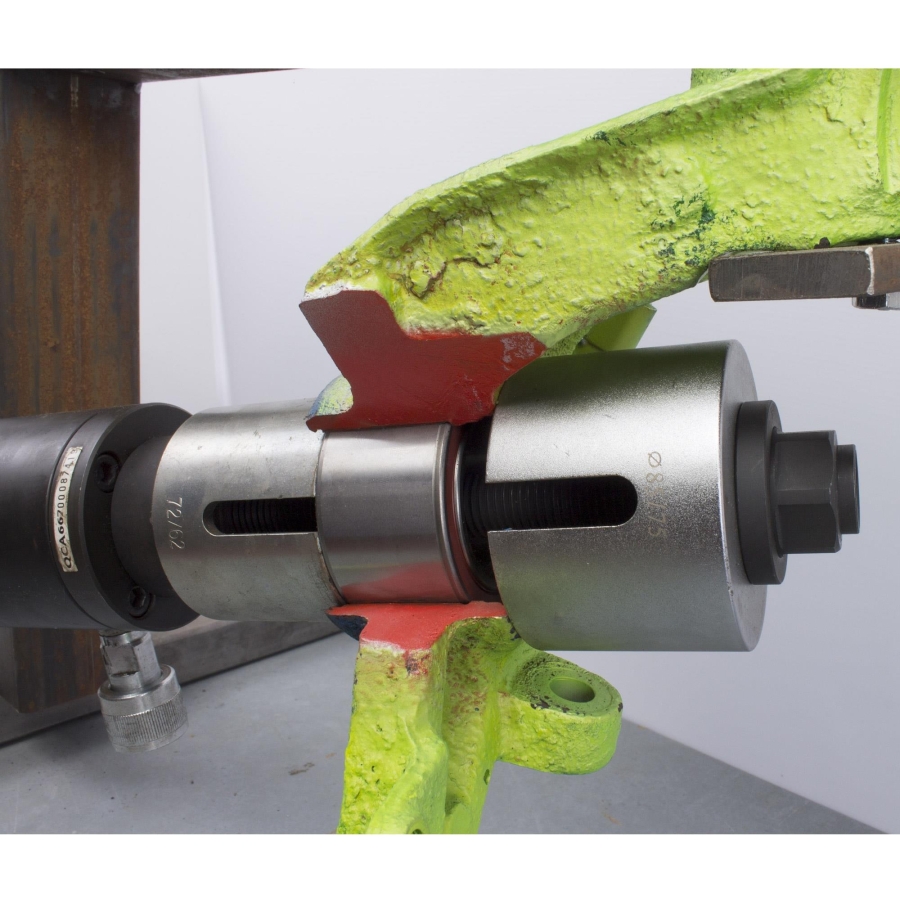

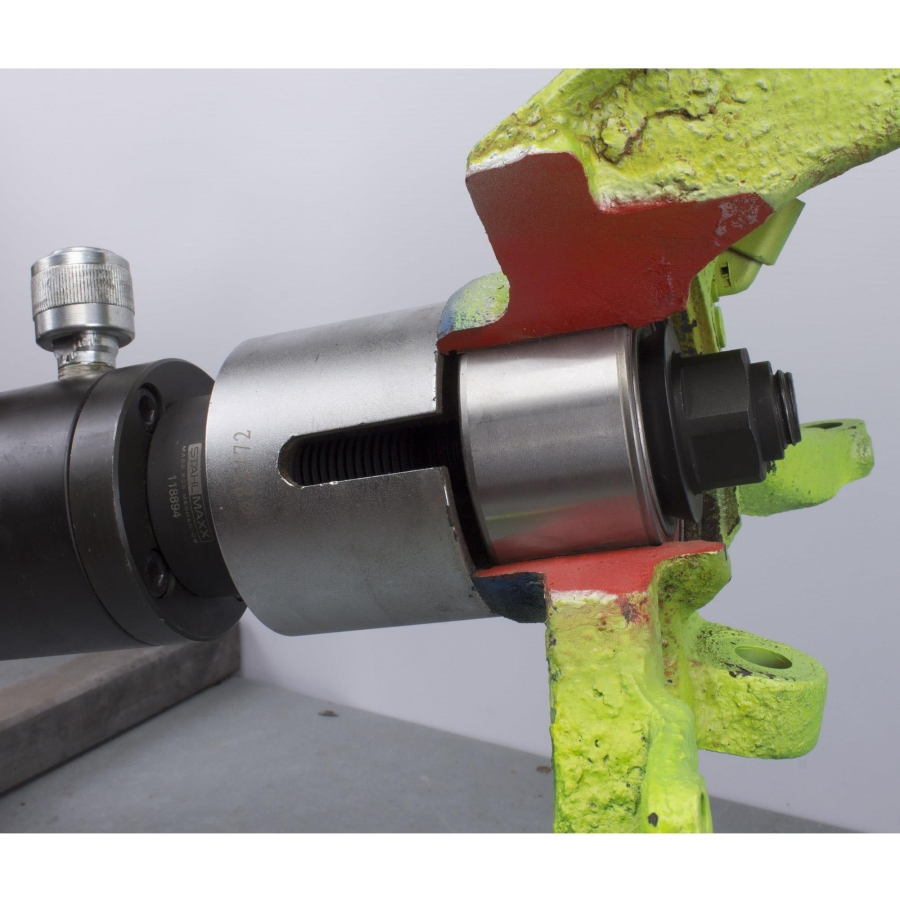

Suitable for wheel bearing and wheel hub installation and removal applications:

• Ø30–50 mm

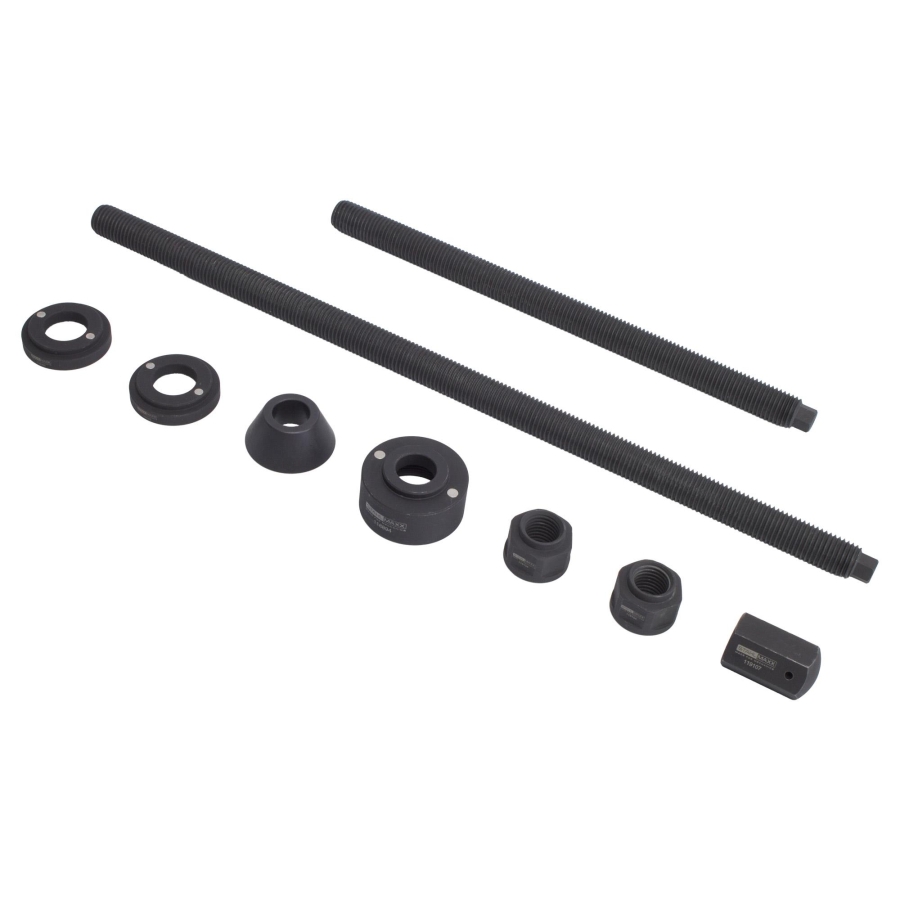

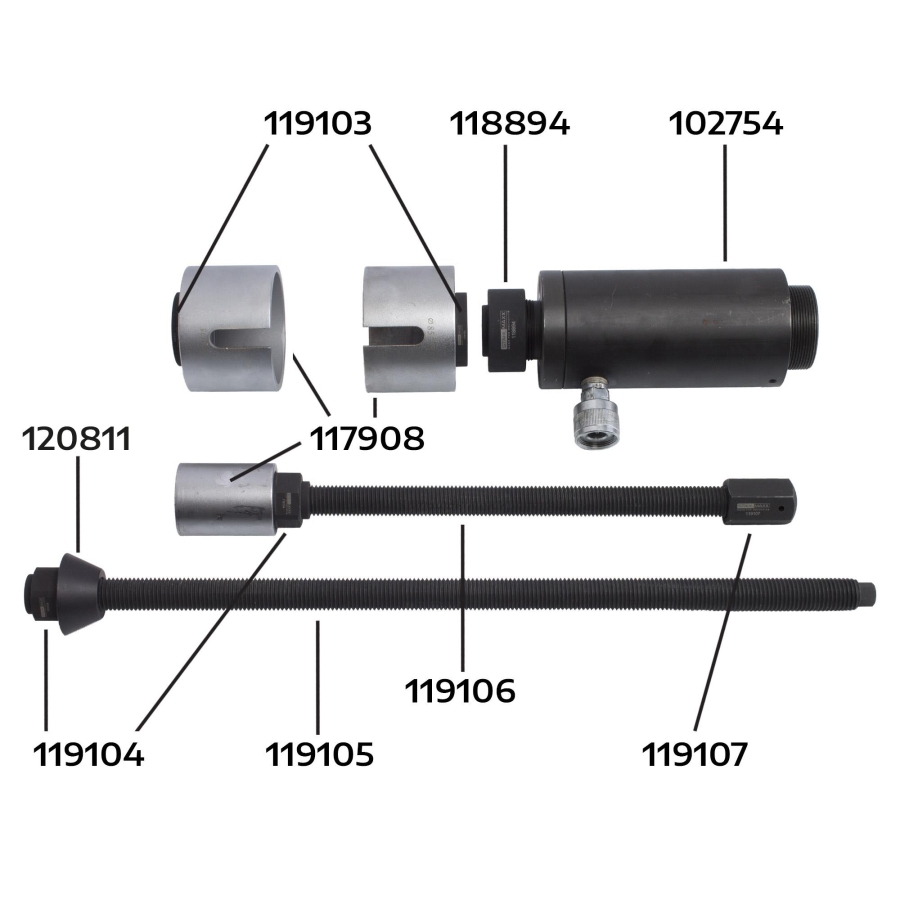

Package Contents

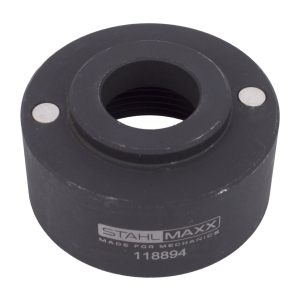

• Item no. 118894 — Adapter plate M42 × 2 for pull and press sleeves with magnetic retention

• Item no. 119103 — 2x adapter plates for centering pull and press sleeves with magnetic retention, 35 × 42 mm

• Item no. 119104 — 2x spindle nuts with centering and magnetic retention, M20 × 2.5

• Item no. 119105 — Pull and press spindle M20 × 2.5, length: 500 mm, for hollow piston hydraulic cylinders

• Item no. 119106 — Pull and press spindle M20 × 2.5, length: 320 mm, for hollow piston hydraulic cylinders

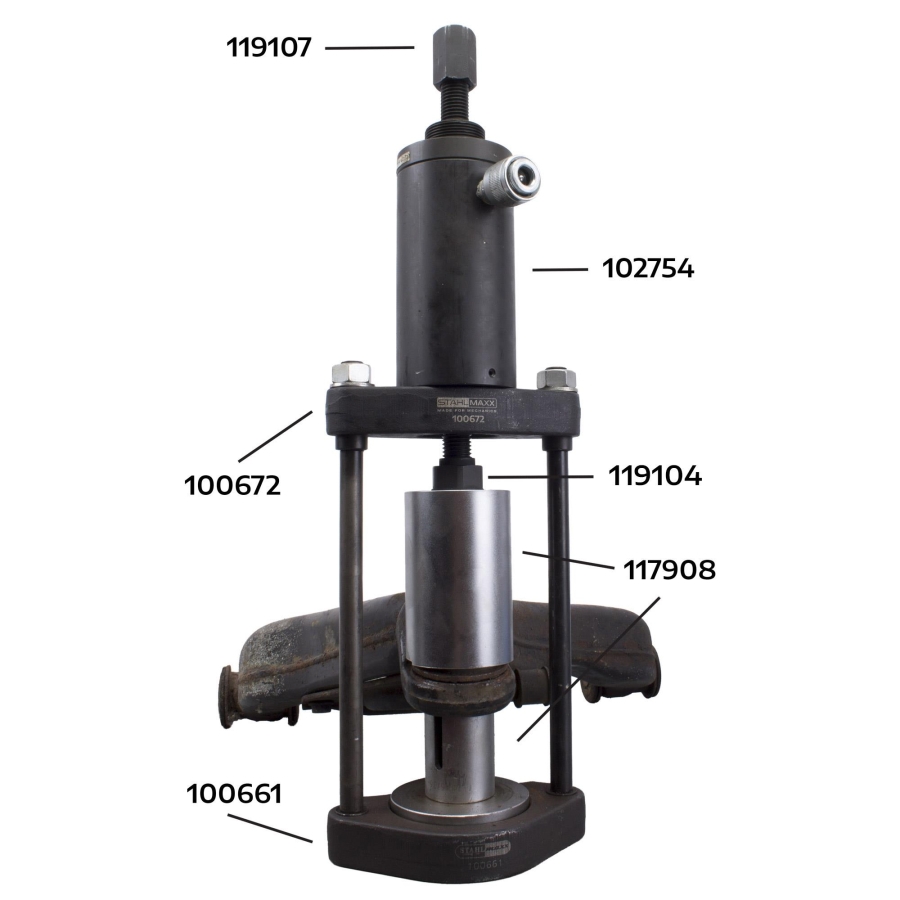

• Item no. 119107 — Impact attachment for hydraulic spindle M20 × 2.5

• Item no. 120811 — Universal pressure piece for wheel bearing and wheel hub installation/removal, Ø30–50 mm

Compatibility

Compatible with:

• Item no. 102754 — 18.2 t Hydraulic Cylinder

Can also be combined with all pull and press sleeves supplied individually or as complete sets.
