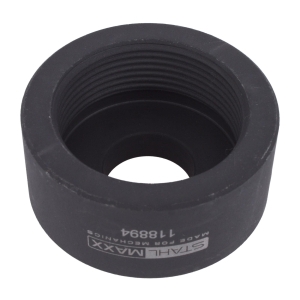

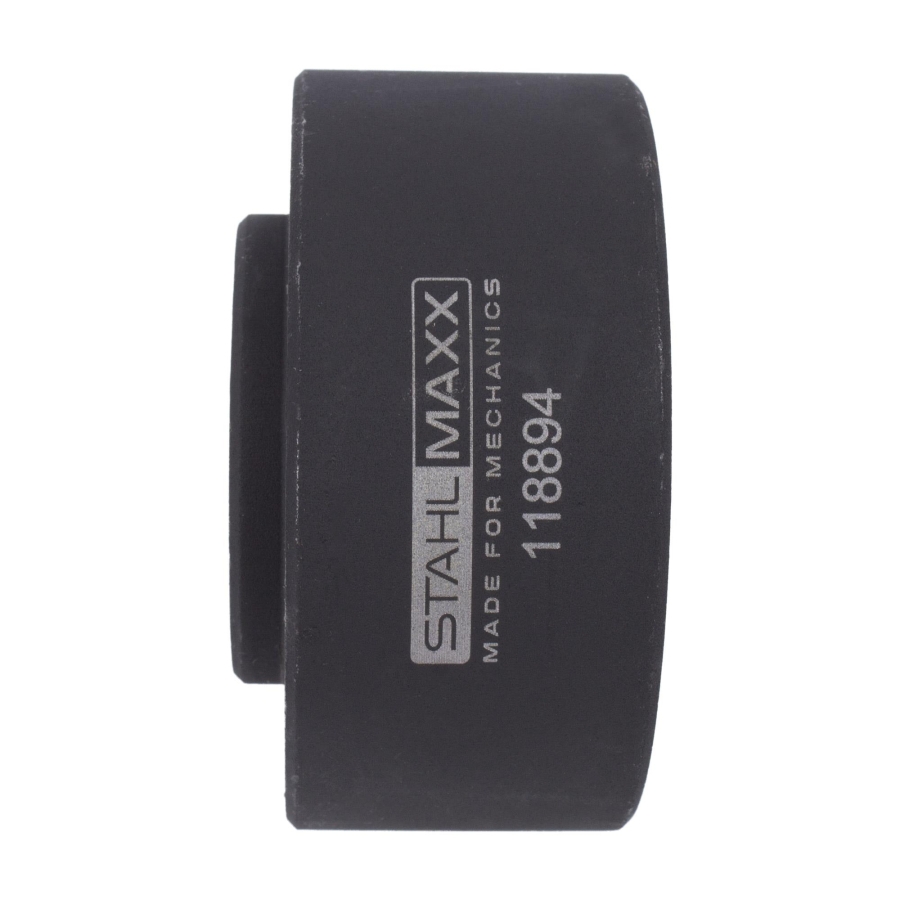

Adapter Plate M42 × 2 for Hydraulic Cylinder 102754 for Press Sleeves

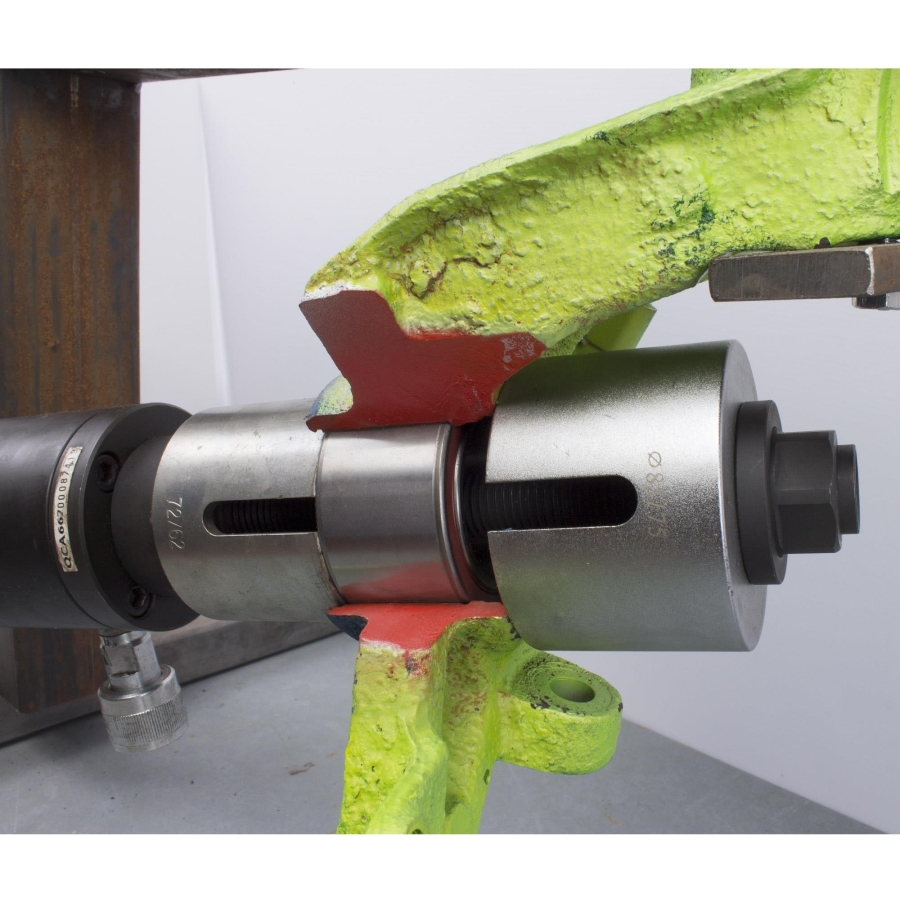

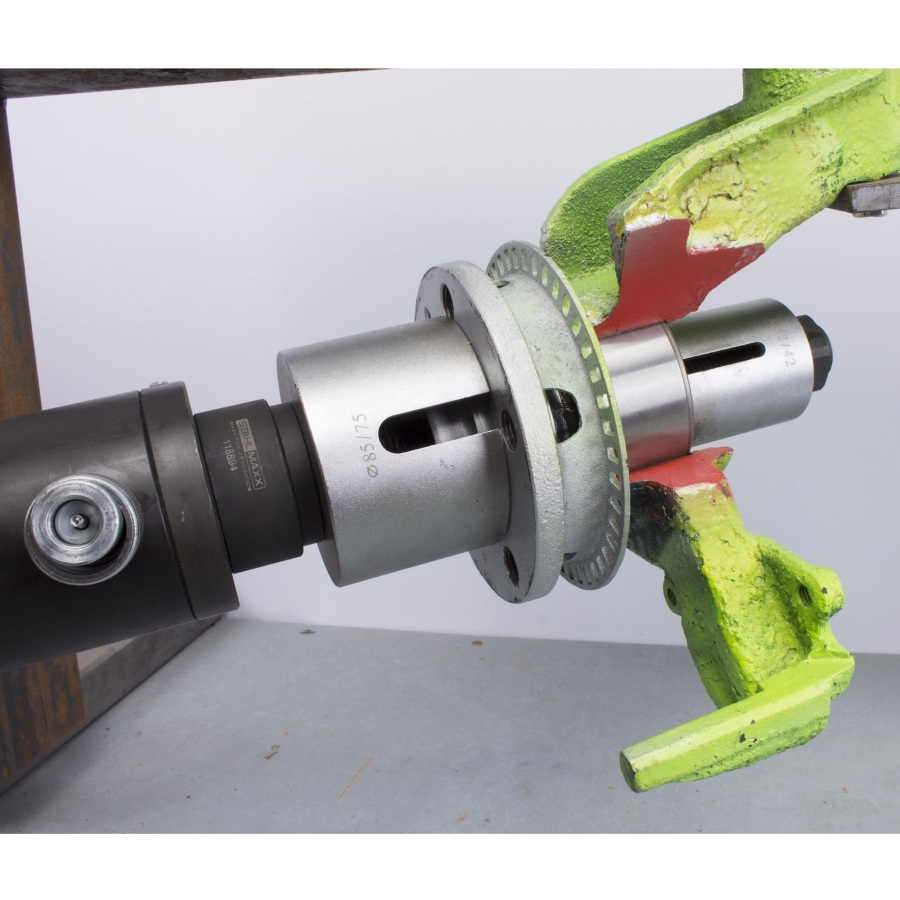

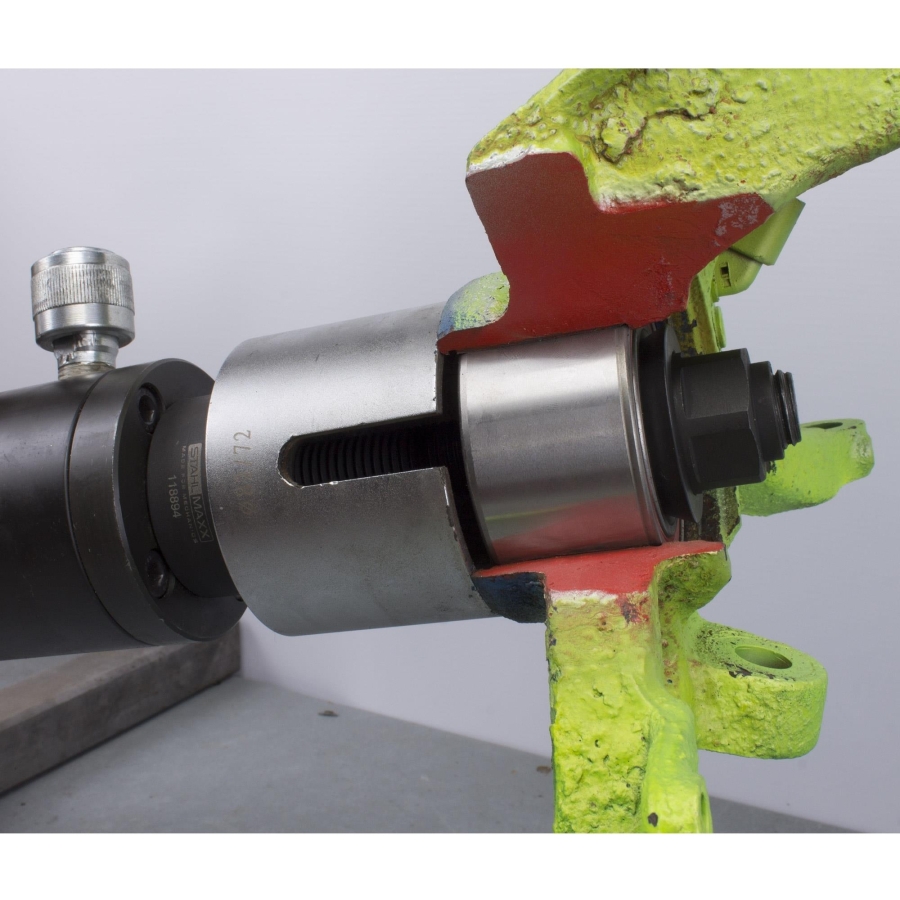

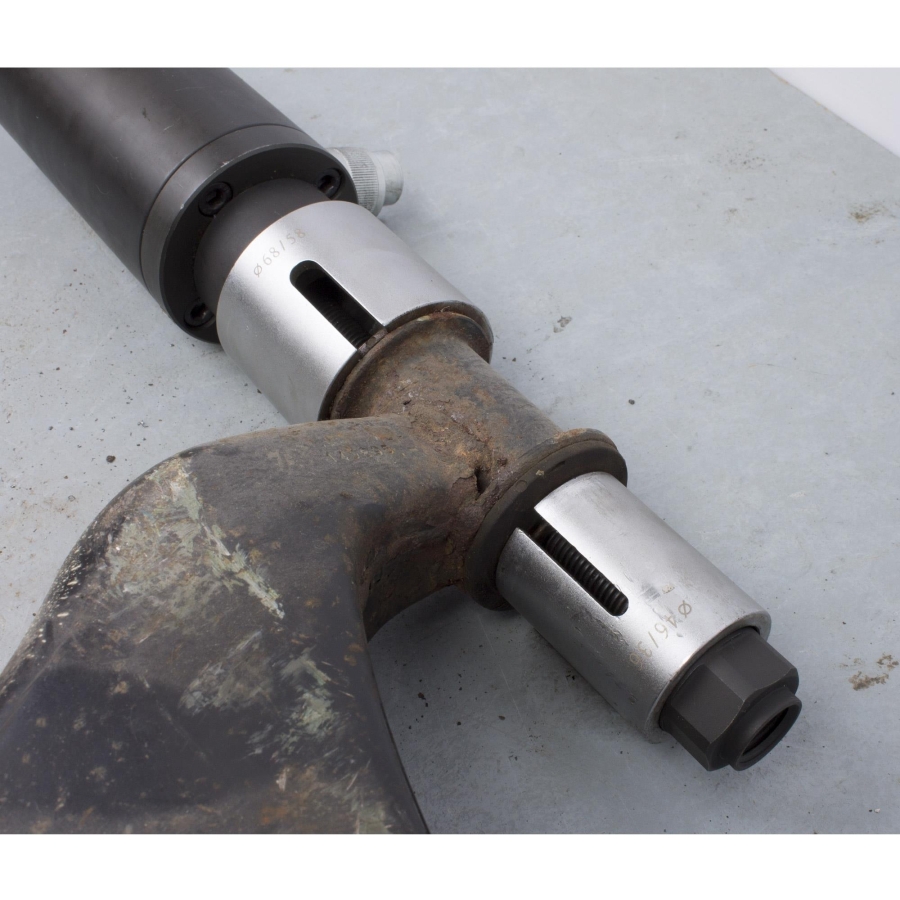

This adapter plate is designed primarily for use with pull and press sleeve systems and provides a reliable connection between the hydraulic cylinder and press sleeves during installation and removal operations.

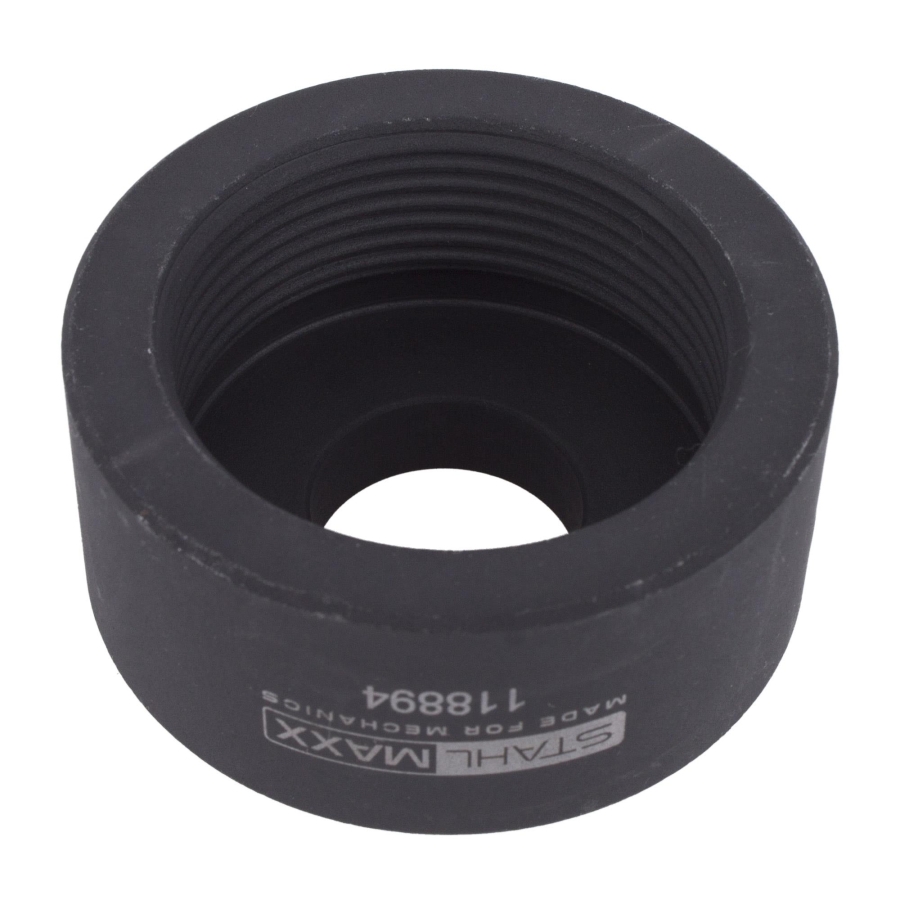

The M42 × 2 thread mounts directly onto the pressure side of the hydraulic cylinder and can be used either as a sleeve holder or directly as a pressure adapter.

Integrated Magnetic Positioning System

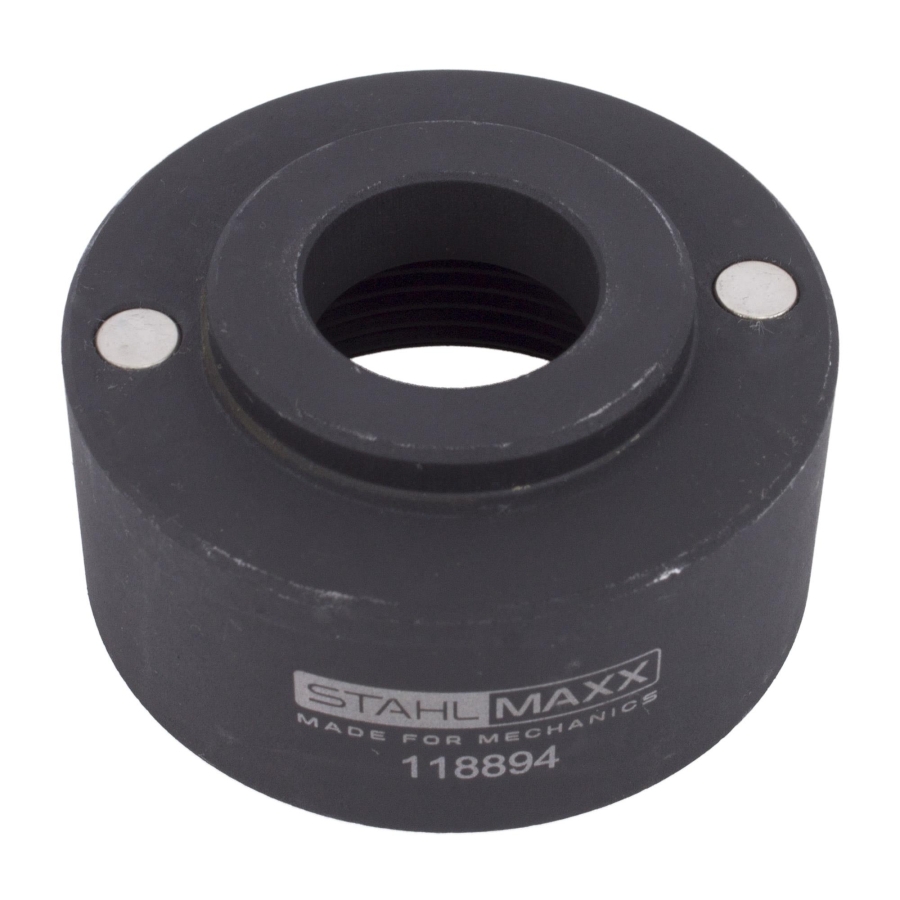

Two integrated magnets and stepped locating surfaces improve handling during repairs and eliminate the need for manual centering.

Advantages:

• Easier positioning during operation
• Improved centering accuracy
• Faster installation procedures
• Better handling when working directly on vehicles

Suitable for Press Sleeve Systems

Press sleeves up to Ø82 mm include:

• Center bore: 21 mm
• Centering diameter: 35 mm

For larger sleeves, use:

• Item no. 119103 — Centering adapter ring

Manufactured from Durable S45C Steel

The adapter plate is manufactured from S45C steel for high durability and resistance under workshop conditions.

Benefits:

• High strength construction
• Excellent wear resistance
• Suitable for repeated professional use
• Long service life

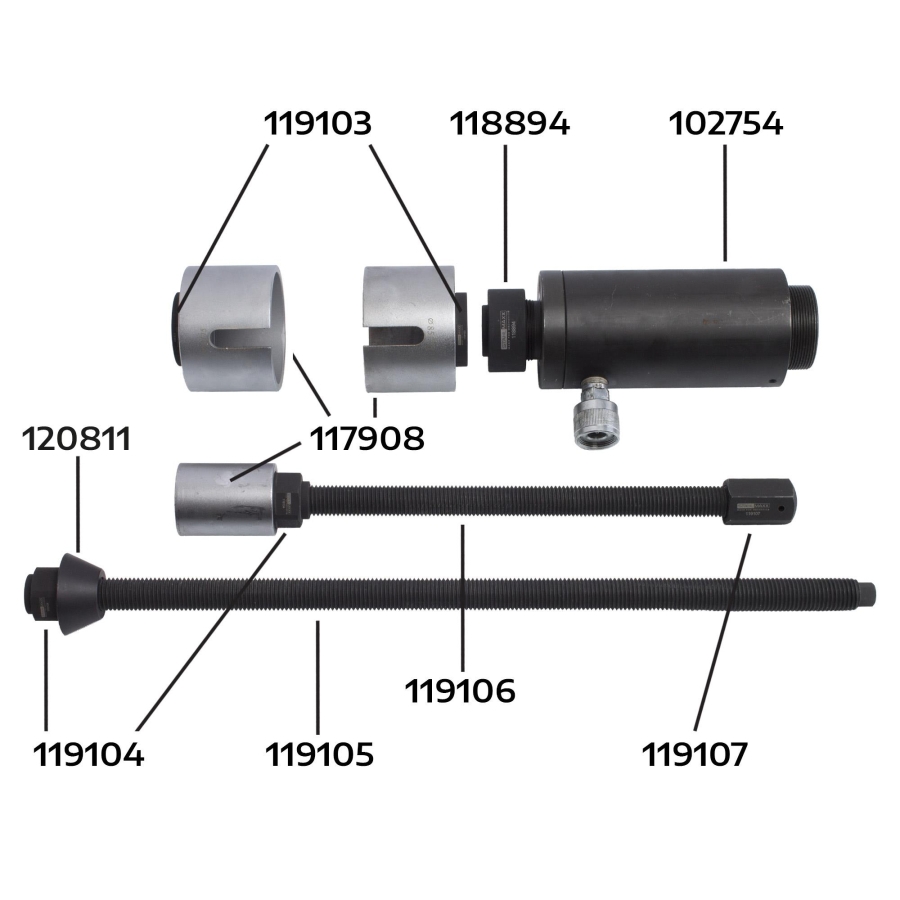

Compatible Systems

Suitable for use with:

• Item no. 102754 — Hydraulic cylinder
• Item no. 119103 — Centering adapter ring
• Item no. 117908 — Pull and press sleeve set

Technical Specifications

• Material: S45C steel
• Internal thread: M42 × 2
• Thread depth: 17 mm
• Outer diameter: 56 mm
• Inner diameter: 21 mm
• Press sleeve centering: 35 mm
• Integrated magnets: 2

Package Contents

1 × Adapter plate

• Internal thread: M42 × 2
• Integrated magnets: 2
