Front Crankshaft Oil Seal Pressing Tool for Mercedes OM642, as 642589001400

Price: €47.50 92.90лв.

Code:

117773
Weight:

0.200 Kgs

Overview:
✔ For installing the front crankshaft oil seal on Mercedes OM642 engines
✔ Centres the oil seal in the timing chain front cover
✔ Ensures straight installation at the correct depth
✔ Operated using the original crankshaft central bolt
✔ Suitable for PTFE oil seals requiring dry installation and approximately four hours of setting time
✔ For use as Mercedes 642589001400

Front Crankshaft Oil Seal Pressing Tool for Mercedes OM642, as 642589001400

Send to friend

Rate this product

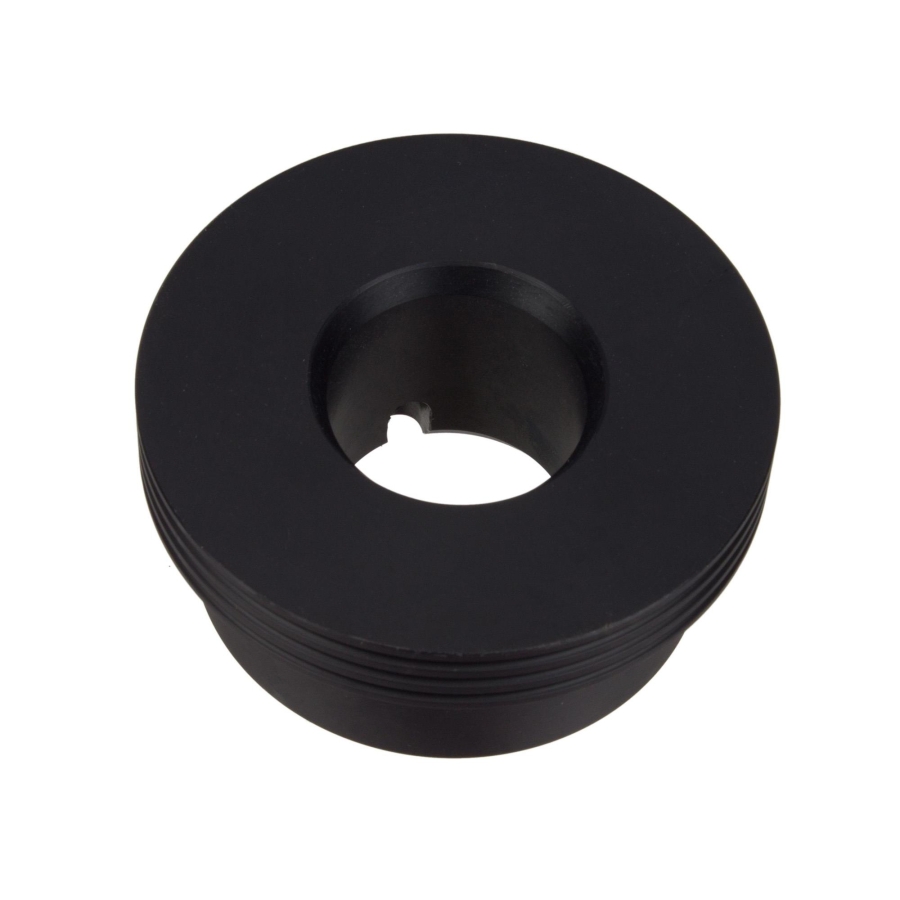

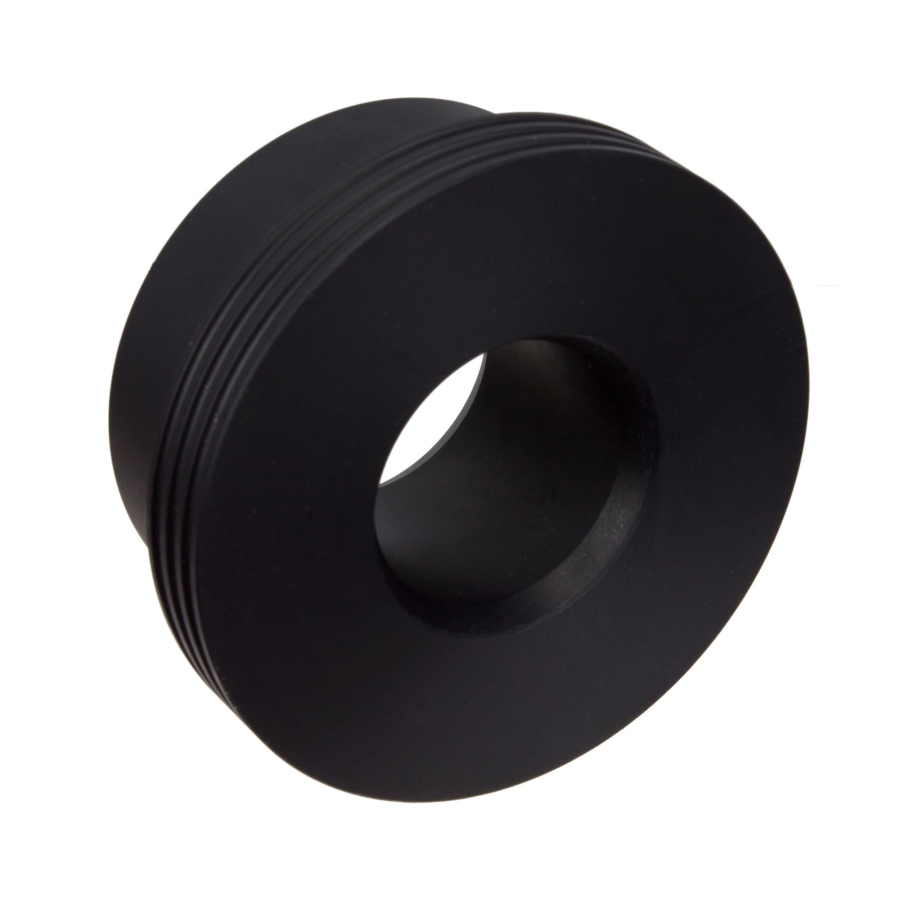

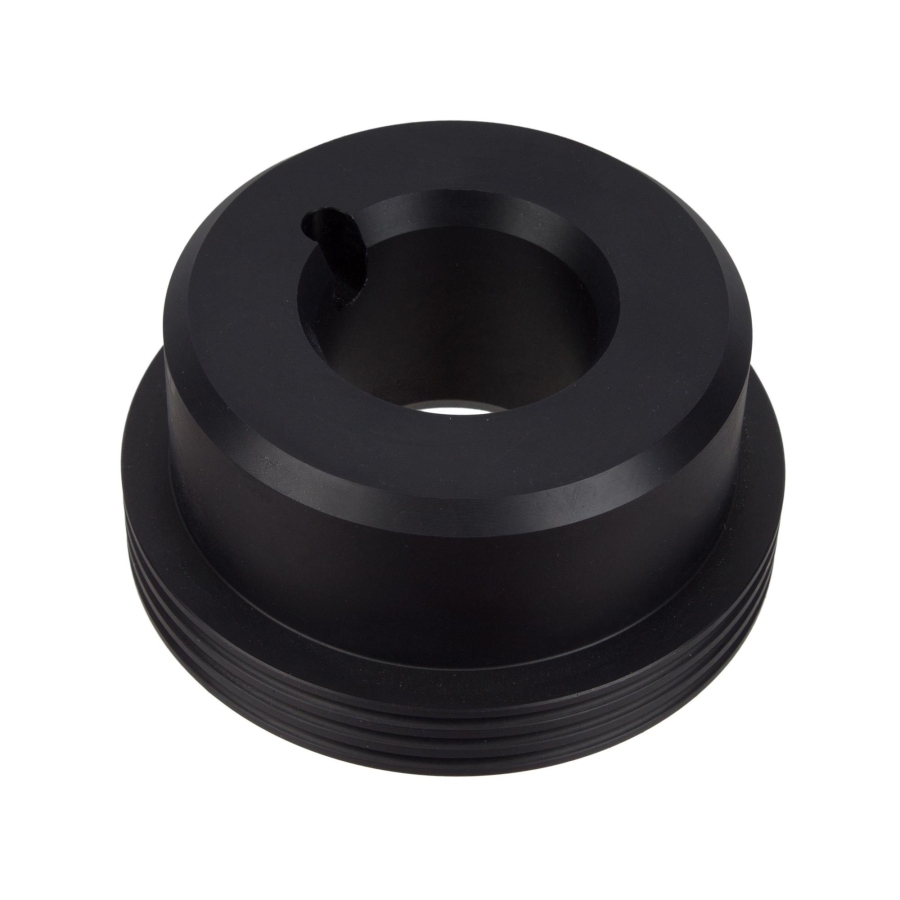

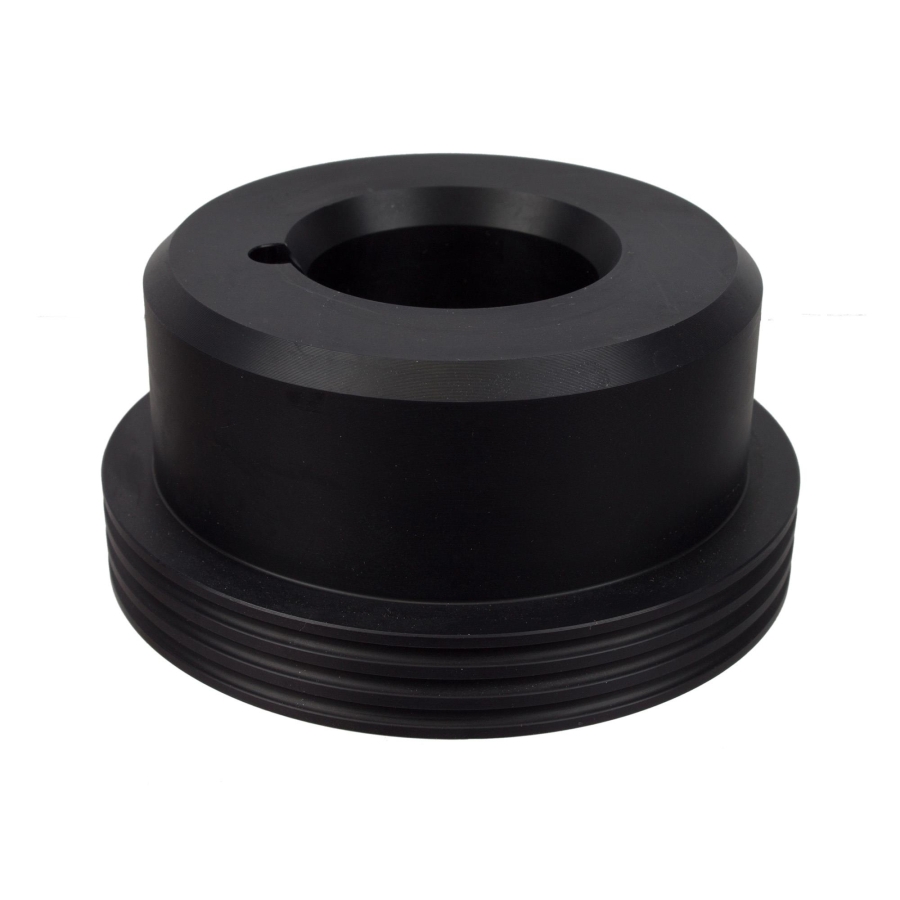

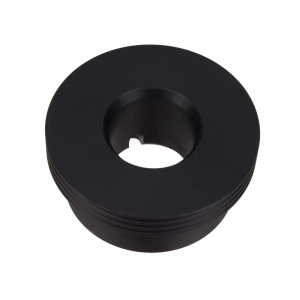

Special centring sleeve and pressing tool for installing the front crankshaft oil seal in the timing chain cover of Mercedes-Benz OM642 engines.

The oil seal must be positioned perfectly straight and level inside the housing. The tool centres the seal and presses it into place using the original crankshaft central bolt.

Controlled installation helps prevent the oil seal from being inserted too deeply, tilted or damaged.

Correct Installation Depth

The oil seal can accidentally be pressed too far into the housing.

Because the housing provides a stop only along the lower section, uncontrolled pressing can cause the seal to enter at an angle. An incorrectly seated oil seal may lose its sealing ability after a short period of operation.

This tool supports even insertion and correct positioning within the timing chain cover.

Preparation and Installation Notes

Remove the vibration damper and crankshaft pulley
Inspect the edges of the vibration damper contact surface
Carefully deburr sharp edges with fine sandpaper to prevent damage to the sealing lip
Position the new oil seal and centring tool in the timing chain cover
Press the oil seal evenly into place using the original crankshaft central bolt

A flywheel holding tool is required when removing and installing the vibration damper. The access opening for the holding tool is located beneath a cover plate on the driver’s side of the transmission.

Tightening Torque

Vibration damper and crankshaft pulley central bolt: 200 Nm + 90° + 90°

Always verify the applicable manufacturer repair instructions and tightening specifications for the respective vehicle.

PTFE Oil Seal Installation

The oil seal uses a PTFE sealing lip and must be installed completely dry and free from oil or grease.

After installation, allow the PTFE oil seal to remain undisturbed for approximately four hours before starting the engine.

Suitable Engine Codes

OM642.820, OM642.822, OM642.824, OM642.826, OM642.830, OM642.832, OM642.834, OM642.835, OM642.836, OM642.838, OM642.850, OM642.852, OM642.853, OM642.854, OM642.855, OM642.856, OM642.858, OM642.861, OM642.862, OM642.864, OM642.867, OM642.868, OM642.870, OM642.872, OM642.873, OM642.884, OM642.886, OM642.887, OM642.889, OM642.890, OM642.896, OM642.898, OM642.899, OM642.910, OM642.920, OM642.921, OM642.930, OM642.932, OM642.940, OM642.950, OM642.960, OM642.961, OM642.970, OM642.975, OM642.986, OM642.990, OM642.992, OM642.993

For Use As

Mercedes-Benz: 642589001400

Original numbers are for comparison purposes only; this is not an original tool!

Vehicle Compatibility

Search by brand, model, engine, power, year or chassis code.

0 vehicles found

MERCEDES-BENZ C-CLASS (W203) (05.2000 - 12.2007) C 320 CDI (203.020) (224 hp, 165 kW) MERCEDES-BENZ C-CLASS (W204) (01.2007 - 01.2015) C 300 CDI 4MATIC (204.092) (231 hp, 170 kW) MERCEDES-BENZ C-CLASS (W204) (01.2007 - 01.2015) C 320 CDI (204.022) (224 hp, 165 kW) MERCEDES-BENZ C-CLASS (W204) (01.2007 - 01.2015) C 320 CDI 4MATIC (204.089) (224 hp, 165 kW) MERCEDES-BENZ C-CLASS (W204) (01.2007 - 01.2015) C 350 CDI (204.022) (224 hp, 165 kW) MERCEDES-BENZ C-CLASS (W204) (01.2007 - 01.2015) C 350 CDI (204.023) (265 hp, 195 kW) MERCEDES-BENZ C-CLASS (W204) (01.2007 - 01.2015) C 350 CDI (204.025) (231 hp, 170 kW) MERCEDES-BENZ C-CLASS (W204) (01.2007 - 01.2015) C 350 CDI 4MATIC (204.089) (224 hp, 165 kW) MERCEDES-BENZ C-CLASS (W204) (01.2007 - 01.2015) C 350 CDI 4MATIC (204.092) (231 hp, 170 kW) MERCEDES-BENZ C-CLASS T-Model (S203) (03.2001 - 08.2007) C 320 CDI (203.220) (224 hp, 165 kW) MERCEDES-BENZ C-CLASS T-Model (S204) (08.2007 - 08.2014) C 300 CDI 4MATIC (204.292) (231 hp, 170 kW) MERCEDES-BENZ C-CLASS T-Model (S204) (08.2007 - 08.2014) C 320 CDI (204.222) (224 hp, 165 kW) MERCEDES-BENZ C-CLASS T-Model (S204) (08.2007 - 08.2014) C 320 CDI 4MATIC (204.289) (224 hp, 165 kW) MERCEDES-BENZ C-CLASS T-Model (S204) (08.2007 - 08.2014) C 350 CDI (204.223) (265 hp, 195 kW) MERCEDES-BENZ C-CLASS T-Model (S204) (08.2007 - 08.2014) C 350 CDI (204.225) (224 hp, 165 kW) MERCEDES-BENZ C-CLASS T-Model (S204) (08.2007 - 08.2014) C 350 CDI (204.225) (231 hp, 170 kW) MERCEDES-BENZ C-CLASS T-Model (S204) (08.2007 - 08.2014) C 350 CDI 4MATIC (204.289) (224 hp, 165 kW) MERCEDES-BENZ C-CLASS T-Model (S204) (08.2007 - 08.2014) C 350 CDI 4MATIC (204.292) (231 hp, 170 kW) MERCEDES-BENZ CLK (C209) (05.2002 - 03.2010) 320 CDI (209.320) (224 hp, 165 kW) MERCEDES-BENZ CLK Cabriolet (A209) (06.2002 - 03.2010) CLK 320 CDI (209.420) (224 hp, 165 kW) MERCEDES-BENZ CLS (C218) (01.2011 - 12.2017) CLS 350 BlueTEC / d (218.326) (252 hp, 185 kW) MERCEDES-BENZ CLS (C218) (01.2011 - 12.2017) CLS 350 BlueTEC / d (218.326) (258 hp, 190 kW) MERCEDES-BENZ CLS (C218) (01.2011 - 12.2017) CLS 350 BlueTEC / d 4MATIC (218.394) (252 hp, 185 kW) MERCEDES-BENZ CLS (C218) (01.2011 - 12.2017) CLS 350 CDI / d (218.323) (265 hp, 195 kW) MERCEDES-BENZ CLS (C218) (01.2011 - 12.2017) CLS 350 CDI / d 4MATIC (218.393) (265 hp, 195 kW) MERCEDES-BENZ CLS (C218) (01.2011 - 12.2017) CLS 350 d 4MATIC (218.394) (258 hp, 190 kW) MERCEDES-BENZ CLS (C219) (01.2005 - 02.2011) CLS 320 CDI (211 hp, 155 kW) MERCEDES-BENZ CLS (C219) (01.2005 - 02.2011) CLS 320 CDI (219.322) (224 hp, 165 kW) MERCEDES-BENZ CLS (C219) (01.2005 - 02.2011) CLS 350 CDI (219.322) (224 hp, 165 kW) MERCEDES-BENZ CLS (C219) (01.2005 - 02.2011) CLS 350 CDI (272 hp, 200 kW) MERCEDES-BENZ CLS Shooting Brake (X218) (10.2012 - 12.2017) CLS 350 BlueTEC / d (218.926) (252 hp, 185 kW) MERCEDES-BENZ CLS Shooting Brake (X218) (10.2012 - 12.2017) CLS 350 BlueTEC / d (218.926) (258 hp, 190 kW) MERCEDES-BENZ CLS Shooting Brake (X218) (10.2012 - 12.2017) CLS 350 BlueTEC / d 4MATIC (218.994) (252 hp, 185 kW) MERCEDES-BENZ CLS Shooting Brake (X218) (10.2012 - 12.2017) CLS 350 CDI / d (218.923) (265 hp, 195 kW) MERCEDES-BENZ CLS Shooting Brake (X218) (10.2012 - 12.2017) CLS 350 CDI / d 4MATIC (218.993) (265 hp, 195 kW) MERCEDES-BENZ CLS Shooting Brake (X218) (10.2012 - 12.2017) CLS 350 d 4MATIC (218.994) (258 hp, 190 kW) MERCEDES-BENZ E-CLASS (W211) (03.2002 - 03.2009) E 280 CDI (211.020) (190 hp, 140 kW) MERCEDES-BENZ E-CLASS (W211) (03.2002 - 03.2009) E 280 CDI 4MATIC (211.084) (190 hp, 140 kW) MERCEDES-BENZ E-CLASS (W211) (03.2002 - 03.2009) E 300 BlueTEC (211.024) (211 hp, 155 kW) MERCEDES-BENZ E-CLASS (W211) (03.2002 - 03.2009) E 320 BlueTEC (211.022) (212 hp, 156 kW) MERCEDES-BENZ E-CLASS (W211) (03.2002 - 03.2009) E 320 CDI (211.022) (224 hp, 165 kW) MERCEDES-BENZ E-CLASS (W211) (03.2002 - 03.2009) E 320 CDI 4MATIC (211.089) (224 hp, 165 kW) MERCEDES-BENZ E-CLASS (W211) (03.2002 - 03.2009) E320 CDI (211.022) (212 hp, 156 kW) MERCEDES-BENZ E-CLASS (W212) (01.2009 - 12.2016) E 300 CDI (212.020) (204 hp, 150 kW) MERCEDES-BENZ E-CLASS (W212) (01.2009 - 12.2016) E 300 CDI / BlueTEC (212.020, 212.021, 212.027) (231 hp, 170 kW) MERCEDES-BENZ E-CLASS (W212) (01.2009 - 12.2016) E 350 BlueTEC (212.024) (211 hp, 155 kW) MERCEDES-BENZ E-CLASS (W212) (01.2009 - 12.2016) E 350 BlueTEC (212.026) (258 hp, 190 kW) MERCEDES-BENZ E-CLASS (W212) (01.2009 - 12.2016) E 350 BlueTEC (252 hp, 185 kW) MERCEDES-BENZ E-CLASS (W212) (01.2009 - 12.2016) E 350 BlueTEC 4MATIC (212.094) (252 hp, 185 kW) MERCEDES-BENZ E-CLASS (W212) (01.2009 - 12.2016) E 350 BlueTEC 4MATIC (212.094) (258 hp, 190 kW) MERCEDES-BENZ E-CLASS (W212) (01.2009 - 12.2016) E 350 CDI (212.023) (265 hp, 195 kW) MERCEDES-BENZ E-CLASS (W212) (01.2009 - 12.2016) E 350 CDI (212.025) (231 hp, 170 kW) MERCEDES-BENZ E-CLASS (W212) (01.2009 - 12.2016) E 350 CDI (214 hp, 157 kW) MERCEDES-BENZ E-CLASS (W212) (01.2009 - 12.2016) E 350 CDI (265 hp, 195 kW) MERCEDES-BENZ E-CLASS (W212) (01.2009 - 12.2016) E 350 CDI 4MATIC (212.089) (231 hp, 170 kW) MERCEDES-BENZ E-CLASS (W212) (01.2009 - 12.2016) E 350 CDI 4MATIC (212.093) (265 hp, 195 kW) MERCEDES-BENZ E-CLASS (W213) (01.2016 - 05.2018) E 350 d (213.033) (258 hp, 190 kW) MERCEDES-BENZ E-CLASS (W213) (01.2016 - 05.2018) E 350 d 4MATIC (213.034) (258 hp, 190 kW) MERCEDES-BENZ E-CLASS All-Terrain (S213) (01.2017 - ) E 350 d 4MATIC (213.237) (258 hp, 190 kW) MERCEDES-BENZ E-CLASS Cabriolet (A207) (01.2010 - 12.2016) E 350 BlueTEC (207.426) (252 hp, 185 kW) MERCEDES-BENZ E-CLASS Cabriolet (A207) (01.2010 - 12.2016) E 350 BlueTEC/ d (207.426) (258 hp, 190 kW) MERCEDES-BENZ E-CLASS Cabriolet (A207) (01.2010 - 12.2016) E 350 CDI (207.422) (231 hp, 170 kW) MERCEDES-BENZ E-CLASS Cabriolet (A207) (01.2010 - 12.2016) E 350 CDI (207.423) (265 hp, 195 kW) MERCEDES-BENZ E-CLASS Cabriolet (A238) (06.2017 - 12.2018) E 350 d 4MATIC (238.434) (258 hp, 190 kW) MERCEDES-BENZ E-CLASS Coupe (C207) (01.2009 - 12.2016) E 350 BlueTEC (207.326) (252 hp, 185 kW) MERCEDES-BENZ E-CLASS Coupe (C207) (01.2009 - 12.2016) E 350 BlueTEC / d (207.326) (258 hp, 190 kW) MERCEDES-BENZ E-CLASS Coupe (C207) (01.2009 - 12.2016) E 350 CDI (207.322) (231 hp, 170 kW) MERCEDES-BENZ E-CLASS Coupe (C207) (01.2009 - 12.2016) E 350 CDI (207.323) (265 hp, 195 kW) MERCEDES-BENZ E-CLASS Coupe (C238) (12.2016 - 12.2018) E 350 d 4MATIC (238.334) (258 hp, 190 kW) MERCEDES-BENZ E-CLASS Platform/Chassis (VF211) (03.2003 - 07.2009) E 280 CDI (211.620) (190 hp, 140 kW) MERCEDES-BENZ E-CLASS T-Model (S211) (02.2003 - 07.2009) E 280 T CDI (211.220) (190 hp, 140 kW) MERCEDES-BENZ E-CLASS T-Model (S211) (02.2003 - 07.2009) E 280 T CDI 4MATIC (211.284) (190 hp, 140 kW) MERCEDES-BENZ E-CLASS T-Model (S211) (02.2003 - 07.2009) E 320 T CDI (211.222) (211 hp, 155 kW) MERCEDES-BENZ E-CLASS T-Model (S211) (02.2003 - 07.2009) E 320 T CDI (211.222) (224 hp, 165 kW) MERCEDES-BENZ E-CLASS T-Model (S211) (02.2003 - 07.2009) E 320 T CDI 4MATIC (211.289) (224 hp, 165 kW) MERCEDES-BENZ E-CLASS T-Model (S212) (08.2009 - 12.2016) E 300 CDI (212.220) (204 hp, 150 kW) MERCEDES-BENZ E-CLASS T-Model (S212) (08.2009 - 12.2016) E 300 CDI / BlueTEC (212.227, 212.221) (231 hp, 170 kW) MERCEDES-BENZ E-CLASS T-Model (S212) (08.2009 - 12.2016) E 350 BlueTEC (212.224) (211 hp, 155 kW) MERCEDES-BENZ E-CLASS T-Model (S212) (08.2009 - 12.2016) E 350 BlueTEC (212.226) (258 hp, 190 kW) MERCEDES-BENZ E-CLASS T-Model (S212) (08.2009 - 12.2016) E 350 BlueTEC (252 hp, 185 kW) MERCEDES-BENZ E-CLASS T-Model (S212) (08.2009 - 12.2016) E 350 BlueTEC 4MATIC (212.294) (252 hp, 185 kW) MERCEDES-BENZ E-CLASS T-Model (S212) (08.2009 - 12.2016) E 350 BlueTEC 4MATIC (212.294) (258 hp, 190 kW) MERCEDES-BENZ E-CLASS T-Model (S212) (08.2009 - 12.2016) E 350 CDI (212.223) (265 hp, 195 kW) MERCEDES-BENZ E-CLASS T-Model (S212) (08.2009 - 12.2016) E 350 CDI (212.225) (231 hp, 170 kW) MERCEDES-BENZ E-CLASS T-Model (S212) (08.2009 - 12.2016) E 350 CDI 4MATIC (212.289) (231 hp, 170 kW) MERCEDES-BENZ E-CLASS T-Model (S212) (08.2009 - 12.2016) E 350 CDI 4MATIC (212.293) (265 hp, 195 kW) MERCEDES-BENZ E-CLASS T-Model (S213) (07.2016 - 12.2018) E 350 d (213.233) (258 hp, 190 kW) MERCEDES-BENZ E-CLASS T-Model (S213) (07.2016 - 12.2018) E 350 d 4MATIC (213.234) (258 hp, 190 kW) MERCEDES-BENZ G-CLASS (W461) (09.1989 - 07.2000) G 280 CDI (461.304, 461.346, 461.370, 461.334, 461.339,... (184 hp, 135 kW) MERCEDES-BENZ G-CLASS (W461) (09.1989 - 07.2000) G 300 CDI (461.333) (184 hp, 135 kW) MERCEDES-BENZ G-CLASS (W463) (09.1989 - 12.2011) G 320 CDI (463.340, 463.341, 463.343) (224 hp, 165 kW) MERCEDES-BENZ G-CLASS (W463) (09.1989 - 12.2011) G 350 CDI (211 hp, 155 kW) MERCEDES-BENZ G-CLASS (W463) (09.1989 - 12.2011) G 350 CDI (463.306) (224 hp, 165 kW) MERCEDES-BENZ G-CLASS (W463) (09.1989 - 12.2011) G 350 d (463.348) (245 hp, 180 kW) MERCEDES-BENZ G-CLASS Cabrio (W463) (09.1989 - 12.2011) G 320 CDI (463.303) (224 hp, 165 kW) MERCEDES-BENZ G-CLASS Cabrio (W463) (09.1989 - 12.2011) G 350 CDI (211 hp, 155 kW) MERCEDES-BENZ G-CLASS Cabrio (W463) (09.1989 - 12.2011) G 350 CDI (463.306) (224 hp, 165 kW) MERCEDES-BENZ GL-CLASS (X164) (09.2006 - 12.2012) GL 320 CDI / 350 BlueTEC 4MATIC (164.824, 164.825) (211 hp, 155 kW) MERCEDES-BENZ GL-CLASS (X164) (09.2006 - 12.2012) GL 320 CDI 4MATIC (164.822) (224 hp, 165 kW) MERCEDES-BENZ GL-CLASS (X164) (09.2006 - 12.2012) GL 320 CDI 4MATIC (218 hp, 160 kW) MERCEDES-BENZ GL-CLASS (X164) (09.2006 - 12.2012) GL 350 CDI 4MATIC (164.822) (224 hp, 165 kW) MERCEDES-BENZ GL-CLASS (X164) (09.2006 - 12.2012) GL 350 CDI 4MATIC (164.823) (265 hp, 195 kW) MERCEDES-BENZ GL-CLASS (X164) (09.2006 - 12.2012) GL 350 CDI 4MATIC (231 hp, 170 kW) MERCEDES-BENZ GL-CLASS (X166) (07.2012 - 12.2015) GL 350 CDI / BlueTEC 4MATIC (166.824) (243 hp, 179 kW) MERCEDES-BENZ GL-CLASS (X166) (07.2012 - 12.2015) GL 350 CDI / BlueTEC 4MATIC (166.824) (249 hp, 183 kW) MERCEDES-BENZ GL-CLASS (X166) (07.2012 - 12.2015) GL 350 CDI / BlueTec 4MATIC (166.823, 166.824) (258 hp, 190 kW) MERCEDES-BENZ GLC (X253) (06.2015 - 08.2019) 350 d 4MATIC (253.925) (258 hp, 190 kW) MERCEDES-BENZ GLC Coupe (C253) (06.2016 - 08.2019) 350 d 4MATIC (253.325) (258 hp, 190 kW) MERCEDES-BENZ GLE (W166) (04.2015 - 10.2018) 350 d 4MATIC (166.024) (249 hp, 183 kW) MERCEDES-BENZ GLE (W166) (04.2015 - 10.2018) 350 d 4MATIC (166.024) (258 hp, 190 kW) MERCEDES-BENZ GLE Coupe (C292) (03.2015 - 10.2019) 350 d 4MATIC (292.323, 292.324) (258 hp, 190 kW) MERCEDES-BENZ GLE Coupe (C292) (03.2015 - 10.2019) 350 d 4MATIC (292.324) (243 hp, 179 kW) MERCEDES-BENZ GLE Coupe (C292) (03.2015 - 10.2019) 350 d 4MATIC (292.324) (249 hp, 183 kW) MERCEDES-BENZ GLK-CLASS (X204) (06.2008 - 12.2015) 320 CDI 4MATIC (204.983) (224 hp, 165 kW) MERCEDES-BENZ GLK-CLASS (X204) (06.2008 - 12.2015) 350 CDI 4MATIC (204.992) (224 hp, 165 kW) MERCEDES-BENZ GLK-CLASS (X204) (06.2008 - 12.2015) 350 CDI 4MATIC (204.992) (231 hp, 170 kW) MERCEDES-BENZ GLK-CLASS (X204) (06.2008 - 12.2015) 350 CDI 4MATIC (204.993) (265 hp, 195 kW) MERCEDES-BENZ GLS (X166) (11.2015 - 04.2019) 350 d 4MATIC (166.824) (249 hp, 183 kW) MERCEDES-BENZ GLS (X166) (11.2015 - 04.2019) 350 d 4MATIC (166.824) (258 hp, 190 kW) MERCEDES-BENZ M-CLASS (W164) (02.2005 - 12.2012) ML 280 CDI 4MATIC (164.120) (190 hp, 140 kW) MERCEDES-BENZ M-CLASS (W164) (02.2005 - 12.2012) ML 300 CDI 4MATIC (164.120) (190 hp, 140 kW) MERCEDES-BENZ M-CLASS (W164) (02.2005 - 12.2012) ML 300 CDI 4MATIC (164.121) (204 hp, 150 kW) MERCEDES-BENZ M-CLASS (W164) (02.2005 - 12.2012) ML 320 CDI 4MATIC (164.122) (224 hp, 165 kW) MERCEDES-BENZ M-CLASS (W164) (02.2005 - 12.2012) ML 320 CDI 4MATIC (164.124, 164.125, 164.122) (211 hp, 155 kW) MERCEDES-BENZ M-CLASS (W164) (02.2005 - 12.2012) ML 320 CDI 4MATIC (218 hp, 160 kW) MERCEDES-BENZ M-CLASS (W164) (02.2005 - 12.2012) ML 350 CDI 4MATIC (164.122) (224 hp, 165 kW) MERCEDES-BENZ M-CLASS (W164) (02.2005 - 12.2012) ML 350 CDI 4MATIC (164.125, 164.124) (211 hp, 155 kW) MERCEDES-BENZ M-CLASS (W164) (02.2005 - 12.2012) ML 350 CDI 4MATIC (164.125, 164.124) (231 hp, 170 kW) MERCEDES-BENZ M-CLASS (W164) (02.2005 - 12.2012) ML 350 CDI 4MATIC (214 hp, 157 kW) MERCEDES-BENZ M-CLASS (W164) (02.2005 - 12.2012) ML 350 CDI 4MATIC (258 hp, 190 kW) MERCEDES-BENZ M-CLASS (W166) (06.2011 - 12.2015) ML 350 BlueTEC 4MATIC (166.024) (258 hp, 190 kW) MERCEDES-BENZ M-CLASS (W166) (06.2011 - 12.2015) ML 350 CDI 4MATIC (166.023) (231 hp, 170 kW) MERCEDES-BENZ R-CLASS (W251, V251) (08.2005 - 10.2017) R 280 CDI (251.121, 251.026, 251.126) (190 hp, 140 kW) MERCEDES-BENZ R-CLASS (W251, V251) (08.2005 - 10.2017) R 280 CDI 4MATIC (251.020) (190 hp, 140 kW) MERCEDES-BENZ R-CLASS (W251, V251) (08.2005 - 10.2017) R 300 CDI (251.021, 251.121, 251.026, 251.126) (190 hp, 140 kW) MERCEDES-BENZ R-CLASS (W251, V251) (08.2005 - 10.2017) R 300 CDI 4MATIC (251.020) (190 hp, 140 kW) MERCEDES-BENZ R-CLASS (W251, V251) (08.2005 - 10.2017) R 320 CDI 4MATIC (214 hp, 157 kW) MERCEDES-BENZ R-CLASS (W251, V251) (08.2005 - 10.2017) R 320 CDI 4MATIC (218 hp, 160 kW) MERCEDES-BENZ R-CLASS (W251, V251) (08.2005 - 10.2017) R 320 CDI 4MATIC (251.022, 251.122) (224 hp, 165 kW) MERCEDES-BENZ R-CLASS (W251, V251) (08.2005 - 10.2017) R 320 CDI 4MATIC (251.125) (211 hp, 155 kW) MERCEDES-BENZ R-CLASS (W251, V251) (08.2005 - 10.2017) R 350 CDI 4MATIC (214 hp, 157 kW) MERCEDES-BENZ R-CLASS (W251, V251) (08.2005 - 10.2017) R 350 CDI 4MATIC (251.022, 251.122) (224 hp, 165 kW) MERCEDES-BENZ R-CLASS (W251, V251) (08.2005 - 10.2017) R 350 CDI 4MATIC (251.023, 251.123) (265 hp, 195 kW) MERCEDES-BENZ R-CLASS (W251, V251) (08.2005 - 10.2017) R 350 CDI 4MATIC (251.124, 251.125) (211 hp, 155 kW) MERCEDES-BENZ S-CLASS (W221) (09.2005 - 12.2013) S 320 CDI (211 hp, 155 kW) MERCEDES-BENZ S-CLASS (W221) (09.2005 - 12.2013) S 320 CDI (221.022, 221.122) (235 hp, 173 kW) MERCEDES-BENZ S-CLASS (W221) (09.2005 - 12.2013) S 320 CDI 4MATIC (221.080, 221.180) (211 hp, 155 kW) MERCEDES-BENZ S-CLASS (W221) (09.2005 - 12.2013) S 320 CDI 4MATIC (221.080, 221.180) (235 hp, 173 kW) MERCEDES-BENZ S-CLASS (W221) (09.2005 - 12.2013) S 350 BlueTEC 4MATIC (221.083, 221.183) (258 hp, 190 kW) MERCEDES-BENZ S-CLASS (W221) (09.2005 - 12.2013) S 350 BlueTec (221.026, 221.126) (258 hp, 190 kW) MERCEDES-BENZ S-CLASS (W221) (09.2005 - 12.2013) S 350 CDI (211 hp, 155 kW) MERCEDES-BENZ S-CLASS (W221) (09.2005 - 12.2013) S 350 CDI (235 hp, 173 kW) MERCEDES-BENZ S-CLASS (W221) (09.2005 - 12.2013) S 350 CDI 4MATIC (221.080, 221.081) (211 hp, 155 kW) MERCEDES-BENZ S-CLASS (W221) (09.2005 - 12.2013) S 350 CDI 4MATIC (221.080, 221.180) (235 hp, 173 kW) MERCEDES-BENZ S-CLASS (W222, V222, X222) (05.2013 - 11.2018) S 350 BlueTEC / d (222.132, 222.032, 222.123) (258 hp, 190 kW) MERCEDES-BENZ S-CLASS (W222, V222, X222) (05.2013 - 11.2018) S 350 BlueTEC / d 4MATIC (222.033, 222.133) (258 hp, 190 kW) MERCEDES-BENZ S-CLASS (W222, V222, X222) (05.2013 - 11.2018) S 350 BlueTEC 4MATIC (222.133) (252 hp, 185 kW) MERCEDES-BENZ SPRINTER 3,5-t Bus (906) (06.2006 - 05.2016) 318 CDI (906.731, 906.733, 906.735) (184 hp, 135 kW) MERCEDES-BENZ SPRINTER 3,5-t Bus (906) (06.2006 - 05.2016) 318 CDI AWD (906.731, 906.733, 906.735) (184 hp, 135 kW) MERCEDES-BENZ SPRINTER 3,5-t Bus (906) (06.2006 - 05.2016) 319 CDI / BlueTEC (906.731, 906.733, 906.735) (190 hp, 140 kW) MERCEDES-BENZ SPRINTER 3,5-t Bus (906) (06.2006 - 05.2016) 319 CDI / BlueTEC AWD (906.731, 906.733, 906.735) (190 hp, 140 kW) MERCEDES-BENZ SPRINTER 3,5-t Box Body (906) (06.2006 - 12.2017) 318 CDI (906.631, 906.633, 906.635, 906.637) (184 hp, 135 kW) MERCEDES-BENZ SPRINTER 3,5-t Box Body (906) (06.2006 - 12.2017) 318 CDI AWD (906.631, 906.633, 906.635, 906.637) (184 hp, 135 kW) MERCEDES-BENZ SPRINTER 3,5-t Box Body (906) (06.2006 - 12.2017) 319 CDI / BlueTEC (906.631, 906.633, 906.635, 906.637) (190 hp, 140 kW) MERCEDES-BENZ SPRINTER 3,5-t Box Body (906) (06.2006 - 12.2017) 319 CDI / BlueTEC AWD (906.631, 906.633, 906.635,... (190 hp, 140 kW) MERCEDES-BENZ SPRINTER 3,5-t Box Body (907, 910) (02.2018 - ) 319 CDI AWD (907.633, 907.635, 907.637) (190 hp, 140 kW) MERCEDES-BENZ SPRINTER 3,5-t Box Body (907, 910) (02.2018 - ) 319 CDI RWD (907.633, 907.635, 907.637) (190 hp, 140 kW) MERCEDES-BENZ SPRINTER 3,5-t Platform/Chassis (906) (06.2006 - 12.2016) 318 CDI (906.131, 906.133, 906.135, 906.231, 906.233,... (184 hp, 135 kW) MERCEDES-BENZ SPRINTER 3,5-t Platform/Chassis (906) (06.2006 - 12.2016) 318 CDI AWD (906.131, 906.133, 906.135, 906.231, 906.233... (184 hp, 135 kW) MERCEDES-BENZ SPRINTER 3,5-t Platform/Chassis (906) (06.2006 - 12.2016) 319 CDI / BlueTEC (906.131, 906.133, 906.135, 906.231,... (190 hp, 140 kW) MERCEDES-BENZ SPRINTER 3,5-t Platform/Chassis (906) (06.2006 - 12.2016) 319 CDI / BlueTEC AWD (906.131, 906.133, 906.135,... (190 hp, 140 kW) MERCEDES-BENZ SPRINTER 3,5-t Platform/Chassis (907, 910) (02.2018 - ) 319 CDI AWD (907.133, 907.135, 907.233) (190 hp, 140 kW) MERCEDES-BENZ SPRINTER 3,5-t Platform/Chassis (907, 910) (02.2018 - ) 319 CDI RWD (907.133, 907.135, 907.233, 907.235) (190 hp, 140 kW) MERCEDES-BENZ SPRINTER 3,5-t Tourer Bus (907) (02.2018 - ) 319 CDI (907.733, 907.735) (190 hp, 140 kW) MERCEDES-BENZ SPRINTER 3,5-t Tourer Bus (907) (02.2018 - ) 319 CDI AWD (907.733) (190 hp, 140 kW) MERCEDES-BENZ SPRINTER 3-t Box Body (906) (06.2006 - 12.2009) 218 CDI (906.611, 906.613) (184 hp, 135 kW) MERCEDES-BENZ SPRINTER 3-t Box Body (906) (06.2006 - 12.2009) 219 CDI / BlueTEC (906.611, 906.613) (190 hp, 140 kW) MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (906) (06.2006 - 05.2016) 218 CDI (906.111, 906.113, 906.211, 906.213) (184 hp, 135 kW) MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (906) (06.2006 - 05.2016) 219 CDI / BlueTEC (906.111, 906.113, 906.211, 906.213) (190 hp, 140 kW) MERCEDES-BENZ SPRINTER 4,6-t Box Body (906) (06.2006 - 12.2018) 418 CDI (906.653, 906.655, 906.657) (184 hp, 135 kW) MERCEDES-BENZ SPRINTER 4,6-t Box Body (906) (06.2006 - 12.2018) 419 CDI (906.653, 906.655, 906.657) (190 hp, 140 kW) MERCEDES-BENZ SPRINTER 4,6-t Platform/Chassis (906) (06.2006 - 12.2018) 418 CDI (906.153, 906.155, 906.253, 906.255) (184 hp, 135 kW) MERCEDES-BENZ SPRINTER 4,6-t Platform/Chassis (906) (06.2006 - 12.2018) 419 CDI (906.153, 906.155, 906.253, 906.255) (190 hp, 140 kW) MERCEDES-BENZ SPRINTER 4-t Box Body (907, 910) (02.2018 - ) 419 CDI AWD (907.643, 907.645, 907.647) (190 hp, 140 kW) MERCEDES-BENZ SPRINTER 4-t Box Body (907, 910) (02.2018 - ) 419 CDI RWD (907.643, 907.645, 907.647) (190 hp, 140 kW) MERCEDES-BENZ SPRINTER 4-t Platform/Chassis (907, 910) (02.2018 - ) 419 CDI AWD (907.143, 907.145, 907.243, 907.245) (190 hp, 140 kW) MERCEDES-BENZ SPRINTER 4-t Platform/Chassis (907, 910) (02.2018 - ) 419 CDI RWD (907.143, 907.145, 907.243, 907.245) (190 hp, 140 kW) MERCEDES-BENZ SPRINTER 5-t Bus (906) (06.2006 - ) 519 CDI (906.755, 906.757) (190 hp, 140 kW) MERCEDES-BENZ SPRINTER 5-t Box Body (906) (06.2006 - 05.2016) 518 CDI (906.653, 906.655, 906.657) (184 hp, 135 kW) MERCEDES-BENZ SPRINTER 5-t Box Body (906) (06.2006 - 05.2016) 518 CDI AWD (906.653, 906.655, 906.657) (184 hp, 135 kW) MERCEDES-BENZ SPRINTER 5-t Box Body (906) (06.2006 - 05.2016) 519 CDI / BlueTEC (906.653, 906.655, 906.657) (190 hp, 140 kW) MERCEDES-BENZ SPRINTER 5-t Box Body (906) (06.2006 - 05.2016) 519 CDI / BlueTEC AWD (906.653, 906.655, 906.657) (190 hp, 140 kW) MERCEDES-BENZ SPRINTER 5-t Box Body (907) (02.2018 - ) 519 CDI (907.653, 907.655, 907.657) (190 hp, 140 kW) MERCEDES-BENZ SPRINTER 5-t Box Body (907) (02.2018 - ) 519 CDI AWD (907.653, 907.655, 907.657) (190 hp, 140 kW) MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (906) (06.2006 - 05.2016) 518 CDI (906.153, 906.155, 906.253, 906.255) (184 hp, 135 kW) MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (906) (06.2006 - 05.2016) 518 CDI AWD (906.153, 906.155, 906.253, 906.255) (184 hp, 135 kW) MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (906) (06.2006 - 05.2016) 519 CDI / BlueTEC (906.153, 906.155, 906.253, 906.255) (190 hp, 140 kW) MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (906) (06.2006 - 05.2016) 519 CDI / BlueTEC AWD (906.153, 906.155, 906.253,... (190 hp, 140 kW) MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (907) (02.2018 - ) 519 CDI (907.153, 907.155, 907.253, 907.255) (190 hp, 140 kW) MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (907) (02.2018 - ) 519 CDI AWD (907.153, 907.155, 907.253, 907.255) (190 hp, 140 kW) MERCEDES-BENZ VIANO (W639) (09.2003 - 07.2007) CDI 3.0 (639.811, 639.813, 639.815) (204 hp, 150 kW) MERCEDES-BENZ VIANO (W639) (09.2003 - 07.2007) CDI 3.0 (639.811, 639.813, 639.815) (224 hp, 165 kW) MERCEDES-BENZ VITO / MIXTO Box Body (W639) (09.2003 - 02.2015) 120 CDI (639.601, 639.603, 639.605) (204 hp, 150 kW) MERCEDES-BENZ VITO / MIXTO Box Body (W639) (09.2003 - 02.2015) 122 CDI (639.601, 639.603, 639.605) (224 hp, 165 kW) MERCEDES-BENZ VITO Bus (W639) (09.2003 - 02.2015) 120 CDI (639.701, 639.703, 639.705) (204 hp, 150 kW) MERCEDES-BENZ VITO Bus (W639) (09.2003 - 02.2015) 122 CDI (639.701, 639.703, 639.705) (224 hp, 165 kW) MERCEDES-BENZ X-CLASS (470) (09.2017 - ) X 350 d 4MATIC (470.252) (258 hp, 190 kW)
