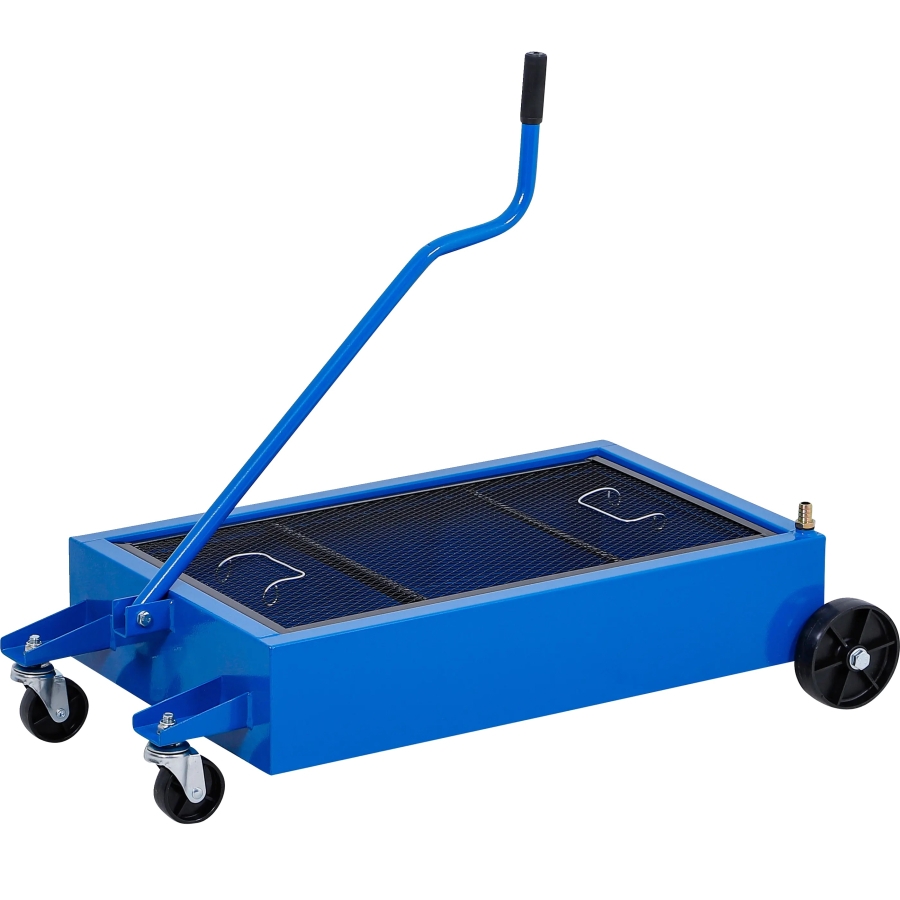

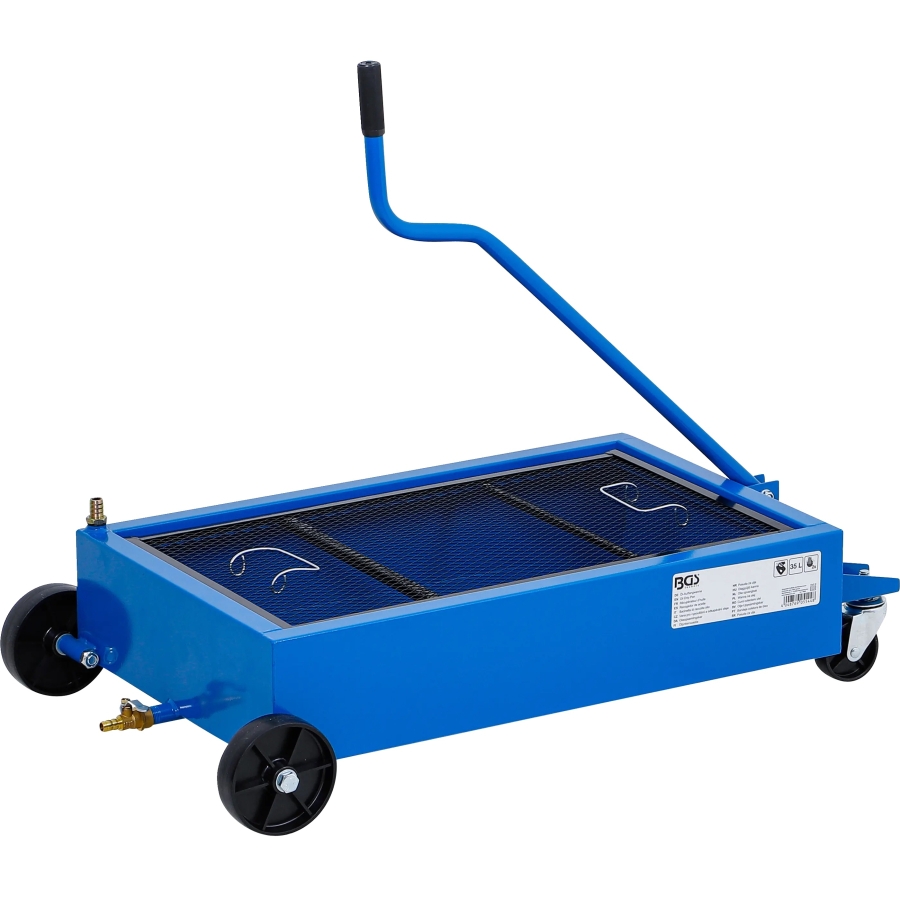

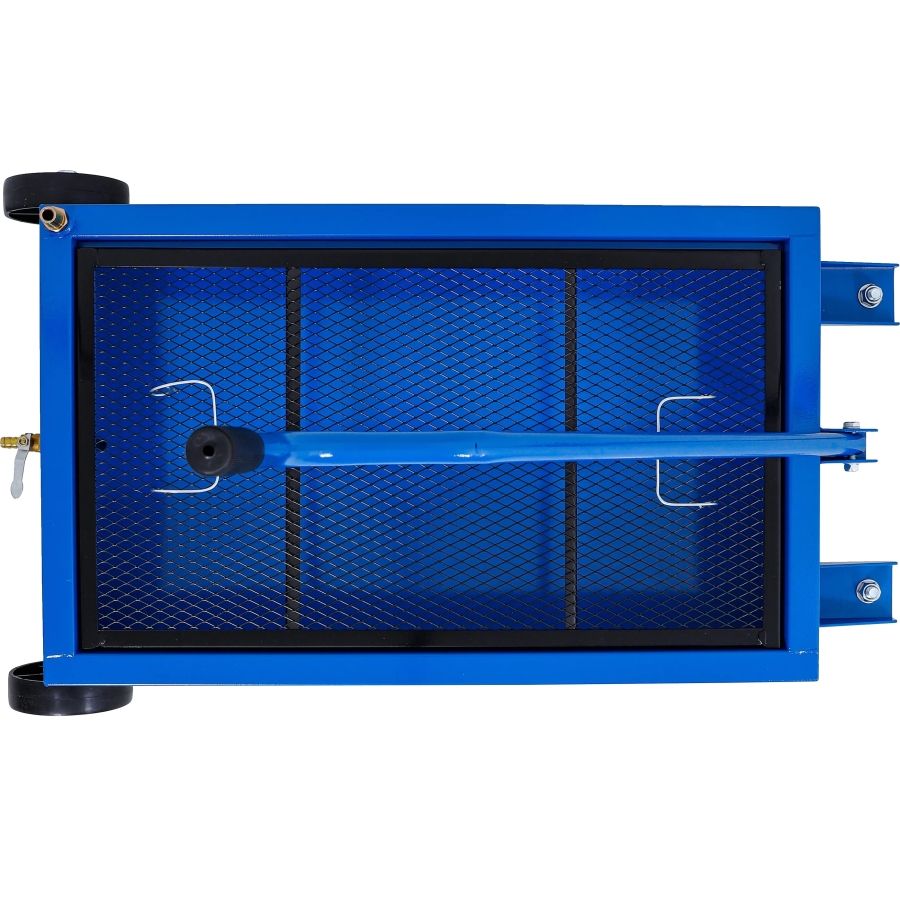

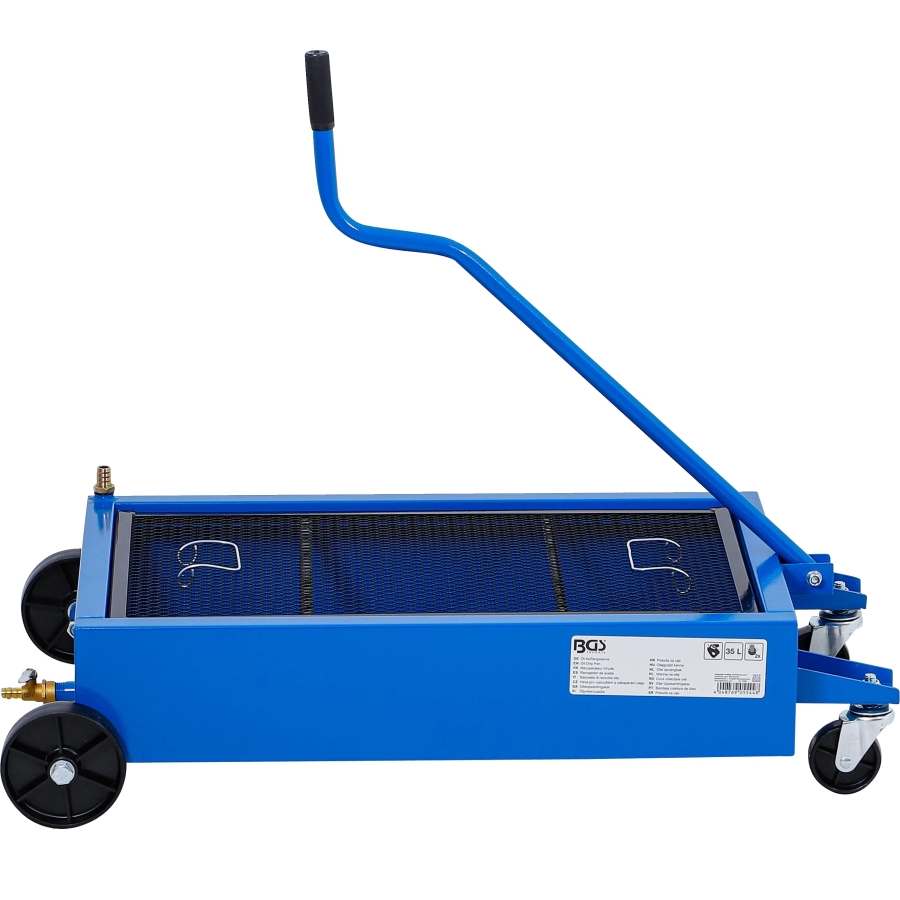

Mobile Oil Drip Pan with Drain Valve, 35 L
Price:
€345.00
-
Code:70030
-
Weight:12.000 Kgs
Overview:
✔ Collects engine, differential and transmission oil or antifreeze
✔ 35 L capacity; maximum pan volume 37.9 L
✔ Suitable for repairs close to the ground
✔ Removable grating
✔ Rear drain tap with shut-off function
✔ Push handle, two fixed castors and two swivel castors
The rectangular pan collects oil or antifreeze during workshop repairs. Its grating can be removed when needed. The pan is emptied through the shut-off drain tap at the rear.
Positioning under the vehicle
The compact pan has a push handle, two fixed castors and two swivel castors. It requires a minimum under-vehicle clearance of 230 mm for positioning.
Technical specifications
- Capacity: 35 L
- Maximum pan volume: 37.9 L
- Length × width × height: 700 × 430 × 140 mm
- Minimum under-vehicle clearance: 230 mm
- Fixed castor diameter: 120 mm
- Swivel castor diameter: 75 mm
- Grating dimensions: 630 × 360 mm
- Material: Sheet steel
