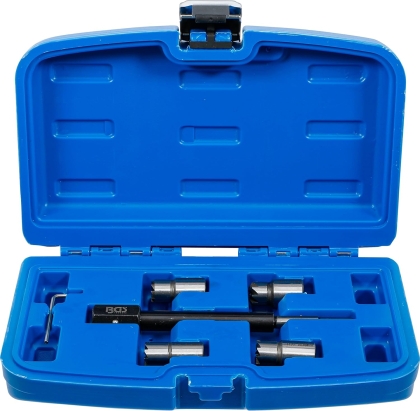

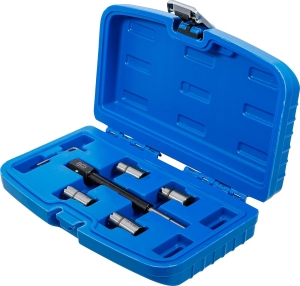

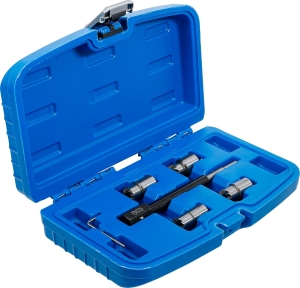

Injector Bore & Seat Milling Kit for CDI Engines

This injector bore and seat milling kit for CDI engines is an essential tool for diesel injector repair and maintenance across most common diesel engines. It is designed to carefully remove carbon deposits and contaminants from injector seats after disassembly, ensuring optimal sealing and reducing the risk of engine problems or leaks.

Features:

• Essential for cleaning and restoring injector sealing surfaces during injector replacement.

• Effectively removes carbon and dirt to ensure proper sealing.

• Made from high-alloy chrome-molybdenum steel (SKD11), precisely milled, ground, and surface-treated for maximum durability and precision.

• Recommended to use a stronger heat-protection washer/seal for machining depths over 0.2 mm (Art-Nr. KT11060).

Usage Instructions:

1. Remove the injector from the engine.

2. Select the appropriate milling cutter and attach it to the guide with the supplied hex key.

3. Insert the cutter into the injector bore and rotate clockwise with light pressure.

4. Apply a thin layer of lubricant during milling for a smooth surface and to reduce vibration.

5. Remove only the necessary material to achieve a perfect seal.

6. Clean the sealing surface thoroughly from chips and residues.

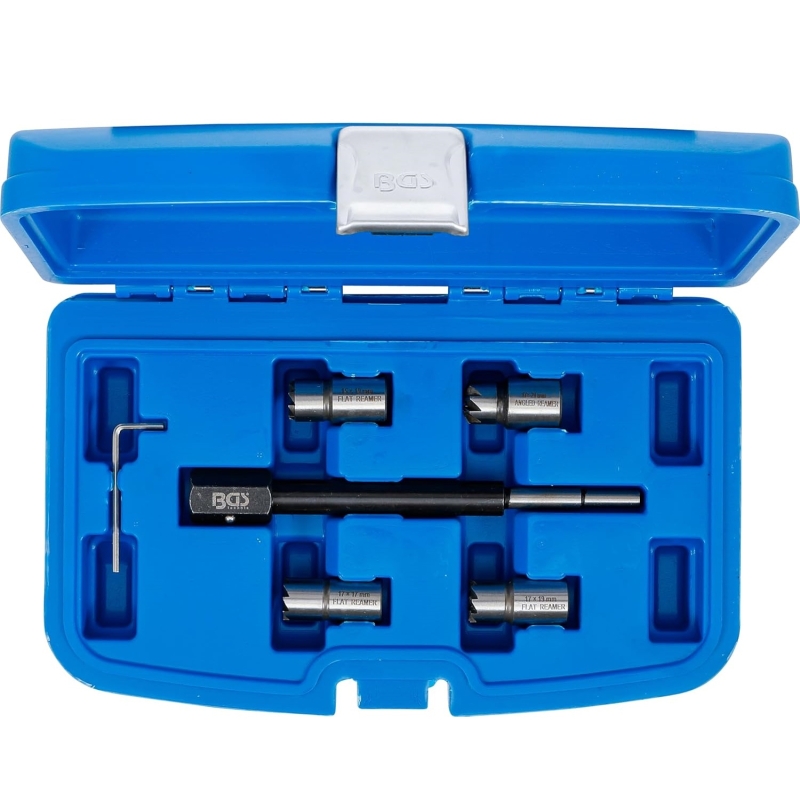

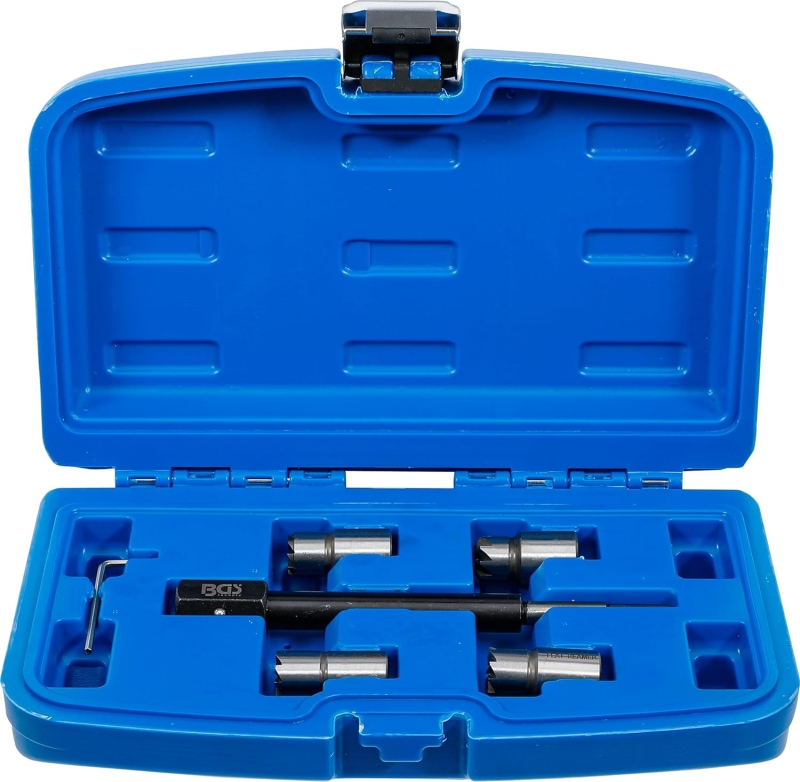

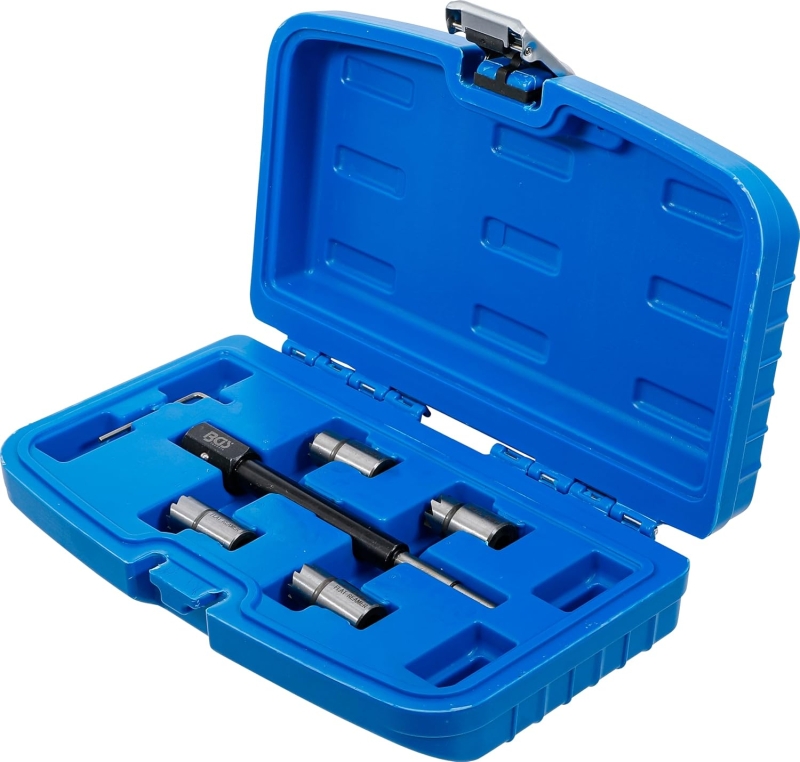

Delivery Contents

• 1 × Guide with 19 mm external hex

• 1 × Cutter 15 mm (for various brands)

• 1 × Cutter 17 mm (for BMW / PSA / Renault)

• 1 × Cutter 19 mm (for Mercedes CDI)

• 1 × Cutter 19 mm angled (for Fiat / Iveco)
