Universal Clutch Alignment Tool

This universal clutch alignment tool is designed for accurate centering of the clutch disc during clutch installation procedures on vehicles without a pilot bearing or guide bearing.

The tool is suitable for clutch disc hub diameters from 15.0 mm to 28.0 mm and features a continuously adjustable expansion system for precise positioning inside the clutch hub. Proper alignment helps simplify gearbox installation and reduces the risk of clutch misalignment during assembly.

The expandable cone system ensures secure fixation within the clutch disc hub, allowing accurate positioning of the clutch disc against the pressure plate before installation onto the flywheel.

Suitable for professional automotive workshops and clutch service applications.

Technical Specifications

Compatible Clutch Hub Diameter

• 15.0 – 28.0 mm

Adjustable Diameter Ranges

• 15.0 – 21.0 mm
• 17.0 – 25.0 mm
• 22.0 – 28.0 mm

Set Contents

Included Components

• 1 universal clutch alignment tool with clamping cone
• 2 expansion cones:
  • 15.0 – 21.0 mm
  • 17.0 – 25.0 mm

Applications

• Clutch replacement
• Clutch disc centering
• Vehicles without pilot bearing
• Vehicles without guide bearing
• Gearbox installation preparation
• Universal workshop applications

Technical Features

• Universal clutch centering application
• Continuously adjustable expansion system
• Wide diameter compatibility range
• Secure fixation inside clutch hub
• Improves clutch installation precision
• Simplifies gearbox installation
• Durable workshop-grade construction

Application Instructions

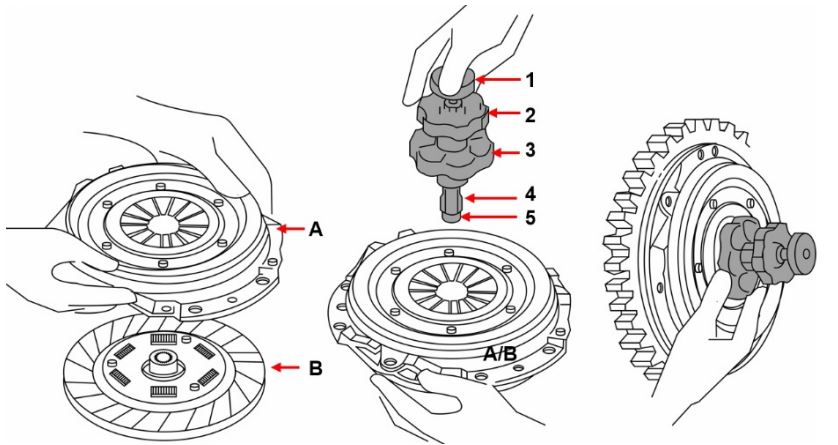

1. Screw the clamping nut (3) onto the thread of the main body (2).
2. Install the appropriate expansion sleeve (4) onto the main body (2). The expansion sleeve should fit as closely as possible inside the clutch disc hub.
3. Place the clutch disc onto the clutch pressure plate and insert the alignment tool from the front through the pressure plate (A) until the expansion sleeve is fully seated inside the clutch disc hub.
4. Expand the sleeve (4) using the expansion bolt (5) by turning the expansion nut (1) until the sleeve is securely locked inside the clutch disc hub.
5. Align the clutch disc (B) against the friction surface of the pressure plate (A) and secure the clutch disc by tightening the clamping nut (3) against the diaphragm spring.
6. Install the clutch pressure plate (A) together with the clutch disc (B) onto the flywheel.
7. Loosen the clamping nut (3) counterclockwise and remove the alignment tool.
