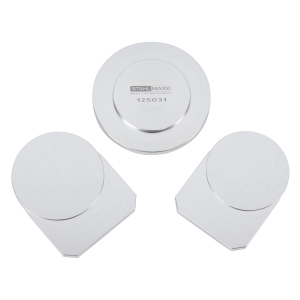

Bearing Shell Centering Tool Set for PSA EB0, EB2, as 0109-4C / 4D / 4E, EN-52129 / EN-52130

Price: €52.50

Code:

125031
Weight:

0.450 Kgs

Overview:
✔ 3-piece special tool set for centering connecting rod and crankshaft bearing shells
✔ For PSA EB0, EB2 and EB2M engine repairs
✔ Helps position the bearing shells accurately during installation
✔ Connecting rod bearing tool for 39 and 45 mm diameters
✔ Suitable for numerous 1.0L and 1.2L VTi / THP 3-cylinder petrol engines from 2012
✔ For use as PSA 0109-4C, 0109-4D, 0109-4E and Opel EN-52129, EN-52130

Bearing Shell Centering Tool Set for PSA EB0, EB2, as 0109-4C / 4D / 4E, EN-52129 / EN-52130

Send to friend

Rate this product

Special 3-piece tool set for accurately aligning and centering connecting rod bearing shells and crankshaft main bearing half-shells during engine repair.

Correct positioning is important during assembly. Installing the connecting rod or crankshaft bearing shells without the appropriate centering tool can cause the shells to become misaligned or tilted during installation.

Important Installation Notes

The diameters of the crankshaft and connecting rod bearing shells are identical. Do not interchange them, as their thicknesses and part numbers differ.
The installation orientation of each connecting rod bearing cap must be clearly marked before removal, for example with a colour mark or other suitable identification.
When installing the piston cooling oil jet, check that it moves freely and verify the clearance with a feeler gauge.
Maximum clearance between oil jet and housing: 0.2 mm

Suitable Engine Codes

For 1.0L and 1.2L VTi / THP 3-cylinder petrol engines from 2012, including:

B12XE
B12XHL
B12XHT
D12XE
D12XHL
D12XHT
EB0
EB0F
EB2
EB2ADT
EB2ADTS
EB2D
EB2DT
EB2DTS
EB2F
EB2M
F12XHT
HMT
HMU
HMV
HMW
HMY
HMZ
HNY
HNZ
LES
LEZ
ZMZ

OEM References

For use as:

PSA 0109-4C / Opel EN-52129 – centering tool for connecting rod bearing shells, Ø 39 and 45 mm
PSA 0109-4D – centering tool for crankshaft main bearing half-shells on EB0 engines
PSA 0109-4E / Opel EN-52130 – centering tool for crankshaft main bearing half-shells on EB2 and EB2M engines

Scope of Delivery

1 x centering tool for connecting rod bearing shells, Ø 39 and 45 mm, for use as PSA 0109-4C and Opel EN-52129
1 x centering tool for crankshaft main bearing half-shells for EB0 engines, for use as PSA 0109-4D
1 x centering tool for crankshaft main bearing half-shells for EB2 / EB2M engines, for use as PSA 0109-4E and Opel EN-52130

Original numbers are for comparison only; not original tools.

Vehicle Compatibility

Search by brand, model, engine, power, year or chassis code.

0 vehicles found

CITROËN BERLINGO (ER_, EC_) (06.2018 - ) 1.2 PureTech 110 (110 hp, 81 kW) CITROËN BERLINGO (ER_, EC_) (06.2018 - ) 1.2 PureTech 130 (131 hp, 96 kW) CITROËN BERLINGO Box Body/MPV (B9) (04.2008 - ) PureTech 110 (110 hp, 81 kW) CITROËN BERLINGO Box Body/MPV (K9) (06.2018 - ) PureTech 110 (110 hp, 81 kW) CITROËN BERLINGO Box Body/MPV (K9) (06.2018 - ) PureTech 130 (131 hp, 96 kW) CITROËN BERLINGO MULTISPACE (B9) (04.2008 - 12.2014) 1.2 PureTech 110 (110 hp, 81 kW) CITROËN C-ELYSEE (DD_) (11.2012 - ) 1.2 PureTech 82 (DDHMRP) (83 hp, 61 kW) CITROËN C-ELYSEE (DD_) (11.2012 - ) 1.2 VTi 72 (72 hp, 53 kW) CITROËN C-ELYSEE (DD_) (11.2012 - ) 1.2 VTi 82 (82 hp, 60 kW) CITROËN C1 II (PA_, hp_) (04.2014 - ) 1.2 VTi 82 (82 hp, 60 kW) CITROËN C3 AIRCROSS II (2R_, 2C_) (06.2017 - ) 1.2 PureTech 110 (2RHNZB, 2RHNZW, 2RHNPX, 2RHNPJ) (110 hp, 81 kW) CITROËN C3 AIRCROSS II (2R_, 2C_) (06.2017 - ) 1.2 PureTech 130 (2RHNYH) (131 hp, 96 kW) CITROËN C3 AIRCROSS II (2R_, 2C_) (06.2017 - ) 1.2 PureTech 82 (2RHMRC, 2RHMZB) (82 hp, 60 kW) CITROËN C3 AIRCROSS II Van (2C_, 2R_) (05.2019 - ) PureTech 82 (110 hp, 81 kW) CITROËN C3 AIRCROSS II Van (2C_, 2R_) (05.2019 - ) PureTech 82 (82 hp, 60 kW) CITROËN C3 II (SC_) (09.2009 - 12.2016) 1.0 VTi 68 (68 hp, 50 kW) CITROËN C3 II (SC_) (09.2009 - 12.2016) 1.2 PureTech Flex (90 hp, 66 kW) CITROËN C3 II (SC_) (09.2009 - 12.2016) 1.2 THP 110 (110 hp, 81 kW) CITROËN C3 II (SC_) (09.2009 - 12.2016) 1.2 VTi 82 (82 hp, 60 kW) CITROËN C3 III (SX) (07.2016 - ) 1.2 PureTech 82 (83 hp, 61 kW) CITROËN C3 III (SX) (07.2016 - ) 1.2 PureTech 82 LPG (83 hp, 61 kW) CITROËN C3 III (SX) (07.2016 - ) 1.2 THP 110 (110 hp, 81 kW) CITROËN C3 III (SX) (07.2016 - ) 1.2 VTi 68 (68 hp, 50 kW) CITROËN C3 III (SX) (07.2016 - ) 1.2 VTi 82 (82 hp, 60 kW) CITROËN C3 III (SX) (07.2016 - ) 1.2 VTi 82 LPG (82 hp, 60 kW) CITROËN C3 III Van (SX_, SY_) (03.2019 - ) PureTech 110 (110 hp, 81 kW) CITROËN C3 III Van (SX_, SY_) (03.2019 - ) PureTech 82 (83 hp, 61 kW) CITROËN C3 PICASSO (SH_) (02.2009 - 12.2016) 1.2 THP 110 (110 hp, 81 kW) CITROËN C4 CACTUS (09.2014 - ) 1.2 PureTech 130 (131 hp, 96 kW) CITROËN C4 CACTUS (09.2014 - ) 1.2 THP 110 (110 hp, 81 kW) CITROËN C4 CACTUS (09.2014 - ) 1.2 VTi 75 / PureTech 75 (75 hp, 55 kW) CITROËN C4 CACTUS (09.2014 - ) 1.2 VTi 82 (82 hp, 60 kW) CITROËN C4 CACTUS Van (0B_, 0P_) (05.2019 - ) PureTech 110 (110 hp, 81 kW) CITROËN C4 CACTUS Van (0B_, 0P_) (05.2019 - ) PureTech 130 (131 hp, 96 kW) CITROËN C4 CACTUS Van (0B_, 0P_) (05.2019 - ) PureTech 82 (82 hp, 60 kW) CITROËN C4 GRAND PICASSO II (DA_, DE_) (09.2013 - ) 1.2 THP 130 (130 hp, 96 kW) CITROËN C4 II (B7) (02.2009 - 12.2016) 1.2 THP 110 (110 hp, 81 kW) CITROËN C4 II (B7) (02.2009 - 12.2016) 1.2 THP 130 (130 hp, 96 kW) CITROËN C4 III (B_) (10.2020 - ) 1.2 PureTech 130 (BAHNSA, BAHNSB) (130 hp, 96 kW) CITROËN C4 PICASSO II (01.2013 - 12.2015) 1.2 THP 110 (110 hp, 81 kW) CITROËN C4 PICASSO II (01.2013 - 12.2015) 1.2 THP 130 (130 hp, 96 kW) CITROËN C4 SPACETOURER (3D_) (04.2018 - ) 1.2 PureTech 110 (110 hp, 81 kW) CITROËN C4 SPACETOURER (3D_) (04.2018 - ) 1.2 PureTech 130 (131 hp, 96 kW) CITROËN C4 SPACETOURER Van (3D_) (05.2019 - ) PureTech 130 (131 hp, 96 kW) CITROËN C5 AIRCROSS (11.2018 - ) 1.2 PureTech 130 (131 hp, 96 kW) CITROËN DS3 (11.2009 - 12.2015) 1.2 THP 110 (110 hp, 81 kW) CITROËN DS3 (11.2009 - 12.2015) 1.2 VTi 82 (82 hp, 60 kW) CITROËN DS3 Cabriolet (01.2013 - 07.2015) 1.2 THP 110 (110 hp, 81 kW) CITROËN DS3 Cabriolet (01.2013 - 07.2015) 1.2 VTi 82 (82 hp, 60 kW) CITROËN DS4 (NX_) (04.2011 - 07.2015) 1.2 THP 130 (130 hp, 96 kW) CITROËN GRAND C4 SPACETOURER (3A_, 3E_) (04.2018 - ) 1.2 PureTech 130 (131 hp, 96 kW) CITROËN GRAND C4 SPACETOURER Van (3A_, 3E_) (05.2019 - ) PureTech 130 (131 hp, 96 kW) OPEL ADAM (M13) (10.2012 - 02.2019) 1.2 (69 hp, 51 kW) OPEL COMBO Box Body/MPV (X19) (06.2018 - ) 1.2 (110 hp, 81 kW) OPEL COMBO Box Body/MPV (X19) (06.2018 - ) 1.2 (131 hp, 96 kW) OPEL COMBO Tour / Life (X19) (06.2018 - ) 1.2 (110 hp, 81 kW) OPEL COMBO Tour / Life (X19) (06.2018 - ) 1.2 (131 hp, 96 kW) OPEL CORSA E (X15) (09.2014 - 06.2019) 1.2 (08, 68) (69 hp, 51 kW) OPEL CORSA E Box Body/Hatchback (X15) (09.2014 - ) 1.2 (08) (69 hp, 51 kW) OPEL CORSA F (07.2019 - ) 1.2 (68) (101 hp, 74 kW) OPEL CORSA F (07.2019 - ) 1.2 (68) (131 hp, 96 kW) OPEL CORSA F (07.2019 - ) 1.2 (68) (75 hp, 55 kW) OPEL CORSA F Box Body/Hatchback (07.2019 - ) 1.2 (68) (75 hp, 55 kW) OPEL CROSSLAND X / CROSSLAND (P17, P2QO) (03.2017 - ) 1.2 (75) (110 hp, 81 kW) OPEL CROSSLAND X / CROSSLAND (P17, P2QO) (03.2017 - ) 1.2 (75) (131 hp, 96 kW) OPEL CROSSLAND X / CROSSLAND (P17, P2QO) (03.2017 - ) 1.2 (75) (82 hp, 60 kW) OPEL CROSSLAND X / CROSSLAND (P17, P2QO) (03.2017 - ) 1.2 (83 hp, 61 kW) OPEL CROSSLAND X / CROSSLAND (P17, P2QO) (03.2017 - ) 1.2 LPG (75) (82 hp, 60 kW) OPEL CROSSLAND X Van (06.2018 - ) 1.2 (75) (110 hp, 81 kW) OPEL CROSSLAND X Van (06.2018 - ) 1.2 (75) (83 hp, 61 kW) OPEL GRANDLAND X (A18) (06.2017 - ) 1.2 (75) (131 hp, 96 kW) OPEL GRANDLAND X Van (11.2017 - ) 1.2 (75) (131 hp, 96 kW) OPEL MOKKA (06.2020 - ) 1.2 (76) (101 hp, 74 kW) OPEL MOKKA (06.2020 - ) 1.2 (76) (131 hp, 96 kW) PEUGEOT 108 (05.2014 - ) 1.2 (82 hp, 60 kW) PEUGEOT 2008 I (CU_) (03.2013 - 12.2019) 1.2 PureTech 82 (82 hp, 61 kW) PEUGEOT 2008 I (CU_) (03.2013 - 12.2019) 1.2 THP 110 / PureTech 110 (110 hp, 81 kW) PEUGEOT 2008 I (CU_) (03.2013 - 12.2019) 1.2 THP 130 / PureTech 130 (130 hp, 96 kW) PEUGEOT 2008 I (CU_) (03.2013 - 12.2019) 1.2 VTi (82 hp, 60 kW) PEUGEOT 2008 I Van (CU_) (01.2018 - ) PureTech 130 (CUHNYM, CUHNSS) (131 hp, 96 kW) PEUGEOT 2008 II (UD_, US_, UY_, UK_) (08.2019 - ) 1.2 PureTech 100 (101 hp, 74 kW) PEUGEOT 2008 II (UD_, US_, UY_, UK_) (08.2019 - ) 1.2 PureTech 130 (130 hp, 96 kW) PEUGEOT 2008 II (UD_, US_, UY_, UK_) (08.2019 - ) 1.2 THP / PureTech 155 (USHNNS, URHNNS, UXHNJP, URHNJP,... (155 hp, 114 kW) PEUGEOT 208 I (CA_, CC_) (03.2012 - 10.2017) 1.0 (68 hp, 50 kW) PEUGEOT 208 I (CA_, CC_) (03.2012 - 10.2017) 1.2 (90 hp, 66 kW) PEUGEOT 208 I (CA_, CC_) (03.2012 - 10.2017) 1.2 GPL (82 hp, 60 kW) PEUGEOT 208 I (CA_, CC_) (03.2012 - 10.2017) 1.2 PureTech 82 (82 hp, 61 kW) PEUGEOT 208 I (CA_, CC_) (03.2012 - 10.2017) 1.2 THP 110 (110 hp, 81 kW) PEUGEOT 208 I (CA_, CC_) (03.2012 - 10.2017) 1.2 VTI 82 (82 hp, 60 kW) PEUGEOT 208 I (CA_, CC_) (03.2012 - 10.2017) 1.2 VTi 68 / PureTech 68 (68 hp, 50 kW) PEUGEOT 208 II (UB_, UP_, UW_, UJ_) (06.2019 - ) 1.2 PureTech 100 (101 hp, 74 kW) PEUGEOT 208 II (UB_, UP_, UW_, UJ_) (06.2019 - ) 1.2 PureTech 130 (131 hp, 96 kW) PEUGEOT 208 II (UB_, UP_, UW_, UJ_) (06.2019 - ) 1.2 PureTech 75 (75 hp, 55 kW) PEUGEOT 208 Box Body/Hatchback (CR_) (10.2012 - ) 1.2 VTI 68 / PureTech 68 (CRHMP6, CRHMM6) (68 hp, 50 kW) PEUGEOT 208 Box Body/Hatchback (CR_) (10.2012 - ) 1.2 VTI 82 / PureTech 82 (CRHMZ6, CRHMRP) (82 hp, 60 kW) PEUGEOT 3008 MPV (0U_) (06.2009 - 12.2017) 1.2 (131 hp, 96 kW) PEUGEOT 3008 SUV (MC_, MR_, MJ_, M4_) (05.2016 - ) 1.2 THP/ PureTech 130 (131 hp, 96 kW) PEUGEOT 3008 Van (MR_, MC_, MJ_) (05.2016 - ) PureTech 130 (MRHNYH) (131 hp, 96 kW) PEUGEOT 301 (11.2012 - 10.2017) 1.2 PureTech 82 (83 hp, 61 kW) PEUGEOT 301 (11.2012 - 10.2017) 1.2 VTi 72 (72 hp, 53 kW) PEUGEOT 301 (11.2012 - 10.2017) 1.2 VTi 82 (82 hp, 60 kW) PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) (09.2013 - 02.2019) 1.2 THP 110 (110 hp, 81 kW) PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) (09.2013 - 02.2019) 1.2 THP 130 (131 hp, 96 kW) PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) (09.2013 - 02.2019) 1.2 VTi 72 (82 hp, 60 kW) PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_) (03.2014 - ) 1.2 THP 110 (110 hp, 81 kW) PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_) (03.2014 - ) 1.2 THP 130 (131 hp, 96 kW) PEUGEOT 5008 (0U_, 0E_) (06.2009 - 03.2017) 1.2 (131 hp, 96 kW) PEUGEOT 5008 II (MC_, MJ_, MR_, M4_) (12.2016 - ) 1.2 (MRHNYH, MRHNYW, MRHNSJ) (131 hp, 96 kW) PEUGEOT 508 II (FB_, FH_, F3_) (09.2018 - ) PureTech 130 (131 hp, 96 kW) PEUGEOT 508 SW II (FC_, FJ_, F4_) (09.2018 - ) PureTech 130 (131 hp, 96 kW) PEUGEOT PARTNER Box Body/MPV (04.2008 - 12.2018) 1.2 THP (110 hp, 81 kW) PEUGEOT PARTNER Box Body/MPV (K9) (09.2018 - ) 1.2 PureTech 110 (110 hp, 81 kW) PEUGEOT PARTNER Box Body/MPV (K9) (09.2018 - ) 1.2 PureTech 130 (131 hp, 96 kW) PEUGEOT PARTNER TEPEE (04.2008 - 12.2018) 1.2 THP (110 hp, 81 kW) PEUGEOT RIFTER (09.2018 - ) 1.2 PureTech 110 (110 hp, 81 kW) PEUGEOT RIFTER (09.2018 - ) 1.2 PureTech 130 (131 hp, 96 kW) TOYOTA PROACE CITY Box Body/MPV (10.2019 - ) 1.2 VVT-i 110 (BPZNN) (110 hp, 81 kW) TOYOTA PROACE CITY Box Body/MPV (10.2019 - ) 1.2 VVT-i 130 (BPZNP) (131 hp, 96 kW) TOYOTA PROACE CITY VERSO MPV (10.2019 - ) 1.2 VVT-i 110 (BKYNN) (110 hp, 81 kW) TOYOTA PROACE CITY VERSO MPV (10.2019 - ) 1.2 VVT-i 130 (BKYNP) (131 hp, 96 kW)
