Rear Axle Silent Bush and Ball Joint Tool Set for BMW & MINI
-
Code:8579
-
Weight:6.758 Kgs
Overview:
✔ Professional tool set for removing and installing rear axle bushes and ball joint bushes
✔ Suitable for a wide range of BMW 1 Series, 3 Series, 5 Series, 6 Series, 7 Series, 8 Series, Z4 and MINI Cooper S models
✔ Designed for servicing rear wheel carrier ball joints, trailing arm bushes and rear axle carrier bushes
✔ Enables on-vehicle removal and installation without removing the rear axle assembly
✔ Includes spindle, receiving cups, stepped adapters, sleeves and pressure discs
✔ Suitable for professional workshop and suspension repairs
✔ Precision-machined components for accurate fit and reliable operation
This professional tool set is designed for the removal and installation of rubber bushes and ball joint bushes on installed rear axle assemblies. The versatile adapter assortment allows servicing of multiple rear suspension and differential mounting components across a wide range of BMW and MINI vehicles.
The tool enables efficient maintenance and replacement of worn suspension bushes and ball joints while reducing repair time and minimizing the risk of damage to surrounding components.
Rear Wheel Carrier Ball Joint Service
Suitable for:
- BMW 5 Series: E39, E60, E61, E70
- BMW 6 Series: E63, E64
- BMW 7 Series: E38, E65, E66, E67
- BMW Z8: E52
Trailing Arm Bush and Ball Joint Service
Suitable for:
- BMW 3 Series: E36, E46, E83
- BMW 5 Series: E39, E60, E61, E70
- BMW 6 Series: E63, E64
- BMW 7 Series: E38, E65, E66, E67
- BMW 8 Series: E31
- BMW Z8: E52
- BMW Z4: E85, E86
Rear Axle Carrier and Differential Mount Bush Service
Suitable for:
- BMW 3 Series: E36, E46, E83
- BMW 8 Series: E31
- BMW Z4: E85, E86
Front and Rear Differential Mount Bush Service
Suitable for:
- BMW 1 Series: E81, E87
- BMW 3 Series: E36, E46, E83, E90, E91, E92, E93
- BMW 5 Series: E60, E61
- BMW 6 Series: E63, E64
- BMW 7 Series: E38, E65, E66, E67
- BMW 8 Series: E31
- BMW Z4: E85, E86
- MINI Cooper S: R53
Technical Specifications
Spindle:
- Thread size: M12 × 1.5
- Bearing-supported nut
- Length: 225 mm
- Drive: 24 mm hex
Pressure discs:
- 48 mm
- 55 mm
- 65 mm
Adapters and receiving cups:
- Internal Ø 47 mm, External Ø 55 mm, Length 72 mm
- Internal Ø 50 mm, External Ø 64 mm, Length 70 mm
- Stepped adapter, Internal Ø 36 / 40 mm, External Ø 45 mm, Length 30 mm
- Stepped adapter, Internal Ø 47 / 53 mm, External Ø 58 mm, Length 43 mm
- Stepped adapter, Internal Ø 47 / 53 mm, External Ø 58 mm, Length 61 mm
- Internal Ø 32 mm, External Ø 46 mm, Length 26 mm
- Internal Ø 46 mm, External Ø 55 mm, Length 32 mm
- Internal Ø 47 mm, External Ø 51 mm, Length 35 mm
- Flattened adapter, Internal Ø 47 mm, External Ø 55 mm, Length 32 mm
Stepped pressure plate:
- Internal Ø 57 mm
- External Ø 70 mm
- Thickness 13 mm
Open sleeve:
- One-third open design
- Internal Ø 59 mm
- External Ø 70 mm
- Length 55 mm

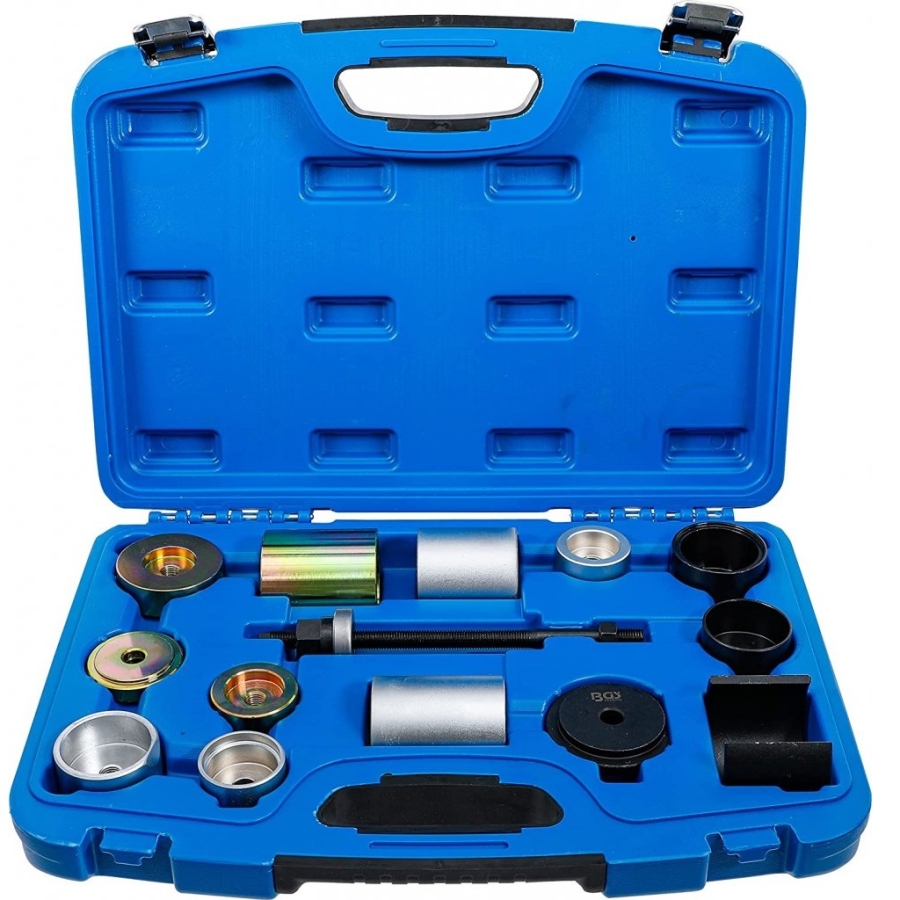

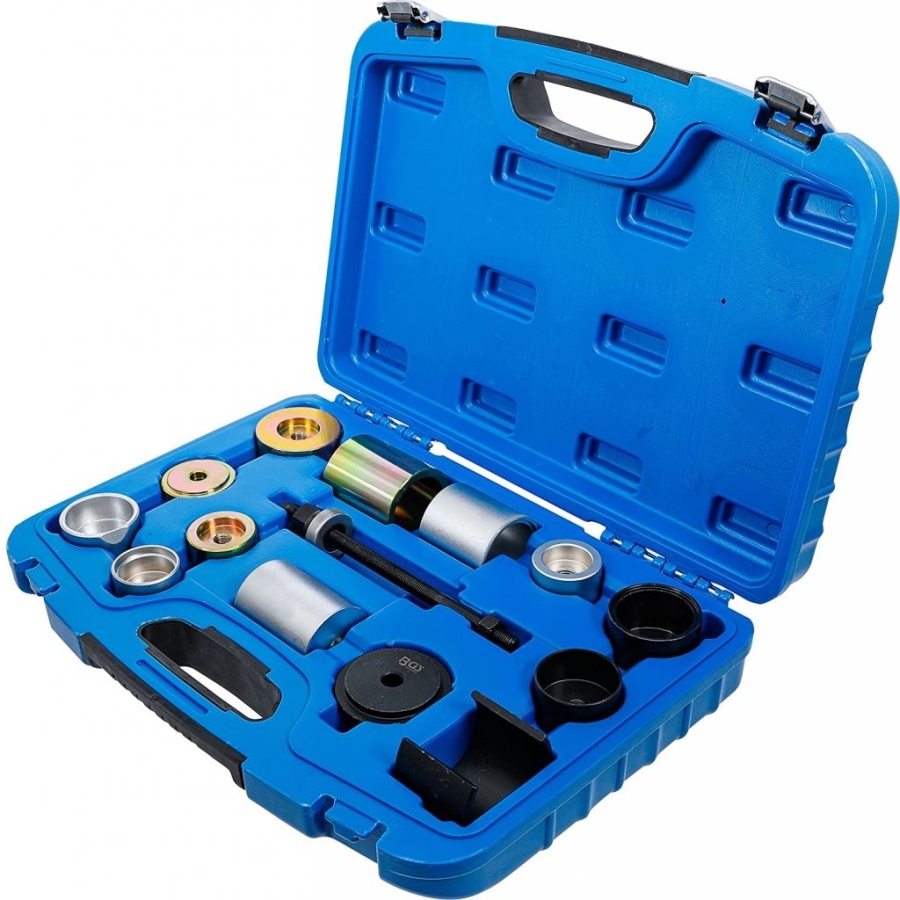

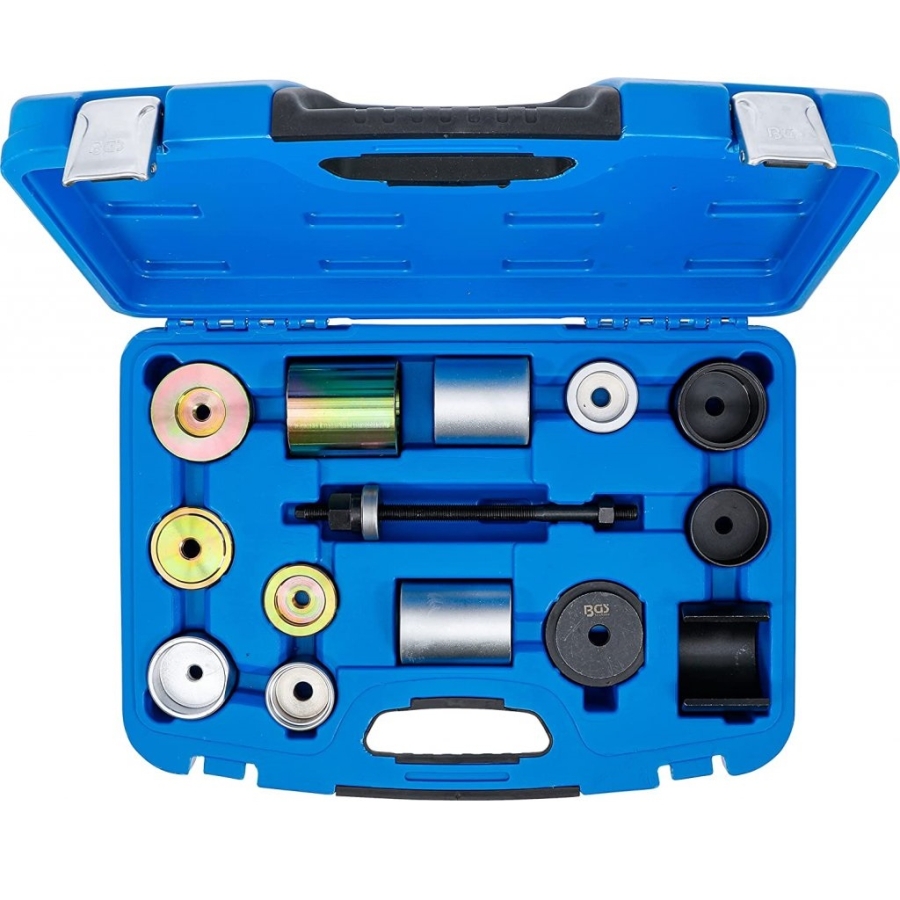

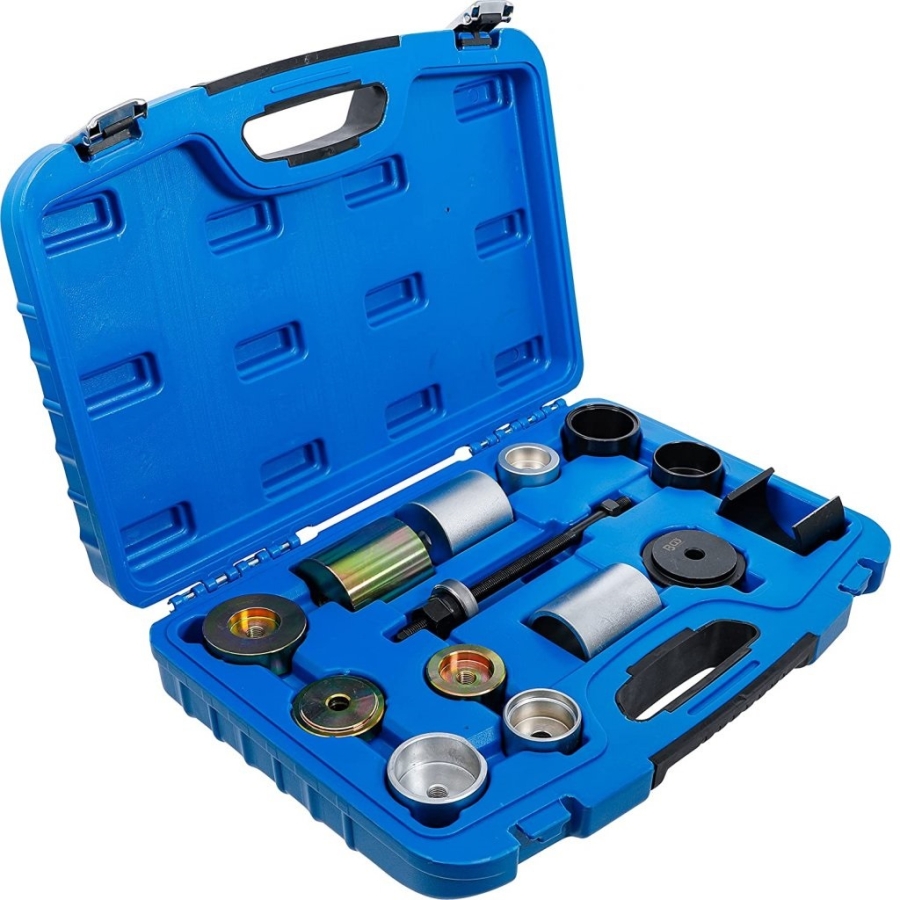

Package Contents
- 1 × M12 × 1.5 spindle with bearing-supported nut
- 3 × Pressure discs
- 8 × Receiving cups and adapters
- 1 × Stepped pressure plate
- 1 × Open sleeve
Original part and tool numbers are provided for reference and comparison purposes only. This product is not an original BMW or MINI tool.
