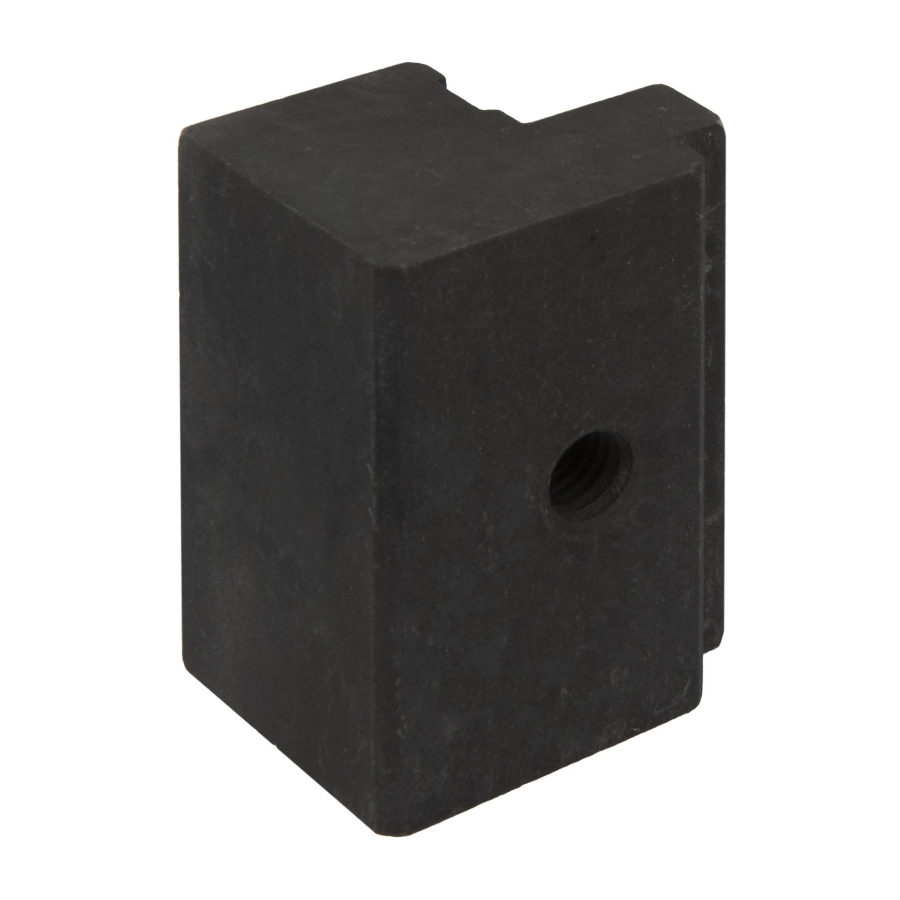

Special Guide for Riveting Tool – Timing Chain (Toothed / Bush / Pin Chains) – item.no. 112444

This special guide is designed for use with timing chain riveting tools when working on modern non-roller timing chains, including toothed chains, bush joint chains, and pin joint chains.

Due to the continuous development of engine timing systems and chain lock designs, conventional inserts are no longer sufficient for newer chain types. This guide ensures correct alignment and secure positioning of the chain link plates during the riveting process.

Compatibility and Use Cases

Toothed timing chains are increasingly used in modern engines due to their reduced noise and improved running characteristics. They are now standard in many models from manufacturers such as Mercedes-Benz, BMW, and VAG.

This guide is specifically intended for use with:

• Riveting tool set item.no. 112444
• Can be used as Mercedes tool as 271589056300

The required prism support (chain plate holder) is already included in the tool set item.no. 112444 or available separately under item.no. 112443.

Tool Integration and Flexibility

If you are using riveting tools from other well-known manufacturers, this special guide may be used to expand your existing setup, depending on compatibility. This makes it a flexible solution for professional workshops working with multiple tool systems.

Important Notes

This product is designed for professional workshop use and ensures proper and reliable riveting of modern timing chains when used correctly.

OEM numbers are for reference purposes only. This product is not an original tool.
