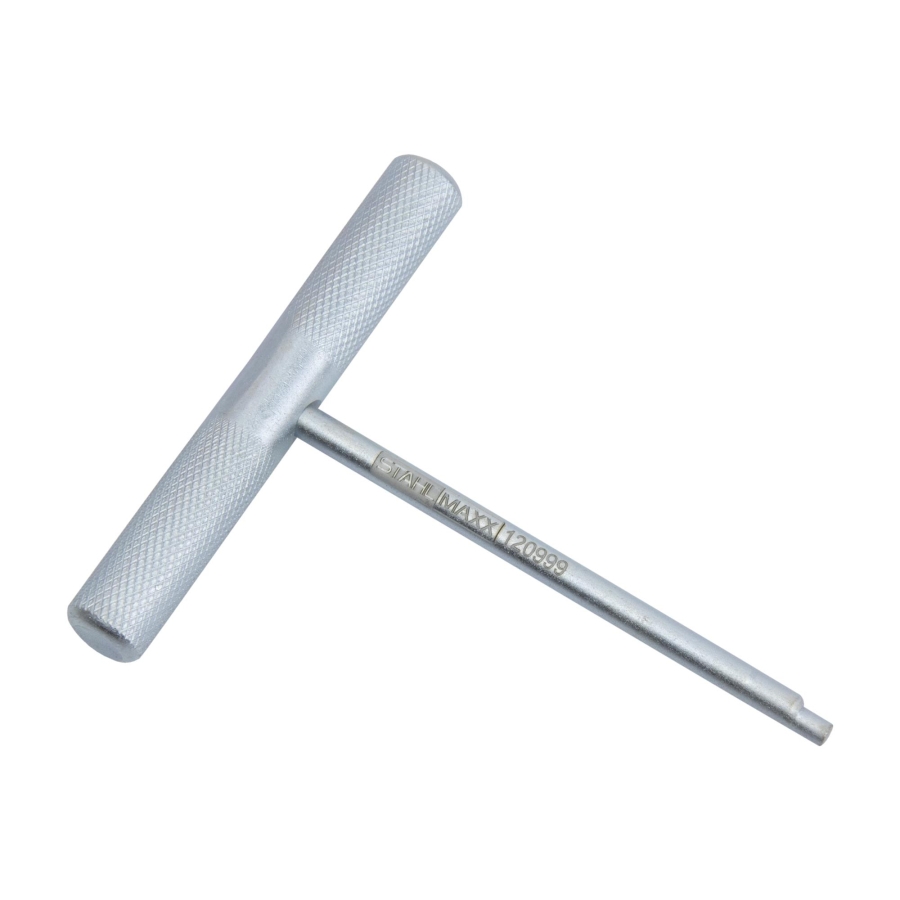

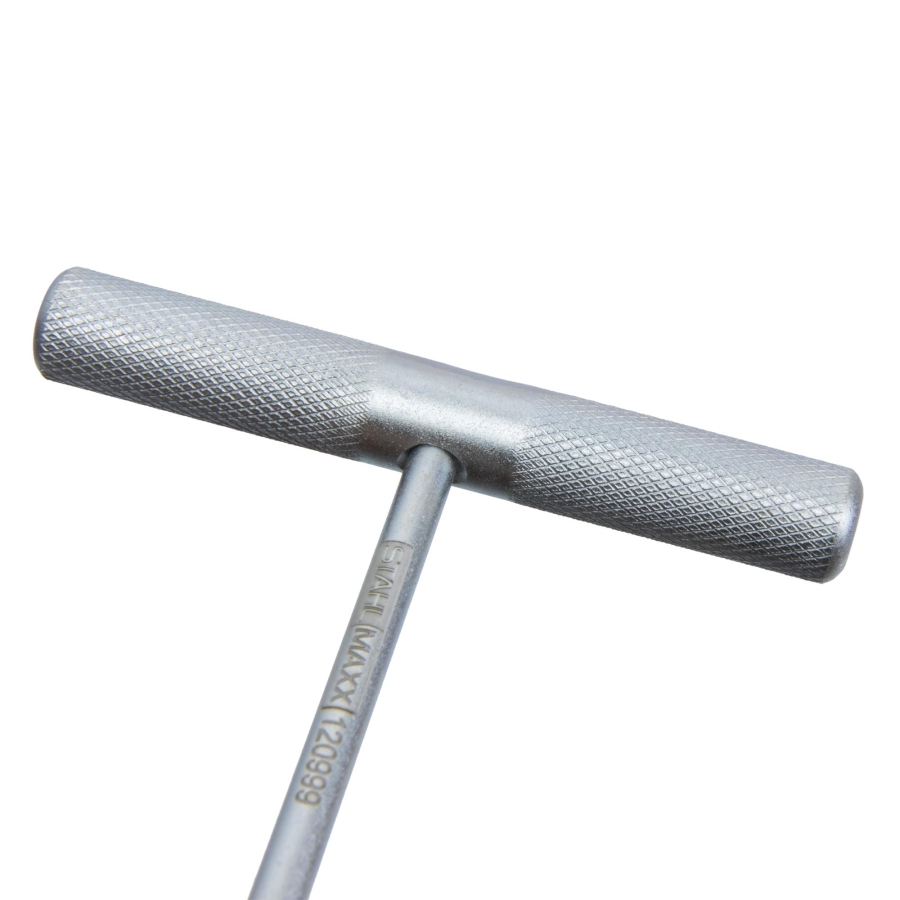

Backlash Adjustment Locking Tool for Intermediate Shaft | For VAG EA825 / EA839 Engines

Price: €11.50 22.49лв.

Code:

120999
Weight:

0.100 Kgs

Overview:
✔ Special locking tool for gear backlash adjustment system
✔ Designed for VAG EA825 and EA839 engine platforms
✔ Suitable for 2.9L, 3.0L, and 4.0L TFSI engines
✔ Ensures correct alignment of gear backlash compensation mechanism
✔ Used like T40362
✔ Essential for precise engine timing and internal alignment

Backlash Adjustment Locking Tool for Intermediate Shaft | For VAG EA825 / EA839 Engines

Send to friend

Rate this product

This locking tool is specifically designed for aligning and securing the gear backlash compensation mechanism on the intermediate shaft in VAG EA825 and EA839 engines. It ensures correct positioning of the gear teeth during assembly and service operations.

Operating Procedure

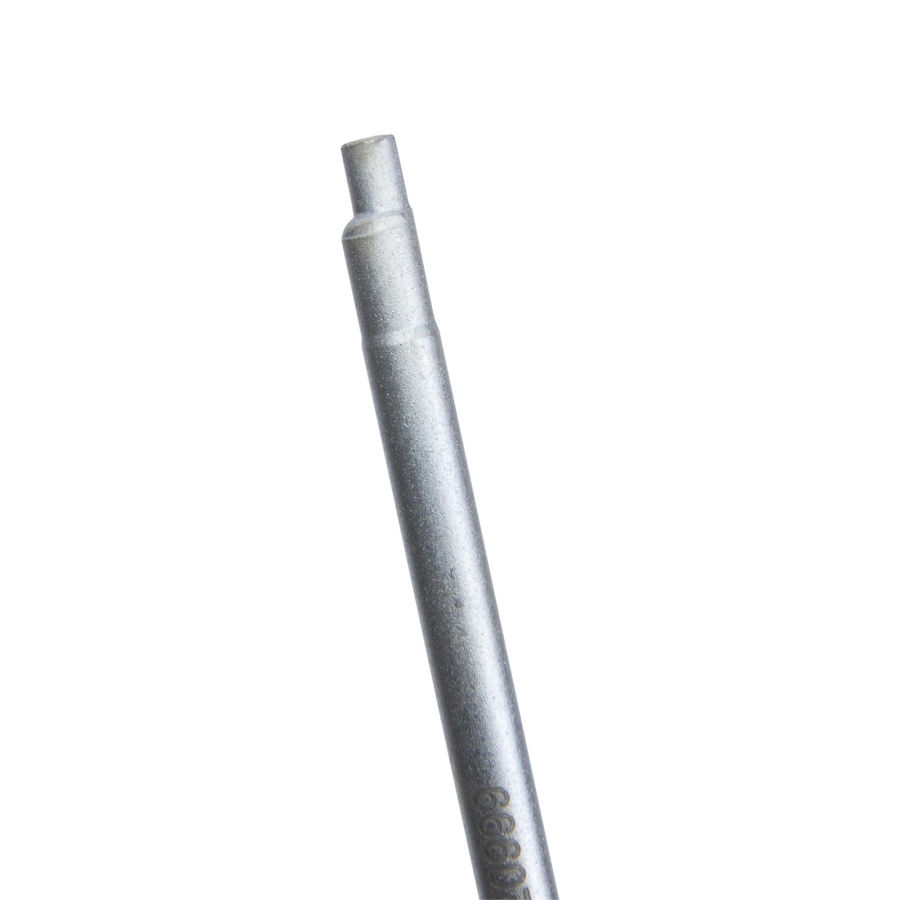

To lock the gear backlash compensation system, the adjustment pin must be inserted fully into the gear until it reaches the stop. Once inserted, it must be rotated 180° clockwise to secure the mechanism in position.

Engine Compatibility

Suitable for VAG engines:

EA825
EA839

Engine sizes:

2.9L
3.0L
4.0L TFSI

Compatible engine codes:
CSZB, CWGD, CWWB, CXYA, CZSE, DCAB, DCBD, DCBE, DCUA, DCUE, DECA, DGPA, DGPC, DGRB, DGRC, DHUB, DJPB, DLZA, DLZB, MDC.AB, MDC.BE, MDC.UA, MDG.PA, MCS.ZA, MCX.TA

OEM Reference

Used in the same way as:

T40362

Scope of Delivery

Adjustment pin for gear backlash compensation on balance shaft (V6 and V8 TFSI)

Recommended Additional Tool (Not Included)

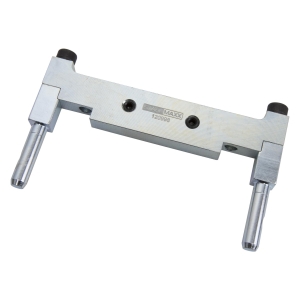

Bearing cap puller for crankshaft, used like T40332

Construction and Precision

Manufactured from high-strength steel for maximum durability and dimensional accuracy. Designed to meet workshop requirements for precise engine assembly and timing procedures.

OEM numbers are for reference purposes only and do not imply original tooling.
