Engine Timing Tool Kit for Dodge / Chrysler / Lancia 2.8 CRD

This engine timing tool kit is designed for locking and aligning camshaft and crankshaft components during timing belt replacement and engine service on 2.8 CRD diesel engines.

It ensures accurate synchronization of engine components and supports safe and efficient maintenance procedures.

Compatibility

Suitable for vehicles from:

• Dodge (e.g. Nitro)
• Chrysler
• Lancia

Engine Codes

Compatible with:

• ENS
• ENR
• VM51C
• VM52C

Functionality

The kit enables:

• Secure locking of exhaust camshaft
• Accurate crankshaft positioning
• Reliable timing belt replacement procedures
• Prevention of timing misalignment during service

Contents

• 1 × Camshaft locking tool for exhaust camshaft (as OE VM9991, 2000040996, 2000040580)
• 1 × Crankshaft locking tool (as OE VM9992, 2000040581)

OEM Reference

Designed for use as:
VM9991, 2000040996, 2000040580, VM9992, 2000040581

Original numbers are used for comparison purposes only, this is not an original tool!

Rotate the crankshaft clockwise until the crankshaft TDC mark is at the 3 o’clock position. Check that the alignment holes of the camshaft sprocket are correctly aligned.

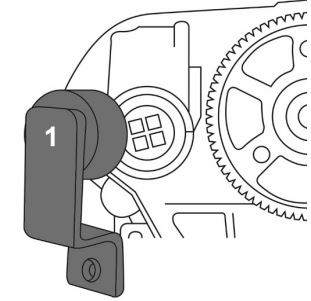

Install the crankshaft locking tool as shown.

Insert the camshaft locking tool as illustrated and lock the camshaft in the setting (timing) position. The intake camshaft is locked simultaneously.

CHRYSLER GRAND VOYAGER V (RT) (10.2007 - 12.2010) 2.8 CRD (163 HP, 120 kW)

CHRYSLER GRAND VOYAGER V (RT) (10.2007 - 12.2010) 2.8 CRD (181 HP, 133 kW)

CHRYSLER VOYAGER IV (RG, RS) (09.1999 - 12.2008) 2.8 CRD (150 HP, 110 kW)

DODGE CARAVAN (01.2008 - ) 2.8 CRD (163 HP, 120 kW)

DODGE NITRO (09.2006 - 12.2012) 2.8 CRD (177 HP, 130 kW)

DODGE NITRO (09.2006 - 12.2012) 2.8 CRD 4WD (177 HP, 130 kW)

DODGE RAM VAN MPV (10.1995 - 12.2005) 2.8 CRD (150 HP, 110 kW)

DODGE RAM Van (03.2002 - 12.2005) 2.8 CRD (150 HP, 110 kW)

JEEP CHEROKEE (KJ) (03.2001 - 01.2008) 2.8 CRD (163 HP, 120 kW)

JEEP CHEROKEE (KJ) (03.2001 - 01.2008) 2.8 CRD 4x4 (150 HP, 110 kW)

JEEP CHEROKEE (KJ) (03.2001 - 01.2008) 2.8 CRD 4x4 (163 HP, 120 kW)

JEEP CHEROKEE (KK) (09.2007 - 12.2015) 2.8 CRD 4x4 (177 HP, 130 kW)

JEEP CHEROKEE (KK) (09.2007 - 12.2015) 2.8 CRD 4x4 (200 HP, 147 kW)

JEEP WRANGLER III (JK) (01.2007 - 02.2013) 2.8 CRD (163 HP, 120 kW)

JEEP WRANGLER III (JK) (01.2007 - 02.2013) 2.8 CRD (177 HP, 130 kW)

JEEP WRANGLER III (JK) (01.2007 - 02.2013) 2.8 CRD (200 hp, 147 kW)

JEEP WRANGLER III (JK) (01.2007 - 02.2013) 2.8 CRD RWD (177 hp, 130 kW)

LANCIA VOYAGER MPV (404_) (09.2011 - 12.2014) 2.8 CRD (RT, 53) (163 hp, 120 kW)

LANCIA VOYAGER MPV (404_) (09.2011 - 12.2014) 2.8 CRD (RT, 53) (177 hp, 130 kW)

LANCIA VOYAGER MPV (404_) (09.2011 - 12.2014) 2.8 CRD (RT, 53) (178 HP, 131 kW)
