Engine Timing Tool Kit for Jeep / Chrysler 2.5 & 2.8 CRD
-
Code:8500
-
Weight:1.110 Kgs
Overview:
✔ Engine timing tool kit for 2.5 and 2.8 CRD diesel engines
✔ Suitable for Jeep, Chrysler and LDV vehicles
✔ Designed for timing belt and timing adjustment procedures
✔ Includes camshaft, crankshaft and balance shaft locking tools
✔ Covers multiple engine variants and model years
✔ Enables precise engine timing alignment
✔ Ideal for professional workshop use
This engine timing tool kit is designed for locking and aligning engine components during timing belt service on 2.5L and 2.8L CRD diesel engines.
It allows accurate positioning of camshafts, crankshaft and balance shafts, ensuring safe and precise engine timing procedures.
Compatibility
Suitable for:
- Chrysler Voyager / Grand Voyager
- Jeep Cherokee (KJ)
- LDV Maxus
Engine Codes
Compatible with:
- ENR, EDK, ENJ
- R425 DOHC
- R2816C5.05A, R2816K
- R2516C, R2516L
- VM39C / VM40B
Functionality
The kit enables:
- Accurate locking of intake and exhaust camshafts
- Secure crankshaft and flywheel positioning
- Balance shaft locking during service
- Proper timing belt tension adjustment
- Reliable timing procedures across multiple engine variants
Important Note
For R425 engines, a universal counterhold tool (e.g. item.no. 50002) can be used as an alternative to camshaft sprocket locking tools (as VM1055).

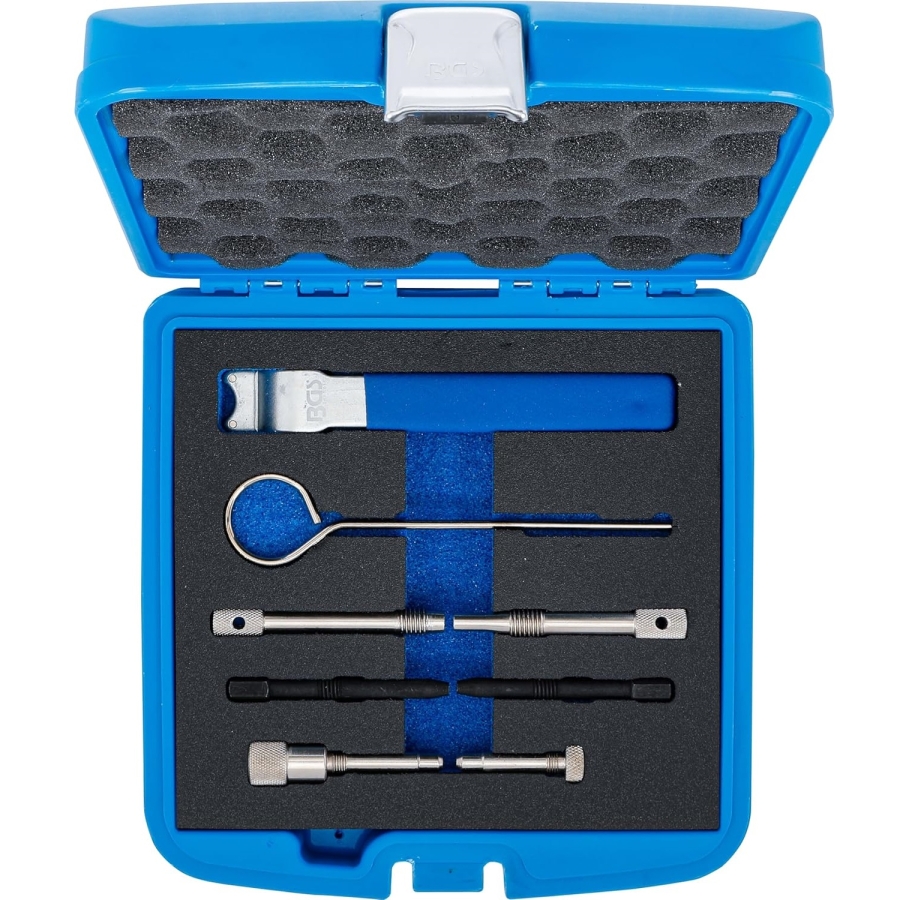

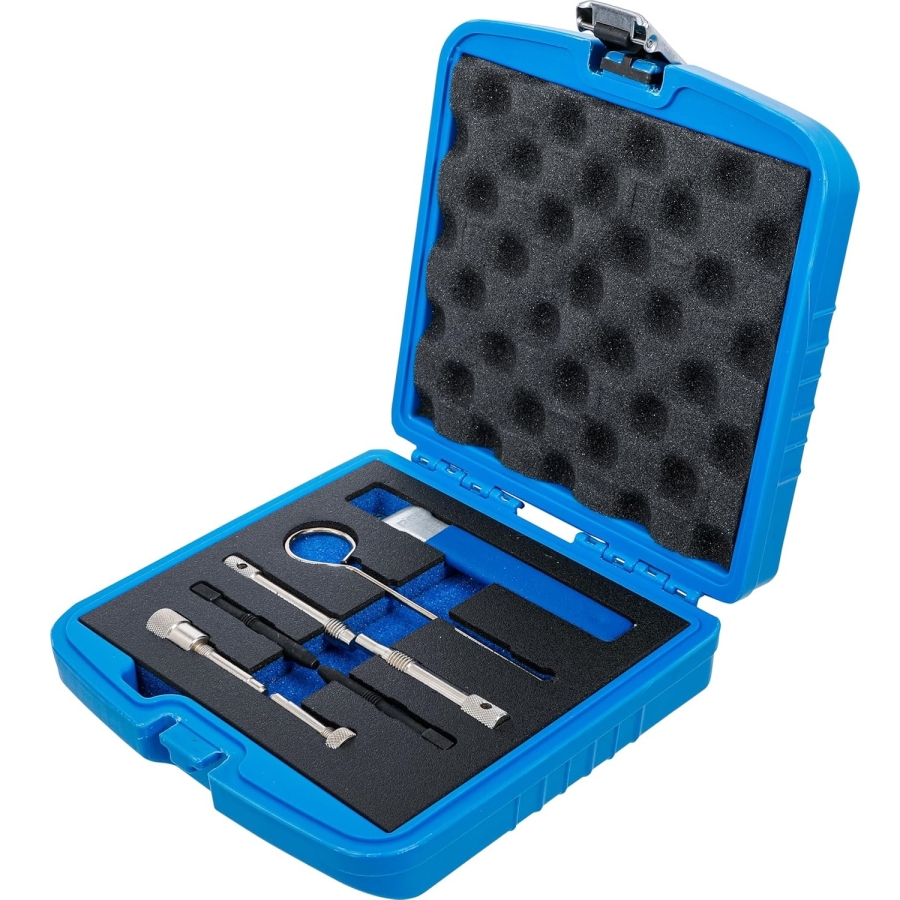

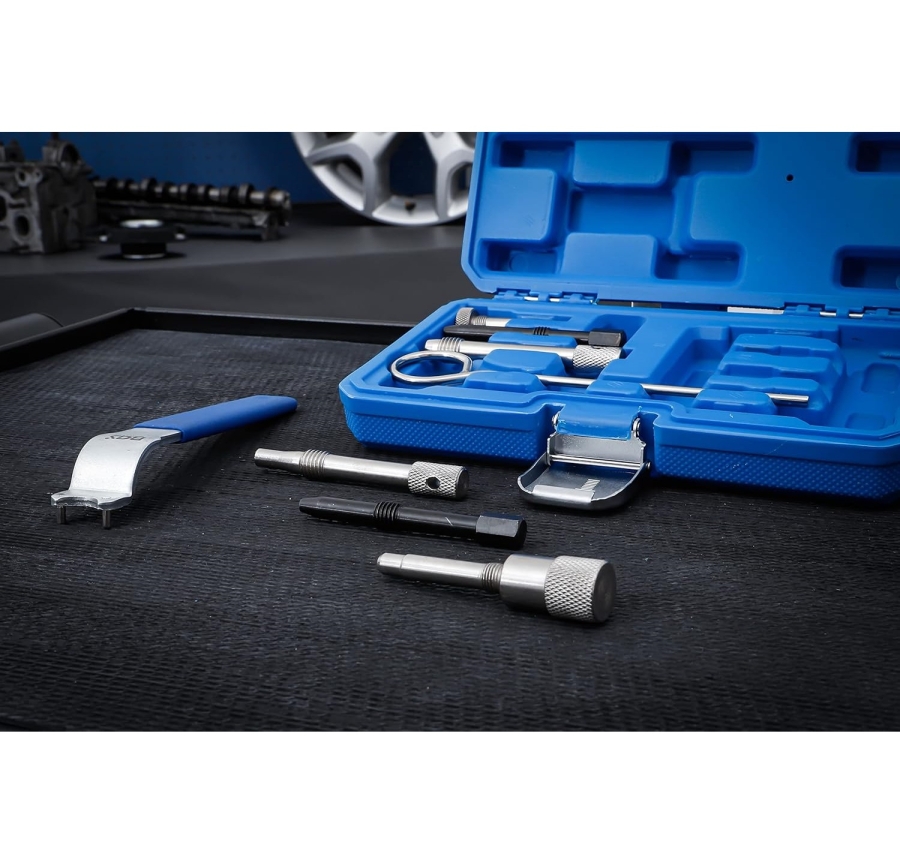

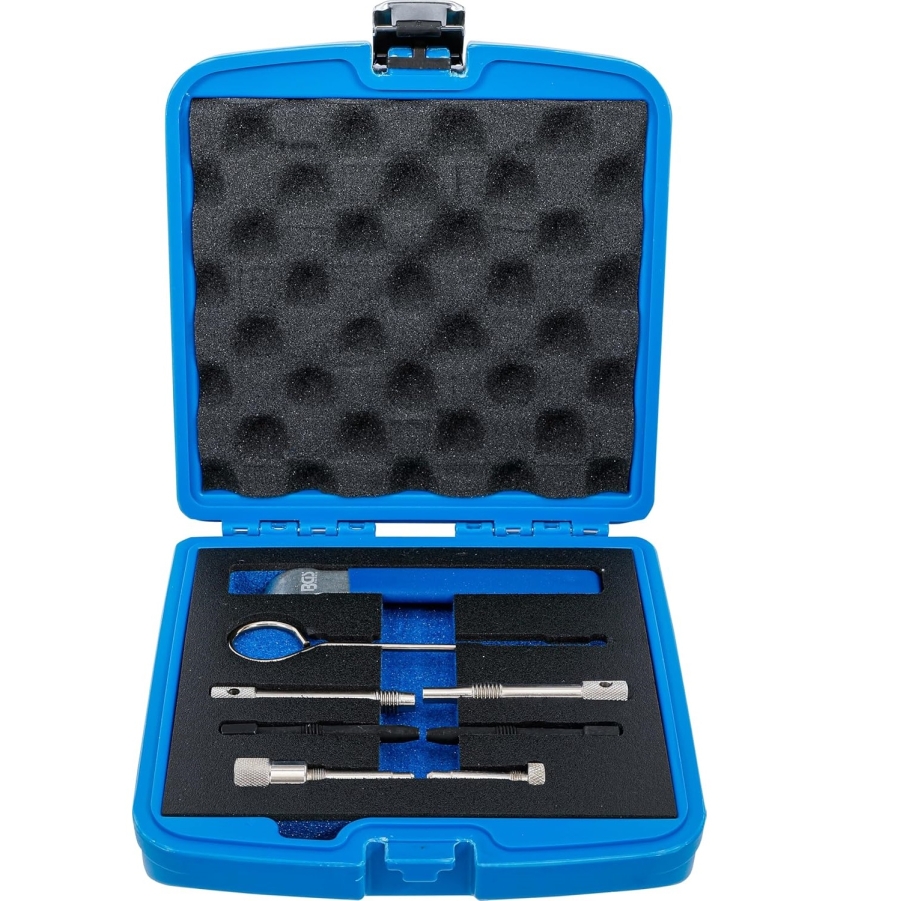

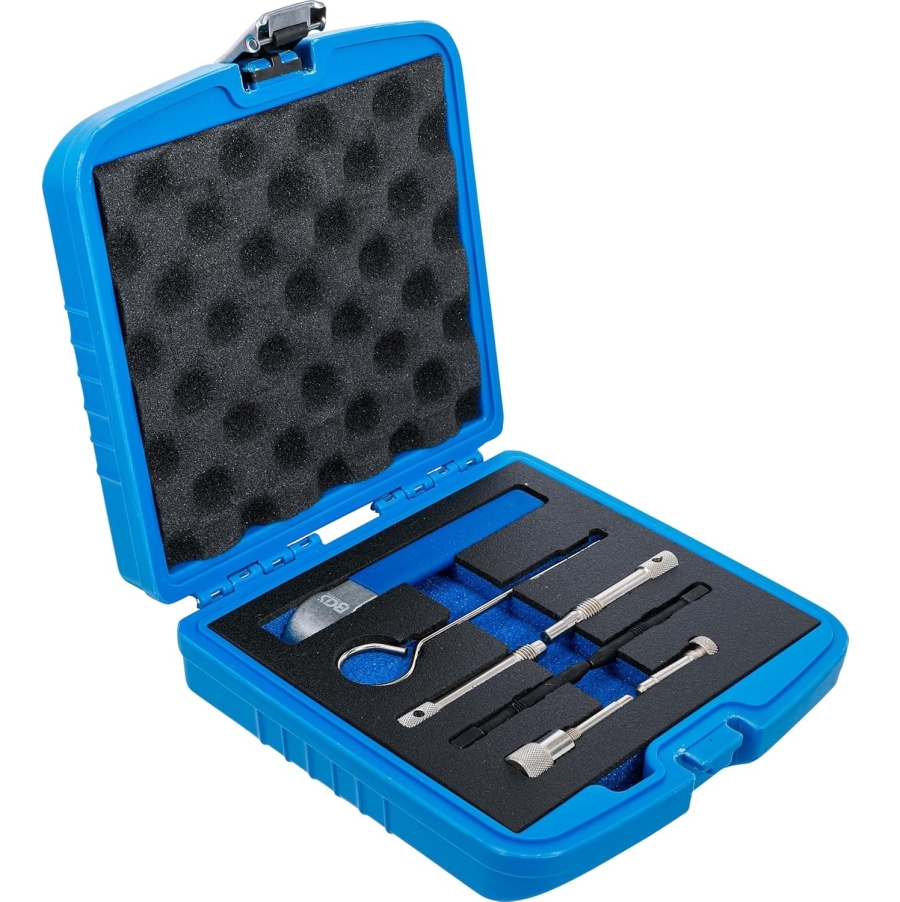

Contents
- Camshaft locking pin (intake) (as OEM VM1052, VM.1052, LDV192)
- Camshaft locking pin (exhaust) (as OEM VM1053, VM.1053, LDV193)
- Flywheel locking pin 2.5L (as OEM VM8873, VM.8873)
- Flywheel locking pin 2.8L (up to 2006) (as OEM VM1080, VM.1080)
- Flywheel locking pin (from 2007 – short) (as OEM VM1068, VM.1068, LDV196)
- Flywheel locking pin (from 2007 – long) (as OEM VM1089, VM.1089, LDV196)
- Tensioner wrench (as OEM VM9660, VM.9660, H2587)
- Balance shaft locking pin (as OEM VM1051, VM.1051, 2000040562)
OEM Reference
Designed for use as:
VM1052, VM1053, VM8873, VM1080, VM1068, VM1089, VM9660, VM1051
Original numbers are used for comparison purposes only, this is not an original tool!
CHRYSLER VOYAGER IV (RG, RS) (09.1999 - 12.2008) 2.5 CRD (120 HP, 88 kW)
CHRYSLER VOYAGER IV (RG, RS) (09.1999 - 12.2008) 2.5 CRD (141 HP, 105 kW)
CHRYSLER VOYAGER IV (RG, RS) (09.1999 - 12.2008) 2.8 CRD (150 HP, 110 kW)
DODGE NITRO (09.2006 - 12.2012) 2.8 CRD (177 HP, 130 kW)
DODGE NITRO (09.2006 - 12.2012) 2.8 CRD 4WD (177 HP, 130 kW)
DODGE RAM VAN MPV (10.1995 - 12.2005) 2.8 CRD (150 HP, 110 kW)
DODGE RAM Van (03.2002 - 12.2005) 2.5 CRD (143 HP, 105 kW)
DODGE RAM Van (03.2002 - 12.2005) 2.8 CRD (150 HP, 110 kW)
JEEP CHEROKEE (KJ) (03.2001 - 01.2008) 2.8 CRD (163 HP, 120 kW)
JEEP CHEROKEE (KJ) (03.2001 - 01.2008) 2.8 CRD 4x4 (150 HP, 110 kW)
JEEP CHEROKEE (KJ) (03.2001 - 01.2008) 2.8 CRD 4x4 (163 HP, 120 kW)
