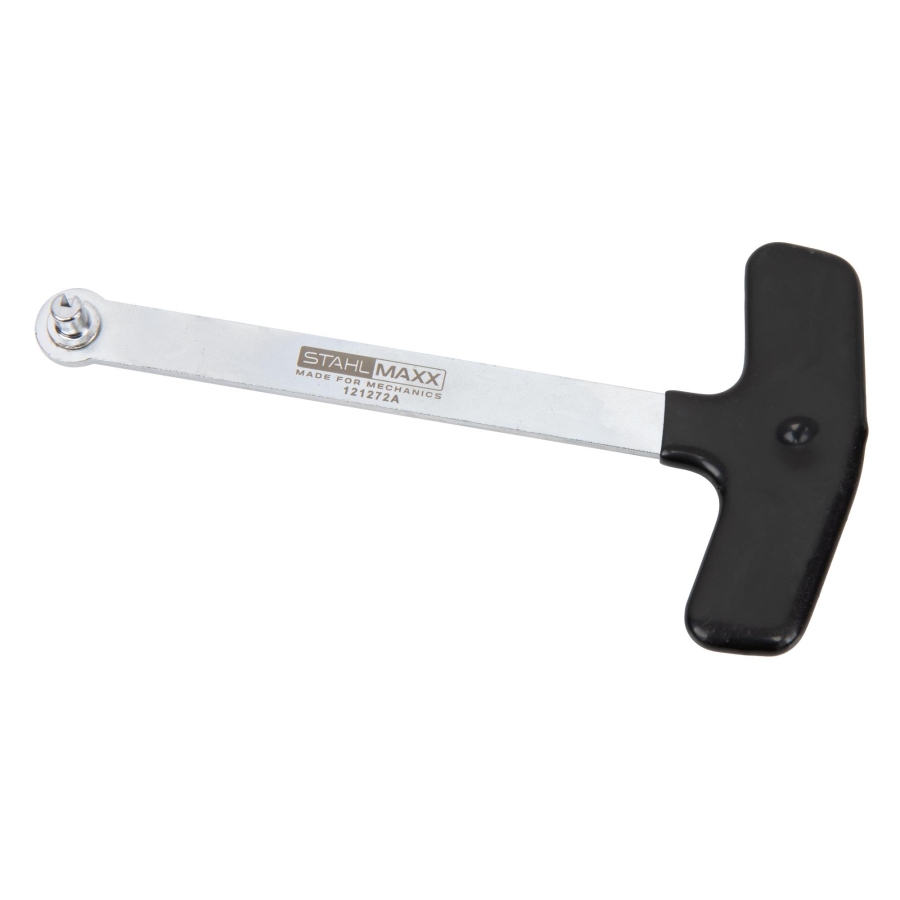

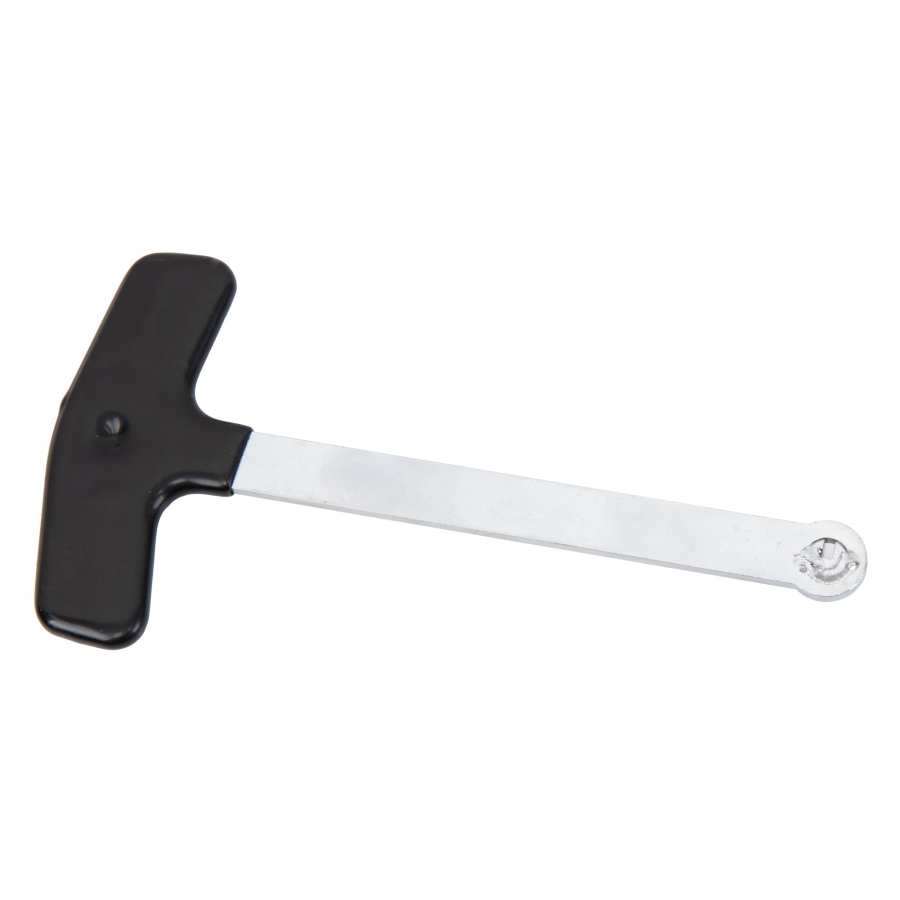

Parking Brake Shoe Retaining Spring Tool for Mercedes-Benz
-
Code:121272A
-
Weight:0.092 Kgs
Overview:
✔ Special tool for parking brake and handbrake shoe retaining springs
✔ Designed for Mercedes-Benz parking brake systems with wire retaining springs
✔ Simplifies removal and installation of retaining springs behind large wheel hubs
✔ Helps prevent damage to retaining springs during servicing
✔ Particularly suitable for Sprinter, Viano, Vito, V-Class and EQV models
✔ Manufactured from durable S45C steel with coated handle
This specialized tool is designed to simplify maintenance and repair work on Mercedes-Benz parking brake systems equipped with wire retaining springs.
On vehicles with larger wheel hub diameters, the wheel hub often obstructs direct access to the parking brake shoe retaining springs, making conventional removal and installation difficult. This tool provides the necessary access and leverage to service the retaining springs quickly and safely.
Applications & Benefits

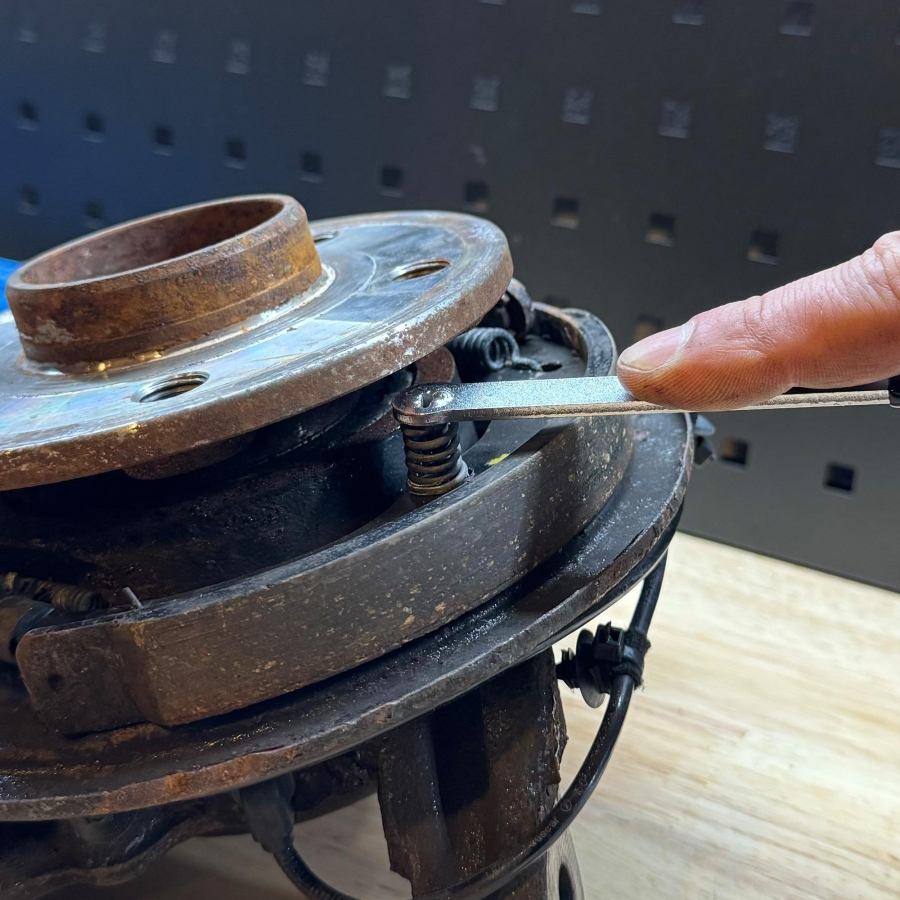

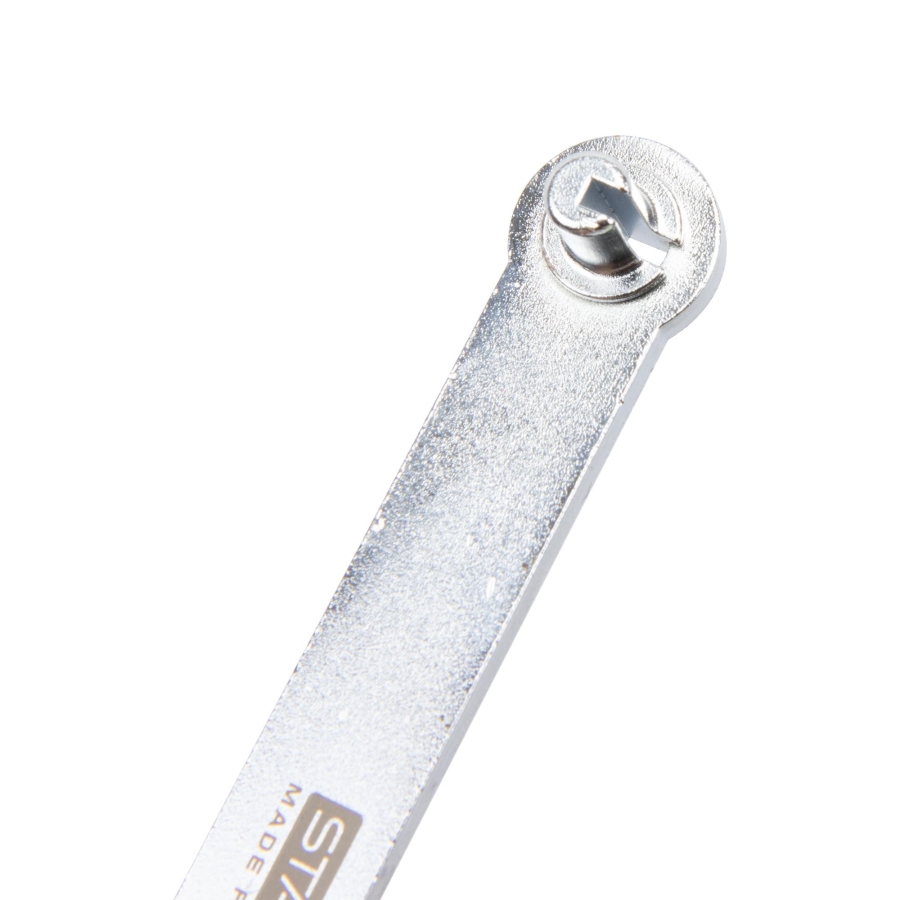

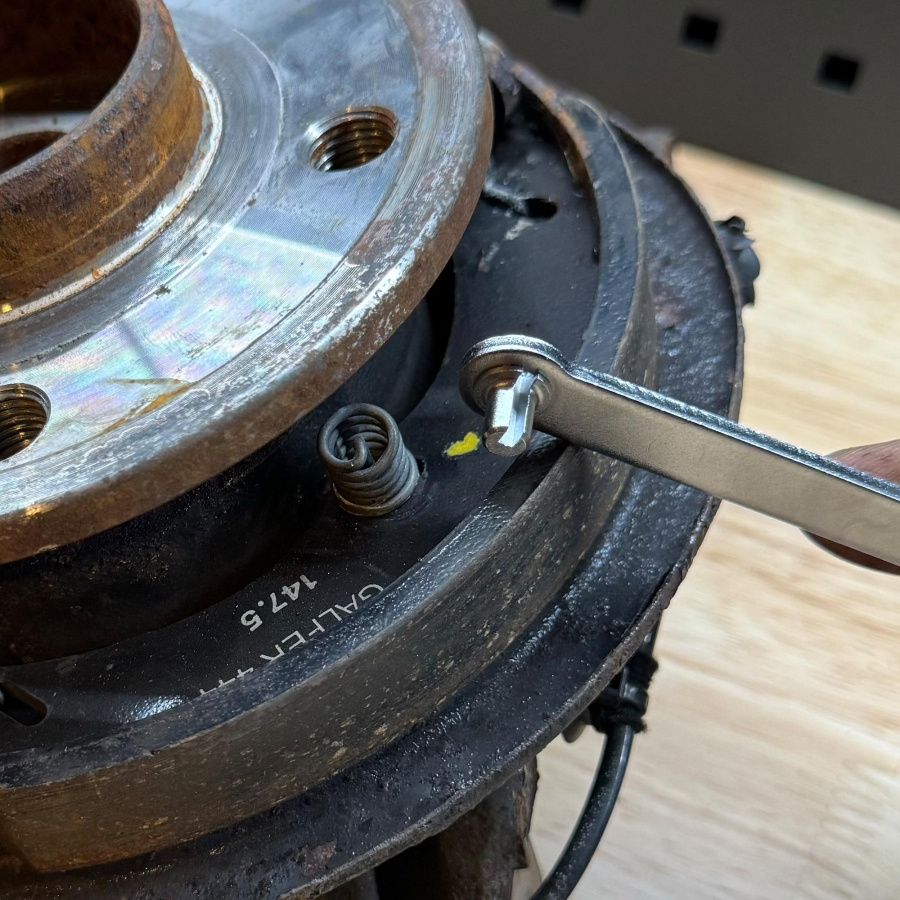

The specially designed tip allows the retaining spring to be pushed sideways and rotated into the release position during removal. During installation, the spring can be rotated back into its locking position with ease.
Benefits include:
- Faster parking brake servicing
- Easier spring removal and installation
- Improved access in restricted areas
- Reduced risk of damaging retaining springs
- Suitable for professional workshop use
Compatibility
Suitable for
- Wire retaining springs used in Mercedes-Benz parking brake systems
Particularly Recommended for
- Sprinter
- Viano
- Vito
- V-Class
- EQV
Model Series
- W638
- W639
- W447
Parking Brake Basic Adjustment
When replacing parking brake components, a basic adjustment procedure is required.
Example procedure for Mercedes-Benz Vito W639 (similar for related models):
- Release the parking brake cable equalizer beneath the vehicle.
- Remove one wheel bolt.
- Adjust the rear brake shoe adjuster until the wheel locks.
- Back off the adjuster by 9 turns and verify free wheel rotation.
- Adjust the cable equalizer so that, at the first click of the parking brake pedal, the wheels can still just be rotated by hand.
Technical Specifications
- Tool type: Parking brake retaining spring tool
- Application: Removal and installation of parking brake shoe retaining springs
- Notch width: 3 mm
- Length: 155 mm
- Material: S45C steel
- Coated handle
Key Features
- Designed for Mercedes-Benz parking brake systems
- Facilitates servicing of wire retaining springs
- Ideal for vehicles with large wheel hubs
- Prevents damage to retaining springs
- Professional workshop quality construction
