Special Socket Set for Bosch VE & VP Injection Pumps

This professional special socket set is designed for loosening triangular and two-pin screws on Bosch diesel injection pumps and quantity adjuster units.

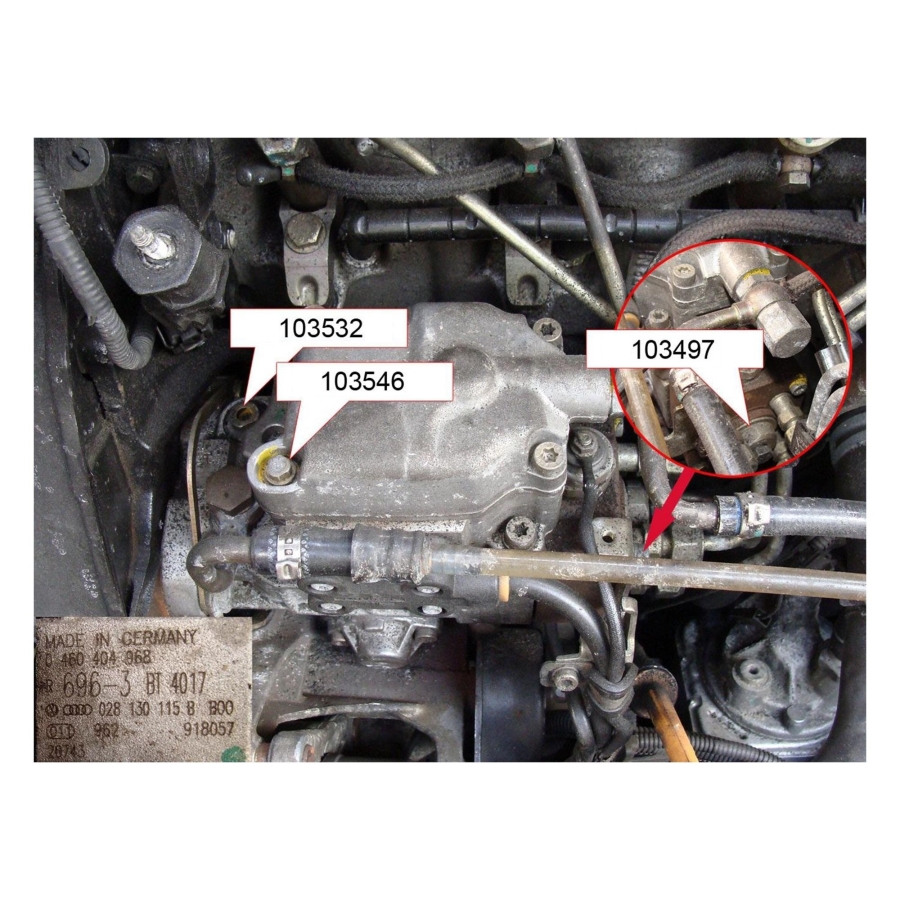

The tools are required when dismantling the injection pump or when resealing and servicing the pump components.

The set is compatible with Bosch VP37 injection pumps and equivalent pump designs from manufacturers such as Delphi and Kikki.

Technical Specifications

Socket – Part No. 103546

• Application: Removing EDC pump cover screw

• Shape: Triangular

• Triangle height: 7 mm

• Length: 36 mm

• Usable depth: 17 mm

• Drive: External hex 13 mm

• Material: Chrome-Molybdenum steel

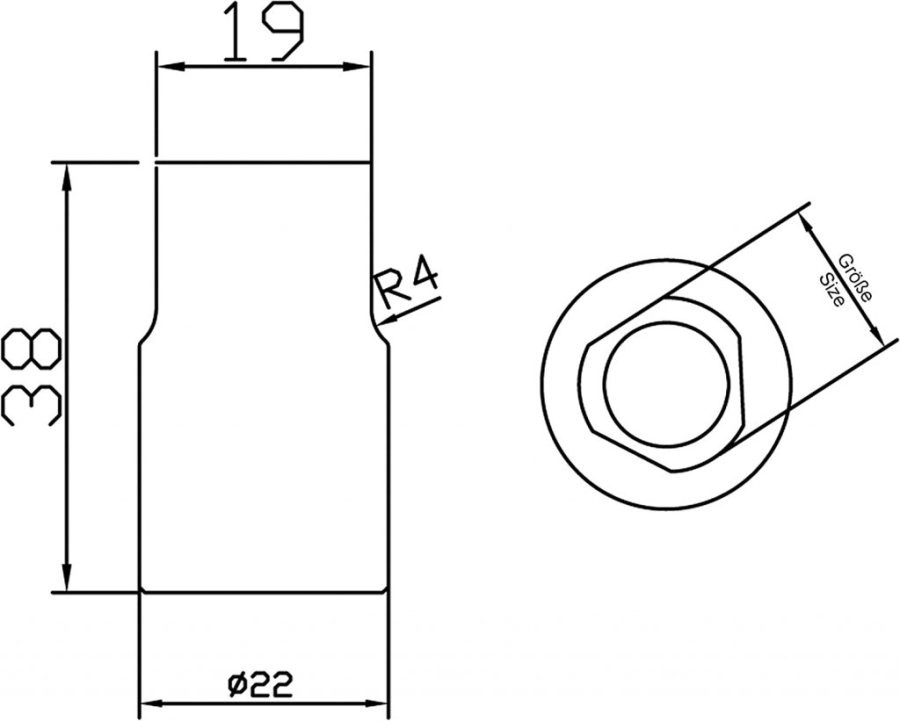

Socket – Part No. 103535

• Application: Removing pump cover screw

• Shape: Triangular

• Triangle height: 13 mm

• Length: 37.5 mm

• Usable depth: 17 mm

• Drive: 1/2" internal square (12.5 mm)

• Material: Chrome-Vanadium steel

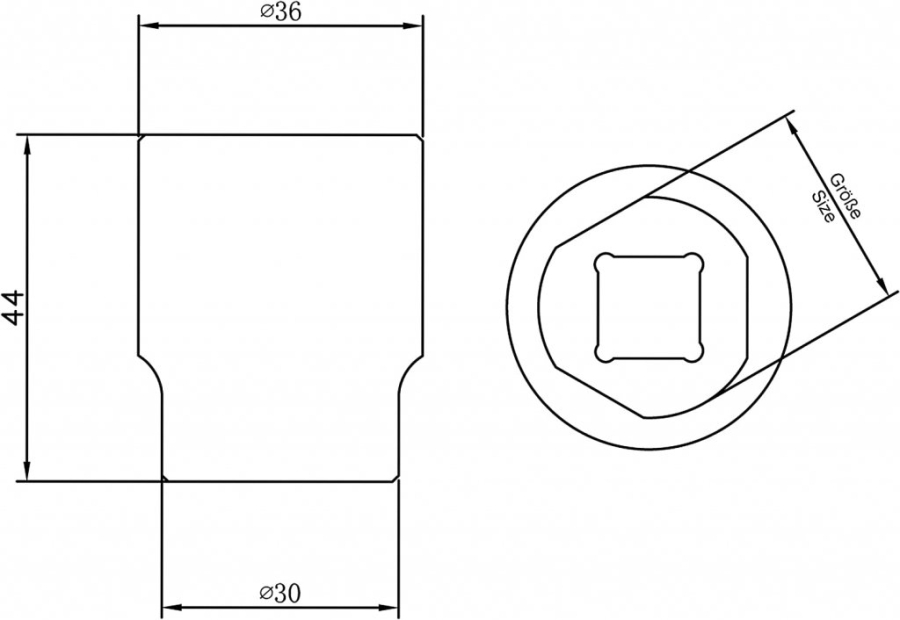

Socket – Part No. 103497

• Application: Removing dial gauge holder cover / large side central screw

• Shape: Triangular

• Triangle height: 26 mm

• Length: 42 mm

• Usable depth: 23 mm

• Drive: 1/2" internal square (12.5 mm)

• Material: Chrome-Vanadium steel

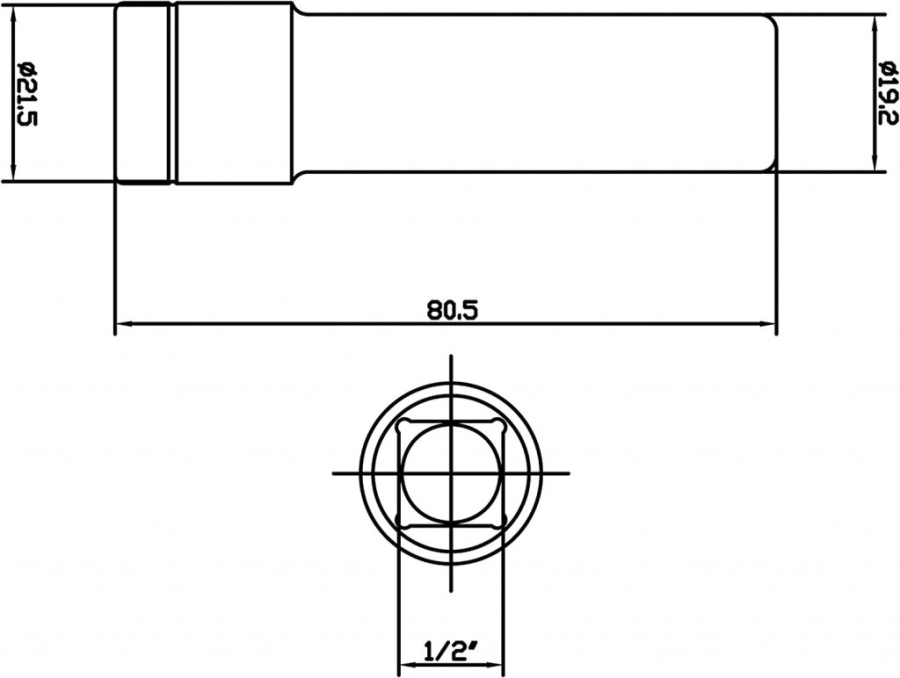

Socket – Part No. 103532

• Application: Removing pressure control valve

• Shape: Two-pin

• Height: 10 mm

• Length: 80 mm

• Usable depth: 14 mm

• Drive: 1/2" internal square (12.5 mm)

• Material: Chrome-Vanadium steel

Compatible Injection Pumps

• Bosch VP37 injection pumps

• Equivalent pumps from Delphi, Kikki and similar manufacturers

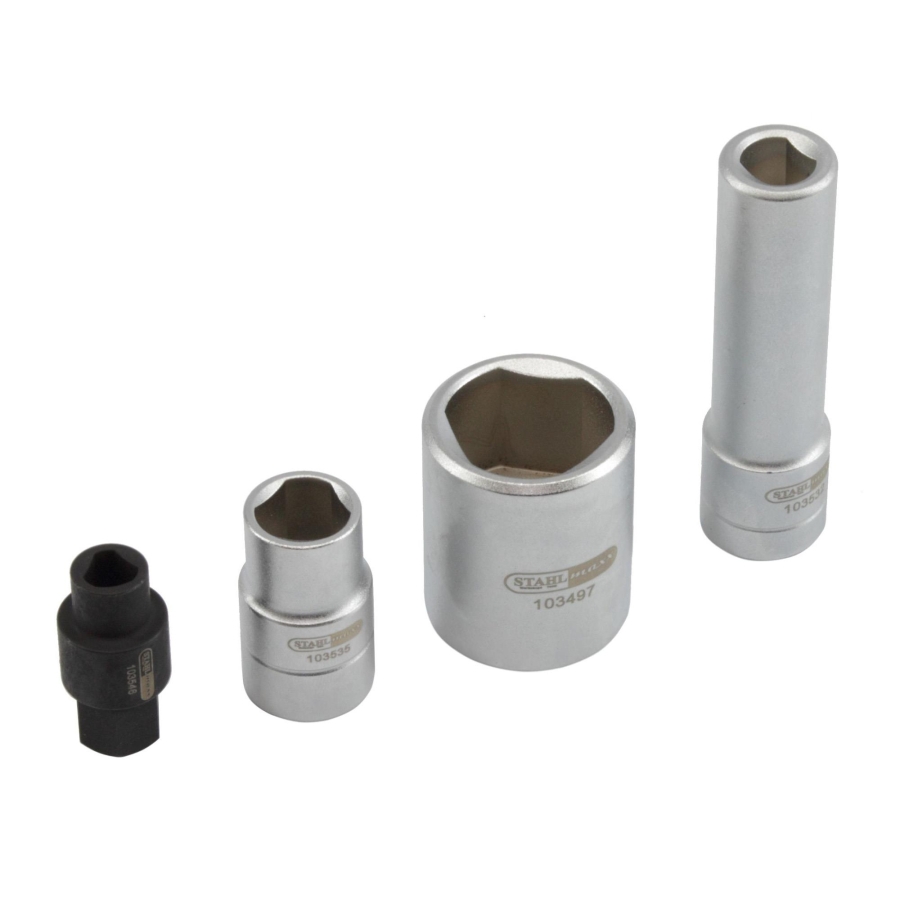

Delivery Contents

• 1 × 3-point socket for EDC pump cover (Art. 103546)

• 1 × 3-point socket for pump cover screws (Art. 103535)

• 1 × 3-point socket for dial gauge holder cover / central screw (Art. 103497)

• 1 × 2-point socket for pressure control valve removal (Art. 103532)
